Zone Offroad 5-Inch Lift Kit with Fox Adventure Series Shocks — Ford F-150 Tremor SKU: ZONF107F

This kit lifts the F-150 Tremor 5 inches up front and 3 inches in the rear using high-strength crossmembers, ductile iron steering knuckles, and top-mounted strut spacers paired with a rear block kit, all matched with Fox Adventure Series shocks and supporting hardware to correct geometry and level the stance.

Before ordering: This kit fits 2021–2026 Ford F-150 Tremor, 4WD, gas models only. It does not fit diesel models. Installation requires frame bracket modification. Trucks with a 2-piece rear driveshaft require carrier bearing shim kit D5405, sold separately. Confirm driveshaft configuration, wheel diameter (18" minimum), backspacing, and tire size before ordering.

Required separately: Carrier bearing shim kit D5405 (required for 2-piece rear driveshaft models). Professional installation is strongly recommended for this Difficult-rated, 8–10-hour installation. 18" or larger wheels required — stock 17" and 18" wheels cannot be reinstalled after this lift.

Verified Fitment

Does not fit diesel models. The F-150 Tremor in diesel configuration is not supported.

4 Auto note: Fits models with 4 Auto that do not have the 4WD actuator hub assembly.

Ford Recall 21S25: Zone Offroad recommends completing Ford Safety Recall 21S25 (rear driveshaft) prior to installing this kit on affected 2021 trucks.

Component Specifications

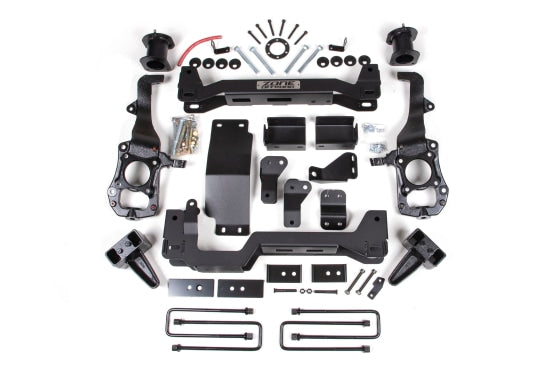

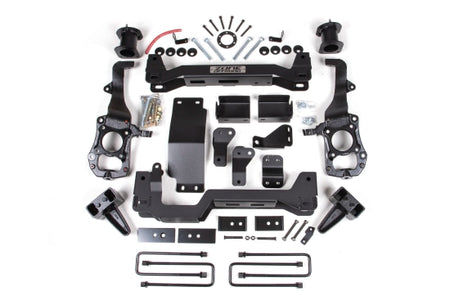

What Is and Is NOT Included

Included:

• High-strength crossmembers (lower control arm positioning correction)
• Ductile iron steering knuckles (geometry and ESC compatibility correction)
• Top-mounted strut spacers (5" front lift)
• Rear lift blocks and extended u-bolts (3" rear lift)
• Differential skid plate
• Sway bar relocation bracket
• Brake line relocation brackets
• Bump stop relocation brackets
• Fox Adventure Series shocks, front and rear
• All required installation hardware

Not included:

• Carrier bearing shim kit D5405 (required if truck has a 2-piece rear driveshaft, sold separately)

Critical Compatibility

• Diesel exclusion: Does not fit diesel models. Gas models only across all years.
• Frame bracket modification required: Installation requires modification of the frame bracket. This is not optional.
• 2-piece rear driveshaft: Models with a 2-piece rear driveshaft require carrier bearing shim kit D5405 (not included, sold separately). Verify your driveshaft configuration before ordering.
• Ford Recall 21S25: If your 2021 F-150 Tremor is subject to Ford Safety Recall 21S25 (rear driveshaft), Zone Offroad recommends completing that recall procedure before installing this kit.
• Wheel diameter: 18" or larger diameter wheels are required. Stock 17" and 18" wheels cannot be reinstalled after this lift. Stock 20" wheels can be used with a tire no larger than 305/60R20.
• Wheel backspacing — 18" wheels: 18" wheels with 5–5.5" backspacing should be test-fit on the vehicle prior to mounting the tire to confirm clearance to the steering knuckle and tie rod. 18–20" wheels with 5.5–5.75" backspacing are highly recommended for clearance between the tire and frame crash bar.
• 37" tires: Require crash bar modification. Crash bar modifications are the end user's responsibility; ensure all modifications are non-detrimental to vehicle safety.
• 4WD actuator hub: Fits models with 4 Auto that do not have the 4WD actuator hub assembly.
• Rear block: Block kit replaces the factory 1-1/4" block. The stock block will not be reinstalled.

Installation Notes

Professional installation is strongly recommended for this kit, which is rated Difficult with an estimated 8–10-hour install time. A professional alignment must be completed after installation.

Required tools: 204-592 Ball Joint Separator (recommended), torque wrench, reciprocating saw, strut compressor.

Before beginning installation: Confirm driveshaft configuration. If the truck has a 2-piece rear driveshaft, carrier bearing shim kit D5405 must be on hand before installation begins. If the truck is subject to Ford Recall 21S25, complete that recall procedure first.

Frame modification: This installation requires frame bracket modification. Follow the Zone Offroad installation instructions for the approved procedure.

Refer to the current Zone Offroad installation instructions supplied with this kit for complete procedures, torque specifications, and all safety requirements.

The Obsidian Take

The ZONF107F gives the 2021–2026 F-150 Tremor a 5-inch front and 3-inch rear lift using ductile iron steering knuckles and high-strength crossmembers to correct geometry and maintain ESC compatibility — not just spacers stacked on OE geometry. Fox Adventure Series shocks are included. Four conditions to confirm before ordering: gas models only (no diesel); installation requires frame bracket modification; 2-piece rear driveshaft trucks need carrier bearing shim kit D5405 (not included); and stock 17" and stock 18" wheels cannot go back on after this lift. For 37" tires, crash bar modification is required and is the owner's responsibility.

This Product Is For You If

• You own a 2021–2026 Ford F-150 Tremor, 4WD, gas model.
• You want a 5" front / 3" rear lift with corrected steering geometry and ESC compatibility maintained.
• You want Fox Adventure Series shocks included with your kit.
• You are running or planning 18–20" wheels with the recommended backspacing for tire and crash bar clearance.
• You are prepared for a Difficult-rated, 8–10-hour installation requiring a reciprocating saw, strut compressor, and frame bracket modification.
• You have confirmed your driveshaft configuration and sourced D5405 if your truck has a 2-piece rear driveshaft.

This Product Is Not For You If

• Your F-150 Tremor is a diesel model.
• Your vehicle is not a 2021–2026 Ford F-150 Tremor.
• You are not prepared to modify the frame bracket during installation.
• You have a 2-piece rear driveshaft and are not prepared to obtain carrier bearing shim kit D5405 before installation.
• You plan to reinstall stock 17" or 18" wheels — they cannot be used after this lift.
• You want to run 37" tires without performing crash bar modification.
• You are not prepared for a Difficult-rated installation requiring a reciprocating saw, strut compressor, and professional alignment.

Common Questions

Does this kit fit diesel F-150 Tremors?
No. This kit is for gas models only across all supported years (2021–2026).

Is frame modification required?
Yes. Installation requires frame bracket modification. This is not avoidable and is part of the standard installation process for this kit.

My F-150 has a 2-piece rear driveshaft — what do I need?
Models with a 2-piece rear driveshaft require carrier bearing shim kit D5405, which is not included with this kit and must be purchased separately. Confirm your driveshaft configuration before ordering.

What wheel diameter does this kit require?
18" or larger wheels are required. Stock 17" and stock 18" wheels cannot be reinstalled. Stock 20" wheels can accommodate tires up to 305/60R20.

What backspacing is recommended?
For 18–20" wheels, 5.5–5.75" backspacing is highly recommended for tire-to-frame crash bar clearance. If you're running 18" wheels with 5–5.5" backspacing, test-fit the wheel (without a tire mounted) first to confirm clearance at the steering knuckle and tie rod.

Will 37" tires fit?
Up to 37" tires are supported, but crash bar modification is required. Crash bar modifications are the end user's responsibility; confirm all modifications are non-detrimental to vehicle safety.

How long does installation take and how difficult is it?
Zone Offroad rates this kit Difficult, with an estimated 8–10-hour installation time.

What tools do I need?
A 204-592 Ball Joint Separator (recommended), torque wrench, reciprocating saw, and strut compressor.

What is Ford Recall 21S25?
Ford issued Safety Recall 21S25 regarding the rear driveshaft on certain 2021 F-150 trucks. Zone Offroad recommends completing this recall procedure before installing this lift kit on affected trucks.

What warranty does this kit carry?
Zone Offroad provides a 3-year/36,000-mile Worry-Free Warranty on hard parts and wearable items, followed by a Limited Lifetime Warranty for the original purchaser for as long as they own the vehicle. Fox Adventure Series shock seals are not covered under warranty, though leaking seals within 2 years of purchase may be considered for review. See the full warranty summary below.

Manufacturer Data Disclaimer

Fitment, specification, included-component, and installation data for this kit are sourced from Zone Offroad manufacturer documentation and OFAS-verified product data current as of publication. Manufacturer specifications and included components are subject to change without notice; confirm current documentation for this SKU at the time of purchase.

Required Legal, Warning, Fitment, and Return Notices

Installation Warning: Zone Offroad strongly recommends installation by a certified mechanic. If installed by a non-certified person, the installer must read, understand, and follow all instructions and warnings before beginning. Installation instructions are available prior to purchase.

California Residents: Confirm California compliance for modified-height vehicles before purchase.

Warranty Summary: Zone Offroad provides a 3-year/36,000-mile Worry-Free Warranty on all hard parts and wearable items (ball joints, tie rod ends, and bushings) to the original retail purchaser — based on whichever limit is reached first. If a failure affects the use or structural integrity of the product, Zone Offroad will replace the affected part and cover ground shipping. After the 3-year/36,000-mile period, a Limited Lifetime Warranty applies, covering defects in materials and workmanship for as long as the original purchaser owns the vehicle on which the product was installed. Warranty coverage does not extend to consumer opinions regarding ride comfort, fitment, or design.

Finish Warranty: Product finish may be considered for warranty within 12 months of purchase. Damage caused by tools, road debris, trail use, general maintenance, or salty and corrosive environments is excluded.

Fox Adventure Series Shocks: Shock oil seal wear is not covered under warranty. Leaking shock seals that occur within 2 years of purchase, free from contamination, damage, or abnormal wear resulting from misuse, may be considered for warranty review.

Commercial vehicles: Warranty is limited to 1 year for commercial application vehicles.

Warranty exclusions: This warranty does not cover damage or failure resulting from abuse, neglect, accident, fire, improper installation or adjustment, or corrosion; modifications beyond Zone Offroad specifications; use in an application other than those specified in current Zone Offroad documentation; competition or racing use; or products that wear out due to the use of larger-than-specified wheels or tires.

Not covered under any warranty term: Labor for removal or reinstallation, expedited freight charges, damage to related vehicle components, vehicle downtime costs, lost profits, and incidental or consequential damages.

To file a claim: Contact Zone Offroad directly at Tech-Zone@ridefox.com or 888-998-9663. Only Zone Offroad can approve or deny a warranty request. Proof of purchase is required, including customer name, purchase date, vehicle mileage, product number, and price paid. Product photos are also required. If the claim is approved, Zone Offroad will replace or repair the product and cover ground shipping at no cost. If the defective part must be returned, a prepaid return shipping label will be provided.
