Zone Off Road 3.5" Adventure Series Lift Kit — Ford Bronco Badlands, 4-Door SKU: ZONF100

Overview

This is Zone Off Road's 3.5" Adventure Series lift kit for the 4-door Ford Bronco Badlands — a strut-spacer-based system for both front and rear, built off the factory suspension geometry, using a 2-piece strut spacer design and Adventure Pro Series upper control arms. It lifts the front 3.5" and the rear 2.5", with clearance for 35"–37" tires. The kit is manufactured in the USA and does not include shocks.

Before ordering: This kit fits the Ford Bronco Badlands edition only — it does not fit Bronco Sport, and is not compatible with HOSS 3.0, Raptor, or Sasquatch models. Verified fitment years are 2021–2025. This listing is for the 4-Door configuration. Confirm your exact Badlands configuration (and that it is not HOSS 3.0, Raptor, or Sasquatch equipped) before ordering.

Required separately: This kit does not include shocks. Your factory Badlands shocks (or a separately sourced shock) will be used with this kit — confirm compatibility before ordering. If running 37x12.50 tires at full suspension travel, address body mount and inner fender clearance separately (see Critical Compatibility).

Verified Fitment

Lift height was not specified in the source data for 2024–2025 rows; the kit's own specification (3.5" front / 2.5" rear) applies per Component Specifications below. Door configuration for this SKU: 4-Door.

Component Specifications

What Is and Is NOT Included

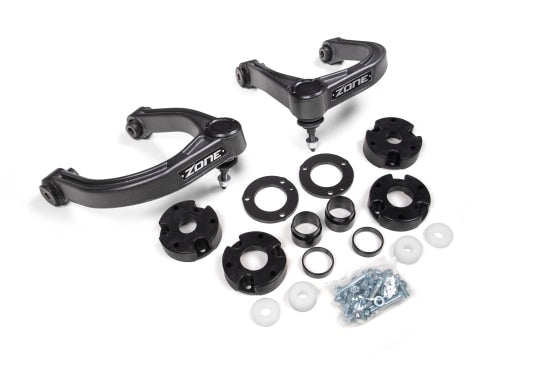

Included:

• 2-piece front strut spacers
• Rear strut spacers
• Adventure Pro Series upper control arms
• All necessary installation hardware

Not included:

• Shocks
• Wheels and tires

Critical Compatibility

• Badlands edition only. Does not fit Bronco Sport. Not compatible with HOSS 3.0, Raptor, or Sasquatch models.
• Lift split: This kit lifts the front 3.5" and the rear 2.5" — these are different heights, not a uniform 3.5" lift front and rear.
• CV axle nut: May need to be loosened and tightened with the vehicle's weight on the ground during installation.
• 37x12.50 tire clearance: These tires will work at ride height, but may still contact the front body mount and possibly the rear inner fender through wheel travel and steering lock-to-lock. If running this tire size and using the full suspension travel, these clearance areas must be addressed.
• Recommended tire/wheel combinations: 37x12.5 tires with 20x9 wheels and 5"–5.5" backspace; 35x11.5 tires with 20x9 wheels and 5"–6" backspace; 35x12.5 tires with 20x9 wheels and 5"–5.5" backspace. Trimming may be required for any of these.
• Not for competition or commercial use under full warranty terms: Competition/racing use voids the warranty entirely; commercial-application vehicles carry only a 1-year warranty term rather than the full coverage described above.

Installation Notes

Estimated install time is 3–4 hours; Zone rates this installation as Moderate difficulty, requiring only basic hand tools. The CV axle nut may need to be loosened and tightened with the vehicle's weight on the ground as part of the installation sequence. Zone strongly recommends installation by a certified mechanic; if self-installing, read, understand, and follow all instructions and warnings before beginning. Refer to the current Zone Off Road installation instructions supplied with this kit for complete procedures, torque specifications, and all safety requirements.

The Obsidian Take

The ZONF100 is Zone Off Road's 3.5" Adventure Series lift kit built specifically for the 4-door Ford Bronco Badlands — a strut-spacer-only system, front and rear, that doesn't touch your factory shocks, using Adventure Pro Series upper control arms for improved strength and travel. It's a relatively quick install (3–4 hours, basic hand tools) compared to the more involved F-150 and Ram kits in this catalog. Confirm these application conditions before ordering: it's Badlands-only, explicitly excludes HOSS 3.0, Raptor, and Sasquatch models, and running 37x12.50 tires at full suspension travel may require addressing body mount and fender clearance separately.

This Product Is For You If

• You own a 2021–2025 Ford Bronco Badlands, 4-door, that is not HOSS 3.0, Raptor, or Sasquatch equipped.
• You want a moderate lift (3.5" front / 2.5" rear) using strut spacers rather than a more involved coilover or knuckle-based system.
• You're keeping your factory shocks rather than upgrading them.
• You are running up to 35"–37" tires with appropriate wheel backspacing, and are prepared to address body/fender clearance if running 37x12.50 at full travel.
• You are prepared for a moderate-difficulty, 3–4 hour installation with basic hand tools.

This Product Is Not For You If

• Your Bronco is not the Badlands trim, or is a Bronco Sport.
• Your Bronco is HOSS 3.0, Raptor, or Sasquatch equipped.
• You want new shocks included with the kit — this kit does not include shocks.
• Your Bronco is the 2-door configuration and this listing's 4-Door specification doesn't match your vehicle.
• You intend to use the vehicle for competition or racing.

Common Questions

Does this fit the Bronco Sport?
No.

Does this fit HOSS 3.0, Raptor, or Sasquatch models?
No — this kit is not compatible with any of those.

Does this include shocks?
No. This kit uses strut spacers front and rear and does not include shocks.

How much lift does this give me?
3.5" in the front, 2.5" in the rear.

Can I run 37" tires?
37x12.50 tires will work at ride height, but may contact the front body mount or rear inner fender through wheel travel and steering lock-to-lock — these areas must be addressed if running that tire size with full suspension travel.

What tools do I need?
Basic hand tools. Estimated install time is 3–4 hours, rated Moderate difficulty.

Is there anything special about the CV axle during installation?
Yes — the CV axle nut may need to be loosened and tightened with the vehicle's weight on the ground.

What is the warranty?
This kit is backed by Zone's Factory Protection Plus program. See full warranty summary below.

Manufacturer Data Disclaimer

Fitment, specification, installation, and warranty data for this kit are sourced from Zone Off Road manufacturer product documentation and the Zone Off Road Product Warranty policy supplied for this exact part number, current as of publication. The product title referenced a broader year range (2021–2026) than the verified fitment table supplied (2021–2025); only the verified range is published here. Specifications are subject to change without notice; confirm current documentation for this SKU at the time of purchase.

Required Legal, Warning, Fitment, and Return Notices

Safety Warning: This kit affects suspension geometry, front and rear. Confirm your Bronco's exact configuration (Badlands, non-HOSS 3.0, non-Raptor, non-Sasquatch) before installation. Zone strongly recommends installation by a certified mechanic; if the installer is not a certified mechanic, they must read, understand, and follow all instructions and warnings before installation.

Warranty Summary: This kit is covered under Zone Off Road's Factory Protection Plus program. Under Zone's general Product Warranty, to the original retail purchaser, Zone provides a 3-year/36,000-mile (whichever occurs first) Worry Free warranty on hard parts and wearable items — including ball joints, tie rod ends, and bushings — that are well maintained and free of contamination, damage, or wear from improper use or installation; shocks are excluded from this period (not applicable to this kit, as no shocks are included). After 3 years/36,000 miles, a Limited Lifetime Warranty guarantees the product is free from defects in material and workmanship for as long as the original purchaser owns the vehicle. Warranty coverage excludes consumer opinions about ride comfort, fitment, or design.

Product finish is warrantable within 12 months of purchase, excluding damage from tools, road debris, trail use, general maintenance, or salty/corrosive environments.

This warranty does not apply to products subjected to abuse, neglect, accident, fire, improper installation or adjustment, or corrosion; products modified or altered beyond Zone Off Road specifications; products used outside recommended applications; or products used for competition or racing. Failure due to the use of larger wheels or tires is not covered. Commercial-application vehicles are covered for 1 year only.

To file a claim, contact Zone Off Road directly at Tech-Zone@ridefox.com or 888-998-9663 — only Zone Off Road can approve or deny a warranty request. Proof of purchase (customer name, purchase date, vehicle mileage, product number, and price paid) and photos of the product are required. If approved, Zone Off Road will replace or repair the product and cover ground shipping at no cost; if the part must be returned, a prepaid shipping label will be provided. Expedited freight, installation and labor costs, damage to related components, downtime costs, normal wear and tear, lost profits, and incidental or consequential damages are not covered. This warranty gives specific legal rights, which may vary by state; no warranties beyond those described are expressed or implied.
