sPOD SourceLT Non-Switch Panel Kit | 6-Circuit Solid-State | 84-In Cables | Universal | SKU 870117
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support

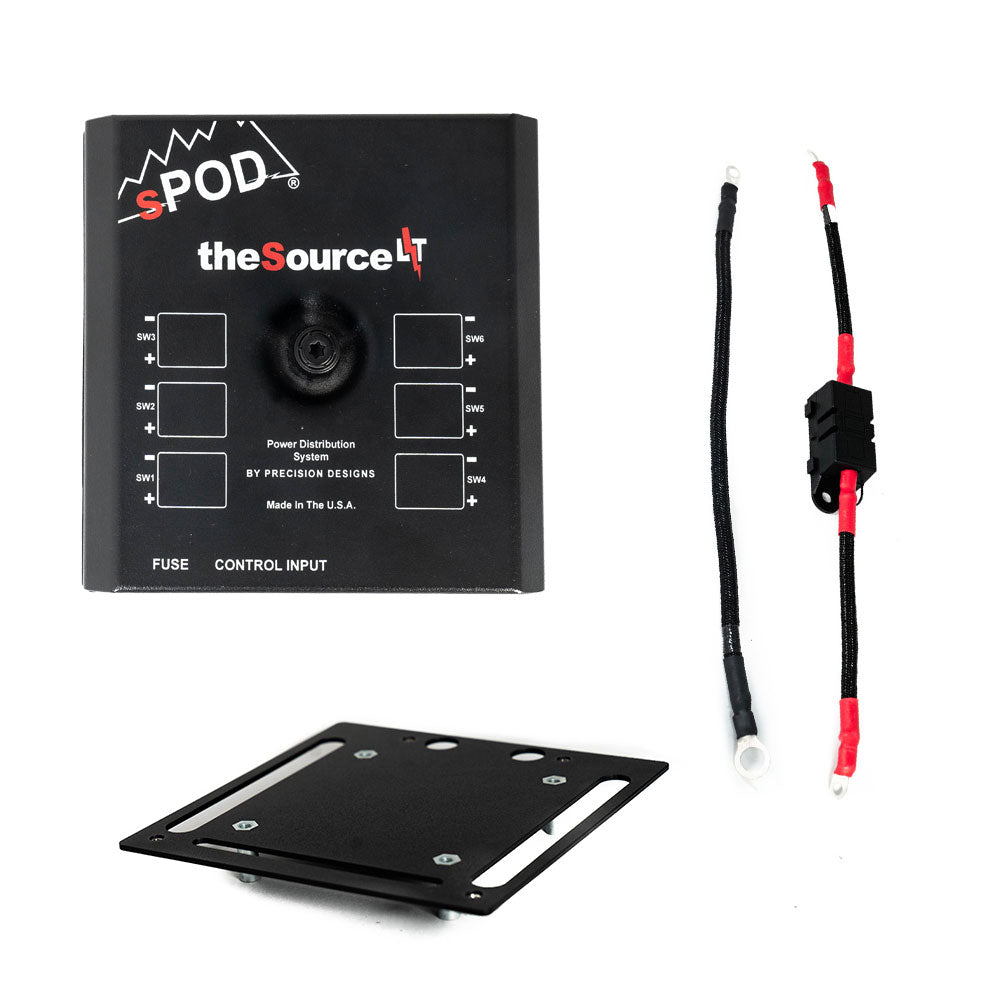

The sPOD SourceLT Non-Switch Panel Kit (SKU 870117) is the universal 6-circuit solid-state SourceLT power module with 84-inch (7-foot) battery cables — no switch panel included. Same SourceLT module as SKU 870116 with extended cable reach for builds where the module mounts more than 3 feet from the battery. Six circuits at 30A each. Operates on 12V DC only.
Switch panel is NOT included. This is the SourceLT module and 84-inch cables only. If 36 inches of reach is sufficient for your installation, order SKU 870116 at $20 less. This system is not expandable beyond 6 circuits. If your build may exceed 6 accessories, order the BantamX 84-inch kit (870115) at $105 more.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 870117 |
| Brand | sPOD |
| Product Line | SourceLT Non-Switch Panel Kit |
| Fitment | Universal — off-road, overland, UTV, van, trailer, custom builds |
| Switch Panel | NOT included |
| Control Interface | sPOD app (Bluetooth) or compatible sPOD switch panel (sold separately) |
| Number of Circuits | 6 — independently switched |
| Single Circuit Capacity | 30A at 12.5V DC |
| Max Circuit Load Range | 1.5A – 30A per circuit (self-healing) |
| System Protection Fuse | 100A in-line fuse |
| Operating Voltage | 12V DC only — does NOT operate on 24V |
| Control Technology | Current-sensing MOSFETs via microprocessor — no fuses, no relays |
| Fault Protection | Self-healing circuits; overheating, over-current, short, reverse polarity, field collapse |
| Low Voltage Cutoff (LVCO) | Disconnects at 11.6V (2-min delay); requires 12.8V to reinitialize |
| LVCO Override | Optional override available |
| Expandability | Not expandable — closed 6-circuit system |
| Terminal Block | 12-position terminal block |
| Bluetooth | Built-in sPODConnect — controlled via free sPOD Mobile App (iOS and Android) |
| Software Updates | On-demand wireless OTA updates |
| Controller Cable | 10-ft CAT-6 Ethernet included — can extend up to 25 ft |
| Battery Cable Length | 84 inches (7 feet) |
| Battery Cables | Hi-strand crosslinked copper wire, silicone jacket, nylon braid |
| Weatherproofing | All-weather construction — rated for off-road and outdoor exposure |
| Shipping Weight | 5.0 lbs |
| Country of Origin | USA |
| Warranty | 5-year manufacturer warranty |
| Sold As | Each |
What Is and Is NOT Included
| Item | Included |
|---|---|
| sPOD SourceLT solid-state module (6-circuit) | ✓ |
| 84-inch battery cable set | ✓ |
| 10-ft CAT-6 Ethernet cable | ✓ |
| All required installation hardware | ✓ |
| Switch panel (HD, Mini6, or other) | ✗ NOT included |
| Mounting bracket | ✗ NOT included — universal application; mount to suit your build |
sPOD Non-Switch Panel Module Selector
| SKU | Module | Circuits | Cable Length | Voltage | Expandable | Price vs 870117 |
|---|---|---|---|---|---|---|
| 870116 | SourceLT | 6 | 36 inches | 12V DC only | No | −$20 |
| 870117 (this listing) | SourceLT | 6 | 84 inches | 12V DC only | No | — |
| 870114 | BantamX | 8 | 36 inches | 12V or 24V | Yes — to 32 | +$85 |
| 870115 | BantamX | 8 | 84 inches | 12V or 24V | Yes — to 32 | +$105 |
Choose 870117 if your build is at 6 accessories or fewer, your module mounts more than 3 feet from the battery, and 12V DC is all you need. If the routing path is under 3 feet, save $20 and order 870116. If there is any chance your build grows past 6 accessories, spend the extra $105 on the BantamX 84-inch (870115) — the SourceLT has no upgrade path.
Cable Length — Confirm Before Ordering
| Cable Length | Best For |
|---|---|
| 36 inches — 870116 | Module within 3 feet of battery — UTV engine bays, compact overland setups, short routing paths |
| 84 inches — 870117 (this listing) | Module more than 3 feet from battery — firewall to rear cargo, engine bay to roof rack, van or trailer builds, extended routing paths |
Measure your full routing path from the battery to the planned module location before ordering. Insufficient cable requires a return — excess cable is manageable.
Compatible sPOD Switch Panels and Control Interfaces
| Interface | Type | Notes |
|---|---|---|
| sPOD Mini6 switch panel | Physical — 6 switches | Connects via RJ45 CAT-6 cable |
| sPOD HD switch panel | Physical — 8 switches, RGB backlit | Connects via RJ45 CAT-6 cable |
| sPOD BantamX touchscreen | Touchscreen | Connects via RJ45 CAT-6 cable |
| sPOD Mobile App (iOS/Android) | Bluetooth app — wireless | Built-in Bluetooth — no cable required |
Critical Compatibility
| Configuration | Notes |
|---|---|
| Non-sPOD switch panels | Not confirmed — SourceLT uses the sPOD CAT-6 RJ45 controller interface. Third-party switch panels are not compatible. |
| Builds requiring more than 6 circuits | SourceLT is a closed 6-circuit system. Order BantamX 84-inch (870115) for 8 expandable circuits with the same cable length. |
| 24V DC electrical systems | SourceLT operates on 12V DC only. Order a BantamX kit for 24V compatibility. |
| Winches and high-draw recovery motors | 30A max per circuit. Winches draw 250–400A under load. Wire winches direct to battery through a dedicated relay. |
| Any accessory requiring more than 30A per circuit | 30A hard ceiling per circuit. High-draw devices require direct battery wiring outside this system. |
| High-amp solenoids on the same battery post | High-amp solenoids or relay coils on the same positive battery post will damage the module. Isolate the SourceLT battery connection from any high-amp relay or solenoid. |
Common Questions
Why would I need 84-inch cables instead of 36-inch? Remote module mounting. If your installation puts the SourceLT module more than 3 feet from the battery — firewall to rear cargo area, engine bay to roof rack, front battery to mid-cab module in a van or trailer build — the 36-inch cables cannot reach. The 84-inch cables give you 7 feet of routing flexibility. Measure your exact path with a tape measure before committing. If the path is under 3 feet, save the $20 and order 870116.
Does this kit work as a standalone wireless controller right out of the box? Yes — with the sPOD app. The SourceLT module has built-in Bluetooth and is fully functional with the free sPOD app as the sole control interface. Download the app, pair, label your circuits, and control all 6 from your phone. Add a compatible sPOD switch panel via the RJ45 port when needed.
Can I upgrade from the SourceLT to a BantamX later without rewiring everything? Partially. The accessory wiring connected to the terminal block and the battery cables transfer directly. The CAT-6 controller cable is compatible. The module itself needs to be swapped and re-mounted. It is possible, but it is additional cost and labor that the $105 upfront difference between this kit and the BantamX 84-inch (870115) eliminates entirely.
What mounting hardware is included? None specific — this is a universal module. Mount using the module housing's mounting points to suit your build. Use the 90-degree bracket (910275) or flat bracket (910330) for a clean, permanent mount.
The Obsidian Take
The SourceLT Non-Switch Panel Kit (870117) is for the builder who needs 7 feet of cable reach, is certain their build stops at 6 accessories, and needs 12V DC only. Same SourceLT module as 870116 — the only difference is cable length and $20.
Two decisions to make before ordering. First — does your routing path actually exceed 3 feet? If not, order 870116 and save $20. Second — is 6 circuits genuinely your ceiling? If not, order the BantamX 84-inch (870115) now. The SourceLT has no upgrade path and replacing the module later costs more than the $105 difference today.
Non-Returnable Notice: Electrical systems that have been powered and connected to a vehicle are non-returnable. Inspect the kit and confirm fitment before connecting to the battery.
Manufacturer Data Disclaimer: Specifications and fitment data are sourced from sPOD manufacturer documentation. Obsidian Forged Auto Supply is an authorized sPOD dealer. Verify switch panel and control interface compatibility with your specific SourceLT module before ordering. Manufacturer specifications are subject to change without notice.
