sPOD SourceLT Modular | Green LED | 6-Circuit | 84-Inch Cables | Universal | SKU SLMOD84G
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
The sPOD SourceLT Modular (SKU SLMOD84G) is the universal 6-circuit solid-state power management system with a Green LED Carling Contura switch panel and 84-inch battery cables — for overland, off-road, UTV, work truck, and custom builds where no vehicle-specific kit exists for the platform. The SourceLT module and aluminum-formed Carling switch panel mount wherever the build requires. Single 10-foot CAT-6 cable between both. No wires cut, no factory circuits tapped. Operates on 12V DC. Green LED — all-around high-visibility, best switch-state readability across daylight and low-light conditions.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | SLMOD84G |
| Brand | sPOD |
| Product Line | SourceLT Modular — Universal |
| LED Switch Panel Color | Green |
| Switch Panel Type | Carling Contura — aluminum formed and welded panel |
| Platform | Universal — no vehicle-specific hardware included |
| Number of Circuits | 6 — independently switched |
| Single Circuit Capacity | 30A at 12.5V DC |
| Total System Capacity | 100A |
| System Protection Fuse | 100A in-line fuse |
| System Circuit Breaker | 50A auto-resetting |
| Operating Voltage | 12V DC only — does NOT operate on 24V |
| Control Technology | Current-sensing MOSFETs via microprocessor — no fuses, no relays |
| Fault Protection | Self-healing circuits; overheating, over-current, short, reverse polarity, field collapse |
| Low Voltage Cutoff (LVCO) | Disconnects at 11.6V (2-min delay); requires 12.8V to reinitialize |
| LVCO Override | Optional override available |
| Expandability | Not expandable — closed 6-circuit system |
| Terminal Block | 12-position terminal block |
| Controller Cable | 10 ft CAT-6 Ethernet (switch panel to SourceLT module) |
| CAT-6 Max Run | Up to 25 ft from SourceLT to switch panel |
| Bluetooth | Built-in sPODConnect — controlled via free sPOD Mobile App (iOS and Android) |
| Software Updates | On-demand wireless OTA updates |
| Battery Cable Length | 84 inches |
| Battery Cables | Hi-strand crosslinked copper wire, silicone jacket, nylon braid |
| Wiring Sleeves | High-temp abrasion-resistant nylon braided sleeving on all wires |
| Housing — Base | Powder-coated steel with integrated hardware |
| Housing — Lid | Aluminum formed, welded, powder-coated; thumb-screw fastening; silkscreened legend outlines |
| Programmable Modes | On/off (latch), Momentary, Strobe, Dimming |
| Shipping Weight | 5.0 lbs |
| Country of Origin | USA |
| Warranty | 5-year manufacturer warranty |
| Sold As | Complete kit |
SourceLT Modular Color and Cable Length Options
| SKU | LED Color | Cable Length | Best For |
|---|---|---|---|
| SLMOD84G (this listing) | Green | 84 inches | All-around visibility — best switch-state readability across all lighting conditions |
| SLMOD84R | Red | 84 inches | Maximum night vision preservation — dedicated trail and off-road night builds |
| SL-MOD-84-A | Amber | 84 inches | Night vision-friendly, warm spectrum — trail and mixed-use builds |
| SL-MOD-84-B | Blue | 84 inches | High-contrast visibility — daily drivers and mixed-use builds |
| SL-MOD-36-G | Green | 36 inches | Same panel — shorter cable for compact mounting locations |
Modular vs. Vehicle-Specific SourceLT — Which Is Right
| Kit Type | Panel Format | Vehicle Fitment | Mounting Hardware |
|---|---|---|---|
| SourceLT Modular (this listing) | Carling Contura LED panel — aluminum formed/welded | Universal — any 12V vehicle | Universal — no vehicle-specific bracket |
| SourceLT Vehicle-Specific | Carling Contura LED panel | Vehicle-specific (Tundra, JK, etc.) | Vehicle-specific mounting hardware included |
| SourceLT Mini6 Vehicle-Specific | Mini6 silicone-button panel | Vehicle-specific | Vehicle-specific mounting hardware included |
Order the Modular kit when no vehicle-specific SourceLT exists for your platform, when you are building a fully custom electrical layout, or when you want complete control over both module and panel mounting positions.

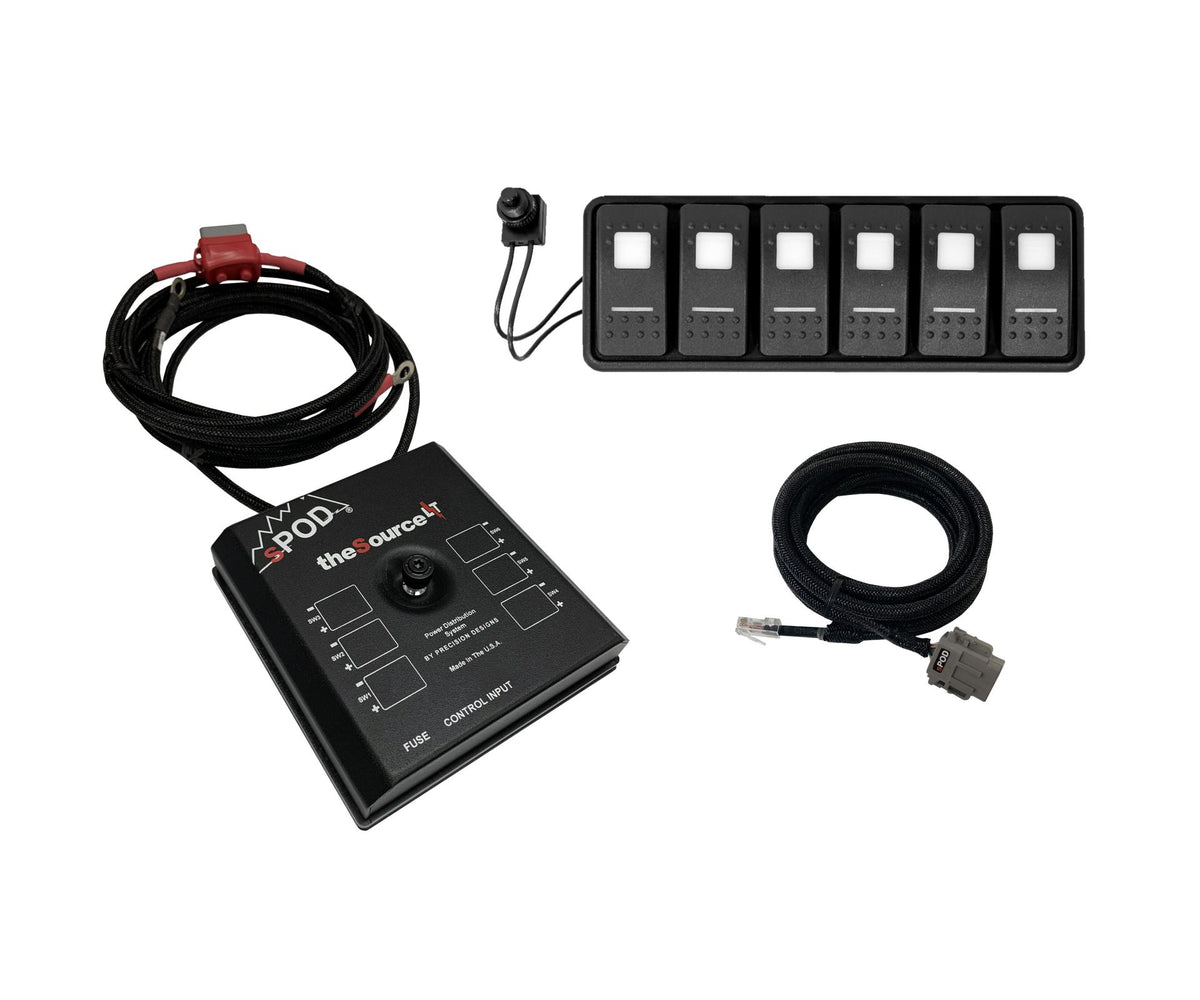

Kit Contents
- sPOD SourceLT solid-state module (6-circuit)
- Green LED Carling Contura aluminum switch panel
- 84-inch battery cable set (hi-strand crosslinked copper, silicone jacket, nylon braid)
- 10-ft CAT-6 Ethernet controller cable
- All required installation hardware
Critical Compatibility
| Configuration | Notes |
|---|---|
| Builds requiring more than 6 circuits | SourceLT is a closed 6-circuit system. No expansion path. Order a universal BantamX kit for 8 expandable circuits. |
| 24V DC electrical systems | SourceLT operates on 12V DC only. |
| Winches and high-draw recovery motors | 30A max per circuit. Wire winches direct to battery through a dedicated relay. |
| Any accessory requiring more than 30A per circuit | 30A hard ceiling per circuit. High-draw devices require direct battery wiring outside this system. |
| High-amp solenoids on the same battery post | Isolate the SourceLT battery connection from any high-amp relay or solenoid on the same positive post. |
Common Questions
Why Green LED over Amber, Red, or Blue? Green sits at the peak of the human eye's photopic sensitivity curve — the visible wavelength where the eye resolves contrast most sharply. This makes Green the best all-around panel color for switch-state readability in daylight, mixed lighting, and low-light cab environments. For a build that operates across a range of conditions and lighting situations, Green is the most versatile choice. For dedicated night operation where preserving dark adaptation matters, Amber (SL-MOD-84-A) or Red (SLMOD84R) are better options.
Why 84-inch cables instead of 36-inch? 84-inch cables provide 7 feet of routing flexibility between the battery and the module — necessary when the module mounts away from the battery in full-size trucks, van builds, overland rigs, or custom layouts. If your module will be within 3 feet of the battery, the 36-inch version (SL-MOD-36-G) is the cleaner choice.
What makes this "Modular"? The Modular variant uses universal hardware — no vehicle-specific bracket or platform harness. Both the module and switch panel can mount in any position the build requires. Order this when no vehicle-specific SourceLT kit exists for your platform or when you are building a custom layout.
Can I expand beyond 6 circuits later? No. The SourceLT is a closed 6-circuit system with no expansion path. If there is any chance you need more circuits, order a universal BantamX kit instead.
The Obsidian Take
The SourceLT Modular (SLMOD84G) is for the builder running a platform without a vehicle-specific SourceLT kit who wants 6 circuits of clean, fuse-free accessory power with the most versatile LED color in the lineup. Green LED reads clearly in any lighting condition — trail, road, or cab — without the night vision trade-off of Blue or the daytime readability limitations of Red. Same SourceLT system as every vehicle-specific kit, on your terms and in your mounting locations.
If 6 circuits covers the build and 84-inch cables match the routing path, this is the right kit.
Non-Returnable Notice: Electrical systems that have been powered and connected to a vehicle are non-returnable. Inspect the kit and confirm fitment before connecting to the battery.
Manufacturer Data Disclaimer: Specifications sourced from sPOD manufacturer documentation. Obsidian Forged Auto Supply is an authorized sPOD dealer. Verify compatibility with your specific vehicle and build configuration before ordering. Manufacturer specifications are subject to change without notice.
