sPOD SourceLT Modular | Amber LED | 6-Circuit | 84-Inch Cables | Universal | SKU SLMOD84A
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
The sPOD SourceLT Modular (SKU SLMOD84A) is the universal 6-circuit solid-state power management system with an Amber LED Carling Contura switch panel and 84-inch battery cables — for overland, off-road, UTV, work truck, and custom builds where no vehicle-specific kit exists for the platform. The SourceLT module and aluminum-formed Carling switch panel mount wherever the build requires. Single 10-foot CAT-6 cable between both. No wires cut, no factory circuits tapped. Operates on 12V DC. Amber LED — warm, low-glare illumination that preserves night vision during trail and off-road driving.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | SLMOD84A |
| Brand | sPOD |
| Product Line | SourceLT Modular — Universal |
| LED Switch Panel Color | Amber |
| Switch Panel Type | Carling Contura — aluminum formed and welded panel |
| Platform | Universal — ATV/UTV, Car, Jeep, Truck/SUV, Custom |
| Number of Circuits | 6 — independently switched |
| Single Circuit Capacity | 30A at 12.5V DC |
| Total System Capacity | 100A |
| System Protection Fuse | 100A in-line fuse |
| System Circuit Breaker | 50A auto-resetting |
| Operating Voltage | 12V DC only — does NOT operate on 24V |
| Control Technology | Current-sensing MOSFETs via microprocessor — no fuses, no relays |
| Fault Protection | Self-healing circuits; overheating, over-current, short, reverse polarity, field collapse |
| Low Voltage Cutoff (LVCO) | Disconnects at 11.6V (2-min delay); requires 12.8V to reinitialize |
| LVCO Override | Optional override available |
| Expandability | Not expandable — closed 6-circuit system |
| Terminal Block | 12-position terminal block |
| Controller Cable | 10 ft CAT-6 Ethernet (switch panel to SourceLT module) |
| CAT-6 Max Run | Up to 25 ft from SourceLT to switch panel |
| Bluetooth | Built-in sPODConnect — controlled via free sPOD Mobile App (iOS and Android) |
| Software Updates | On-demand wireless OTA updates |
| Battery Cable Length | 84 inches |
| Battery Cables | Hi-strand crosslinked copper wire, silicone jacket, nylon braid |
| Wiring Sleeves | High-temp abrasion-resistant nylon braided sleeving on all wires |
| Housing — Base | Powder-coated steel with integrated hardware |
| Housing — Lid | Aluminum formed, welded, powder-coated; thumb-screw fastening; silkscreened legend outlines |
| Finish | Powder-coated black |
| Legends | Included |
| Bluetooth | Yes — built-in sPODConnect |
| Programmable Modes | On/off (latch), Momentary, Strobe, Dimming |
| Shipping Weight | 5.0 lbs |
| Country of Origin | USA |
| Warranty | 5-year manufacturer warranty |
| Sold As | Each |
SourceLT Modular Color and Cable Length Options
| SKU | LED Color | Cable Length | Best For |
|---|---|---|---|
| SLMOD84A (this listing) | Amber | 84 inches | Night vision-friendly, warm spectrum — trail, off-road, and mixed-use builds |
| SLMOD84G | Green | 84 inches | All-around visibility — best switch-state readability across all lighting conditions |
| SLMOD84R | Red | 84 inches | Maximum night vision preservation — dedicated dark trail and off-road night builds |
| SLMOD84B | Blue | 84 inches | High-contrast visibility — daily drivers and mixed-use builds |
| SL-MOD-36-A | Amber | 36 inches | Same panel — shorter cable for compact mounting locations close to the battery |
Modular vs. Vehicle-Specific SourceLT — Which Is Right
| Kit Type | Panel Format | Vehicle Fitment | Mounting Hardware |
|---|---|---|---|
| SourceLT Modular (this listing) | Carling Contura LED panel — aluminum formed/welded | Universal — any 12V vehicle | Universal — no vehicle-specific bracket |
| SourceLT Vehicle-Specific | Carling Contura LED panel | Vehicle-specific (Tundra, JK, etc.) | Vehicle-specific mounting hardware included |
| SourceLT Mini6 Vehicle-Specific | Mini6 silicone-button panel | Vehicle-specific | Vehicle-specific mounting hardware included |
Order the Modular kit when no vehicle-specific SourceLT exists for your platform, when you are building a fully custom electrical layout, or when you want complete control over both module and panel mounting positions.

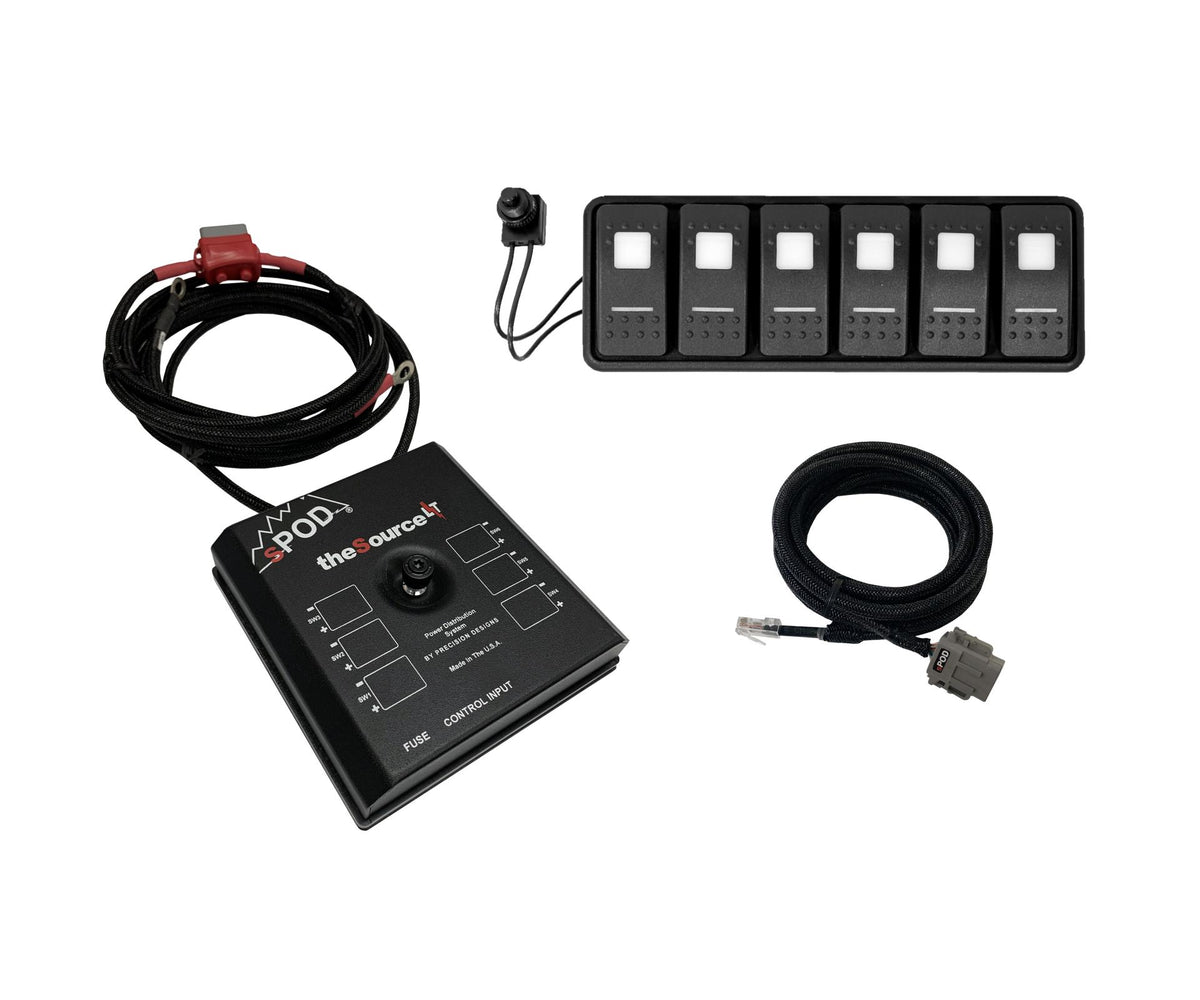

Kit Contents
- sPOD SourceLT solid-state module (6-circuit)
- Amber LED Carling Contura aluminum switch panel
- 84-inch battery cable set (hi-strand crosslinked copper, silicone jacket, nylon braid)
- 10-ft CAT-6 Ethernet controller cable
- Legend sheet
- All required installation hardware
Critical Compatibility
| Configuration | Notes |
|---|---|
| Builds requiring more than 6 circuits | SourceLT is a closed 6-circuit system. No expansion path. Order a universal BantamX kit for 8 expandable circuits. |
| 24V DC electrical systems | SourceLT operates on 12V DC only. |
| Winches and high-draw recovery motors | 30A max per circuit. Wire winches direct to battery through a dedicated relay. |
| Any accessory requiring more than 30A per circuit | 30A hard ceiling per circuit. High-draw devices require direct battery wiring outside this system. |
| High-amp solenoids on the same battery post | Isolate the SourceLT battery connection from any high-amp relay or solenoid on the same positive post. |
Common Questions
Amber vs. Red — which is better for night trail use? Both preserve night vision significantly better than Green or Blue. Amber sits in the warm spectrum with minimal pupil contraction — strong readability in intermediate lighting while still protecting dark adaptation. Red provides the maximum night vision preservation at the cost of slightly reduced readability in mixed light. For a build that sees both trail and occasional street use, Amber is the more versatile night-use choice. For a dedicated dark-trail-only rig, Red is the technical pick.
Why 84-inch cables instead of 36-inch? 84-inch cables give you 7 feet of routing flexibility — necessary when the module mounts away from the battery in trucks, van builds, overland rigs, or custom layouts. If your module will be within 3 feet of the battery, the 36-inch version (SL-MOD-36-A) is the cleaner choice with less excess cable to manage.
What makes this "Modular"? Universal hardware — no vehicle-specific bracket or platform harness. Both the module and switch panel mount wherever the build requires. Order this when no vehicle-specific SourceLT kit exists for your platform or when you are building a fully custom electrical layout.
Can I expand beyond 6 circuits later? No. The SourceLT is a closed 6-circuit system. No expansion path. If there is any chance you need more circuits, order a universal BantamX kit instead.
The Obsidian Take
The SourceLT Modular (SLMOD84A) is for the builder running a custom or non-catalogued platform who wants 6 circuits of clean, fuse-free accessory power with an Amber LED panel — the most versatile night-use color in the lineup. Warm, low-glare, trail-friendly visibility without sacrificing daytime readability. Same SourceLT system as every vehicle-specific kit, in universal hardware that mounts where the build demands.
If this rig runs exclusively in complete darkness, consider Red. If it splits time between road and trail, Amber is the right call.
Non-Returnable Notice: Electrical systems that have been powered and connected to a vehicle are non-returnable. Inspect the kit and confirm fitment before connecting to the battery.
Manufacturer Data Disclaimer: Specifications sourced from sPOD manufacturer documentation. Obsidian Forged Auto Supply is an authorized sPOD dealer. Verify compatibility with your specific vehicle and build configuration before ordering. Manufacturer specifications are subject to change without notice.
