sPOD SourceLT Modular | Blue LED | 6-Circuit | 36-Inch Cables | Universal | SKU SLMOD36B
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support

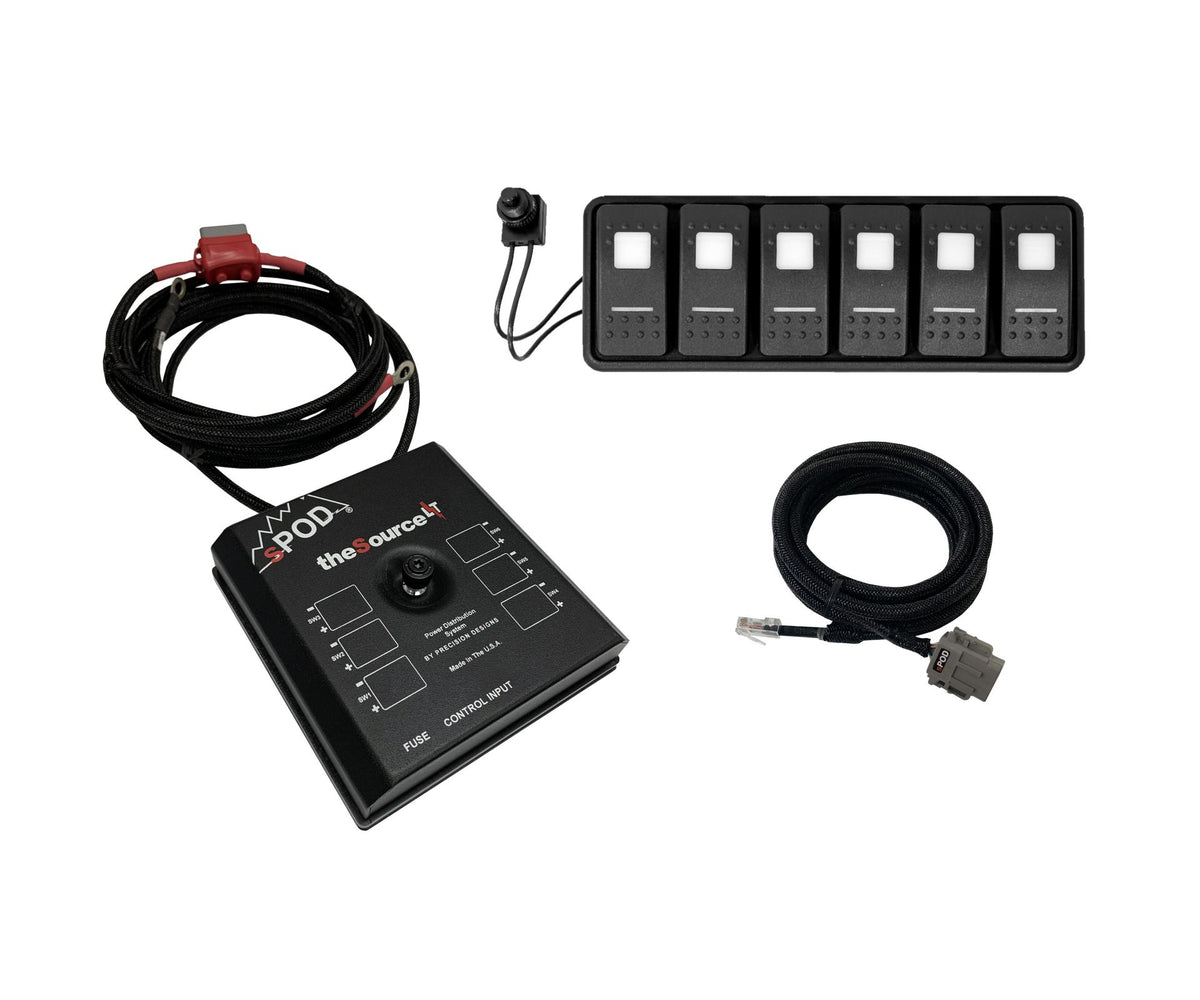

The sPOD SourceLT Modular (SKU SLMOD36B) is the universal 6-circuit solid-state power management system with a Blue LED Carling Contura switch panel and 36-inch battery cables — for overland, off-road, UTV, work truck, and custom builds where the module mounts close to the battery and no vehicle-specific kit exists for the platform. The SourceLT module and aluminum-formed Carling switch panel mount wherever the build requires. Single 10-foot CAT-6 cable between both. No wires cut, no factory circuits tapped. Operates on 12V DC. Blue LED — high-contrast visibility for daily drivers and mixed-use builds.
If your module will mount more than 3 feet from the battery, order the 84-inch cable version (SLMOD84B) instead.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | SLMOD36B |
| Brand | sPOD |
| Product Line | SourceLT Modular — Universal |
| LED Switch Panel Color | Blue |
| Switch Panel Type | Carling Contura — aluminum formed and welded panel |
| Platform | Universal — ATV/UTV, Car, Jeep, Truck/SUV, Custom |
| Number of Circuits | 6 — independently switched |
| Single Circuit Capacity | 30A at 12.5V DC |
| Total System Capacity | 100A |
| System Protection Fuse | 100A in-line fuse |
| System Circuit Breaker | 50A auto-resetting |
| Operating Voltage | 12V DC only — does NOT operate on 24V |
| Control Technology | Current-sensing MOSFETs via microprocessor — no fuses, no relays |
| Fault Protection | Self-healing circuits; overheating, over-current, short, reverse polarity, field collapse |
| Low Voltage Cutoff (LVCO) | Disconnects at 11.6V (2-min delay); requires 12.8V to reinitialize |
| LVCO Override | Optional override available |
| Expandability | Not expandable — closed 6-circuit system |
| Terminal Block | 12-position terminal block |
| Controller Cable | 10 ft CAT-6 Ethernet (switch panel to SourceLT module) |
| CAT-6 Max Run | Up to 25 ft from SourceLT to switch panel |
| Bluetooth | Built-in sPODConnect — controlled via free sPOD Mobile App (iOS and Android) |
| Software Updates | On-demand wireless OTA updates |
| Battery Cable Length | 36 inches |
| Battery Cables | Hi-strand crosslinked copper wire, silicone jacket, nylon braid |
| Wiring Sleeves | High-temp abrasion-resistant nylon braided sleeving on all wires |
| Housing — Base | Powder-coated steel with integrated hardware |
| Housing — Lid | Aluminum formed, welded, powder-coated; thumb-screw fastening; silkscreened legend outlines |
| Programmable Modes | On/off (latch), Momentary, Strobe, Dimming |
| Shipping Weight | 5.0 lbs |
| Country of Origin | USA |
| Warranty | 5-year manufacturer warranty |
| Sold As | Each |
36-Inch vs. 84-Inch — Choose Before Ordering
| Cable Length | SKU | Best For |
|---|---|---|
| 36 inches — SLMOD36B (this listing) | Blue LED | Module mounting within 3 feet of battery — UTV engine bays, compact setups, standard engine bay layouts |
| 84 inches — SLMOD84B | Blue LED | Module mounting more than 3 feet from battery — full-size trucks, van builds, remote battery locations |
Measure your routing path from the battery to the planned module location before ordering. If it exceeds 3 feet, order SLMOD84B.
SourceLT Modular Color Options — 36-Inch Cable
| SKU | LED Color | Best For |
|---|---|---|
| SLMOD36B (this listing) | Blue | High-contrast visibility — daily drivers and mixed-use builds |
| SLMOD36G | Green | All-around visibility — best readability across all lighting conditions |
| SLMOD36R | Red | Maximum night vision preservation — dedicated dark trail builds |
| SL-MOD-36-A | Amber | Night vision-friendly, warm spectrum — trail and mixed-use builds |
Modular vs. Vehicle-Specific SourceLT — Which Is Right
| Kit Type | Panel Format | Vehicle Fitment | Mounting Hardware |
|---|---|---|---|
| SourceLT Modular (this listing) | Carling Contura LED panel — aluminum formed/welded | Universal — any 12V vehicle | Universal — no vehicle-specific bracket |
| SourceLT Vehicle-Specific | Carling Contura LED panel | Vehicle-specific (Tundra, JK, etc.) | Vehicle-specific mounting hardware included |
| SourceLT Mini6 Vehicle-Specific | Mini6 silicone-button panel | Vehicle-specific | Vehicle-specific mounting hardware included |
Kit Contents
- sPOD SourceLT solid-state module (6-circuit)
- Blue LED Carling Contura aluminum switch panel
- 36-inch battery cable set (hi-strand crosslinked copper, silicone jacket, nylon braid)
- 10-ft CAT-6 Ethernet controller cable
- Legend sheet
- All required installation hardware
Critical Compatibility
| Configuration | Notes |
|---|---|
| Module mounting more than 3 feet from battery | Order SLMOD84B (84-inch cables) instead |
| Builds requiring more than 6 circuits | SourceLT is a closed 6-circuit system. No expansion path. Order a universal BantamX kit for 8 expandable circuits. |
| 24V DC electrical systems | SourceLT operates on 12V DC only. |
| Winches and high-draw recovery motors | 30A max per circuit. Wire winches direct to battery through a dedicated relay. |
| Any accessory requiring more than 30A per circuit | 30A hard ceiling per circuit. High-draw devices require direct battery wiring outside this system. |
| High-amp solenoids on the same battery post | Isolate the SourceLT battery connection from any high-amp relay or solenoid on the same positive post. |
Common Questions
How do I confirm 36-inch cables are enough for my installation? Measure the actual routing path from the battery to the planned module location — not straight-line distance. Route the tape measure through the same path the cable will take: through any firewall openings, along routing channels, to the mount point. If the path exceeds 3 feet, order SLMOD84B. A cable that falls short mid-install requires a return.
Blue vs. Green for a daily driver or mixed-use build? Both are strong choices for regular street use. Blue provides high-contrast visibility against dark interior panels and matches factory blue ambient lighting in many modern vehicles. Green offers slightly better readability across a wider range of lighting conditions due to peak eye sensitivity at that wavelength. For dedicated night trail use where preserving dark adaptation matters, Amber or Red are the better choices — Blue and Green both cause more pupil contraction than warm-spectrum colors.
What makes this "Modular"? Universal hardware — no vehicle-specific bracket or platform harness. Both the module and switch panel mount wherever the build requires. Order this when no vehicle-specific SourceLT kit exists for your platform or when you are building a fully custom layout.
Can I expand beyond 6 circuits later? No. The SourceLT is a closed 6-circuit system. No expansion path. If there is any chance you need more circuits, order a universal BantamX kit instead.
The Obsidian Take
The SourceLT Modular (SLMOD36B) is for the builder running a compact mounting layout — module close to the battery, clean short cable routing — who wants 6 circuits of fuse-free accessory power with Blue LED panel illumination for a rig that sees regular street use alongside trail time. Same SourceLT system as every vehicle-specific kit, in universal hardware.
Measure your cable path before ordering. If it runs more than 3 feet, order SLMOD84B. If it is within 3 feet and Blue is the right color for the build, this is your kit.
Non-Returnable Notice: Electrical systems that have been powered and connected to a vehicle are non-returnable. Inspect the kit and confirm fitment before connecting to the battery.
Manufacturer Data Disclaimer: Specifications sourced from sPOD manufacturer documentation. Obsidian Forged Auto Supply is an authorized sPOD dealer. Verify compatibility with your specific vehicle and build configuration before ordering. Manufacturer specifications are subject to change without notice.
