sPOD SourceLT Modular | Amber LED | 6-Circuit | 36-Inch Cables | Universal | SKU SLMOD36A
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
The sPOD SourceLT Modular (SKU SLMOD36A) is the universal 6-circuit solid-state power management system with an Amber LED Carling Contura switch panel and 36-inch battery cables — for overland, off-road, UTV, work truck, and custom builds where the module mounts close to the battery and no vehicle-specific kit exists for the platform. The SourceLT module and aluminum-formed Carling switch panel mount wherever the build requires. Single 10-foot CAT-6 cable between both. No wires cut, no factory circuits tapped. Operates on 12V DC. Amber LED — warm, low-glare illumination that preserves night vision during trail and off-road driving.
If your module will mount more than 3 feet from the battery, order the 84-inch cable version (SLMOD84A) instead.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | SLMOD36A |
| Brand | sPOD |
| Product Line | SourceLT Modular — Universal |
| LED Switch Panel Color | Amber |
| Switch Panel Type | Carling Contura — aluminum formed and welded panel |
| Platform | Universal — ATV/UTV, Car, Jeep, Truck/SUV, Custom |
| Number of Circuits | 6 — independently switched |
| Single Circuit Capacity | 30A at 12.5V DC |
| Total System Capacity | 100A |
| System Protection Fuse | 100A in-line fuse |
| System Circuit Breaker | 50A auto-resetting |
| Operating Voltage | 12V DC only — does NOT operate on 24V |
| Control Technology | Current-sensing MOSFETs via microprocessor — no fuses, no relays |
| Fault Protection | Self-healing circuits; overheating, over-current, short, reverse polarity, field collapse |
| Low Voltage Cutoff (LVCO) | Disconnects at 11.6V (2-min delay); requires 12.8V to reinitialize |
| LVCO Override | Optional override available |
| Expandability | Not expandable — closed 6-circuit system |
| Terminal Block | 12-position terminal block |
| Controller Cable | 10 ft CAT-6 Ethernet (switch panel to SourceLT module) |
| CAT-6 Max Run | Up to 25 ft from SourceLT to switch panel |
| Bluetooth | Built-in sPODConnect — controlled via free sPOD Mobile App (iOS and Android) |
| Software Updates | On-demand wireless OTA updates |
| Battery Cable Length | 36 inches |
| Battery Cables | Hi-strand crosslinked copper wire, silicone jacket, nylon braid |
| Wiring Sleeves | High-temp abrasion-resistant nylon braided sleeving on all wires |
| Housing — Base | Powder-coated steel with integrated hardware |
| Housing — Lid | Aluminum formed, welded, powder-coated; thumb-screw fastening; silkscreened legend outlines |
| Programmable Modes | On/off (latch), Momentary, Strobe, Dimming |
| Shipping Weight | 5.0 lbs |
| Country of Origin | USA |
| Warranty | 5-year manufacturer warranty |
| Sold As | Each |
36-Inch vs. 84-Inch — Choose Before Ordering
| Cable Length | SKU | Best For |
|---|---|---|
| 36 inches — SLMOD36A (this listing) | Amber LED | Module mounting within 3 feet of battery — UTV engine bays, compact setups, standard engine bay layouts |
| 84 inches — SLMOD84A | Amber LED | Module mounting more than 3 feet from battery — full-size trucks, van builds, remote battery locations |
Measure your routing path from the battery to the planned module location before ordering. If it exceeds 3 feet, order SLMOD84A.
SourceLT Modular Color Options — 36-Inch Cable
| SKU | LED Color | Best For |
|---|---|---|
| SLMOD36A (this listing) | Amber | Night vision-friendly, warm spectrum — trail and mixed-use builds |
| SLMOD36G | Green | All-around visibility — best readability across all lighting conditions |
| SLMOD36R | Red | Maximum night vision preservation — dedicated dark trail builds |
| SLMOD36B | Blue | High-contrast visibility — daily drivers and mixed-use builds |
Modular vs. Vehicle-Specific SourceLT — Which Is Right
| Kit Type | Panel Format | Vehicle Fitment | Mounting Hardware |
|---|---|---|---|
| SourceLT Modular (this listing) | Carling Contura LED panel — aluminum formed/welded | Universal — any 12V vehicle | Universal — no vehicle-specific bracket |
| SourceLT Vehicle-Specific | Carling Contura LED panel | Vehicle-specific (Tundra, JK, etc.) | Vehicle-specific mounting hardware included |
| SourceLT Mini6 Vehicle-Specific | Mini6 silicone-button panel | Vehicle-specific | Vehicle-specific mounting hardware included |

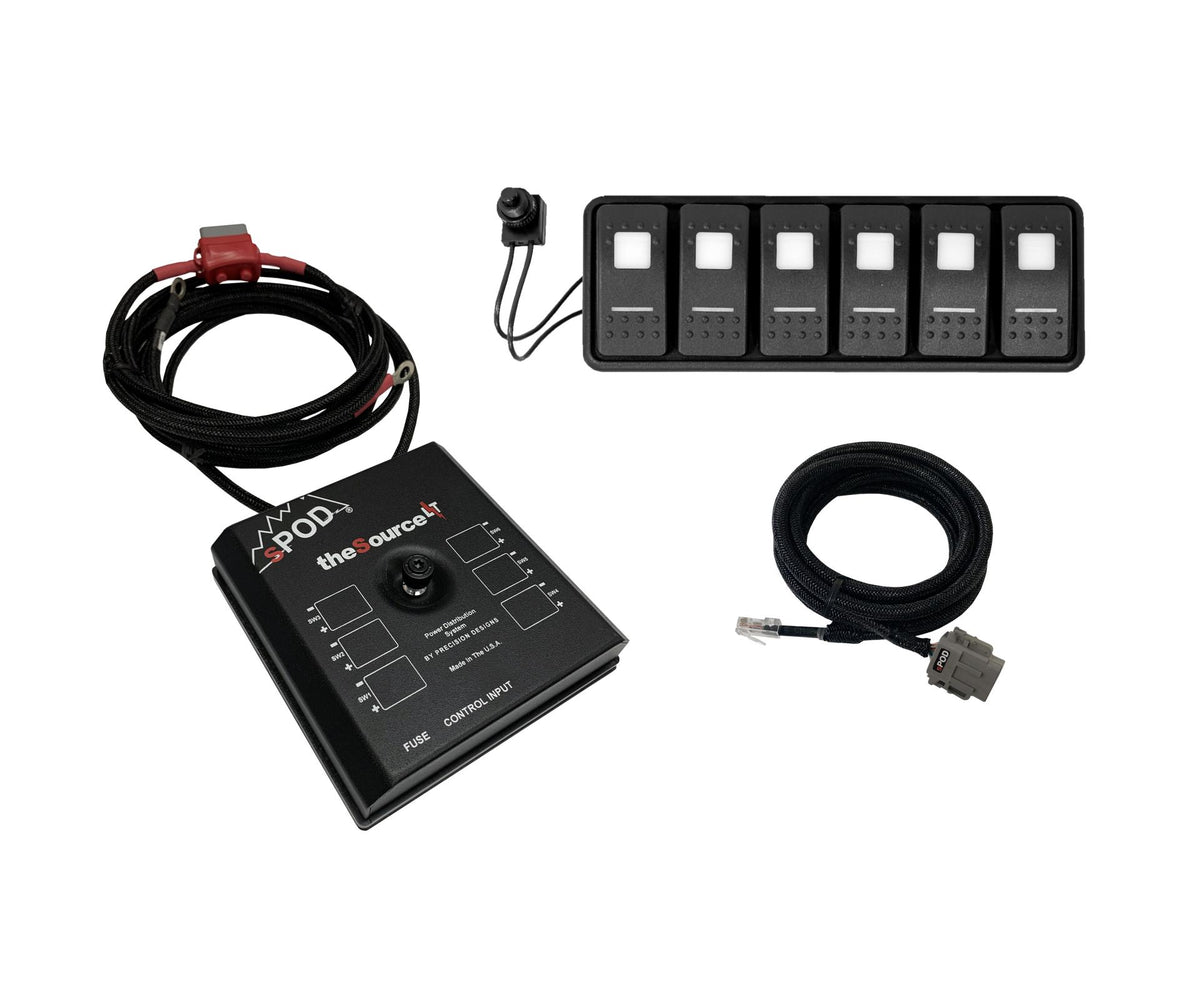

Kit Contents
- sPOD SourceLT solid-state module (6-circuit)
- Amber LED Carling Contura aluminum switch panel
- 36-inch battery cable set (hi-strand crosslinked copper, silicone jacket, nylon braid)
- 10-ft CAT-6 Ethernet controller cable
- Legend sheet
- All required installation hardware
Critical Compatibility
| Configuration | Notes |
|---|---|
| Module mounting more than 3 feet from battery | Order SLMOD84A (84-inch cables) instead |
| Builds requiring more than 6 circuits | SourceLT is a closed 6-circuit system. No expansion path. Order a universal BantamX kit for 8 expandable circuits. |
| 24V DC electrical systems | SourceLT operates on 12V DC only. |
| Winches and high-draw recovery motors | 30A max per circuit. Wire winches direct to battery through a dedicated relay. |
| Any accessory requiring more than 30A per circuit | 30A hard ceiling per circuit. High-draw devices require direct battery wiring outside this system. |
| High-amp solenoids on the same battery post | Isolate the SourceLT battery connection from any high-amp relay or solenoid on the same positive post. |
Common Questions
How do I confirm 36-inch cables are enough for my installation? Measure the actual routing path from the battery to the planned module location — not straight-line distance. Route the tape measure through the same path the cable will take: through any firewall openings, along routing channels, to the mount point. If the path exceeds 3 feet, order SLMOD84A. A cable that falls short mid-install requires a return.
Amber vs. Red — which is better for night trail use? Both preserve night vision significantly better than Green or Blue. Amber sits in the warm spectrum with minimal pupil contraction — strong readability in intermediate lighting while still protecting dark adaptation. Red provides maximum night vision preservation at the cost of slightly reduced readability in mixed light. For a build that sees both trail and occasional street use, Amber is the more versatile night-use choice. For a dedicated dark-trail rig that primarily operates in complete darkness, Red (SLMOD36R) is the better technical pick.
What makes this "Modular"? Universal hardware — no vehicle-specific bracket or platform harness. Both the module and switch panel mount wherever the build requires. Order this when no vehicle-specific SourceLT kit exists for your platform or when you are building a fully custom layout.
Can I expand beyond 6 circuits later? No. The SourceLT is a closed 6-circuit system. No expansion path. If there is any chance you need more circuits, order a universal BantamX kit instead.
The Obsidian Take
The SourceLT Modular (SLMOD36A) is for the builder running a compact mounting layout — module close to the battery, clean short cable routing — who wants 6 circuits of fuse-free accessory power with the most versatile night-use color in the lineup. Amber is warm, low-glare, and trail-proven — readable in mixed light without the dark adaptation penalty of Blue or Green, and slightly more versatile than Red for builds that see both road and trail.
Measure your cable path before ordering. If it runs more than 3 feet, order SLMOD84A. If it is within 3 feet and Amber is the right color, this is your kit.
Non-Returnable Notice: Electrical systems that have been powered and connected to a vehicle are non-returnable. Inspect the kit and confirm fitment before connecting to the battery.
Manufacturer Data Disclaimer: Specifications sourced from sPOD manufacturer documentation. Obsidian Forged Auto Supply is an authorized sPOD dealer. Verify compatibility with your specific vehicle and build configuration before ordering. Manufacturer specifications are subject to change without notice.
