sPOD SourceLT with Mini6 Switch Panel | 6-Circuit | 36-Inch Cables | Universal | SKU SLM6UNI36
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
The sPOD SourceLT with Mini6 (SKU SLM6UNI36) is the universal 6-circuit solid-state power management system with the compact modern Mini6 silicone-button panel and 36-inch battery cables — for overland, off-road, UTV, work truck, and custom builds where the module mounts close to the battery and no vehicle-specific kit exists for the platform. The SourceLT module and Mini6 panel mount wherever the build requires. Single 10-foot CAT-6 cable between both. No wires cut, no factory circuits tapped. Operates on 12V DC.
If your module will mount more than 3 feet from the battery, order the 84-inch cable version (SLM6UNI84) instead.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | SLM6UNI36 |
| Brand | sPOD |
| Product Line | SourceLT with Mini6 — Universal |
| Switch Panel Type | Mini6 — compact silicone-button panel |
| Platform | Universal — ATV/UTV, Car, Jeep, Truck/SUV, Custom |
| Number of Circuits | 6 — independently switched |
| Single Circuit Capacity | 30A at 12.5V DC |
| Total System Capacity | 100A |
| System Protection Fuse | 100A in-line fuse |
| System Circuit Breaker | 50A auto-resetting |
| Operating Voltage | 12V DC only — does NOT operate on 24V |
| Control Technology | Current-sensing MOSFETs via microprocessor — no fuses, no relays |
| Fault Protection | Self-healing circuits; overheating, over-current, short, reverse polarity, field collapse |
| Low Voltage Cutoff (LVCO) | Disconnects at 11.6V (2-min delay); requires 12.8V to reinitialize |
| LVCO Override | Optional override available |
| Expandability | Not expandable — closed 6-circuit system |
| Terminal Block | 12-position terminal block |
| Controller Cable | 10 ft CAT-6 Ethernet (Mini6 panel to SourceLT module) |
| CAT-6 Max Run | Up to 25 ft from SourceLT to Mini6 panel |
| Bluetooth | Built-in sPODConnect — controlled via free sPOD Mobile App (iOS and Android) |
| Software Updates | On-demand wireless OTA updates |
| Battery Cable Length | 36 inches |
| Battery Cables | Hi-strand crosslinked copper wire, silicone jacket, nylon braid |
| Wiring Sleeves | High-temp abrasion-resistant nylon braided sleeving on all wires |
| Housing — Base | Powder-coated steel with integrated hardware |
| Housing — Lid | Aluminum; thumb-screw fastening; silkscreened legend outlines |
| Programmable Modes | On/off (latch), Momentary, Strobe, Dimming |
| Deep Sleep Mode | Auto-deactivates after 6 hours of inactivity |
| Shipping Weight | 5.0 lbs |
| Country of Origin | USA |
| Warranty | 5-year manufacturer warranty |
| Sold As | Complete kit |
Mini6 Switch Panel Features
| Feature | Detail |
|---|---|
| Switch Count | 6 silicone-button switches |
| Switch Type | Soft silicone buttons with positive tactile feedback |
| Backlight | Adjustable brightness level |
| Circuit ON Indicator | Individual visual feedback light per switch |
| Legend Sheet | 72 standard legends included |
| Programmable Modes | On/off, Momentary, Strobe, Dimming, Switch Linking |
| App-Controlled Functions | Full sPOD app programmability via Bluetooth |
| Deep Sleep Mode | Auto-deactivates after 6 hours of inactivity |
36-Inch vs. 84-Inch — Choose Before Ordering
| Cable Length | SKU | Best For |
|---|---|---|
| 36 inches — SLM6UNI36 (this listing) | Module mounting within 3 feet of battery — UTV engine bays, compact setups, standard engine bay layouts | |
| 84 inches — SLM6UNI84 | Module mounting more than 3 feet from battery — full-size trucks, van builds, remote battery locations |
Measure your routing path from the battery to the planned module location before ordering. If it exceeds 3 feet, order SLM6UNI84.
Mini6 vs. Carling LED Panel — Which SourceLT Universal Kit Is Right
| Kit Type | Panel Format | Color Options | Cable Lengths Available |
|---|---|---|---|
| SourceLT with Mini6 — SLM6UNI36 (this listing) | Mini6 silicone-button panel | No color variant — backlit button panel | 36 or 84 inches |
| SourceLT Modular — SLMOD36/84 R/G/B/A | Carling Contura aluminum panel | Red, Green, Blue, Amber | 36 or 84 inches |
Choose the Mini6 universal kit if you prefer the compact modern silicone-button panel format. Choose a Carling Modular kit if you prefer traditional LED rocker switches or need a specific LED color for night vision-specific builds.

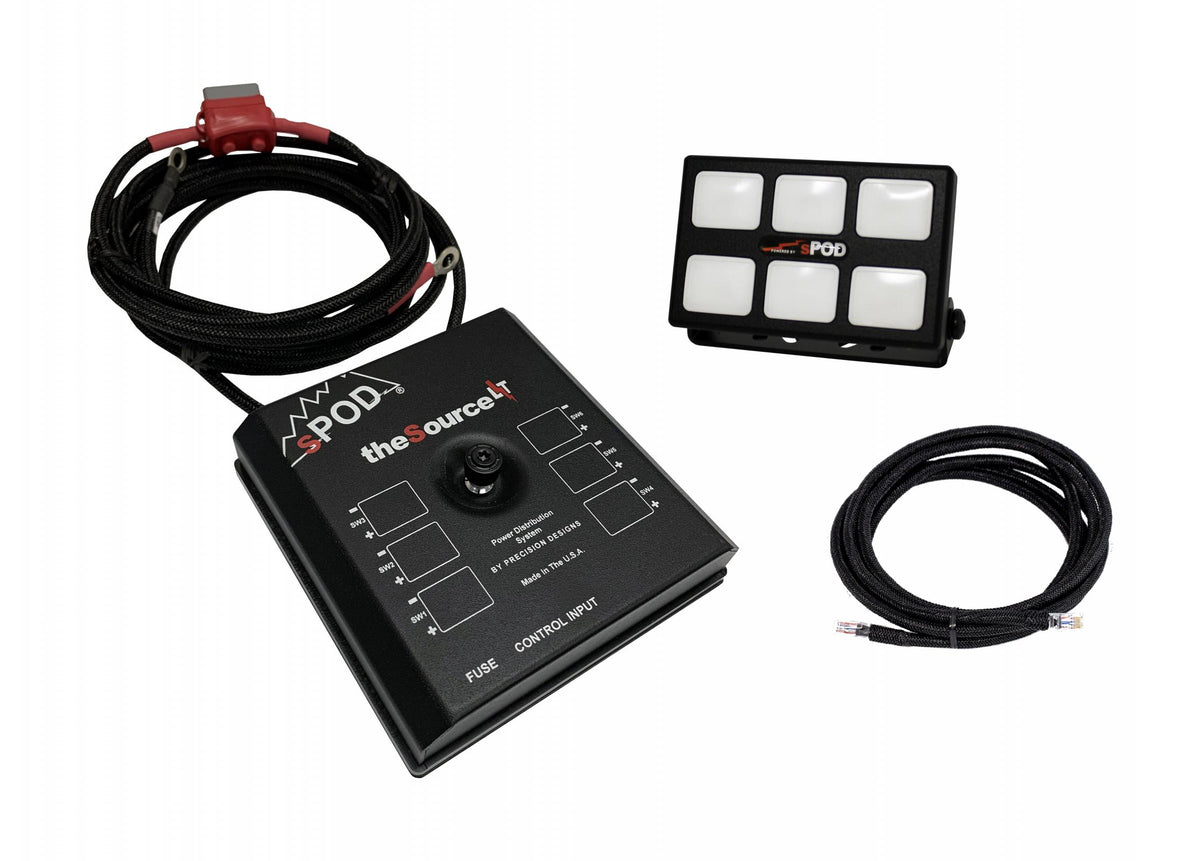

Kit Contents
- sPOD SourceLT solid-state module (6-circuit)
- Mini6 silicone-button switch panel
- 36-inch battery cable set (hi-strand crosslinked copper, silicone jacket, nylon braid)
- 10-ft CAT-6 Ethernet controller cable
- Legend sheet (72 standard legends)
- All required installation hardware
Critical Compatibility
| Configuration | Notes |
|---|---|
| Module mounting more than 3 feet from battery | Order SLM6UNI84 (84-inch cables) instead |
| Builds requiring more than 6 circuits | SourceLT is a closed 6-circuit system. No expansion path. Order a universal BantamX kit for 8 expandable circuits. |
| 24V DC electrical systems | SourceLT operates on 12V DC only. |
| Winches and high-draw recovery motors | 30A max per circuit. Wire winches direct to battery through a dedicated relay. |
| Any accessory requiring more than 30A per circuit | 30A hard ceiling per circuit. High-draw devices require direct battery wiring outside this system. |
| High-amp solenoids on the same battery post | Isolate the SourceLT battery connection from any high-amp relay or solenoid on the same positive post. |
Common Questions
How do I confirm 36-inch cables are enough for my installation? Measure the actual routing path from the battery to the planned module location — not straight-line distance. Route the tape measure through the same path the cable will take: through any firewall openings, along routing channels, to the mount point. If the path exceeds 3 feet, order SLM6UNI84. A cable that falls short mid-install requires a return.
How is this different from the SourceLT Modular kits? Panel format only. The SourceLT Modular kits use the legacy Carling Contura aluminum-formed switch panel with colored LED rocker switches — available in Amber, Red, Green, and Blue. This kit uses the Mini6 compact silicone-button panel, the same modern panel format in sPOD's current vehicle-specific lineup. The SourceLT module, circuits, MOSFET technology, Bluetooth, and LVCO protection are identical across all variants. If LED color for night vision preservation matters to your build, order a Carling Modular kit instead.
Why choose Mini6 over the Carling LED panel? Panel preference and form factor. The Mini6 is more compact, uses soft silicone buttons with positive touch feedback, and matches the panel format in current sPOD vehicle-specific kits. The Carling panel uses traditional rocker switches with colored LED illumination for builds where specific LED color visibility matters.
Can I expand beyond 6 circuits later? No. The SourceLT is a closed 6-circuit system. No expansion path. If there is any chance you need more circuits, order a universal BantamX kit instead.
The Obsidian Take
The SourceLT with Mini6 (SLM6UNI36) is for the builder running a compact mounting layout — module close to the battery, clean short cable routing — on a platform without a vehicle-specific SourceLT kit. Same Mini6 silicone-button panel as the JK, F-150, Tundra, and Tacoma vehicle-specific kits, same SourceLT module, in universal hardware.
Measure your cable path before ordering. If it runs more than 3 feet, order SLM6UNI84. If it is within 3 feet and the Mini6 panel format is the right choice, this is your kit.
Non-Returnable Notice: Electrical systems that have been powered and connected to a vehicle are non-returnable. Inspect the kit and confirm fitment before connecting to the battery.
Manufacturer Data Disclaimer: Specifications sourced from sPOD manufacturer documentation. Obsidian Forged Auto Supply is an authorized sPOD dealer. Verify compatibility with your specific vehicle and build configuration before ordering. Manufacturer specifications are subject to change without notice.
