sPOD SourceLT w/ Genesis Adapter | Green | 6-Circuit Power | Jeep Wrangler JK | 2009-2018
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
The sPOD SourceLT with Genesis Adapter (SKU 873145) is the vehicle-specific 6-circuit solid-state power management system engineered for the 2009–2018 Jeep Wrangler JK and JK Unlimited. It manages up to 6 powered accessories — light bars, compressors, cameras, recovery electronics — through current-sensing MOSFET technology with no fuses, no relays, and a single CAT-6 cable run into the cab. The included Genesis adapter switch panel adds a reserved mounting slot for the Genesis Offroad G Screen dual battery monitor (sold separately) — the right kit for JK builds running or planning a Genesis Offroad dual battery system.
Component Specifications
| Spec | Detail |
|---|---|
| SKU | 873145 |
| Brand | sPOD |
| Product Line | SourceLT with Genesis Adapter |
| LED Color | Green |
| Platform | 2009–2018 Jeep Wrangler JK and JK Unlimited — all trims |
| Number of Circuits | 6 — independently switched |
| Single Circuit Capacity | 30A at 12.5V DC |
| Max Circuit Load Range | 1.5A – 30A per circuit (self-healing) |
| System Protection Fuse | 100A in-line fuse |
| System Circuit Breaker | 50A auto-resetting |
| Operating Voltage | 12V DC |
| Control Technology | Current-sensing MOSFETs via microprocessor — no fuses, no relays |
| Fault Protection | Self-healing; overheating, over-current, short, reverse polarity, field collapse |
| Low Voltage Cutoff (LVCO) | Disconnects at 11.6V (2-min delay); requires 12.8V to reinitialize |
| LVCO Override | Optional override available |
| Bluetooth | Yes — sPOD app compatible; dimming, strobe, flash, momentary, switch linking |
| Controller Cable | 10 ft CAT-6 Ethernet (panel to SourceLT module) |
| CAT-6 Max Run | Up to 25 ft from SourceLT to switch panel |
| Battery Cables | Hi-strand crosslinked copper wire, silicone jacket, nylon braid |
| Genesis Adapter Panel | Reserved 1-inch slot for Genesis Offroad G Screen — G Screen NOT included |
| Housing — Base | Powder-coated steel with integrated mounting hardware |
| Housing — Lid | Aluminum; thumb-screw fastening; silk-screened legend outlines |
| Weatherproofing | Silicone gasket; weatherproof housing (not submersion-rated) |
| Wiring Sleeves | High-temp abrasion-resistant nylon braided sleeving |
| Dimensions | 13.0 x 10.0 x 10.0 inches |
| Shipping Weight | 5.0 lbs |
| Country of Origin | USA |
| Warranty | 5-year manufacturer warranty |
| Sold As | Each |
Switch Panel Features
| Feature | Detail |
|---|---|
| Switch Count | 6 LED switches — Green |
| Programmable Modes | Momentary / Latch (per switch) |
| Backlight | Adjustable brightness level |
| Circuit ON Indicator | Individual visual feedback light per switch |
| Legend Sheet | 72 standard legends included |
| Deep Sleep Mode | Auto-deactivates after 6 hours of inactivity |
| App-Controlled Functions | Dimming, Strobe, Flash, Momentary, Switch Linking, On-Road / Off-Road modes |
| Genesis G Screen Slot | Reserved 1-inch mounting slot — G Screen sold separately by Genesis Offroad |

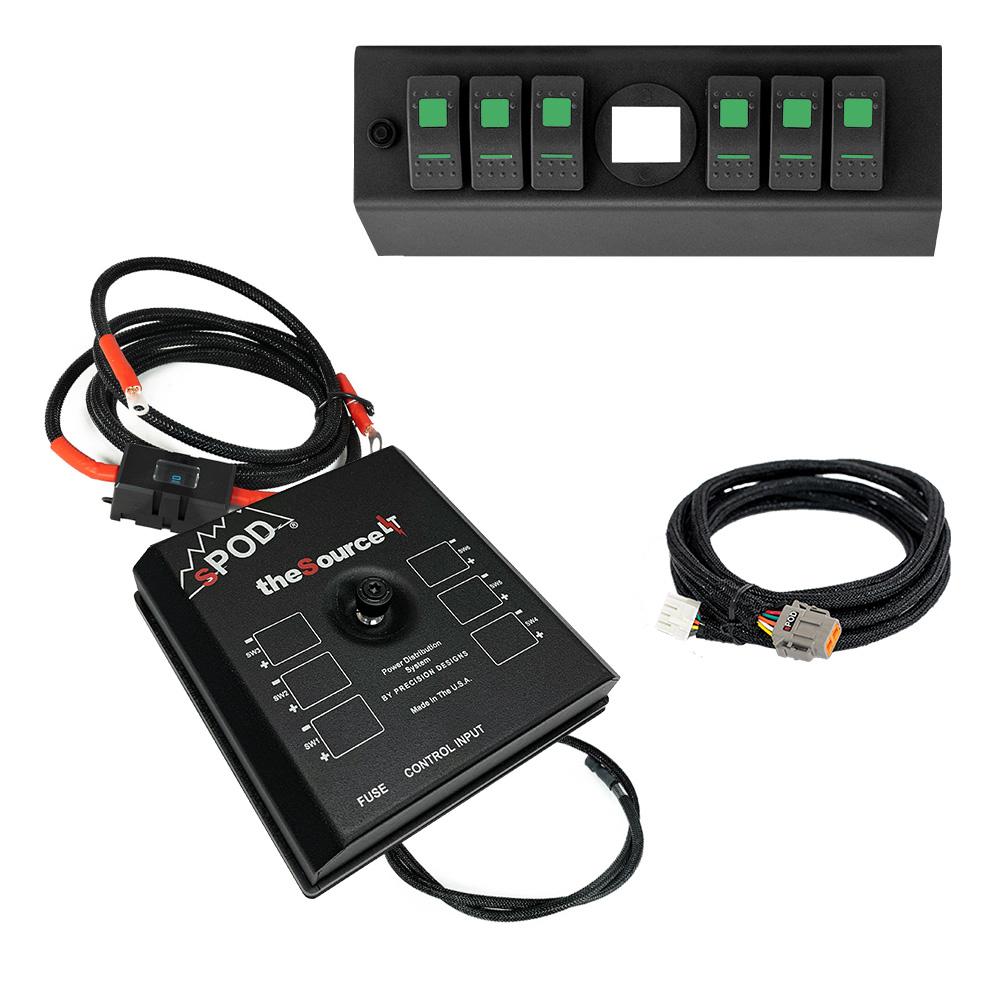

Kit Contents
- sPOD SourceLT solid-state module (6-circuit)
- Genesis adapter switch panel — Green LED — with reserved G Screen slot
- 10-ft CAT-6 controller cable
- Vehicle-specific battery harness
- Vehicle-specific mounting hardware
- Legend sheet (72 standard legends)
- All required installation hardware
Note: The Genesis Offroad G Screen dual battery monitor is NOT included. The panel includes the mounting slot to accept it. Order the G Screen separately from Genesis Offroad if dual battery monitoring is required.
Genesis Adapter — What It Is and What It Does
The Genesis adapter is the JK-specific switch panel included with this kit. It functions identically to the standard SourceLT switch panel — 6 circuits, same MOSFET control, same Bluetooth app, same LVCO protection — with one addition: a reserved 1-inch circular mounting slot sized to accept the Genesis Offroad G Screen dual battery monitor. If you are running a Genesis Offroad dual battery kit on your JK, the G Screen drops directly into this slot and displays live voltage for both batteries, isolator status, and remote boost capability from a single integrated panel. The G Screen is sold separately by Genesis Offroad. If you are not running a Genesis dual battery system, the slot remains empty and the sPOD system operates identically.
Critical Compatibility — Does NOT Fit
FITMENT: This SKU is built for the 2009–2018 Jeep Wrangler JK and JK Unlimited only. Confirm your exact model year before ordering. Questions? Text (469) 407-7538.
| Configuration | Reason |
|---|---|
| 2007–2008 Jeep Wrangler JK | Different harness fitment — sPOD produces a separate SKU for 2007–2008 JK. Do not order 873145 for a 2007 or 2008 JK. |
| 2018–2026 Jeep Wrangler JL — all engines | Different electrical architecture and engine bay layout. Order a JL-specific sPOD kit. |
| 2020–2026 Jeep Gladiator JT | Not a confirmed fitment for this SKU. Order a JT-specific kit. |
| Jeep Wrangler TJ, YJ, CJ — all years | Not compatible. No vehicle-specific kit exists for these platforms from this SKU. |
| Winches and high-draw recovery motors | Circuits are rated 30A max. Winches draw 250–400A under load. Do not run a winch through any sPOD circuit. Wire winches direct to battery through a dedicated relay. |
| Any accessory requiring more than 30A per circuit | 30A is the hard ceiling per circuit. High-draw devices require direct battery wiring outside this system. |

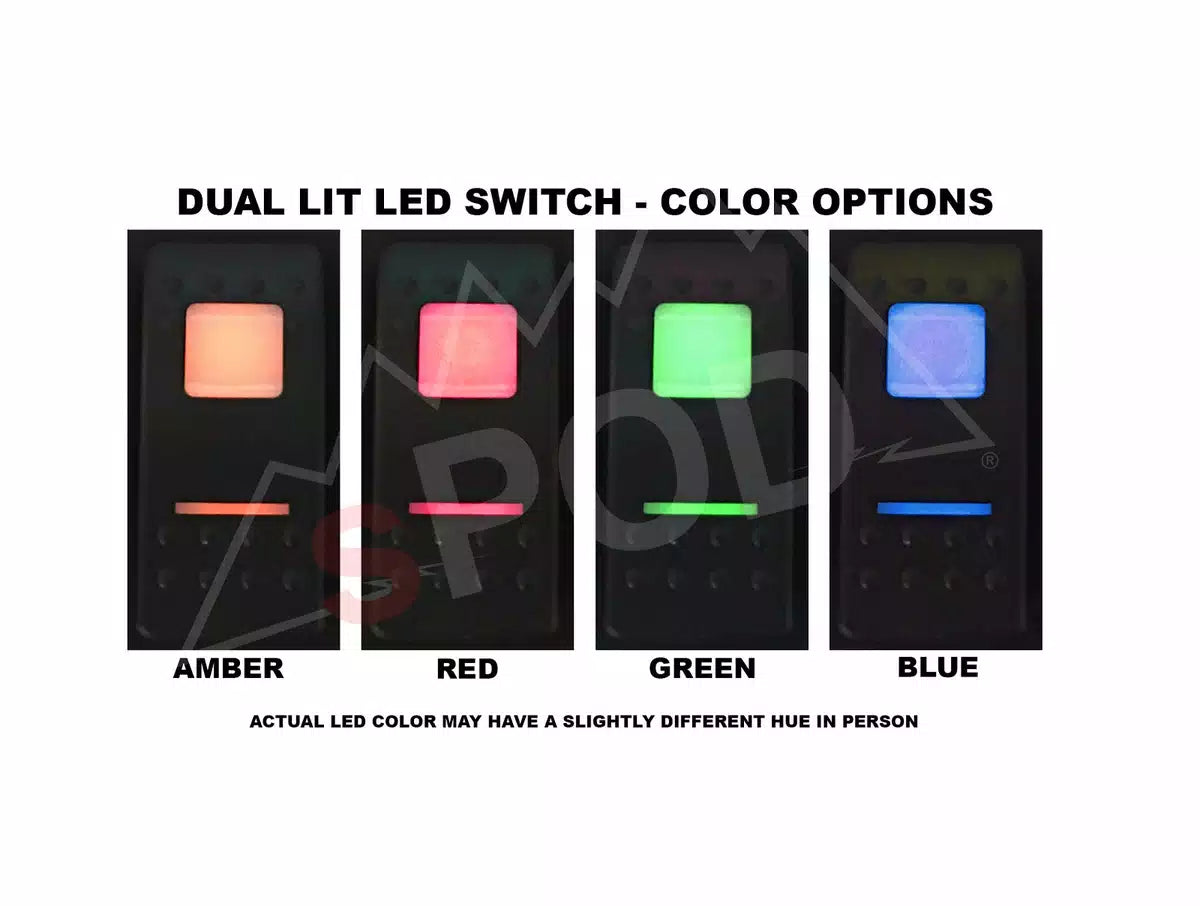

sPOD JK Color Variants — Same System, Different LED Color
| SKU | LED Color | Platform |
|---|---|---|
| 873145 (this listing) | Green | 2009–2018 Jeep Wrangler JK / JK Unlimited |
| 873140 | Blue | 2009–2018 Jeep Wrangler JK / JK Unlimited |
| 873141 | Amber | 2009–2018 Jeep Wrangler JK / JK Unlimited |
| 873143 | Red | 2009–2018 Jeep Wrangler JK / JK Unlimited |
All variants are identical in circuit count, amp rating, features, and Genesis adapter panel. Color refers to LED switch backlight only.
Common Questions
I have a 2007 or 2008 JK. Can I order this kit? No. SKU 873145 is rated 2009–2018 only. sPOD produces a separate kit with a different harness configuration for the 2007–2008 JK. Ordering 873145 for a 2007 or 2008 JK will result in a fitment mismatch. Text (469) 407-7538 to confirm the correct SKU for your model year before ordering.
Does installation require cutting factory wires or tapping into the JK harness? No. The SourceLT module connects directly to the battery via the included vehicle-specific harness. A single CAT-6 cable runs from the module to the Genesis adapter switch panel in the cab. No wires are cut, no factory circuits are tapped, no holes are drilled.
Do I need the Genesis Offroad G Screen to use this kit? No. The G Screen slot in the panel is optional. The sPOD system operates as a full 6-circuit power management system with or without the G Screen installed. The slot remains empty if you are not running a Genesis Offroad dual battery setup. If you do have a Genesis dual battery kit, the G Screen drops into the panel slot for integrated dual battery voltage monitoring and remote boost capability.
What accessories can I run, and what is the real load limit? The SourceLT handles up to 6 independent 12V DC accessories at 30A per circuit — LED light bars, auxiliary driving lights, air compressors, CB radios, dash cameras, trail cameras, heated seats, ARB air lockers, and similar mid-draw accessories. What it cannot run: winches or any device drawing more than 30A per circuit. Wire those direct to the battery through a dedicated relay and use the sPOD for everything else.
What does installation actually take — time, tools, and skill level? Intermediate DIY level. No wire cutting, drilling, or crimping required. Plan for 2–3 hours for a clean finished install. Basic hand tools handle the battery terminal connections; trim tools help if routing the CAT-6 cable through the firewall. If you are not comfortable working at the battery terminals, have a qualified automotive electrician complete that step. Text (469) 407-7538 with pre-install questions.
The Obsidian Take
The SourceLT with Genesis Adapter (873145) is for the 2009–2018 JK owner who wants a clean, permanent, fuse-free power infrastructure for up to 6 accessories and wants a panel already set up to accept Genesis Offroad dual battery monitoring when the build gets there. The G Screen slot is not a requirement — it is a built-in upgrade path so your power management system does not have to be replaced when you add a second battery.
If you do not care about dual battery monitoring and just want the cleanest 6-circuit solution for your JK, this is still the right kit. If you need more than 6 circuits, look at the BantamX HD or BantamX Touchscreen instead.
Six accessories. Zero fuses to pull on the trail. One cable into the cab. That is the whole pitch.
Non-Returnable Notice: Electrical systems that have been powered and connected to a vehicle are non-returnable. Inspect the kit and confirm fitment before connecting to the battery.
Manufacturer Data Disclaimer: Specifications and fitment data are sourced from sPOD manufacturer documentation. Obsidian Forged Auto Supply is an authorized sPOD dealer. Verify final fitment against your vehicle's window sticker, door jamb label, or VIN decoder before ordering. Manufacturer specifications are subject to change without notice.
