The sPOD HD BantamX Center Console Kit (SKU 870138) is the vehicle-specific 8-circuit solid-state power management system engineered for the 2024–2026 Can-Am Maverick R. The HD switch panel integrates directly into the Maverick R center console — OEM-level fit with no universal pod brackets, no exposed wiring, and no relay boxes. The BantamX module mounts under the hood. A single Ethernet cable connects both. Expandable to 32 channels. Operates on 12V or 24V DC.
This kit does NOT fit the Can-Am Maverick X3 or any other Can-Am platform. If you want steering wheel thumb-access control instead of a console panel, see the Mini6 Steering Wheel Mount Kit (870137, 6 circuits, $240 less).
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 870138 |
| Brand | sPOD |
| Product Line | HD BantamX Center Console Kit |
| Platform | 2024–2026 Can-Am Maverick R — all variants |
| Number of Circuits | 8 — independently switched |
| Single Circuit Capacity | 30A at 12.5V DC |
| Total System Capacity | 100A |
| System Protection Fuse | 100A in-line fuse |
| System Circuit Breaker | 50A auto-resetting |
| Operating Voltage | 12V DC or 24V DC |
| Control Technology | Current-sensing MOSFETs via microprocessor — no fuses, no relays |
| Fault Protection | Self-healing circuits; overheating, over-current, short, reverse polarity, field collapse |
| Low Voltage Cutoff (LVCO) | Disconnects at 11.6V (2-min delay); requires 12.8V to reinitialize |
| LVCO Fuse | One ATM mini-style fuse for LVCO protection and reset |
| LVCO Override | Optional override available |
| Expandability | 2 controller ports (RJ45) — expandable to 32 channels via BantamX add-on |
| Terminal Block | 16-position terminal block |
| Input Terminal Block | 8-position input terminal block for controlling outputs |
| Bluetooth | Built-in sPODConnect — controlled via free sPOD Mobile App (iOS and Android) |
| Software Updates | On-demand wireless OTA updates |
| Controller Cable | Single Ethernet cable (HD panel to BantamX module) |
| Battery Cable Length | 36 inches — vehicle-specific for Maverick R |
| Battery Cables | Hi-strand crosslinked copper wire, silicone jacket, nylon braid |
| HD Panel Mount Location | Center console — vehicle-specific OEM-integration mounting bracket |
| Programmable Modes | On/off (latch), Momentary, Strobe, Dimming, Memory, Switch Linking, Auto Power-Up |
| Dimensions | 10.0 x 13.0 x 10.0 inches |
| Shipping Weight | 5.0 lbs |
| Country of Origin | USA |
| Warranty | 5-year manufacturer warranty |
| Sold As | Each |
HD Switch Panel Features
| Feature | Detail |
|---|---|
| Switch Count | 8 silicone-button switches |
| Switch Type | Positive touch feedback silicone buttons |
| Backlight | Adjustable RGB backlight |
| Circuit ON Indicator | Individual backlit feedback per switch |
| Programmable Modes | On/off, Momentary, Strobe, Dimming, Memory, Switch Linking |
| App-Controlled Functions | Full sPOD app programmability via Bluetooth |
| Mount Position | Center console — vehicle-specific bracket |

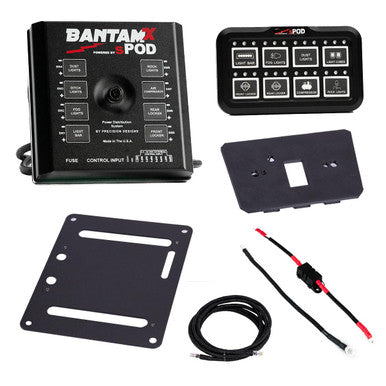

Kit Contents
- sPOD BantamX solid-state module (8-circuit, expandable)
- HD switch panel with adjustable RGB backlight
- 36-inch battery cable set (hi-strand crosslinked copper, silicone jacket, nylon braid)
- Single Ethernet cable (HD panel to BantamX module)
- Vehicle-specific center console mounting bracket
- All required installation hardware
Maverick R sPOD System Selector
| SKU | System | Circuits | Mount Location | Price |
|---|---|---|---|---|
| 870137 | Mini6 SourceLT Steering Wheel | 6 | Steering wheel — thumb access | $240 less |
| 870138 (this listing) | HD BantamX Center Console | 8 | Center console — OEM integration | — |
Same platform. The distinction is mount location and circuit count. The steering wheel kit puts 6 circuits on the wheel for thumb access at speed — best for high-intensity driving. The center console kit puts 8 circuits in the console for seated accessory management — best for builds that prioritize OEM aesthetics and maximum circuit count. Both are solid-state, both use the same MOSFET technology.
Verified Fitment — All 2024–2026 Maverick R Variants
| Vehicle | Years | Status |
|---|---|---|
| Can-Am Maverick R | 2024–2026 | ✓ |
| Can-Am Maverick R X | 2024–2026 | ✓ |
| Can-Am Maverick R X RS | 2024–2026 | ✓ |
| Can-Am Maverick R X RS Smart-Shox | 2024–2026 | ✓ |
| Can-Am Maverick R Max | 2024–2026 | ✓ |
| Can-Am Maverick R Max X | 2024–2026 | ✓ |
| Can-Am Maverick R Max X RS | 2024–2026 | ✓ |
| Can-Am Maverick R Max X RS Smart-Shox | 2024–2026 | ✓ |
Critical Compatibility — Does NOT Fit
FITMENT: Maverick R only. Maverick X3 does not fit. Questions? Text (469) 407-7538.
| Configuration | Reason |
|---|---|
| Can-Am Maverick X3 — all variants | Different center console architecture and platform. Not compatible. |
| Can-Am Maverick Sport | Different platform. Not compatible. |
| Can-Am Maverick Trail | Different platform. Not compatible. |
| Any other Can-Am UTV platform | Not confirmed. Verify before ordering. |
| Polaris RZR, Yamaha YXZ, Honda Talon | Different platform. Not compatible with this SKU. |
| Builds requiring more than 8 circuits | The BantamX is expandable to 32 channels via the sPOD add-on system. Order the add-on when ready to expand. |
| Any accessory requiring more than 30A per circuit | 30A hard ceiling per circuit. High-draw devices require direct battery wiring outside this system. |
Common Questions
Console-mounted panel vs. steering wheel kit — which is right for my Maverick R build? Two different answers depending on how you drive. The steering wheel kit (870137) puts 6 circuits within thumb reach at all times — optimal for high-speed racing or technical driving where reaching for the console means taking a hand off the wheel. The center console kit (870138) puts 8 circuits in the console in an OEM-integrated panel — optimal for builds that prioritize aesthetics, maximum circuit count, and seated accessory management. If you run both a race and trail setup on the same machine, consider whether thumb access or 8 circuits matters more.
Does the HD panel actually integrate flush with the Maverick R console? Yes. The vehicle-specific mounting bracket is designed for the Maverick R center console geometry — not a universal pod or clamp-on solution. The HD panel sits flush and secure with no exposed brackets, zip ties, or modified panels required.
Does installation require cutting factory wiring? No. The BantamX module connects directly to the battery via the included 36-inch cable set. The Ethernet cable connects the module to the HD panel. No factory circuits are tapped, no wires are cut, no holes are drilled.
Can I expand beyond 8 circuits later? Yes. The BantamX has two RJ45 controller ports and is expandable to 32 channels via the sPOD BantamX add-on system.
What does installation actually take — time, tools, and skill level? Intermediate DIY level for UTV builds. The vehicle-specific bracket eliminates fabrication for the console mount. Plan for 2–3 hours. The most time-intensive step is routing the Ethernet cable cleanly to the module. Text (469) 407-7538 with pre-install questions.
The Obsidian Take
The HD BantamX Center Console Kit (870138) is for the Maverick R builder who wants 8 circuits of clean, fuse-free accessory power in an OEM-integrated console panel that looks like it was built into the machine from the factory. No relay boxes. No universal pods. No zip ties. Eight circuits, RGB backlit switches, Bluetooth app in parallel, and room to expand to 32 channels.
If thumb access at the steering wheel matters more than 8 circuits and OEM console aesthetics, the Mini6 Steering Wheel Kit (870137) is the right call at $240 less. If 8 circuits with a clean console panel is the build requirement, this is the kit.
Non-Returnable Notice: Electrical systems that have been powered and connected to a vehicle are non-returnable. Inspect the kit and confirm fitment before connecting to the battery.
Manufacturer Data Disclaimer: Specifications and fitment data are sourced from sPOD manufacturer documentation. Obsidian Forged Auto Supply is an authorized sPOD dealer. Verify final fitment against your specific Maverick R variant before ordering. Manufacturer specifications are subject to change without notice.
