sPOD Ethernet Control Cable | 10-Foot | BantamX SourceLT Mini6 Mini4 | SKU 910000
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support

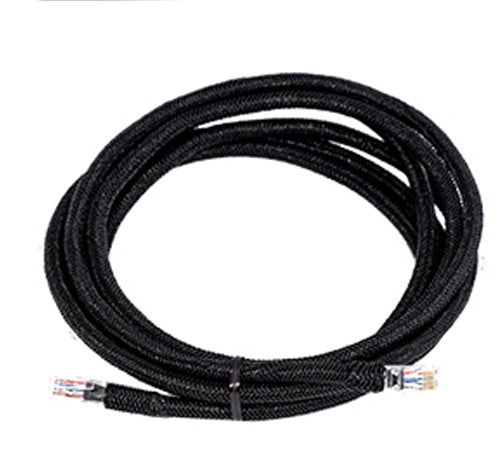

The sPOD Ethernet Control Cable (SKU 910000) is the 10-foot replacement or secondary-run cable that connects sPOD power modules to switch interfaces — compatible with BantamX, SourceLT, Mini6, and Mini4 systems. Use when an existing cable is damaged, your routing distance requires a longer run than the included cable, or you are adding a second control interface to an existing build. Cable only — power module and switch panel not included.
Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 910000 |
| Brand | sPOD |
| Type | Ethernet control cable |
| Cable Length | 10 feet |
| Cable Type | Standard CAT-6 Ethernet — RJ45 connectors |
| Max System Run | Up to 25 ft total from BantamX or SourceLT module to switch interface |
| Compatible Systems | BantamX, SourceLT, Mini6, Mini4 |
| Weather Resistance | Weather-resistant construction |
| Weight | 1.0 lb |
| Warranty | 5-year manufacturer warranty |
| Sold As | Each — cable only |
What Is and Is NOT Included
| Item | Included |
|---|---|
| 10-foot Ethernet control cable | ✓ |
| Switch panel (HD, Mini6, Mini4, or touchscreen) | ✗ NOT included |
| Power module (BantamX or SourceLT) | ✗ NOT included |
When You Need This Cable
| Situation | Notes |
|---|---|
| Existing cable is damaged or severed | Direct replacement — same spec, same connectors |
| Included cable is too short for your routing path | The BantamX and SourceLT include a 10-ft cable — if your path requires more, add this cable or plan routing to fit within 25-ft system max |
| Adding a second switch interface to an existing build | BantamX has two RJ45 controller ports — a second cable run connects the second interface |
| Re-mounting a switch panel to a new location | Confirm the new routing path stays within the 25-ft maximum system cable run |
Cable Length Planning — Confirm Before Ordering
The sPOD system supports a maximum cable run of 25 feet between the power module and the switch interface. The standard included cable in most kits is 10 feet. If your routing path requires more than 10 feet, adding this cable extends reach up to the 25-foot system maximum. Measure your routing path from the module to the switch interface with the cable routed through panels, around obstacles, and along the actual installation path — not point-to-point straight-line distance.
Critical Compatibility
| Configuration | Notes |
|---|---|
| sPOD BantamX — all variants | Compatible |
| sPOD SourceLT — all variants | Compatible |
| sPOD Mini6 interface | Compatible |
| sPOD Mini4 interface | Compatible |
| sPOD HD switch panel | Compatible |
| sPOD touchscreen | Compatible |
| Non-sPOD power management systems | Not confirmed — designed for the sPOD RJ45 CAT-6 controller interface |
| Cable runs exceeding 25 feet total | Signal degradation risk beyond the 25-ft system maximum. Do not exceed. |
Common Questions
Can I use a standard CAT-6 Ethernet cable from a hardware store instead? Technically the connector spec is standard RJ45 CAT-6, but sPOD's cable uses reinforced, weather-resistant construction rated for the vibration, temperature, and moisture exposure in off-road environments. A standard commercial Ethernet cable is designed for static indoor use and may fail prematurely in an off-road or under-hood environment. Use the sPOD-specified cable for long-term reliability.
My routing distance is more than 10 feet. Can I daisy-chain two cables? The sPOD system supports up to 25 feet total between the module and switch interface. If your routing path requires more than 10 feet but stays within 25 feet total, a single replacement cable at the correct length is the right approach. Confirm the available sPOD cable lengths before ordering if 10 feet is insufficient. Do not exceed the 25-foot system maximum.
I have two RJ45 ports on my BantamX. Do I need two cables for two switch panels? Yes — each controller port requires its own cable run to its respective switch interface. If you are adding a second switch panel to an existing BantamX build, order one cable per additional panel.
The Obsidian Take
The 910000 is a single-purpose accessory — it exists for three situations: your existing cable is damaged, your routing distance exceeds what the included cable covers, or you are adding a second control interface to an existing BantamX build. Measure your routing path before ordering. Confirm you stay within the 25-foot system maximum. Everything else about this purchase is straightforward.
Manufacturer Data Disclaimer: Specifications sourced from sPOD manufacturer documentation. Obsidian Forged Auto Supply is an authorized sPOD dealer. Verify compatibility with your specific sPOD system before ordering. Manufacturer specifications are subject to change without notice.
