sPOD BantamX Kit | Red LED Carling Panel | 8-Circuit | 2007-2008 Jeep Wrangler JK Early | SKU 870080
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$885.00
-100%
Regular price
Regular price
$885.00
sPOD BantamX Kit | Red LED Carling Panel | 8-Circuit | 2007-2008 Jeep Wrangler JK Early | SKU 870080
Sale price
$885.00
Regular price
Regular price
$885.00
Fast Shipping
Financing Available
Best Deals
Get notified by email when this product becomes available
Have a question?
Description
The sPOD BantamX Kit (SKU 870080) is the vehicle-specific 8-circuit solid-state power management system for the 2007–2008 Jeep Wrangler JK (early JK platform) with a Red LED Carling Contura switch panel. Aluminum formed and welded panel housing with IP66/68-rated Carling Contura switches, dual-lit per switch, pilot push button, daisy-chainable. The BantamX module mounts in the engine bay. A single 10-foot CAT-6 cable connects to the cab. Vehicle-specific mounting hardware for the early JK. No wires cut, no factory circuits tapped. Expandable to 32 circuits. Operates on 12V or 24V DC. Red LED — maximum night vision preservation for dedicated trail and off-road builds.
If your JK is 2009 or later, this kit does NOT fit. Confirm your model year via VIN: 10th character 7 = 2007, 8 = 2008.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 870080 |
| Brand | sPOD |
| Product Line | BantamX with LED Switch Panel — Early JK Platform |
| LED Switch Panel Color | Red |
| Switch Panel Type | Carling Contura — aluminum formed and welded — matches 2007–2008 JK interior |
| Switch Rating | Carling Technologies Contura — IP66/68 certified (marine/harsh environment) |
| Switch Illumination | Dual-lit per switch — ON indicator + pilot light |
| Pilot Light | Controlled lower pilot light — independent push button |
| Panel Auto-Shutdown | Auto safe shutdown when panel is unplugged |
| Panel Daisy-Chain | Yes — daisy-chain panels for remote operation |
| Panel Compatibility | Can run in conjunction with HD panel and Touchscreen |
| Platform | 2007–2008 Jeep Wrangler JK and JK Unlimited — early JK only |
| Number of Circuits | 8 — independently switched |
| Single Circuit Capacity | 30A at 12.5V DC |
| Total System Capacity | 100A |
| System Protection Fuse | 100A in-line fuse |
| System Circuit Breaker | 50A auto-resetting |
| Operating Voltage | 12V DC or 24V DC |
| Control Technology | Current-sensing MOSFETs via microprocessor — no fuses, no relays |
| Fault Protection | Failsafe self-healing circuits; overheating, over-current, short, reverse polarity, field collapse |
| Low Voltage Cutoff (LVCO) | Disconnects at 11.6V (2-min delay); requires 12.8V to reinitialize |
| LVCO Fuse | One ATM mini-style fuse for LVCO protection and reset |
| LVCO Override | Optional override available |
| Expandability | 2 controller ports (RJ45) — expandable to 32 channels; up to 4 BantamX units daisy-chainable |
| Terminal Block | 16-position terminal block |
| Input Terminal Block | 8-position input terminal block for controlling outputs |
| Ignition Control | Optional ignition control and safety lockout for circuits 1 and 2 |
| Switch Strobe/Flash | Yes — per switch via On/Off/On sequence |
| Bluetooth | Built-in sPODConnect — free sPOD Mobile App (iOS and Android) |
| Software Updates | On-demand wireless OTA updates |
| Controller Cable | 10 ft CAT-6 Ethernet — extendable to 25 ft |
| Battery Cables | Hi-strand crosslinked copper wire, silicone jacket, nylon braid |
| Wiring Sleeves | High-temp abrasion-resistant nylon braided sleeving on all wires |
| Mounting | Vehicle-specific early JK mounting hardware included |
| Shipping Weight | 5.0 lbs |
| Country of Origin | USA |
| Warranty | 5-year manufacturer warranty |
| Sold As | Complete kit |
Early JK BantamX LED Panel Color Options
| SKU | LED Color | Best For |
|---|---|---|
| 870050 | Amber | Night vision-friendly, warm spectrum — trail and mixed-use builds |
| 870060 | Blue | High-contrast visibility — daily drivers and mixed-use builds |
| 870070 | Green | All-around visibility — best readability across all lighting conditions |
| 870080 (this listing) | Red | Maximum night vision preservation — dedicated dark trail builds |
All four kits are identical in circuit count, amp rating, features, and early JK platform harness. Color refers to LED switch illumination only.
Early JK vs. Late JK — Confirm Your Platform
| Platform | Years | BantamX LED SKUs |
|---|---|---|
| Early JK | 2007–2008 | 870050 / 870060 / 870070 / 870080 |
| Late JK | 2009–2018 | Different SKU set — confirm before ordering |
Not interchangeable. Confirm via VIN 10th character: 7 = 2007, 8 = 2008, 9 = 2009.
JK 8-Circuit BantamX Interface Options
| SKU | Interface | Panel Format | Year Range |
|---|---|---|---|
| 870080 (this listing) | Red LED Carling panel | Aluminum formed/welded, IP66/68 | 2007–2008 only |
| 870020 | HD silicone-button panel | Billet aluminum, RGB backlit | 2007–2018 full range |
| 870035 | Touchscreen | 3.5-inch TFT LCD | 2007–2018 full range |

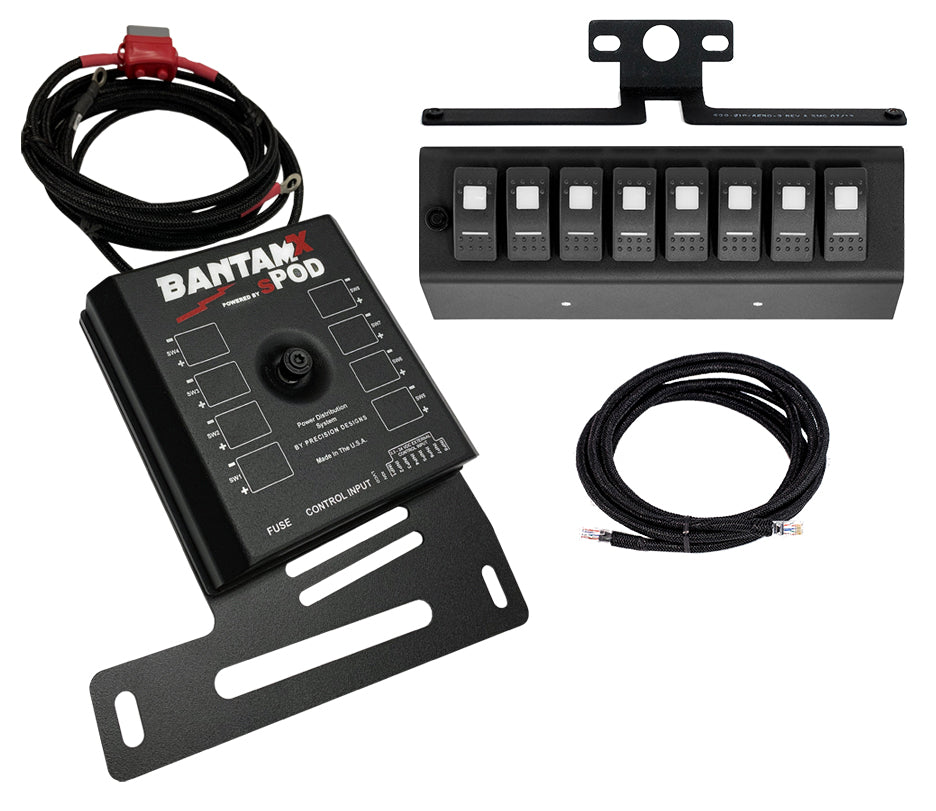

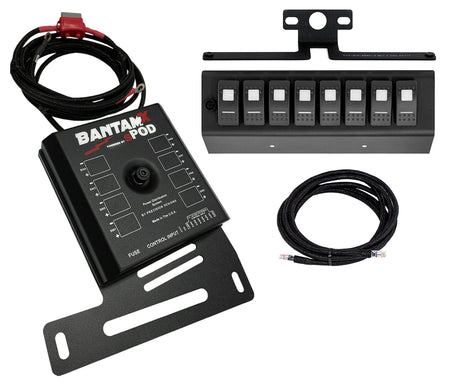

Kit Contents
- sPOD BantamX solid-state module (8-circuit, expandable)
- Red LED Carling Contura aluminum switch panel (IP66/68)
- 10-ft CAT-6 Ethernet controller cable
- Vehicle-specific early JK mounting hardware
- Battery cable set (hi-strand crosslinked copper, silicone jacket, nylon braid)
- All required installation hardware
Verified Fitment
| Vehicle | Years | Status |
|---|---|---|
| Jeep Wrangler JK (2-door) — Sport, Sahara, Rubicon, X | 2007–2008 | ✓ |
| Jeep Wrangler JK Unlimited (4-door) — all trims | 2007–2008 | ✓ |
| Jeep Wrangler JK / JKU (late) | 2009–2018 | ✗ Different platform harness — order late JK Red BantamX |
| Jeep Wrangler JL / JLU | 2018–2026 | ✗ Does not fit |
| Jeep Gladiator JT | 2020–2026 | ✗ Does not fit |
| Jeep Wrangler TJ / LJ | All years | ✗ Does not fit |
Critical Compatibility — Does NOT Fit
FITMENT: 2007–2008 early JK only. Confirm VIN before ordering. Questions? Text (469) 407-7538.
| Configuration | Reason |
|---|---|
| 2009–2018 Jeep Wrangler JK (Late JK) | Different platform harness and hardware. Order the late JK Red BantamX instead. |
| Jeep Wrangler JL / JLU | Different platform. Does not fit. |
| Jeep Gladiator JT | Different platform. Does not fit. |
| Builds requiring more than 8 circuits | BantamX expandable to 32 via add-on units — order BXUNI84ADD or BXUNI36ADD. |
| Winches and high-draw recovery motors | 30A max per circuit. Wire winches direct to battery through a dedicated relay. |
Common Questions
How do I confirm my JK is 2007 or 2008 and not 2009+? Check the 10th character of your VIN: 7 = 2007, 8 = 2008, 9 = 2009. Confirm on your window sticker or door jamb. A harness mismatch from ordering the wrong year kit requires a return.
Why Red LED for a trail JK? Red sits at the far end of the visible spectrum and causes the least pupil contraction of any LED color — your eyes stay dark-adapted when you look away from the panel. This is the traditional cockpit lighting standard for any application requiring sustained night vision. For a 2007–2008 JK running dark trails, backcountry routes, or extended night sessions, Red is the technically correct panel color. For a JK that sees regular street use alongside trail time, Amber (870050) is more versatile for intermediate lighting.
Red vs. Amber — which is better for night trail use? Red provides the maximum night vision preservation — the least pupil contraction, the fastest dark adaptation recovery. Amber provides slightly better switch-state readability in intermediate lighting while still preserving night vision significantly better than Green or Blue. For complete darkness, Red is the correct pick. For mixed lighting environments, Amber is more versatile.
Can I run this panel alongside an HD panel or touchscreen? Yes. The BantamX LED panel can run in conjunction with an HD panel and touchscreen simultaneously on the same BantamX module via the RJ45 controller ports.
Can I expand beyond 8 circuits? Yes. The BantamX has two RJ45 controller ports and is expandable to 32 channels via BantamX add-on modules.
The Obsidian Take
The BantamX Kit (870080) is for the 2007–2008 JK owner who wants 8 circuits of clean, fuse-free accessory power behind IP66/68-rated Red LED Carling switches matched to the early JK interior — maximum night vision preservation for a dedicated trail rig, expandable to 32 channels.
VIN check before ordering. If the 10th character is 9 or later, order the late JK Red BantamX instead. If it is 7 or 8 and this JK runs dark trails, Red is the right call.
Non-Returnable Notice: Electrical systems that have been powered and connected to a vehicle are non-returnable. Inspect the kit and confirm fitment before connecting to the battery.
Manufacturer Data Disclaimer: Specifications and fitment data are sourced from sPOD manufacturer documentation. Obsidian Forged Auto Supply is an authorized sPOD dealer. Verify final fitment against your VIN, window sticker, or door jamb label before ordering. Manufacturer specifications are subject to change without notice.
