sPOD BantamX HD Power Management Kit — Jeep Wrangler JL V8 SKU: 870030

A compact, 8-circuit BantamX HD power management system engineered specifically for Jeep Wrangler JL V8 models. The vehicle-specific mounting bracket positions the BantamX under the hood without cutting, fishing wires, or tapping into the vehicle's electrical system. The HD control panel pairs with the BantamX to deliver programmable, Bluetooth-enabled accessory control with overheating, over-current, short circuit, and reverse polarity protection built in.

Before ordering: This is a Built to Order product. Call for availability and lead time before placing your order. This kit uses a Jeep JL V8-specific mounting bracket — it is not a universal JL fitment. Confirm your Wrangler JL has the factory V8 engine before ordering. The factory 6.4L HEMI V8 was introduced in the Wrangler JL for the 2021 model year (Rubicon 392). Fitment for 2018–2020 model years requires verification with sPOD before ordering.

Required separately: Accessory devices and any additional circuits beyond the included 8-channel system. Additional BantamX modules required for expansion beyond 8 channels.

Verified Fitment

V8 fitment note: This kit is engineered for Jeep Wrangler JL V8 applications and uses a V8-specific mounting plate. The factory 6.4L HEMI V8 was introduced in the Wrangler JL with the 2021 Rubicon 392. If your Wrangler JL is a 2018–2020 model, confirm V8 engine compatibility with sPOD before ordering.

Component Specifications

What Is and Is NOT Included

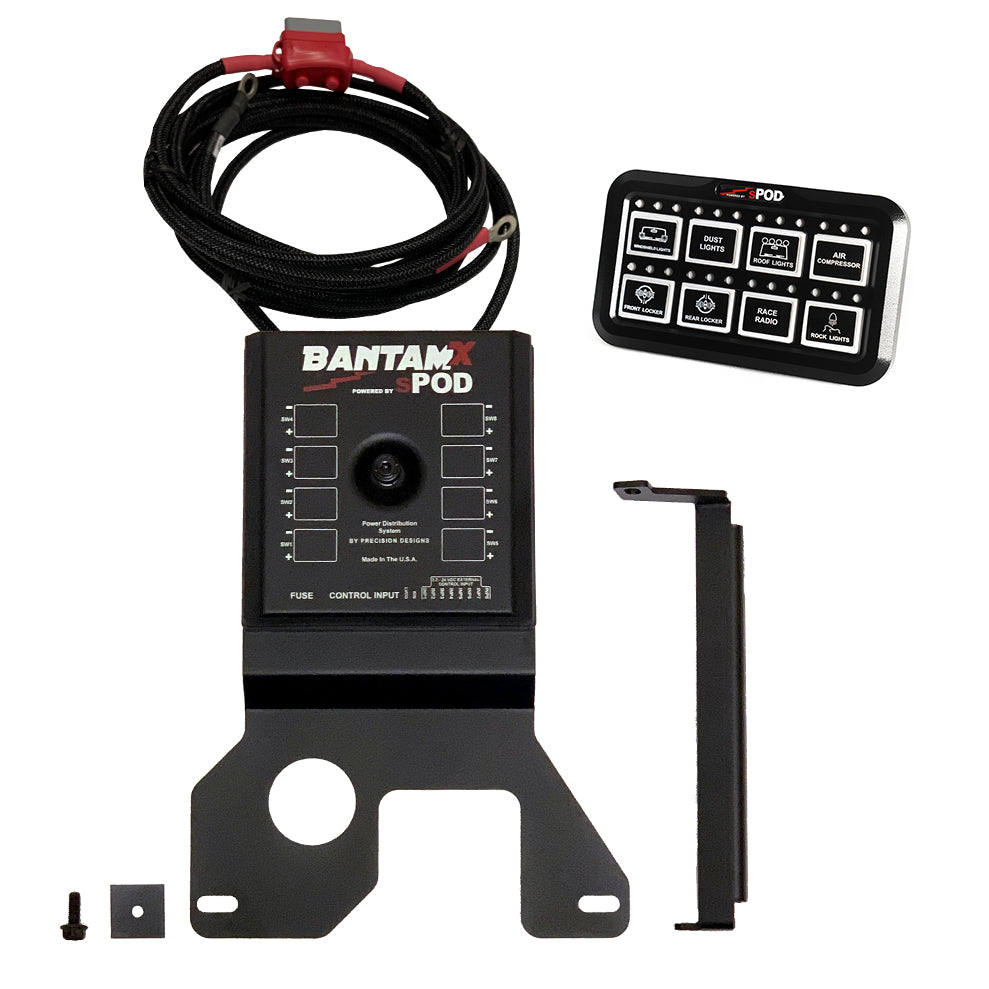

Included:

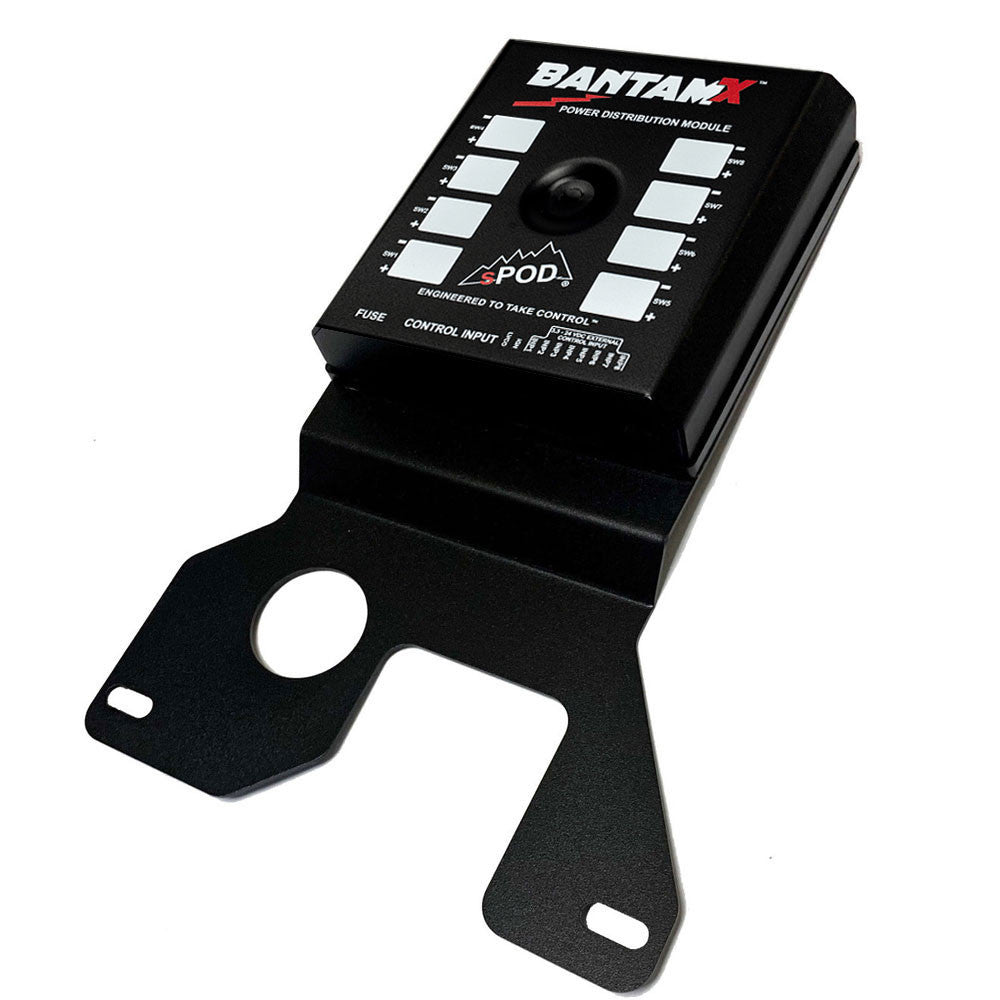

• BantamX System with PCM (powder-coated steel base, weatherproof silicone gasket)
• HD Control Panel (black powder-coated billet aluminum housing)
• Jeep JL V8-specific mounting plate

Not included:

• Accessory wiring, relay, or fuse panels (not required for this system)
• Additional BantamX modules for channel expansion beyond 8 circuits (sold separately)

Critical Compatibility

• Fits Jeep Wrangler JL V8 applications, 2018–2024. Confirm V8 engine configuration before ordering — this kit uses a V8-specific mounting plate.
• The factory 6.4L HEMI V8 was not available in the Wrangler JL until 2021 (Rubicon 392). Fitment for 2018–2020 requires direct confirmation with sPOD.
• This is a Built to Order product — contact OFAS before ordering to confirm availability and lead time.
• Use only the included sPOD battery cables on the positive and negative terminal studs of the BantamX board. Attaching any other cable to these terminals voids the warranty.
• Connecting battery cables with reversed polarity voids the warranty. The BantamX includes built-in reverse polarity protection, but connection errors still void the warranty.
• Do not connect an aftermarket brake controller, high-amp solenoid, or high-amp relay to the same positive battery post used by the BantamX system. Per manufacturer documentation, this causes irreversible damage and voids all warranties.
• Do not cut, splice, or otherwise modify the supplied wiring, connectors, or switches, and do not remove actuators without the manufacturer's specific actuator removal tool. Any such modification voids the warranty.
• Water, liquid, or chemical damage to any electrical component voids the warranty.

Installation Notes

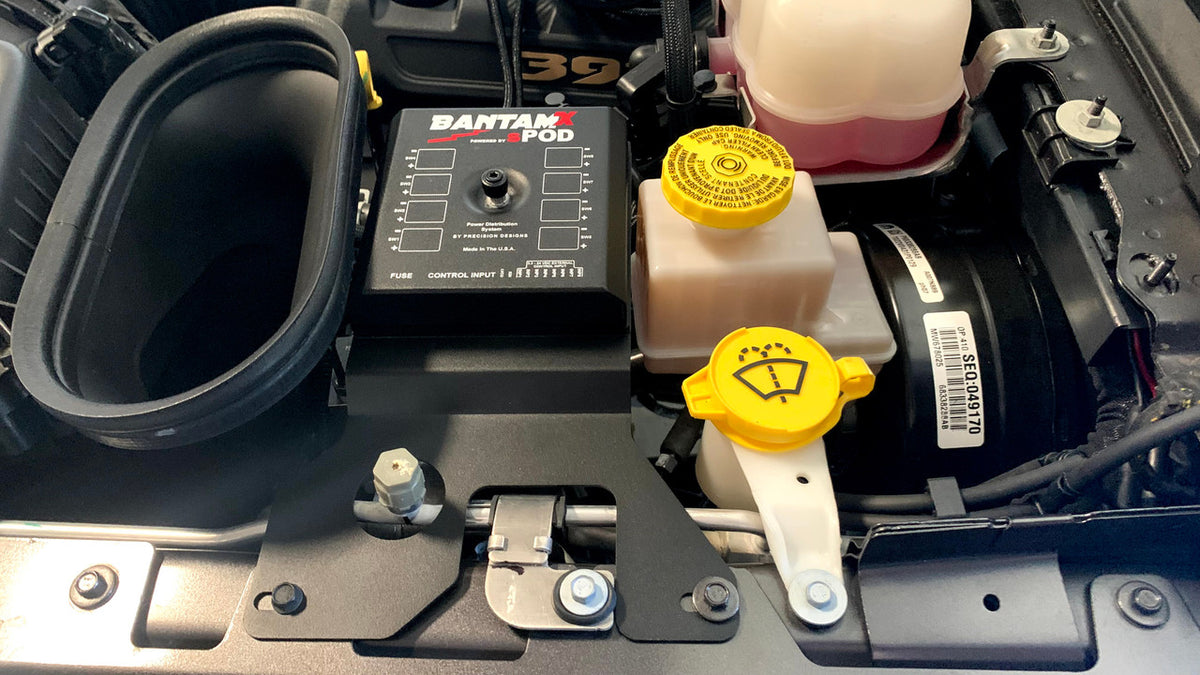

Professional installation is strongly recommended. The BantamX mounts under the hood using the included Jeep JL V8-specific mounting plate — no cutting, wire-fishing, or tapping into the vehicle's electrical system is required.

Refer to the current sPOD/Baja Designs installation instructions for SKU 870030 for complete procedures, torque specifications, and all safety requirements. A color copy of the instructions is available at BajaDesigns.com under your vehicle-specific application.

The Obsidian Take

The 870030 is sPOD's BantamX HD solution for the Jeep Wrangler JL V8 — an under-hood, vehicle-specific mount keeping the 8-circuit HD control system out of the cabin entirely, built around the V8's engine bay layout. The self-healing MOSFET fault protection and built-in reverse polarity protection make it suited to the high-demand electrical environments of a V8-powered off-road build. The HD control panel's billet aluminum housing is designed for harsh environments. Two points to confirm before ordering: this is Built to Order with no guaranteed shelf stock, and the V8-specific bracket means you need to confirm your JL actually has a V8 before placing an order — sPOD's own fitment table starts at 2018, but the factory V8 didn't arrive in the JL until the 2021 Rubicon 392.

This Product Is For You If

• You own a Jeep Wrangler JL with a V8 engine, 2018–2024 (factory V8 confirmed available in 2021+ Rubicon 392).
• You want an under-hood BantamX installation using the V8-specific mounting plate without cutting or wiring into the vehicle's electrical system.
• You need 8 independently controlled, 30-amp circuits with Bluetooth programming and On-Road/Off-Road modes.
• You want built-in LVCO, self-healing MOSFET fault protection, and reverse polarity protection.
• Your build uses 12 VDC or 24 VDC accessories.

This Product Is Not For You If

• Your Jeep Wrangler JL does not have a V8 engine.
• Your JL is a 2018–2020 model and you have not confirmed V8 compatibility with sPOD.
• You plan to connect an aftermarket brake controller, high-amp solenoid, or high-amp relay to the same positive battery post as the BantamX.
• You plan to cut, splice, or modify the supplied wiring.
• You need more than 8 circuits immediately without adding additional BantamX modules.

Common Questions

Is this product in stock?
This is a Built to Order product. Contact Obsidian Forged Auto Supply before ordering to confirm availability and lead time. Call or text 469-407-7538.

Does this fit all Jeep JL Wrangler models?
No. This kit uses a Jeep JL V8-specific mounting plate. It is not a universal JL fitment. Confirm your Wrangler JL has a V8 engine before ordering.

What years did the factory V8 come in the Wrangler JL?
The factory 6.4L HEMI V8 was introduced in the Wrangler JL for the 2021 model year in the Rubicon 392 trim. If your JL is a 2018–2020 model, verify V8 compatibility with sPOD directly before ordering.

How many accessories can this kit control?
8 circuits, each rated at 30 amps at 12.5 VDC. Additional BantamX modules can be linked to expand the system.

Can I control the system from my phone?
Yes. The BantamX includes Bluetooth and the sPOD app supports remote control and wireless system updates on iOS and Android.

What programmable modes are available?
Dimming, strobe, flash, momentary, and switch linking. On-Road and Off-Road operation modes are available through the sPOD app.

Does this system work with third-party switches or sensors?
Yes. The BantamX is compatible with third-party switches, computers, and sensors via external controller input.

Does this support 24 VDC systems?
Yes. The BantamX operates on 12 VDC or 24 VDC.

What is the warranty?
sPOD provides a non-transferable 5-year limited warranty on electronic parts and components against manufacturer defects, effective on products purchased after April 1, 2023. See the full warranty summary below.
