sPOD BantamX HD Kit | 8-Circuit | Physical HD Panel | 2007-2018 Jeep Wrangler JK | SKU 870020
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
The sPOD BantamX HD Kit (SKU 870020) is the vehicle-specific 8-circuit solid-state power management system for the 2007–2018 Jeep Wrangler JK and JK Unlimited. A single SKU covering the full JK year range — no early/late platform split. The HD switch panel mounts in the JK cab via vehicle-specific hardware. The BantamX module mounts in the engine bay. A single CAT-6 Ethernet cable connects both. No wires cut, no factory circuits tapped. Expandable to 32 channels. Operates on 12V or 24V DC.
If you have a JL Wrangler (2018–2026) or Gladiator JT, this kit does NOT fit. Confirm your 2018 Wrangler is a JK and not a JL before ordering.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 870020 |
| Brand | sPOD |
| Product Line | BantamX HD Vehicle Kit |
| Platform | 2007–2018 Jeep Wrangler JK and JK Unlimited — full year range, single SKU |
| Number of Circuits | 8 — independently switched |
| Single Circuit Capacity | 30A at 12.5V DC |
| Total System Capacity | 100A |
| System Protection Fuse | 100A in-line fuse |
| System Circuit Breaker | 50A auto-resetting |
| Operating Voltage | 12V DC or 24V DC |
| Control Technology | Current-sensing MOSFETs via microprocessor — no fuses, no relays |
| Fault Protection | Failsafe self-healing circuits; overheating, over-current, short, reverse polarity, field collapse |
| Low Voltage Cutoff (LVCO) | Disconnects at 11.6V (2-min delay); requires 12.8V to reinitialize |
| LVCO Fuse | One ATM mini-style fuse for LVCO protection and reset |
| LVCO Override | Optional override available |
| Expandability | 2 controller ports (RJ45) — expandable to 32 channels via BantamX add-on |
| Terminal Block | 16-position terminal block |
| Input Terminal Block | 8-position input terminal block for controlling outputs |
| Ignition Control | Optional ignition control and safety lockout for circuits 1 and 2 |
| Panel Lock-Out | Yes — prevents accidental circuit activation |
| Bluetooth | Built-in sPODConnect — controlled via free sPOD Mobile App (iOS and Android) |
| Software Updates | On-demand wireless OTA updates |
| Controller Cable | 10 ft CAT-6 Ethernet (HD panel to BantamX module) — extendable to 25 ft |
| Battery Cables | Hi-strand crosslinked copper wire, silicone jacket, nylon braid |
| HD Panel Housing | Precision-machined billet aluminum, powder-coated black |
| HD Panel Backlight | Adjustable RGB — customizable color |
| Module Housing | Powder-coated steel base with silicone gasket weatherproofing, aluminum lid |
| Mounting | Vehicle-specific JK hardware included |
| Shipping Weight | 5.0 lbs |
| Country of Origin | USA |
| Warranty | 5-year manufacturer warranty |
| Sold As | Complete kit |
HD Switch Panel Features
| Feature | Detail |
|---|---|
| Switch Count | 8 silicone-button switches |
| Switch Type | Tactile — positive touch feedback, operable by feel without visual reference |
| Backlight | Adjustable RGB — customizable color and intensity |
| Backlight Auto-Off | Adjustable timer — reactivates on any switch touch |
| Backlight Quick Off | Hold 2 designated buttons to instantly turn backlight off |
| Circuit ON Indicator | Individual backlit feedback per switch |
| Panel Lock-Out | Yes — prevents accidental activation |
| Programmable Modes | Dimming, Strobe, Flash, Momentary, Memory, Switch Linking, Auto Power-Up |
| App Integration | Full sPOD app programmability via Bluetooth in parallel |
Kit Contents

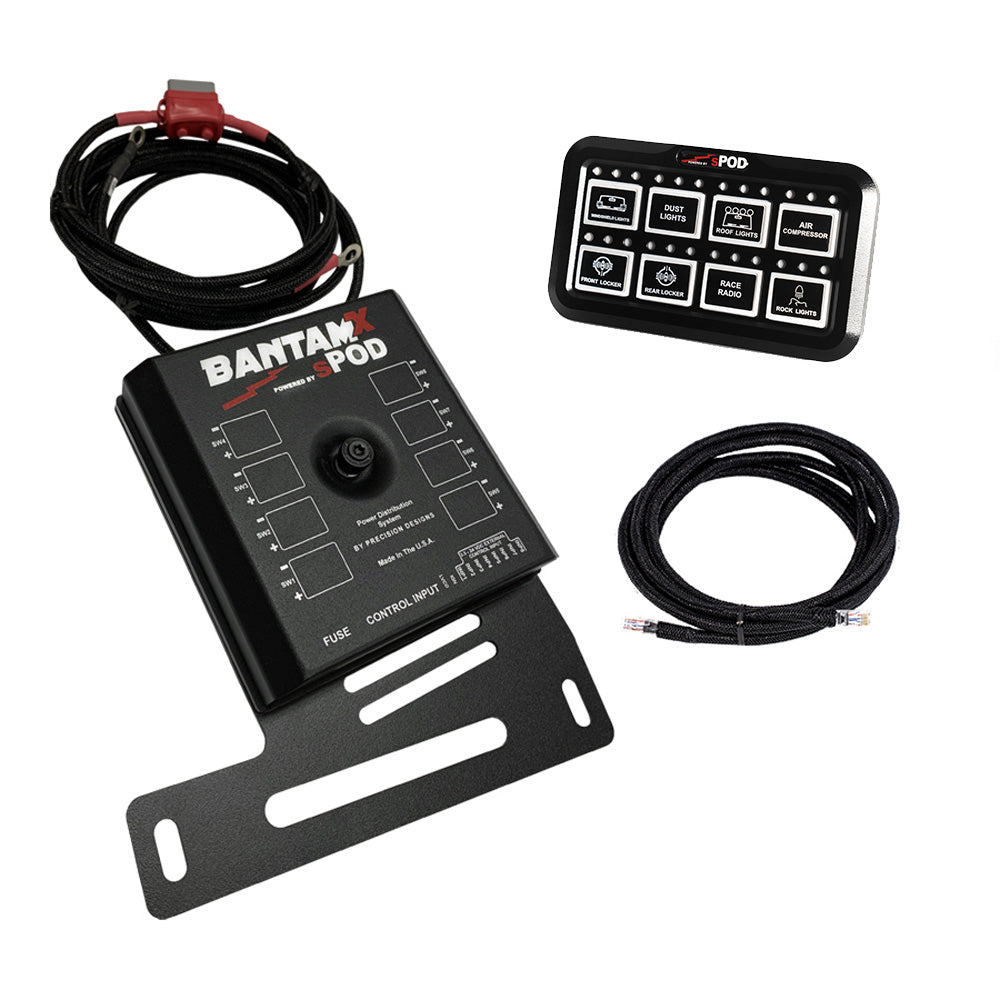

- sPOD BantamX solid-state module (8-circuit, expandable)
- HD switch panel with adjustable RGB backlight
- 10-ft CAT-6 Ethernet controller cable
- Vehicle-specific JK mounting hardware
- Battery cable set (hi-strand crosslinked copper, silicone jacket, nylon braid)
- All required installation hardware
JK BantamX vs. JK SourceLT — 8 Circuits or 6
| System | Circuits | Interface | Voltage | Expandable | Notes |
|---|---|---|---|---|---|
| BantamX HD — 870020 (this listing) | 8 | Physical HD panel — RGB | 12V or 24V | Yes — to 32 | Full 2007–2018 JK in one SKU |
| SourceLT LED kits (873100–873185) | 6 | Carling LED panel | 12V only | No | Split into early JK (2007–2008) and late JK (2009–2018) SKUs |
| SourceLT Mini6 — 873175 | 6 | Mini6 panel | 12V only | No | Full 2007–2018 JK in one SKU — 6-circuit ceiling |
| BantamX Wireless — 870120 | 8 | App only — no physical panel | 12V or 24V | Yes — to 32 | No physical switch panel included |
Verified Fitment
| Vehicle | Years | Status |
|---|---|---|
| Jeep Wrangler JK (2-door) — all trims | 2007–2018 | ✓ — full year range, single SKU |
| Jeep Wrangler JK Unlimited (4-door) — all trims | 2007–2018 | ✓ — full year range, single SKU |
| Jeep Wrangler JL / JLU | 2018–2026 | ✗ Different platform — does not fit |
| Jeep Gladiator JT | 2020–2026 | ✗ Different platform — does not fit |
| Jeep Wrangler TJ / LJ | All years | ✗ Different platform — does not fit |
Critical Compatibility — Does NOT Fit
FITMENT GATE: 2007–2018 JK only. JL does not fit. Questions? Text (469) 407-7538.
| Configuration | Reason |
|---|---|
| Jeep Wrangler JL / JLU — 2018–2026 | Different platform. Does not fit. |
| 2018 Jeep Wrangler JL | Both JK and JL were produced in 2018. A 2018 JL does not fit. Confirm your 2018 Wrangler is a JK before ordering. |
| Jeep Gladiator JT | Different platform. Does not fit. |
| Jeep Wrangler TJ / LJ | Different platform. Does not fit. |
| Winches and high-draw recovery motors | 30A max per circuit. Wire winches direct to battery through a dedicated relay. |
| Any accessory requiring more than 30A per circuit | 30A hard ceiling per circuit. High-draw devices require direct battery wiring outside this system. |
Common Questions
Does this kit cover both 2007–2008 and 2009–2018 JK in one SKU? Yes. Unlike the SourceLT LED kits which require separate early JK (2007–2008) and late JK (2009–2018) SKUs due to different harness configurations, the BantamX HD Kit 870020 covers the full 2007–2018 JK range in a single SKU. No year-range verification is required beyond confirming your Wrangler is a JK.
I have a 2018 Wrangler. How do I confirm it is a JK and not a JL? Both the JK and JL were produced in the 2018 model year. The JK and JL are visually distinct — the JL has a more modern exterior design compared to the JK's squarer body style. Confirm your generation on your window sticker, door jamb, or VIN decoder before ordering. Text (469) 407-7538 if you need help confirming.
HD panel vs. Wireless kit — what is the difference? The BantamX HD Kit (870020) includes the physical HD switch panel — tactile buttons you can activate by feel in the dark. The BantamX Wireless (870120) is the same BantamX module with app-only control and no physical panel. If physical switch access is important for your build, order 870020. If app-only is preferred, order 870120.
Does installation require cutting factory wires or tapping the JK harness? No. The BantamX module connects directly to the battery. A single CAT-6 cable runs from the engine bay module to the cab-mounted HD panel. No factory circuits are tapped, no wires are cut.
Can I expand beyond 8 circuits later? Yes. The BantamX has two RJ45 controller ports and is expandable to 32 channels via BantamX add-on modules (BXUNI84ADD or BXUNI36ADD).
What does installation take — time, tools, and skill level? Intermediate to advanced DIY level. Vehicle-specific mounting hardware eliminates custom fabrication. Plan for 2–3 hours. Text (469) 407-7538 with pre-install questions.
The Obsidian Take
The BantamX HD Kit (870020) is for the 2007–2018 JK owner who wants 8 circuits of clean, fuse-free accessory power behind a tactile RGB backlit HD panel — no LED color constraint, operable by feel at night, expandable to 32 channels, and covering the full JK year range in one SKU without the early/late platform split that applies to the SourceLT kits.
If 6 circuits is enough and an LED color for night vision matters, look at the SourceLT lineup. If 8 expandable circuits and a modern HD panel is the build requirement, this is the kit.
Non-Returnable Notice: Electrical systems that have been powered and connected to a vehicle are non-returnable. Inspect the kit and confirm fitment before connecting to the battery.
Manufacturer Data Disclaimer: Specifications and fitment data are sourced from sPOD manufacturer documentation. Obsidian Forged Auto Supply is an authorized sPOD dealer. Verify final fitment against your VIN, window sticker, or door jamb label before ordering. Manufacturer specifications are subject to change without notice.
