sPOD BantamX HD Kit | 8-Circuit | HD Switch Panel | 84-Inch Cables | Universal | SKU BXTSBUNI84
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$930.00
-100%
Regular price
Regular price
$930.00
sPOD BantamX HD Kit | 8-Circuit | HD Switch Panel | 84-Inch Cables | Universal | SKU BXTSBUNI84
Sale price
$930.00
Regular price
Regular price
$930.00
Fast Shipping
Financing Available
Best Deals
Get notified by email when this product becomes available
Have a question?
Description
The sPOD BantamX HD Kit (SKU BXTSBUNI84) is the universal 8-circuit solid-state power management system with the HD switch panel and 84-inch battery cables — for trucks, SUVs, UTVs, overland rigs, and custom builds where no vehicle-specific BantamX kit exists for the platform. The BantamX module and HD panel mount wherever the build requires. Single CAT-6 cable between both. No wires cut, no factory circuits tapped. Operates on 12V or 24V DC. Expandable to 32 circuits.
Note on naming: sPOD uses "Touchscreen" in this kit's product name. The controller included is the HD switch panel with silicone buttons — not the TFT LCD touchscreen (860800/860805). If you want an in-cab touchscreen interface, order the BantamX Touchscreen universal kit (BXTSBUNI84-TS) or add the touchscreen (860800) to an existing BantamX system.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | BXTSBUNI84 |
| Brand | sPOD |
| Product Line | BantamX HD Kit — Universal |
| Switch Panel | HD — silicone-button panel with RGB backlight |
| Platform | Universal — Truck, SUV, UTV, overland, custom builds |
| Number of Circuits | 8 — independently switched |
| Single Circuit Capacity | 30A at 12.5V DC |
| Total System Capacity | 100A |
| System Protection Fuse | 100A in-line fuse |
| System Circuit Breaker | 50A auto-resetting |
| Operating Voltage | 12V DC or 24V DC |
| Control Technology | Current-sensing MOSFETs via microprocessor — no fuses, no relays |
| Fault Protection | Failsafe self-healing circuits; overheating, over-current, short, reverse polarity, field collapse |
| Low Voltage Cutoff (LVCO) | Disconnects at 11.6V (2-min delay); requires 12.8V to reinitialize |
| LVCO Fuse | One ATM mini-style fuse for LVCO protection and reset |
| LVCO Override | Optional override available |
| Expandability | 2 controller ports (RJ45) — expandable to 32 channels; up to 4 BantamX units daisy-chainable |
| Terminal Block | 16-position terminal block |
| Input Terminal Block | 8-position input terminal block for controlling outputs |
| Ignition Control | Optional ignition control and safety lockout for circuits 1 and 2 |
| Bluetooth | Built-in — for programming only; 5–15 ft range due to billet aluminum housing |
| Software Updates | On-demand wireless OTA updates |
| Controller Cable | 10 ft CAT-6 Ethernet (HD panel to BantamX module) — extendable to 25 ft |
| Battery Cable Length | 84 inches |
| Battery Cables | Hi-strand crosslinked copper wire, silicone jacket, nylon braid |
| HD Panel Dimensions | 2-7/8" W x 4-7/8" L x 1/2" thick |
| HD Panel Backlight | Adjustable RGB |
| HD Panel Mounting | Universal back — two pressed-in 1/4-20 studs x 5/8" + standard universal articulating mount |
| Housing — Module | Powder-coated steel base, aluminum lid with thumb-screw fastening |
| Shipping Weight | 5.0 lbs |
| Country of Origin | USA |
| Warranty | 5-year manufacturer warranty |
| Sold As | Complete kit |
HD Switch Panel Features
| Feature | Detail |
|---|---|
| Switch Count | 8 silicone-button switches |
| Switch Type | Tactile — positive touch feedback, operable by feel |
| Backlight | Adjustable RGB — any color, any intensity |
| Circuit ON Indicator | Individual backlit feedback per switch |
| Programmable Modes | Dimming, Strobe, Flash, Momentary, Switch Linking, On-Road/Off-Road modes |
| Bluetooth | Built-in LE — for programming only, limited range |
| Mount | Universal articulating mount + 1/4-20 studs for flat mounting |

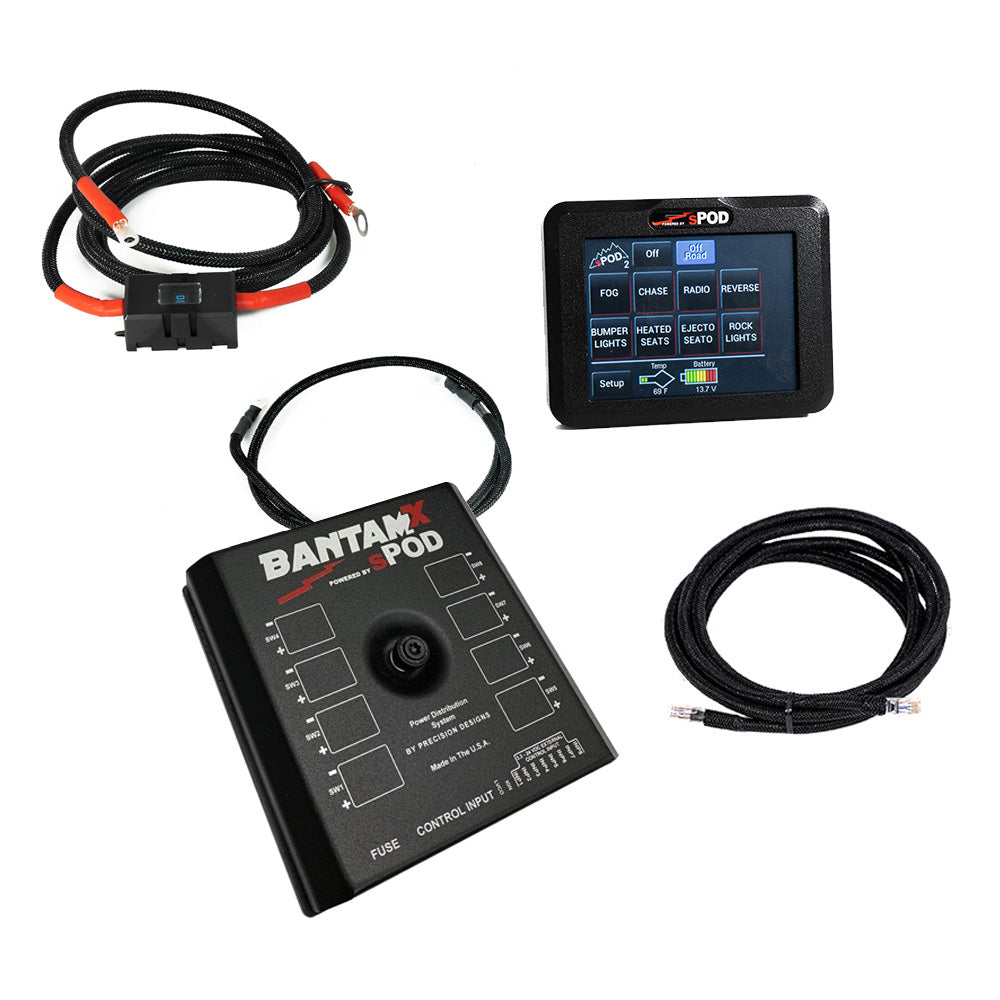

Kit Contents
- sPOD BantamX solid-state module (8-circuit, expandable)
- HD switch panel with RGB backlight
- 84-inch battery cable set (hi-strand crosslinked copper, silicone jacket, nylon braid)
- 10-ft CAT-6 Ethernet controller cable
- Universal mounting bracket
- All required installation hardware
Universal BantamX Kit — Cable Length Selector
| SKU | Cable Length | Best For |
|---|---|---|
| BXTSBUNI84 (this listing) | 84 inches | Module mounting more than 3 feet from battery — full-size trucks, van builds, overland rigs, remote battery locations |
| BXTSBUNI36 | 36 inches | Module mounting within 3 feet of battery — UTV engine bays, compact setups |
Measure your routing path from the battery to the planned module location before ordering.
Critical Compatibility
| Configuration | Notes |
|---|---|
| Builds requiring more than 8 circuits | BantamX is expandable to 32 circuits via add-on units. Order BXUNI84ADD or BXUNI36ADD. |
| Module mounting within 3 feet of battery | Order BXTSBUNI36 (36-inch cables) for cleaner installation |
| sPOD SourceLT systems | SourceLT is a separate 6-circuit system. Not compatible with BantamX expansion. |
| Winches and high-draw recovery motors | 30A max per circuit. Wire winches direct to battery through a dedicated relay. |
| Any accessory requiring more than 30A per circuit | 30A hard ceiling per circuit. High-draw devices require direct battery wiring outside this system. |
| High-amp solenoids on the same battery post | Isolate the BantamX battery connection from any high-amp relay or solenoid. |
Common Questions
The product name says "Touchscreen" but the description mentions an HD panel — which is it? HD switch panel. sPOD uses "Touchscreen" in this kit's name as part of their product line naming convention. The controller included is the HD panel with 8 RGB backlit silicone buttons — not the TFT LCD touchscreen. If you specifically want a touchscreen interface, confirm the kit SKU includes the 3.5-inch TFT touchscreen before ordering.
Does the Bluetooth work as a remote control? For programming only. The billet aluminum HD panel housing limits Bluetooth range to 5–15 feet. Use Bluetooth to program dimming levels, strobe patterns, momentary behavior, and switch linking. For everyday circuit activation, use the physical HD switches.
Why 84-inch cables instead of 36-inch? 84-inch cables give you 7 feet of routing flexibility — necessary for full-size trucks, van builds, and any installation where the module mounts away from the battery. If your routing path is within 3 feet, order BXTSBUNI36 for cleaner cable management.
Can I expand beyond 8 circuits? Yes. The BantamX has two RJ45 controller ports and is expandable to 32 channels by adding BantamX add-on modules (BXUNI84ADD or BXUNI36ADD). Up to 4 BantamX units can be daisy-chained, controlled by one touchscreen.
The Obsidian Take
The BantamX HD Kit (BXTSBUNI84) is for the builder running a platform without a vehicle-specific BantamX kit who needs 8 circuits of clean, fuse-free accessory power with an RGB backlit HD panel and 84 inches of battery cable reach. Universal mounting, full BantamX expandability to 32 channels, 12V or 24V compatible.
Measure your battery cable routing path before ordering. If it is within 3 feet, order BXTSBUNI36. If it exceeds 3 feet, this is your kit.
Non-Returnable Notice: Electrical systems that have been powered and connected to a vehicle are non-returnable. Inspect the kit and confirm fitment before connecting to the battery.
Manufacturer Data Disclaimer: Specifications sourced from sPOD manufacturer documentation. Obsidian Forged Auto Supply is an authorized sPOD dealer. Verify compatibility with your specific vehicle and build configuration before ordering. Manufacturer specifications are subject to change without notice.
