The sPOD BantamX HD Kit (SKU BXHDUNI36) is the universal 8-circuit solid-state power management system with the RGB backlit HD silicone-button panel and 36-inch battery cables — for trucks, SUVs, UTVs, overland rigs, and custom builds where the module mounts close to the battery and no vehicle-specific BantamX kit exists for the platform. Precision-machined billet aluminum HD panel with tactile silicone buttons, adjustable RGB backlight, and a single RJ45 jack connecting to the BantamX module via 10-foot CAT-6 cable. No wires cut, no factory circuits tapped. Operates on 12V or 24V DC. Expandable to 32 circuits.
If your module will mount more than 3 feet from the battery, order BXHDUNI84 (84-inch cables) instead.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | BXHDUNI36 |
| Brand | sPOD |
| Product Line | BantamX HD Kit — Universal |
| Switch Panel | HD — precision-machined billet aluminum, powder-coated black |
| Switch Type | Tactile silicone-encapsulated buttons — positive touch feedback |
| Switch Count | 8 — all backlit |
| Backlight | Adjustable RGB — any color and intensity; matches vehicle interior dash lighting |
| Backlight Timer | Adjustable auto-off timer; reactivates on any switch touch; quick-off by holding 2 designated buttons |
| Panel Dimensions | 2-7/8" W x 4-7/8" L x 1/2" thick |
| Panel Mounting | Universal back with two pressed-in 1/4-20 studs x 5/8" for flat mounting; standard universal articulating mount included |
| Platform | Universal — Truck, SUV, UTV, overland, custom builds |
| Number of Circuits | 8 — independently switched |
| Single Circuit Capacity | 30A at 12.5V DC |
| Total System Capacity | 100A |
| System Protection Fuse | 100A in-line fuse |
| System Circuit Breaker | 50A auto-resetting |
| Operating Voltage | 12V DC or 24V DC |
| Control Technology | Current-sensing MOSFETs via microprocessor — no fuses, no relays |
| Fault Protection | Self-healing fault protection 1.5A–30A; overheating, over-current, short, reverse polarity, field collapse |
| Low Voltage Cutoff (LVCO) | Disconnects at 11.6V (2-min delay); requires 12.8V to reinitialize |
| LVCO Fuse | One ATM mini-style fuse for LVCO protection and reset |
| LVCO Override | Optional override available |
| Expandability | 2 RJ45 controller ports — expandable to 32 channels; up to 4 BantamX units daisy-chainable |
| Terminal Block | 16-position terminal block |
| Input Terminal Block | 8-position input terminal block for controlling outputs |
| Ignition Control | Optional ignition control and safety lockout for circuits 1 and 2 |
| Bluetooth | Built-in Bluetooth LE — for programming only; 5–15 ft range due to billet aluminum housing |
| Bluetooth Pairing | Three levels of secured or open pairing/connectivity |
| Controller Panel Compatibility | HD can run in conjunction with Touchscreen, Bluetooth, and 8-switch panels simultaneously |
| Software Updates | On-demand wireless OTA updates |
| Controller Cable | 10 ft CAT-6 Ethernet included; extendable to 25 ft from BantamX module |
| Battery Cable Length | 36 inches |
| Battery Cables | Hi-strand crosslinked copper wire, silicone jacket, nylon braid |
| Wiring Sleeves | High-temp abrasion-resistant nylon braided sleeving |
| Housing — Module Base | Powder-coated steel with aluminum lid; thumb-screw fastening; silkscreened legend outlines |
| Legends Included | Yes |
| Shipping Weight | 5.0 lbs |
| Country of Origin | USA |
| Warranty | 5-year manufacturer warranty |
| Sold As | Complete kit |
HD Panel Programmable Functions
| Function | Detail |
|---|---|
| Dimming | Variable output for dimmable accessories |
| Flash | Programmable flash pattern |
| Momentary | Circuit active only while held |
| Strobe | Programmable strobe pattern |
| Switch Linking | Program any switch as master to control other switches |
| On-Road / Off-Road Mode | Preset circuit configuration switching |
| RGB Backlight Control | Any color, any intensity via sPOD app |
36-Inch vs. 84-Inch — Choose Before Ordering
| Cable Length | SKU | Best For |
|---|---|---|
| 36 inches — BXHDUNI36 (this listing) | Module mounting within 3 feet of battery — UTV engine bays, compact setups, near-battery positions | |
| 84 inches — BXHDUNI84 | Module mounting more than 3 feet from battery — full-size trucks, van builds, overland rigs, remote battery locations |
Measure your routing path from the battery to the planned module location before ordering. If it exceeds 3 feet, order BXHDUNI84.
Universal BantamX Interface Selector
| SKU | Interface | Panel Format | Bluetooth Use | Color |
|---|---|---|---|---|
| BXHDUNI36 (this listing) | HD silicone-button panel | Billet aluminum, RGB backlit | Programming only — 5–15 ft range | Any RGB color |
| BXHDUNI84 | HD silicone-button panel | Billet aluminum, RGB backlit | Programming only — 5–15 ft range | Any RGB color |
| BXTSBUNI36 | Touchscreen | TFT LCD touchscreen | App control | N/A |
| BXMOD36R/G/B/A | Modular Carling panel | Aluminum formed/welded, LED rocker | App control | Red, Green, Blue, Amber |

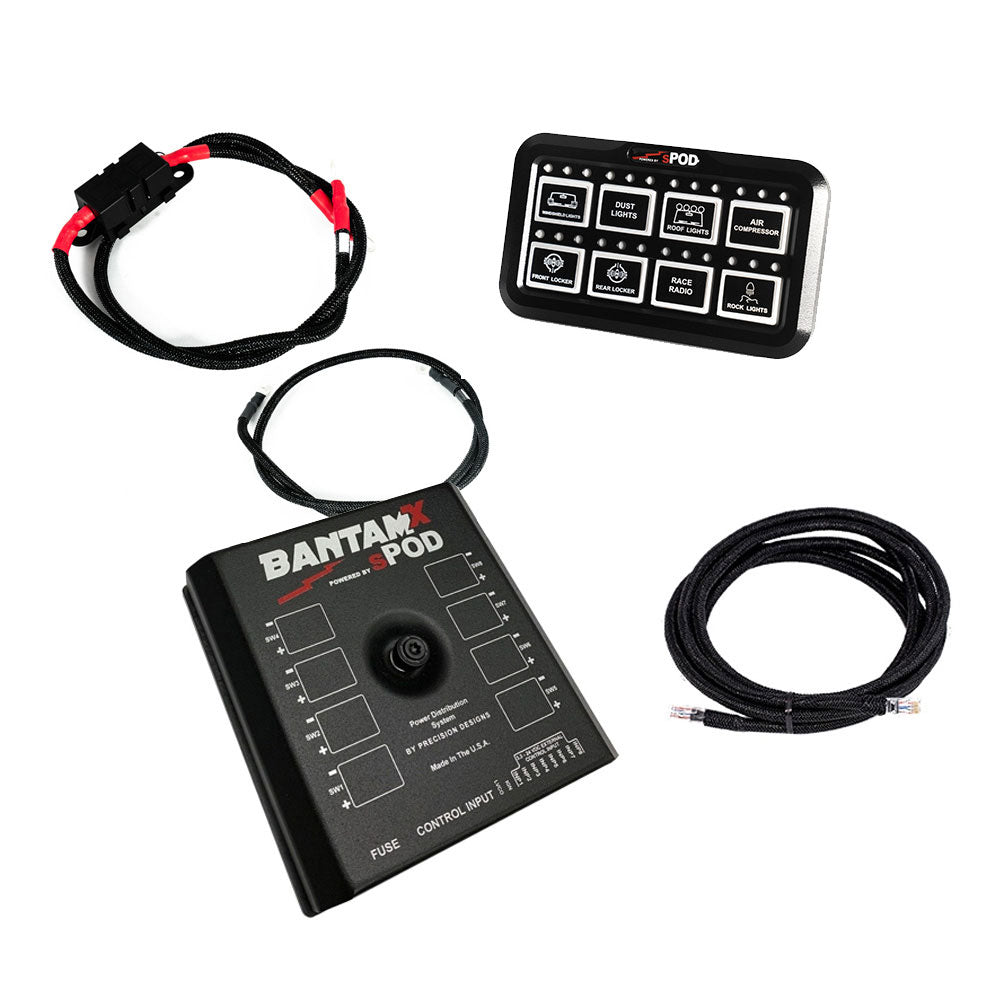

Kit Contents
- sPOD BantamX solid-state module (8-circuit, expandable)
- HD RGB silicone-button panel in billet aluminum housing
- Universal articulating mount
- 36-inch battery cable set (hi-strand crosslinked copper, silicone jacket, nylon braid)
- 10-ft CAT-6 Ethernet controller cable
- Legend sheet
- All required installation hardware
Critical Compatibility
| Configuration | Notes |
|---|---|
| Module mounting more than 3 feet from battery | Order BXHDUNI84 (84-inch cables) instead |
| Builds requiring more than 8 circuits | BantamX expandable to 32 via add-on units — order BXUNI36ADD |
| sPOD SourceLT systems | SourceLT is a separate 6-circuit system. Not compatible with BantamX expansion. |
| Using Bluetooth as a remote control | Bluetooth on HD panel is for programming only — 5–15 ft range. Use the sPOD app on your phone for broader remote control capability. |
| Winches and high-draw recovery motors | 30A max per circuit sustained. Wire winches direct to battery through a dedicated relay. |
| High-amp solenoids on the same battery post | Isolate the BantamX battery connection from any high-amp relay or solenoid. |
Common Questions
How do I confirm 36-inch cables are sufficient? Measure the actual routing path from the battery to the planned module location — not straight-line distance. Route the tape measure through the same path the cable will take: through firewall openings, along routing channels, to the mount point. If it exceeds 3 feet, order BXHDUNI84. A cable that falls short mid-install requires a return.
HD panel vs. Modular panel — which is right for my build? Different switch technology and housing. The HD uses silicone tactile buttons with adjustable RGB backlight in a billet aluminum housing — operable by feel in the dark, any color you choose. The Modular uses Carling Contura IP66/68-rated rocker switches in a welded aluminum housing with fixed LED color options. Same BantamX module, same 8 circuits, same expandability. If LED color specificity for night vision matters, the Modular lineup is more targeted. If RGB flexibility and tactile button operation are the priority, the HD is the right call.
Can I run the HD panel alongside a touchscreen or other sPOD controller? Yes. The HD panel runs in conjunction with the sPOD Touchscreen, Bluetooth, and 8-switch panels simultaneously. All control interfaces operate the same 8 circuits on the BantamX module.
Can I expand beyond 8 circuits later? Yes. The BantamX has two RJ45 controller ports and is expandable to 32 channels via BantamX add-on modules. Order BXUNI36ADD for near-battery add-on placement.
The Obsidian Take
The BantamX HD Kit (BXHDUNI36) is for the builder running a compact mounting layout — module close to the battery, clean short cable routing — who wants 8 circuits of fuse-free accessory power behind a tactile RGB backlit HD panel. Any color, operable by feel, billet aluminum housing, expandable to 32 circuits.
Measure your battery cable routing path before ordering. If it exceeds 3 feet, order BXHDUNI84. If it is within 3 feet and the HD silicone-button panel is the right interface for the build, this is your kit.
Non-Returnable Notice: Electrical systems that have been powered and connected to a vehicle are non-returnable. Inspect the kit and confirm fitment before connecting to the battery.
Manufacturer Data Disclaimer: Specifications sourced from sPOD manufacturer documentation. Obsidian Forged Auto Supply is an authorized sPOD dealer. Verify compatibility with your specific vehicle and build configuration before ordering. Manufacturer specifications are subject to change without notice.
