sPOD Add-On HD Switch Panel | 8-Circuit BantamX & SourceSE Systems | Universal | SKU 8-800-HD ADD
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$350.00
-100%
Regular price
Regular price
$350.00
sPOD Add-On HD Switch Panel | 8-Circuit BantamX & SourceSE Systems | Universal | SKU 8-800-HD ADD
Sale price
$350.00
Regular price
Regular price
$350.00
Fast Shipping
Financing Available
Best Deals
Get notified by email when this product becomes available
Have a question?
Description
⚠️ Add-On Only — Requires Existing sPOD 8-Circuit System
This panel requires an existing sPOD BantamX or SourceSE 8-circuit power management system. It is not a standalone system. It adds a second physical HD control interface to an existing build — a second location in the cab, a cargo area panel, or a replacement for a damaged HD panel. It will not function without a compatible sPOD 8-circuit source module.

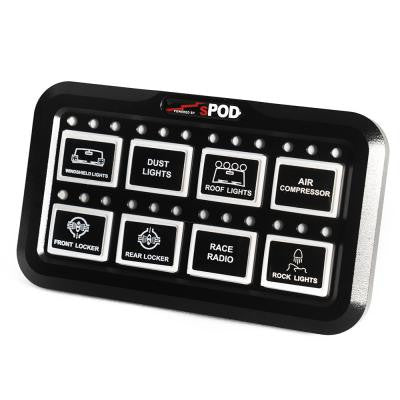

The sPOD Add-On HD Switch Panel (SKU 8-800-HD ADD) is the universal 8-switch physical control panel for sPOD BantamX and SourceSE 8-circuit systems. Precision-machined billet aluminum housing with 8 RGB backlit silicone-button switches, Bluetooth LE programming, and a single RJ45 jack for CAT-6 connection to the source module. Use it to add a second control location to an existing BantamX or SourceSE build, or as a standalone physical panel alongside a touchscreen on the same system.
Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 8-800-HD ADD |
| Brand | sPOD |
| Type | Add-on HD switch panel — NOT a complete system |
| Required System | sPOD BantamX or SourceSE 8-circuit power module (not included) |
| Switch Count | 8 |
| Switch Type | Silicone buttons — positive touch feedback |
| Backlight | Adjustable RGB — any color, any intensity |
| Status Lights Per Switch | 3 — Red (left) = ON, White (center) = Flash/Strobe active, Blue (right) = Active push feedback |
| Status Light Dimming | Yes — all status lights dimmable |
| Programmable Modes | Dimming, Flash, Momentary, Strobe, Switch Linking |
| Switch Linking | Program any switch as a master to control other switches |
| Bluetooth | Built-in Bluetooth LE — sPOD HD app (iOS and Android, free) |
| Bluetooth Range | 5–15 feet — limited by billet aluminum housing; for programming only, not remote control |
| Housing | Precision-machined billet aluminum, powder-coated black |
| Panel Dimensions | 2-7/8" W x 4-7/8" L x 1/2" thick |
| Mounting — Back | Universal — two pressed-in 1/4-20 studs x 5/8" for flat mounting |
| Mounting — Articulating | Standard universal articulating mount included |
| RJ45 Jack | Single — CAT-6 Ethernet cable to sPOD source module |
| Max Cable Run | 25 feet from source to HD panel |
| Deep Sleep | Activates after 6 hours of inactivity — shuts off all accessories left on |
| Panel Compatibility | Runs in conjunction with SE Touchscreen, SE 8-switch panels, and Bluetooth |
| Sold As | Each — panel only |
What Is and Is NOT Included
| Item | Included |
|---|---|
| HD switch panel with universal mount | ✓ |
| Universal articulating mount | ✓ |
| sPOD BantamX or SourceSE power module | ✗ NOT included — required, sold separately |
| CAT-6 Ethernet connection cable | ✗ Confirm — order separately if needed |
When to Order This Panel
| Situation | Notes |
|---|---|
| Adding a second control location to an existing BantamX build | Mount at a secondary position (cargo area, co-driver dash, roll cage) connected via CAT-6 to the source module |
| Replacing a damaged or lost HD panel on an existing system | Direct replacement — same panel used in BantamX HD vehicle kits |
| Adding physical switch control alongside an SE Touchscreen | The HD panel runs in conjunction with the SE Touchscreen and SE 8-switch panel simultaneously |
| Upgrading a Bluetooth-only BantamX build to add physical switches | Connect via RJ45 to the existing BantamX module |
Critical Compatibility
| Configuration | Notes |
|---|---|
| sPOD BantamX 8-circuit systems | Compatible — primary use case per sPOD's own product description |
| sPOD SourceSE 8-circuit systems | Compatible — runs in conjunction with SE Touchscreen and SE 8-switch panels |
| sPOD SourceLT 6-circuit systems | Not confirmed for this panel — SourceLT uses the Mini6 panel format |
| Non-sPOD power management systems | Not compatible — requires sPOD RJ45 CAT-6 controller interface |
| Cable runs exceeding 25 feet | Beyond system maximum — do not exceed |
Common Questions
Can I run this alongside my existing BantamX touchscreen or SE Touchscreen? Yes. The HD panel runs in conjunction with the SE Touchscreen, SE 8-switch panels, and Bluetooth simultaneously on the same system. All control interfaces operate the same 8 circuits on the source module.
The Bluetooth range is only 5–15 feet — is that a problem? Only if you intended to use Bluetooth as a remote control interface. The Bluetooth on the HD panel is for programming — setting dimming levels, strobe patterns, momentary behavior, and switch linking. For ongoing accessory activation, use the physical switches. If remote control from a distance is the priority, the BantamX app via phone Bluetooth provides better range.
What is Deep Sleep and should I worry about it? Deep Sleep activates automatically after 6 hours of inactivity — no usage of the HD panel and no engine running. When it activates, it turns off all accessories that were left on, including refrigerators and other sustained-draw accessories. If you are running a fridge or any accessory that needs to stay on during extended stops, configure your system to account for the 6-hour timeout.
Does this panel include a mounting bracket? Yes — a universal articulating mount is included, along with two 1/4-20 pressed-in studs on the back for flat surface mounting. For vehicle-specific mounting positions, use the sPOD 90-degree bracket (910275) or flat bracket (910330) for a clean permanent installation.
The Obsidian Take
The 8-800-HD ADD is for the builder who already has an sPOD BantamX or SourceSE 8-circuit system and needs a second physical control interface — a second panel location, a replacement panel, or physical switches alongside an existing touchscreen. Universal mounting, RGB backlit, billet aluminum housing, full programmability via the sPOD app.
One thing to understand before installing: the Bluetooth range is 5–15 feet due to the aluminum housing and is for programming only. For everyday operation, the physical switches do the work. If long-range wireless control is the goal, the BantamX app on your phone through the module's Bluetooth is the right tool.
Manufacturer Data Disclaimer: Specifications sourced from sPOD manufacturer documentation. Obsidian Forged Auto Supply is an authorized sPOD dealer. Verify compatibility with your specific sPOD system before ordering. Manufacturer specifications are subject to change without notice.
