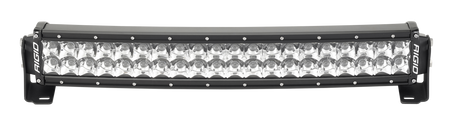

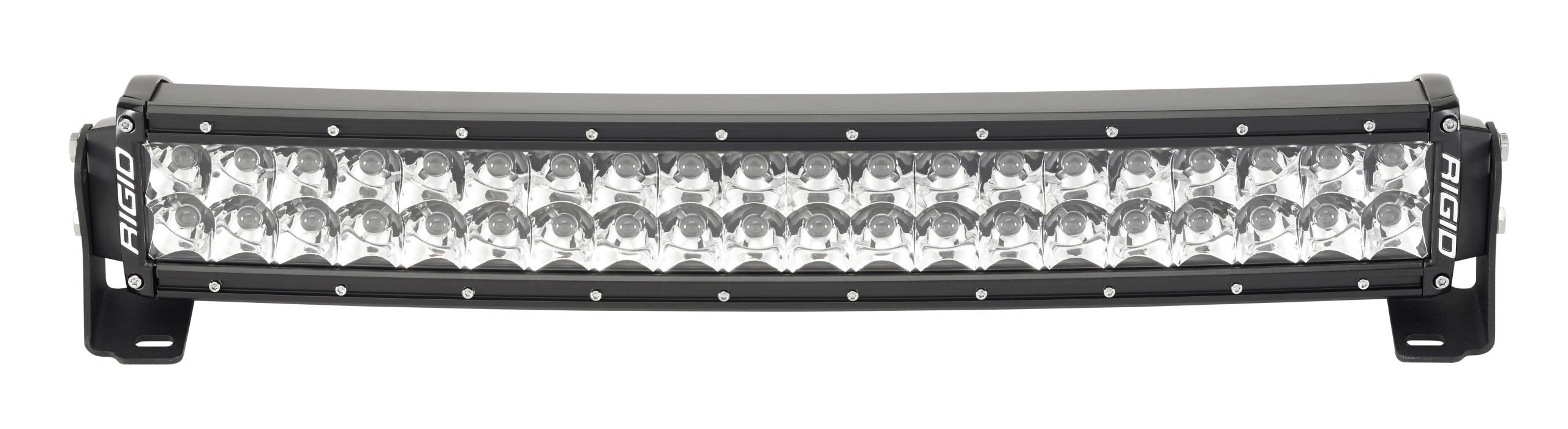

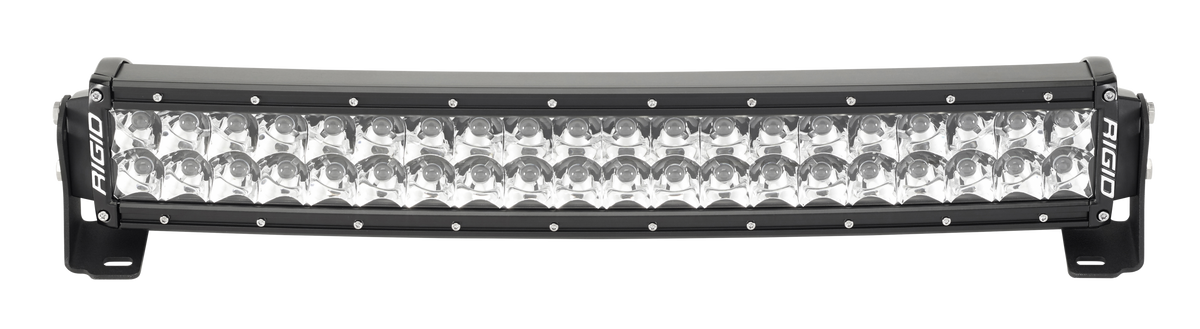

Rigid Industries 20-Inch RDS-Series Pro Spot LED Light Bar | Curved | Universal | 882213

Rigid Industries 20-Inch RDS-Series Pro Spot LED Light Bar | Curved | Universal | 882213

Is This for You?

You're building a truck, SUV, UTV, or Jeep and you want a compact curved light bar that delivers long-range spot beam performance with wider horizontal coverage than a straight bar at the same length. The Rigid Industries 20-Inch RDS-Series Pro Curved Spot (SKU: 882213) combines Rigid's Pro-grade double-row LED output with an RDS curved housing that increases horizontal light spread while maintaining a tight, distance-focused spot beam. At 20 inches, this bar fits mounting locations where a 30-inch bar won't clear — bumper pockets, grille mounts, and narrow roof rack sections — while still delivering the long-range spot performance of a larger bar.

The Result

20 inches of double-row Pro-grade curved spot illumination — compact footprint, wide horizontal arc, maximum distance projection. The RDS curvature gives you more horizontal spread than a straight 20-inch spot bar without opening the beam into a driving or flood pattern. At $1,299.99, this is the compact curved spot option in the Rigid Pro lineup — the right choice when mounting space is limited but long-range performance is non-negotiable. The durable aluminum housing, sealed electronics, and impact-resistant lens deliver sustained performance under vibration, weather exposure, and harsh trail conditions.

Verified Fitment (OFAS Standard)

• Fitment: Universal — compatible with any vehicle equipped with appropriate bumper, grille, or rack mounting brackets and a 12V wiring harness
• Mounting: Standard RDS end-cap bolt pattern — verify bracket compatibility with your specific mounting location before ordering. Curved profile requires clearance verification on tight mounting locations.
• Wiring: Requires compatible wiring harness and relay switch system — not included

System Specifications

• SKU: 882213
• Series: Rigid RDS-Series Pro
• Length: 20 inches
• Profile: Curved
• Beam Pattern: Spot — long-range, fixed beam
• Row Configuration: Double row
• Housing Color: Black, corrosion-resistant aluminum
• Lens: Impact-resistant, sealed
• Electronics: Fully sealed, weather-rated
• Weight: 7.0 lbs
• Condition: New
• Warranty: Rigid Industries limited warranty

Installation Notes

Professional installation recommended. Requires a compatible wiring harness, relay, and switch system — not included. The curved profile requires clearance verification on tight mounting locations — confirm end-cap-to-bracket geometry before ordering. Verify mounting bracket structural load rating for the 7.0-lb bar weight before install.

Engineering Question

Choosing between the Rigid 20-Inch RDS-Series Pro Curved Spot (882213) and the Rigid 30-Inch RDS SR-Series Curved Spot (88331) for a bumper-mount application on a mid-size truck — does the additional 10 inches of bar length on the 88331 produce a meaningfully wider horizontal beam arc at 300 feet, and does the double-row output of the 882213 compensate for the shorter bar length with higher lumen intensity in the spot zone? Contact OFAS with your mounting location, vehicle platform, and primary terrain profile and we'll confirm which curved Rigid spot bar delivers the right beam geometry for your specific build.
