ReadyLIFT Xtreme-Duty 4130 Chromoly Upper Control Arms | 2020–2025 GM Silverado/Sierra 2500/3500 HD 2WD/4WD
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
ReadyLIFT Xtreme-Duty 4130 Chromoly Upper Control Arms | 2020–2025 GM Silverado/Sierra 2500/3500 HD 2WD/4WD
Is This for You?
You're running a 2020–2025 Chevrolet Silverado 2500/3500 HD or GMC Sierra 2500/3500 HD with a leveling or lift kit — and you're loading it with heavy aftermarket wheels and tires that demand more from your upper control arms than any DOM tube steel arm was designed to deliver. The ReadyLIFT 67-30320 Xtreme-Duty UCAs are the same arms found in ReadyLIFT's 3" SST Lift Kit for the GM HD platform, now available standalone. Laser-cut and CNC-bent 4130 chromoly plate steel construction, 1-ton spring-loaded high-angle HD ball joints, CNC-machined billet aluminum ball joint caps, and proprietary TCT free-float pivot bushings with side-biter washers — this is the most durable UCA available for the 2020–2025 GM HD platform.
The Result

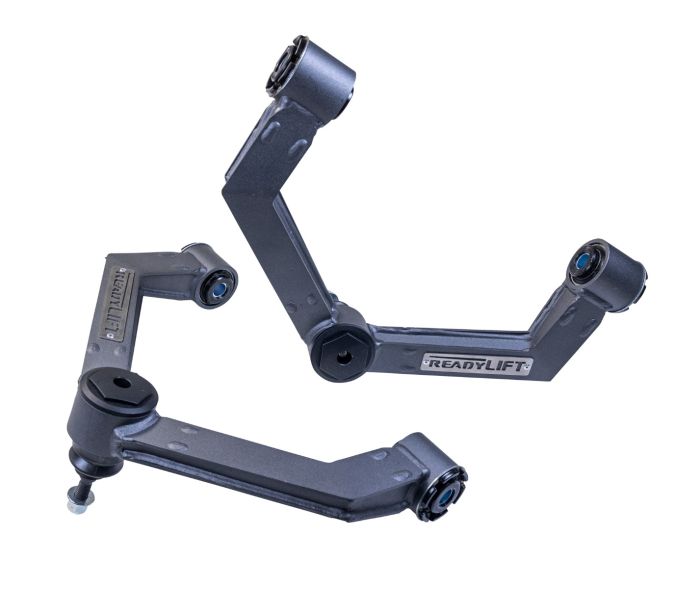

One pair of Xtreme-Duty fabricated steel upper control arms laser-cut and CNC-bent from .125" 4130 chromoly plate steel with corrected pivot cup angles for leveled and lifted applications. 1-ton spring-loaded high-angle HD ball joints maintain factory driving experience under the load of heavy aftermarket wheels and tires. CNC-machined billet aluminum ball joint caps protect the joint from road debris, salt, and sand to extend service life. Frame-side pivots feature ReadyLIFT's proprietary TCT (Terrain Control Technology) bushings — self-lubricating, free-floating inner sleeve design that eliminates friction (the most common cause of traditional bushing failure), with side-biter washers to aid in maintaining alignment settings. Anthracite gray powder coat finish with stainless steel ReadyLIFT brand arm badge.
Verified Fitment (OFAS Standard)
✅ Fits: 2020–2025 Chevrolet Silverado 2500 HD (2WD and 4WD — Double Cab and Crew Cab)
✅ Fits: 2020–2025 Chevrolet Silverado 3500 HD (2WD and 4WD — Double Cab and Crew Cab)
✅ Fits: 2020–2025 GMC Sierra 2500 HD (2WD and 4WD — Double Cab and Crew Cab)
✅ Fits: 2020–2025 GMC Sierra 3500 HD (2WD and 4WD — Double Cab and Crew Cab)
❌ Note: Single Cab configuration has NOT been validated for fitment and drivability by ReadyLIFT — do not order for Single Cab applications
| Spec | Detail |
|---|---|
| Construction | Laser-cut and CNC-bent .125" 4130 chromoly plate steel |
| Ball Joints | 1-ton spring-loaded high-angle HD series — corrected pivot cup angles for leveled/lifted applications |
| Ball Joint Protection | CNC-machined billet aluminum caps — shields from salt, sand, and road debris |
| Frame Bushings | ReadyLIFT TCT — self-lubricating, free-floating inner sleeve, side-biter washers for alignment retention |
| Finish | Anthracite gray powder coat with stainless steel ReadyLIFT brand badge |
| Sold As | Pair (LH + RH) |
| SKU | 67-30320 |
| Manufacturer | ReadyLIFT |
Wheel & Tire Fitment
No wheel or tire restrictions specific to this component. UCAs correct suspension geometry on leveled and lifted GM HD applications — verify your total front lift height and tire clearance with your existing lift configuration before ordering.
Installation & Engineering Notes
This is a bolt-on UCA replacement. All UCA hardware must be torqued to specification at ride height — do not torque with the suspension hanging. Side-biter washers must be properly seated to aid in alignment retention. A professional 4-wheel alignment is mandatory post-installation. Lifting your vehicle raises its center of gravity; exercise appropriate caution when towing or hauling. All Advanced Driver Assistance Systems (ADAS) including GM Safety Alert Seat, Lane Keep Assist, Forward Collision Alert, and automatic headlight leveling must be checked and recalibrated after any suspension geometry change.
Engineering Question: Is your 2020–2025 GM 2500/3500 HD a Double Cab or Crew Cab configuration, and what is your current front lift height? Single Cab fitment has not been validated by ReadyLIFT — confirm your cab configuration before ordering.
