ReadyLIFT Auto-Leveling Headlight Brackets for 3.5"–6" Lift | 2023–2026 Ford Super Duty w/ Onboard Scales

ReadyLIFT Auto-Leveling Headlight Brackets for 3.5"–6" Lift | 2023–2026 Ford Super Duty w/ Onboard Scales

Is This for You?
You're running a 2023–2026 Ford Super Duty equipped with the factory onboard scales option and a ReadyLIFT kit in the 3.5"–6" lift range — and your auto-leveling headlight sensor is binding, throwing warning lights, or limiting tire clearance at the new ride height. The 67-23210 bracket designed for leveling kits up to 2.5" won't provide enough relocation travel for bigger lift applications. The ReadyLIFT 67-23410 is the purpose-built solution for 3.5"–6" ReadyLIFT kits, featuring a four-bracket system — frame and radius arm brackets on both sides — that fully repositions the sensor for proper function and maximum tire clearance at higher lift heights.

The Result

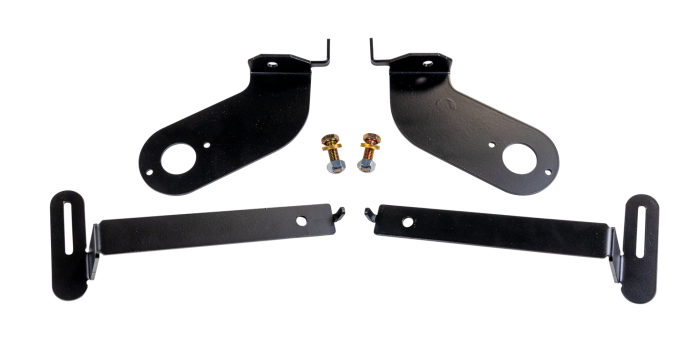

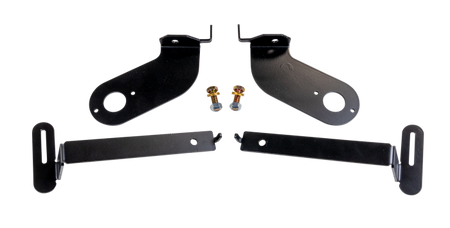

Four brackets — frame bracket LH, frame bracket RH, radius arm bracket LH, and radius arm bracket RH — with a full hardware pack reposition the front auto-leveling headlight sensor from the factory location to the factory radius arms, moving the sensor rearward for improved tire clearance and adjusting the travel limits for proper auto-leveling function at 3.5"–6" of front lift. The result is a properly functioning auto-leveling headlight system with no warning lights and full tire clearance — all without modifying the factory radius arms.

Verified Fitment (OFAS Standard)
✅ Fits: 2023–2026 Ford F-250 Super Duty equipped with factory onboard scales and stock radius arms
✅ Fits: 2023–2026 Ford F-350 Super Duty equipped with factory onboard scales and stock radius arms
✅ Compatible with ReadyLIFT leveling and lift kits with 3.5"–6" of front lift
❌ Does NOT fit: Super Duty trucks without the factory onboard scales option
❌ Does NOT fit: Super Duty trucks equipped with aftermarket radius arms — stock radius arms required
❌ Does NOT fit: ReadyLIFT kits with up to 2.5" of front lift — see 67-23210 for leveling kit applications up to 2.5"
❌ Note: Headlight position must be manually set per the full instructions before completing installation

Wheel & Tire Fitment
No wheel or tire restrictions specific to this component. This bracket kit improves tire clearance at the sensor location for 3.5"–6" lift applications — verify your total lift height and tire clearance with your existing lift configuration before ordering.

Installation & Engineering Notes
This is a bolt-on bracket kit requiring no cutting or welding. These brackets are only compatible with factory stock radius arms — do not install on trucks equipped with aftermarket radius arms. Headlight aim position must be manually set per the full ReadyLIFT instructions before completing installation — do not skip this step. For ReadyLIFT kits with up to 2.5" of front lift, use 67-23210 instead. All Advanced Driver Assistance Systems (ADAS) including Ford Co-Pilot360, automatic headlight leveling, and BLIS must be verified after installation.

Engineering Question: Is your 2023–2026 Ford Super Duty equipped with the factory onboard scales option and stock radius arms, and what is your current ReadyLIFT front lift height? This bracket is engineered for 3.5"–6" ReadyLIFT kits only — for leveling kits up to 2.5", the 67-23210 is required. Confirm your lift height and radius arm configuration before ordering.
