ReadyLIFT Auto-Leveling Headlight Brackets for 2.5" Lift | 2023–2026 Ford Super Duty w/ Onboard Scales
Is This for You?
You're running a 2023–2026 Ford Super Duty equipped with the factory onboard scales option, and your ReadyLIFT leveling or lift kit is triggering headlight warning lights or causing the auto-leveling headlight sensor to contact your tires. The factory sensor mount was not designed to accommodate lifted ride heights, and without a purpose-built relocation bracket, the sensor arm binds, throws codes, and limits tire clearance. The ReadyLIFT 67-23210 is the engineered solution — designed specifically for Super Duty trucks with onboard scales and leveling kits up to 2.5" of front lift.
The Result

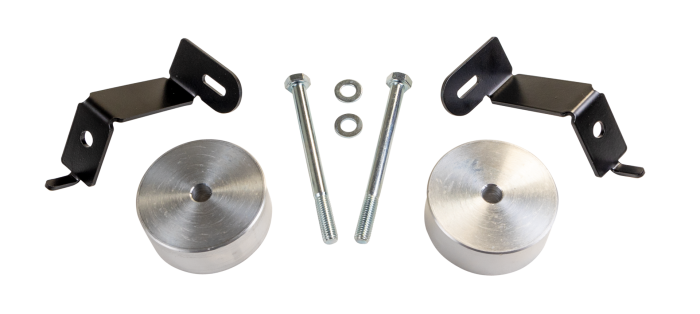

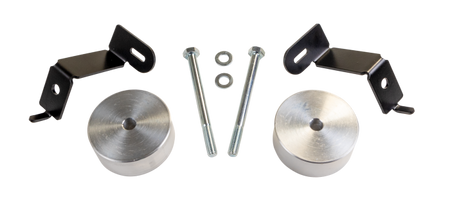

Two headlight leveling brackets — one right (passenger) and one left (driver) — relocate the front auto-leveling headlight sensor to the factory radius arms, moving the sensor rearward for improved tire clearance and adjusting the travel limits for proper sensor function at the new ride height. A 1" bump stop extension and full hardware pack complete the kit. The result is a properly functioning auto-leveling headlight system with no warning lights and improved tire clearance — all without modifying the factory radius arms.
Verified Fitment (OFAS Standard)
✅ Fits: 2023–2026 Ford F-250 Super Duty equipped with factory onboard scales and stock radius arms
✅ Fits: 2023–2026 Ford F-350 Super Duty equipped with factory onboard scales and stock radius arms
✅ Compatible with ReadyLIFT leveling and lift kits with up to 2.5" of front lift
❌ Does NOT fit: Super Duty trucks without the factory onboard scales option
❌ Does NOT fit: Super Duty trucks equipped with aftermarket radius arms — stock radius arms required
❌ Does NOT fit: ReadyLIFT kits with 3.5"–6" of front lift — see 67-23410 for 3.5"–6" applications
❌ Note: Headlight position must be manually set per the full instructions before completing installation
| Spec | Detail |
|---|---|
| Compatible Lift Height | Up to 2.5" front lift |
| Components | 2" headlight leveling bracket — radius arm, RH (x1); 2" headlight leveling bracket — radius arm, LH (x1); 1" bump stop extension (x1); hardware pack |
| Sensor Mount Location | Factory radius arms (stock radius arms only) |
| Function | Relocates sensor rearward for improved tire clearance; adjusts travel limits for proper auto-leveling function |
| SKU | 67-23210 |
| Manufacturer | ReadyLIFT |
Wheel & Tire Fitment
No wheel or tire restrictions specific to this component. This bracket kit improves tire clearance at the sensor location — verify your total lift height and tire clearance with your existing lift configuration before ordering.
Installation & Engineering Notes
This is a bolt-on bracket kit requiring no cutting or welding. These brackets are only compatible with factory stock radius arms — do not install on trucks equipped with aftermarket radius arms. Headlight aim position must be manually set per the full ReadyLIFT instructions before completing installation — do not skip this step. For ReadyLIFT kits with 3.5"–6" of front lift, use 67-23410 instead. All Advanced Driver Assistance Systems (ADAS) including Ford Co-Pilot360, automatic headlight leveling, and BLIS must be verified after installation.
Engineering Question: Is your 2023–2026 Ford Super Duty equipped with the factory onboard scales option and stock radius arms, and what is your current front lift height? This bracket is engineered for lifts up to 2.5" only — for 3.5"–6" ReadyLIFT kits, the 67-23410 is required. Confirm your lift height and radius arm configuration before ordering.
