ReadyLIFT 4.0" SST Lift Kit | 2019–2024 Chevy Silverado & GMC Sierra 1500
0Low stock
0In stock, ready to ship
Fast Shipping
Financing Available
Best Deals
Get notified by email when this product becomes available
Have a question?
Description
ReadyLIFT 4.0" SST Lift Kit | 2019–2024 Chevy Silverado & GMC Sierra 1500
Is This for You?
You're running a 2019–2024 Chevy Silverado or GMC Sierra 1500 and you want a full 4" of front lift with corrected geometry, ARC compatibility, and room for 295-series tires — all without cutting a single piece of sheet metal. You've outgrown leveling kits and you need a complete, engineered system that works with or without Adaptive Ride Control suspension. The ReadyLIFT 69-39400 replaces the 69-3940 and is the definitive no-cut 4" SST solution for the T1 GM 1500 platform.
The Result
Four inches of front lift achieved through heavy-duty laser-cut fabricated steel top-mount strut extensions with an offset design that corrects strut and wiper seal angles, paired with CNC-machined billet aluminum pre-load spacers. Three inches of rear lift via OE-style cast iron lift blocks with built-in axle pad locating ears and new longer U-bolts delivers a subtle, aggressive rake that looks purpose-built with the GM body lines. DOM steel tubular upper control arms with optimized ball joint pivot angles and maintenance-free TCT pivot bushings restore proper suspension geometry at the new ride height. ARC Relocation Bracket included for full Adaptive Ride Control compatibility. The 2019–2022 Chevy Silverado clears a 295/65R20 on a 20x9 0-offset wheel — a genuine 35" equivalent tire with no trimming required on most tread designs.
Verified Fitment (OFAS Standard)
✅ Fits: 2019–2024 Chevrolet Silverado 1500 (with or without ARC)
✅ Fits: 2019–2024 GMC Sierra 1500 (with or without ARC)
❌ Does NOT fit: Trail Boss, ZR2, AT4, or AT4X
❌ Does NOT fit: 2019 Classic body style (LD or Limited — old body)
❌ Does NOT fit: Super Cruise equipped vehicles
❌ Does NOT fit: Single Cab — fitment and drivability not validated by ReadyLIFT
❌ Does NOT fit: Vehicles with mono-leaf rear springs without upgrade — mono-leaf applications require U-bolt kit 67-39530UB (mono-leaf identifiable by round/circular U-bolt at top of leaf spring)
❌ Note: Late model 2024 and 2025 applications with round U-bolts require U-bolt part number 67-35120UB for compatibility
❌ Note: Use of 4Auto feature is not recommended with this kit
❌ Note: NOT intended for off-road use or abuse
| Spec | Detail |
|---|---|
| Lift Height | 4.0" Front / 3.0" Rear |

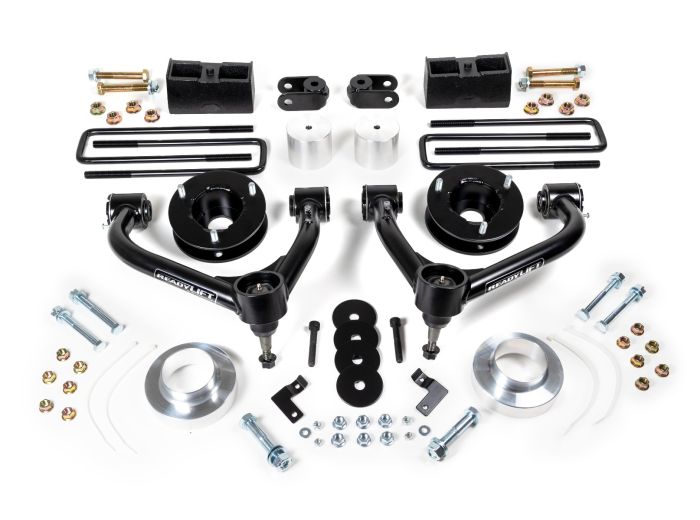

| Front Components | 2x fabricated steel heavy-duty strut extensions (offset design), 2x CNC billet aluminum spring pre-load spacers, 4x laser cut washers, 2x DOM steel UCAs with HD ball joints & TCT bushings (ARC adaptor included) |
| Rear Components | 3" OE-style cast iron lift blocks with axle pad locating ears, new longer U-bolts |
| ARC Compatibility | Yes — ARC Relocation Bracket included |
| Design | No-cut, bolt-on installation |
| SKU | 69-39400 |
| Replaces | 69-3940 |
| Manufacturer | ReadyLIFT |
Wheel & Tire Fitment
Max tire size varies by model year and body style:
| Application | Max Tire | Wheel | Notes |
|---|---|---|---|
| 2019–2022 Chevy Silverado 1500 | 295/65R20 | 20x9 0 offset | Some trimming may be required depending on tread design |
| 2019–2024 GMC Sierra 1500 | 295/55R20 | 20x9 0 offset | Fender flare wheel well restrictions apply |
| 2023–2024 Chevy Silverado 1500 | 295/55R20 | 20x9 0 offset | Fender flare wheel well restrictions apply |
ReadyLIFT wheel and tire fitment recommendations are based on Wheel Pros wheels and Nitto tires. Actual dimensions vary meaningfully by manufacturer — overall diameter, tread width, aspect ratio, and sidewall construction will differ. Every tire and wheel combination must be test fit prior to final installation. Upgrading to heavier 10-ply (Load Range E) all-terrain or mud-terrain tires will noticeably increase suspension stiffness and alter ride harshness compared to factory 6-ply (Load Range C) tires. Consult your local installer for application-specific guidance.
Installation & Engineering Notes
This is a complete no-cut, bolt-on system. A professional 4-wheel alignment is mandatory post-installation to verify torque specs, confirm ride height, and lock in corrected UCA geometry. Verify rear leaf spring type before ordering — mono-leaf applications require the 67-39530UB U-bolt upgrade. Late model 2024 and 2025 trucks with round U-bolts require 67-35120UB. Lifting your vehicle raises its center of gravity; exercise appropriate caution on- and off-road. All Advanced Driver Assistance Systems (ADAS) including GM Safety Alert Seat, Lane Keep Assist, Forward Collision Alert, and Super Cruise (where equipped) must be checked and recalibrated after installation — note this kit is not compatible with Super Cruise vehicles.
Engineering Question: Does your 2019–2024 Silverado or Sierra have mono-leaf rear springs or standard multi-leaf springs? And does your truck have round U-bolts at the top of the leaf spring? Confirm your rear spring configuration and U-bolt style before ordering — mono-leaf and late-model round U-bolt applications require specific U-bolt upgrades not included in the base kit.
