ReadyLIFT 3.0" OEM-Style Cast Iron Rear Block Lift Kit | 2004–2020 Ford F-150 4WD
Is This for You?
You're running a 2004–2020 Ford F-150 4WD and you need to lift the rear to match a front leveling or lift kit, correct factory rake, or run larger tires without rear fender contact. The ReadyLIFT 66-2053 rear block kit uses OEM-style cast iron construction — the same material standard as the factory block — with integrated bump stop landing pads, longer E-coated U-bolts, and all necessary hardware. Everything in the box, ready to install.
The Result

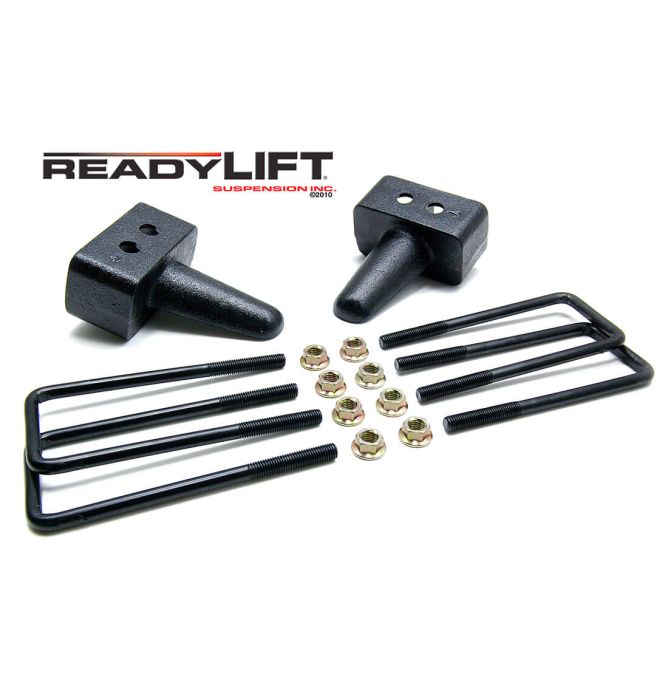

Two OEM-style cast iron rear lift blocks with integrated bump stop landing pads deliver 3.0" of rear lift on 2009–2020 Ford F-150 4WD applications. On 2004–2008 F-150 4WD trucks, replacing the factory block with the ReadyLIFT 66-2053 yields 1.0" of additional lift over the factory block height. Four E-coated U-bolts, eight nuts, and eight washers are included — everything needed for a complete installation.
Verified Fitment (OFAS Standard)
✅ Fits: 2004–2020 Ford F-150 4WD
❌ 2WD applications not supported — 4WD only
❌ Note: 2004–2008 F-150 4WD will gain 1.0" of additional lift when replacing the factory block with the ReadyLIFT 66-2053 (factory block on these years is not a zero-height block)
| Spec | Detail |
|---|---|
| Rear Lift Height | 3.0" (2009–2020 F-150 4WD) / +1.0" over factory block (2004–2008 F-150 4WD) |
| Construction | OEM-style cast iron with integrated bump stop landing pads |
| Included Components | (2) 3" cast iron rear lift blocks, (4) E-coated U-bolts, (8) nuts, (8) washers |
| SKU | 66-2053 |
| Manufacturer | ReadyLIFT |
Installation & Engineering Notes
All U-bolt hardware must be torqued to specification at ride height — do not torque with the suspension unloaded. Re-torque U-bolts after the first 500 miles of driving. A professional alignment check is recommended after installation. Lifting the rear of your vehicle raises its center of gravity; exercise appropriate caution when towing or hauling.
Engineering Question: What is your F-150 model year — 2004–2008 or 2009–2020? On 2004–2008 trucks, the factory rear block is not zero-height, so the 66-2053 will add 1.0" of lift over your existing factory block rather than a full 3.0" net lift. Confirm your model year and current rear block height before ordering.
