ReadyLIFT 2.5" Coil Spring Leveling Kit with Bilstein 5100 Shocks | 2017–2019 Ford F-250/F-350/F-450 Super Duty 4WD

ReadyLIFT 2.5" Coil Spring Leveling Kit with Bilstein 5100 Shocks | 2017–2019 Ford F-250/F-350/F-450 Super Duty 4WD

⚠️ Not recommended for Tremor editions. Final lift height may vary from 1.5" to 2.5" depending on factory spring rate.

Is This for You?

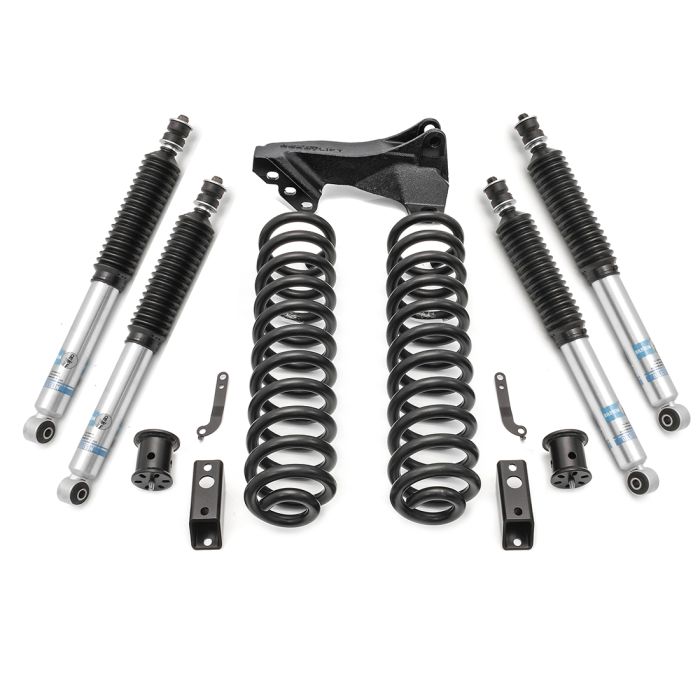

You're running a 2017–2019 Ford F-250, F-350, or F-450 Super Duty 4WD and you want a leveling kit that goes beyond just raising the front — you want a complete performance and ride-enhancing system. The ReadyLIFT 46-2724 pairs specially engineered 2.5" lift front coil springs with four Bilstein 5100 series shocks, an OEM-style cast iron track bar relocation bracket, sway bar frame mount extension brackets, brake line extension brackets, and bump stop extension brackets. This is the kit that transforms how your Super Duty rides and performs both on- and off-road.

The Result
Specially engineered 2.5" lift front coil springs work in concert with four Bilstein 5100 series shocks (two front, two rear) to deliver a controlled, performance-tuned ride. The OEM-style cast iron track bar relocation bracket corrects track width geometry after lifting. Sway bar frame mount extension brackets keep the factory sway bar in its correct operating position. Brake line extension brackets and bump stop extension brackets complete the geometry correction package. Maximum tire size: 35x12.50 with no rub; 37" is possible with trimming. Note: final lift height may vary from 1.5" to 2.5" depending on the factory spring rate of your specific truck.

Verified Fitment (OFAS Standard)
✅ Fits: 2017–2019 Ford F-250 Super Duty 4WD
✅ Fits: 2017–2019 Ford F-350 Super Duty 4WD
✅ Fits: 2017–2019 Ford F-450 Super Duty 4WD
❌ Not recommended for Tremor editions
❌ Note: Final lift height may vary from 1.5" to 2.5" depending on factory spring rate — confirm with your installer

Wheel & Tire Fitment
Maximum tire size with no rub: 35x12.50. 37" tires are possible with trimming. ReadyLIFT wheel and tire fitment recommendations are based on Wheel Pros wheels and Nitto tires. Actual dimensions vary meaningfully by manufacturer — overall diameter, tread width, aspect ratio, and sidewall construction will differ. Every tire and wheel combination must be test fit prior to final installation. Upgrading to heavier 10-ply (Load Range E) all-terrain or mud-terrain tires will noticeably increase suspension stiffness and alter ride harshness compared to factory 6-ply (Load Range C) tires. Consult your local installer for application-specific guidance.

Installation & Engineering Notes
This is a bolt-on coil spring leveling kit. Final lift height may vary from 1.5" to 2.5" depending on the factory spring rate of your specific Super Duty — confirm with your installer before finalizing wheel and tire selection. A professional 4-wheel alignment is mandatory post-installation. Lifting your vehicle raises its center of gravity; exercise appropriate caution when towing or hauling. All Advanced Driver Assistance Systems (ADAS) including Ford Co-Pilot360, Pre-Collision Assist, Lane-Keeping System, BLIS, and automatic headlight leveling must be checked and recalibrated after installation.

Engineering Question: Is your 2017–2019 Ford Super Duty a Tremor edition, and do you know your factory front spring rate? This kit is not recommended for Tremor applications, and final lift height varies from 1.5" to 2.5" depending on factory spring rate — confirm your trim and spring configuration with your installer before ordering.
