ReadyLIFT 2.0" Leveling Kit with DOM Tubular Upper Control Arms | 2019–2025 Ram 1500 4WD including Rebel

ReadyLIFT 2.0" Leveling Kit with DOM Tubular Upper Control Arms | 2019–2025 Ram 1500 4WD including Rebel

⚠️ New body style (DT) Ram 1500 4WD only — not for Classic body style Ram 1500. Not for air suspension-equipped trucks. Not for Ram TRX. Not for factory pre-lifted or Off-Road Package trucks. Measure hub-to-fender height before ordering — trucks exceeding 22" may require less lift.

Is This for You?
You're running a 2019–2025 Ram 1500 4WD — new body style (DT platform), including the Rebel edition — and you want 2" of front leveling lift done right. The 2019–2025 Ram 1500 uses a composite upper control arm with a sheet metal cover — a design that creates excessive stress around the ball joint when a traditional strut extension is installed alone. ReadyLIFT's engineers identified this problem and solved it: the 66-1921 pairs a CNC-machined billet aluminum top-mount strut extension with a purpose-built heavy-duty DOM tube steel upper control arm featuring corrected ball joint angle cups — restoring proper pivot geometry and protecting the ball joint under the new ride height. Made in USA.

The Result

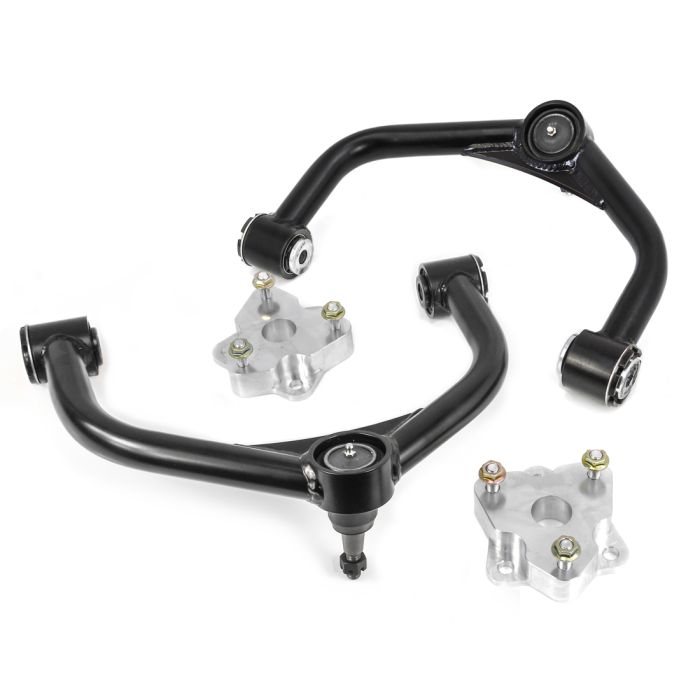

Two CNC-machined billet aluminum top-mount strut extensions deliver 2.0" of front leveling lift. Heavy-duty DOM tube steel upper control arms with corrected ball joint angle cups replace the factory composite UCAs, eliminating the stress concentration issue at the ball joint and restoring proper suspension geometry at the leveled ride height. Maximum tire size: 285/65R20 on a 20x9 +18 offset wheel with no rub. Bolt-on installation, no cutting or drilling required.

Verified Fitment (OFAS Standard)
✅ Fits: 2019–2025 Ram 1500 4WD — new body style (DT platform)
✅ Fits: 2019–2025 Ram 1500 Rebel 4WD
❌ Does NOT fit: Ram 1500 Classic (previous body style)
❌ Does NOT fit: Ram 1500 TRX
❌ Does NOT fit: Ram 1500 equipped with factory air suspension
❌ Does NOT fit: Ram 1500 that is factory pre-lifted or equipped with the Off-Road Package
❌ Note: Trucks with hub-to-fender measurement greater than 22" may already have factory front lift — measure before ordering

Wheel & Tire Fitment
Maximum tire size with no rub: 285/65R20 on a 20x9 +18 offset wheel. ReadyLIFT wheel and tire fitment recommendations are based on Wheel Pros wheels and Nitto tires. Actual dimensions vary meaningfully by manufacturer — overall diameter, tread width, aspect ratio, and sidewall construction will differ. Every tire and wheel combination must be test fit prior to final installation. Upgrading to heavier 10-ply (Load Range E) all-terrain or mud-terrain tires will noticeably increase suspension stiffness and alter ride harshness compared to factory 6-ply (Load Range C) tires. Consult your local installer for application-specific guidance.

Installation & Engineering Notes
This is a 100% bolt-on leveling kit. Do not install on air suspension-equipped trucks, Ram TRX, Classic body style Ram 1500, factory pre-lifted trucks, or Off-Road Package trucks. Measure hub-to-fender height before installation — trucks exceeding 22" may require less lift. All UCA hardware must be torqued to specification at ride height — do not torque with the suspension hanging. A professional 4-wheel alignment is mandatory post-installation. All Advanced Driver Assistance Systems (ADAS) including Ram's Forward Collision Warning, Lane Departure Warning, and automatic headlight leveling must be checked and recalibrated after installation.

Engineering Question: Is your 2019–2025 Ram 1500 the new body style (DT platform) 4WD, and have you measured your hub-to-fender height? This kit does not fit the Classic body style, TRX, air suspension trucks, or factory pre-lifted/Off-Road Package trucks. Confirm your body style, suspension configuration, and hub-to-fender measurement before ordering.
