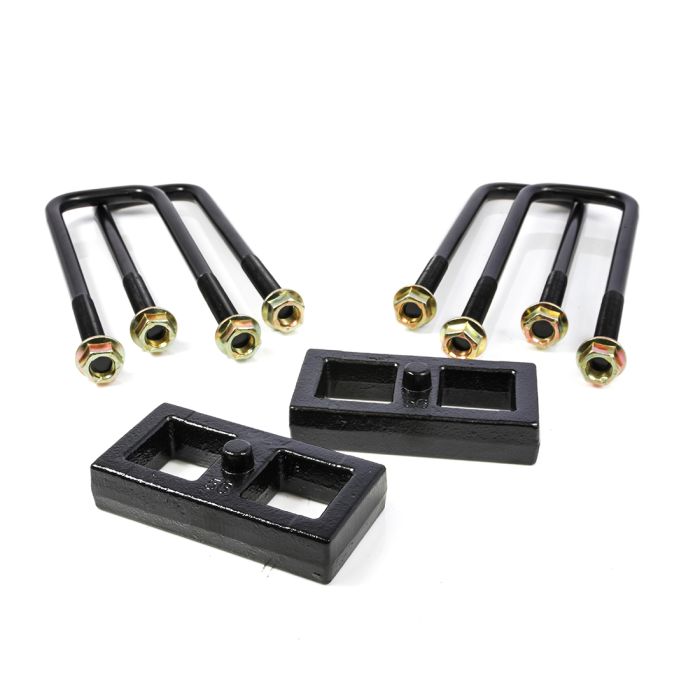

ReadyLIFT 1.0-Inch Rear Block Kit | OEM-Style Cast Iron Construction | Integrated Bump Stop Landings + Cast-In Center Pins | E-Coated U-Bolts Included | 2019–2023 Ford Ranger 4WD | SKU: 66-2910

Verified Fitment

Does NOT fit:

• Ford Ranger 2WD / RWD — 4WD only; 2WD Ranger rear suspension geometry is different
• 2024 and newer Ford Ranger — the 2024 Ranger represents a new generation platform (P703) with different rear suspension mounting geometry; this kit is confirmed for the first-generation 2019–2023 Ranger (P375 platform) only; confirm platform before ordering 2024+ applications
• 2018 and earlier Ford Ranger — previous-generation Ranger (pre-2019 return) uses different rear suspension
• Ford F-150 or other full-size trucks — this is a midsize Ranger-specific block

Generation identification: The 2019–2023 Ranger is the first-generation return-to-market platform (P375). The 2024 Ranger is a completely redesigned second-generation truck (P703) with different dimensions and rear axle geometry. If your Ranger is a 2024 or newer model year, text (469) 407-7538 before ordering to confirm compatibility.

Component Specifications

Why cast-in center pins: The center pin on a leaf spring rear block locates the block relative to the spring perch and prevents the block from migrating laterally under braking, cornering, or load cycling. Cast-in center pins — integrated into the block during manufacture — provide more positive location than separate pressed-in pins. This is the same design philosophy as OEM Ford rear blocks.

Why not stacking: ReadyLIFT explicitly notes this kit eliminates the need to "illegally stack rear blocks." Federal Motor Vehicle Safety Standards prohibit stacking lift blocks — multiple separate blocks can migrate and separate under load, creating an uncontrolled suspension condition. A single purpose-built 1" block achieves the height legally and safely.

Field 4 — What Is and Is NOT Included

Critical Compatibility

4WD only — 2WD Ranger does not apply. The 4WD Ranger's rear axle uses different U-bolt sizing and spring perch geometry than the 2WD configuration. This block kit is confirmed for the 4WD rear axle only.

2024+ Ranger generation change. The 2024 Ranger redesign changed multiple rear suspension dimensions. No confirmed fitment data exists for the 66-2910 on the 2024+ platform. The conservative and correct answer is: confirmed 2019–2023; 2024+ requires verification. Do not assume the second-generation Ranger is compatible without confirming.

No block stacking. If 2 or more inches of rear lift are needed, a purpose-built 2" block is the correct approach — not two 1" blocks stacked. Using this block alongside any other block violates federal motor vehicle safety standards and will void the ReadyLIFT warranty.

Installation Notes

Skill level: Beginner to intermediate. Estimated installation time 1.8 hours ±0.5 hours (excluding alignment and wheel/tire assembly). Bolt-on — no cutting or welding required. ReadyLIFT recommends installation by a certified mechanic.

Tools required: Floor jack and rated stands, basic socket set, torque wrench.

Installation sequence:

1. Safely lift and support the vehicle with the rear axle at full droop.
2. Remove the factory U-bolts and lower the rear axle.
3. Remove factory rear block (if present).
4. Position the ReadyLIFT 1-inch block between the axle perch and the leaf spring — align the cast-in center pin with the locating hole in the spring perch.
5. Install the e-coated U-bolts and thread the included nuts.
6. Lower the axle to ride height.
7. Torque U-bolts to OEM specification at ride height — do not torque with the axle at full droop.

Post-installation mandatory steps:

1. Re-torque U-bolts after 500 miles — blocks settle slightly during initial load cycling.
2. Alignment verification — recommended after rear height change.
3. Headlamp aim adjustment — required per ReadyLIFT installation advisory.
4. ADAS verification — check Ford Co-Pilot360 and all associated safety systems for proper function.

Common Questions

Does this fit my 2024 Ranger?
The 66-2910 is confirmed for the first-generation 2019–2023 Ranger (P375 platform). The 2024 Ranger is a completely new-generation platform with different rear suspension geometry. Text (469) 407-7538 before ordering for a 2024 Ranger — we'll confirm current fitment data before you purchase.

Does this fit my 2WD Ranger?
No — the 66-2910 is confirmed for 4WD applications only. The 2WD Ranger's rear suspension configuration is different. If you have a 2WD Ranger, text (469) 407-7538 and we'll identify the correct rear lift option for your application.

Can I stack two of these to get 2 inches of rear lift?
No — block stacking is prohibited by federal motor vehicle safety standards and will void the ReadyLIFT warranty. If 2 inches of rear lift is needed, a purpose-built 2-inch block is the correct solution. Text (469) 407-7538 for available Ranger 2-inch rear block options.

Why is there a center pin in the block?
The cast-in center pin locates the block on the spring perch and prevents it from shifting laterally under braking, cornering, or load. Cast-in pins provide more positive location than separate pressed-in pins. The corresponding locating hole in your factory spring perch accepts the center pin during installation.

Do I need to do anything after installation besides check the U-bolt torque?
Yes — three additional steps: headlamp aim adjustment (the height change alters headlamp projection angles), ADAS verification (Ford Co-Pilot360 and similar systems should be checked for proper function), and an alignment verification is recommended. These are standard post-installation procedures for any suspension height change.

The Obsidian Take

The 66-2910 is the correct, legal rear lift solution for 2019–2023 Ford Ranger 4WD owners who've installed a front leveling kit and need the rear to match — or who simply want to restore towing rake to a truck that squats under load.

The design philosophy is identical to every other ReadyLIFT rear block kit in this catalog: OEM-style construction, integrated bump stop landings, cast-in center pins, included U-bolts, no stacking. The 1-inch height is the right answer for Ranger owners pairing this with a 2-inch front leveling kit — it produces a slight nose-up rake that levels out under normal towing and hauling loads while maintaining a visually purposeful stance.

At 1.8 hours of installation time, this is one of the fastest suspension upgrades in the OFAS catalog. The bolt-on nature of the installation — no cutting, no welding, no specialty tools beyond a floor jack and torque wrench — makes it accessible to any intermediate DIY builder or any shop.

The 2024+ Ranger platform change is the one note worth carrying into any conversation about this kit. The new-gen Ranger is a legitimately different truck from the 2019–2023. Don't assume the block transfers — verify first.

This SKU is for: 2019–2023 Ford Ranger 4WD owners who want 1 inch of rear lift to restore towing rake, pair with an existing leveling kit, or achieve a level lifted stance all the way around — using a purpose-built single-block solution with integrated bump stop landings and cast-in center pins backed by ReadyLIFT's Limited Lifetime Warranty.

This SKU is NOT for: Ford Ranger 2WD owners, 2024 and newer Ranger owners (new platform — confirm before ordering), 2018 and earlier Ranger owners, anyone needing more than 1 inch of rear lift (do not stack — order the correct height block), or anyone running a truck outside the confirmed 2019–2023 first-generation platform.

SAE J2492 Warning
⚠ WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions.

Manufacturer Data Disclaimer
Product specifications, fitment data, and feature details are sourced from ReadyLIFT manufacturer documentation and verified third-party technical references current at the time of publication. ReadyLIFT reserves the right to modify product specifications without notice. Confirm 2019–2023 first-generation Ranger platform, 4WD drivetrain, and single-block installation (no stacking) before ordering. OFAS is not responsible for incompatibility resulting from 2WD applications, second-generation 2024+ Ranger applications, or illegal block stacking.

Prop 65 Warning
⚠ WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

Non-Returnable Notice
This item is non-returnable once installed. Verify 4WD drivetrain and 2019–2023 first-generation Ranger platform before ordering. Questions before ordering? Text (469) 407-7538.
