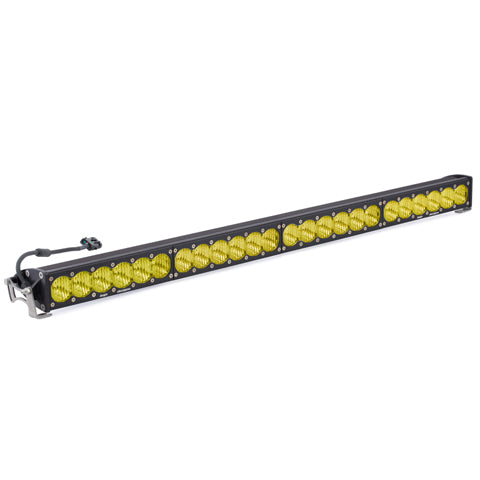

Baja Designs OnX6 40 Inch LED Light Bar | Amber Lens | Driving/Combo Pattern | Universal

Baja Designs OnX6 40 Inch LED Light Bar | Amber Lens | Driving/Combo Pattern | Universal | SKU: BAJ454013

The Baja Designs OnX6 40 Inch LED Light Bar (SKU: BAJ454013) is a 40-inch straight LED light bar in a driving/combo optic pattern with amber lens. This is a straight bar — distinct from the OnX6 Arc curved bar (BAJ524003). The amber lens filters blue light wavelengths that scatter in dust, fog, sand, and precipitation — reducing glare and improving contrast in low-visibility conditions. The driving/combo pattern delivers a balanced combination of long-range forward throw and wide-angle spread — maximum amber output with meaningful forward reach for high-speed desert, dusty road, and demanding off-road use. Universal mount — no vehicle-specific brackets included. Wiring harness sold separately. At 24 lbs, confirm your roof rack or mounting structure is rated for this bar before ordering.

Application

Universal mount — compatible with any vehicle, truck, or equipment with a flat mounting solution that accommodates a straight 40-inch light bar. Typical applications include roof racks, chase racks, and flat bumper bar positions. Confirm your mounting solution accommodates the straight 40-inch bar length and mounting tab spacing before ordering. No vehicle-specific brackets included. Wiring harness sold separately — contact OFAS at 903-347-3875 to confirm the correct harness PN for the OnX6 40-inch bar.

OnX6 40-Inch Bar Guide — Straight vs. Arc

• OnX6 40-Inch Straight — Amber (BAJ454013, this listing): Straight bar, amber lens, driving/combo — for flat mounting surfaces in dust and fog environments. 24 lbs.
• OnX6 Arc 40-Inch Curved — Clear (BAJ524003): Curved bar, clear lens, driving/combo — for roofline, windshield frame, and bumper contour mounting positions. 15 lbs.

Complete Baja Designs Light Bar Guide

• OnX6 10-Inch Straight (BAJ451003): Mid-tier, compact 10-inch, driving/combo, universal — bumper and grille applications
• S8 20-Inch Straight (BAJ702003): Premium S8, 20-inch, driving/combo, universal — bumper and mid-width roof rack
• S8 40-Inch Straight — Clear (BAJ704003): Premium S8, 40-inch, clear, universal — roof rack and chase rack
• S8 40-Inch Straight — Amber (BAJ704013): Premium S8, 40-inch, amber, universal — dust and fog on flat mounting surfaces
• OnX6 40-Inch Straight — Amber (BAJ454013, this listing): OnX6, 40-inch straight, amber, 24 lbs — dust and fog on flat mounting surfaces
• OnX6 Arc 40-Inch Curved — Clear (BAJ524003): OnX6 Arc, 40-inch curved, clear, 15 lbs — roofline and contour mounting

Technical Specifications

• SKU: BAJ454013
• Brand: Baja Designs
• Series: OnX6 — straight light bar
• Length: 40 inches — straight profile
• Lens: Amber — polycarbonate
• Pattern: Driving/Combo — balanced long-range forward throw with wide spread
• IP Rating: IP69K — waterproof, dust-tight, pressure wash safe
• Color Temperature: Amber — optimized for low-visibility conditions
• Weight: 24 lbs
• Mount: Universal — vehicle-specific or universal brackets sold separately
• Wiring Harness: Sold separately — confirm PN with OFAS

Installation Notes

• Mount structural rating mandatory: At 24 lbs, confirm your roof rack, chase rack, or mounting structure is structurally rated for the OnX6 40-inch bar load and vibration forces at speed.
• Straight bar confirmation: This is a straight bar — not curved. Confirm your mounting location is compatible with a straight 40-inch bar profile. For curved mounting positions, see OnX6 Arc (BAJ524003).
• Harness confirmation required: Contact OFAS at 903-347-3875 to confirm the correct wiring harness PN for the OnX6 40-inch bar before ordering.
• Mounting bracket required: No brackets included — confirm bracket compatibility with OnX6 40-inch bar mounting tab spacing before ordering.
• Aim before final torque: Aim the bar at the desired beam angle before torquing mount hardware.
• Connector sealing: Ensure all wiring connectors are fully seated and sealed after installation.
• Legal notice: Amber auxiliary lighting may have different legal status than white lights in your jurisdiction — verify compliance before use on public roads.

Installation Warning

Do not mount without confirming structural rating for 24 lbs plus vibration load at speed. Do not wire without correct harness — contact OFAS to confirm harness PN. For curved mounting positions, use OnX6 Arc (BAJ524003) — not this straight bar. Amber lighting may not be legal for on-road use in all jurisdictions — verify local regulations before use on public roads.

What vehicle and mounting location — need clear lens instead of amber? See S8 40-inch clear (BAJ704003). Need a curved bar for roofline mounting? See OnX6 Arc (BAJ524003). Contact OFAS at 903-347-3875 to confirm harness PN and bracket compatibility before ordering.
