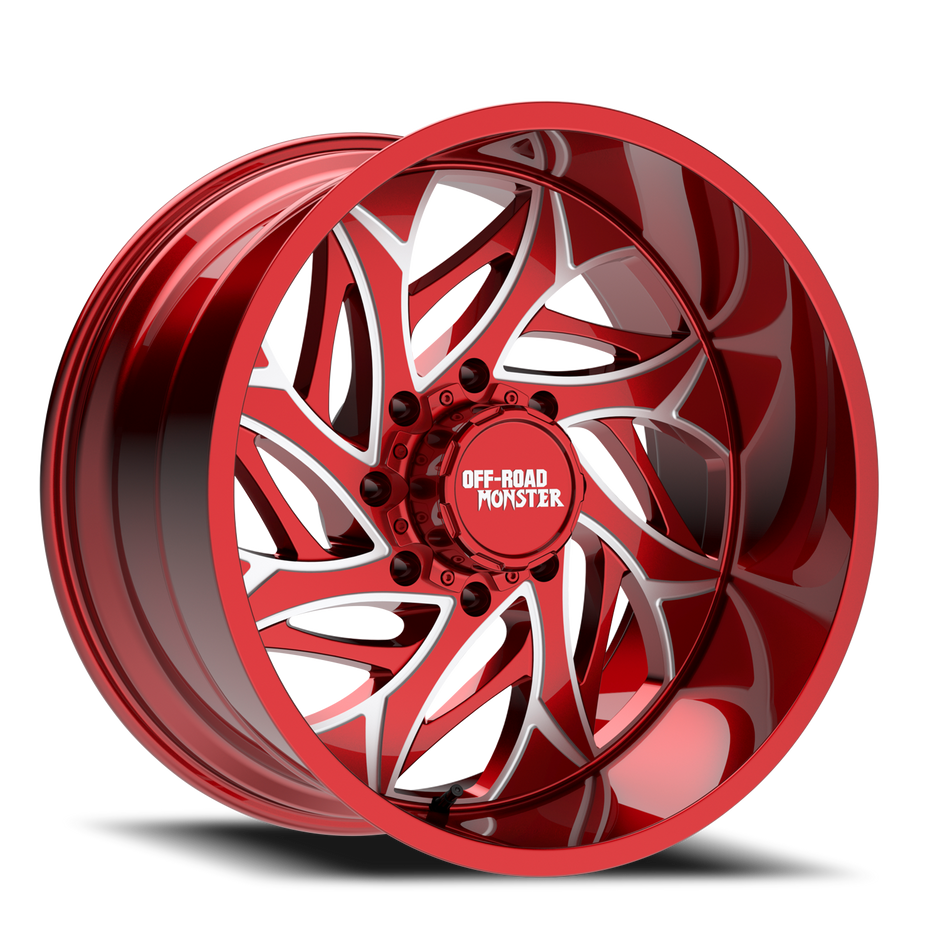

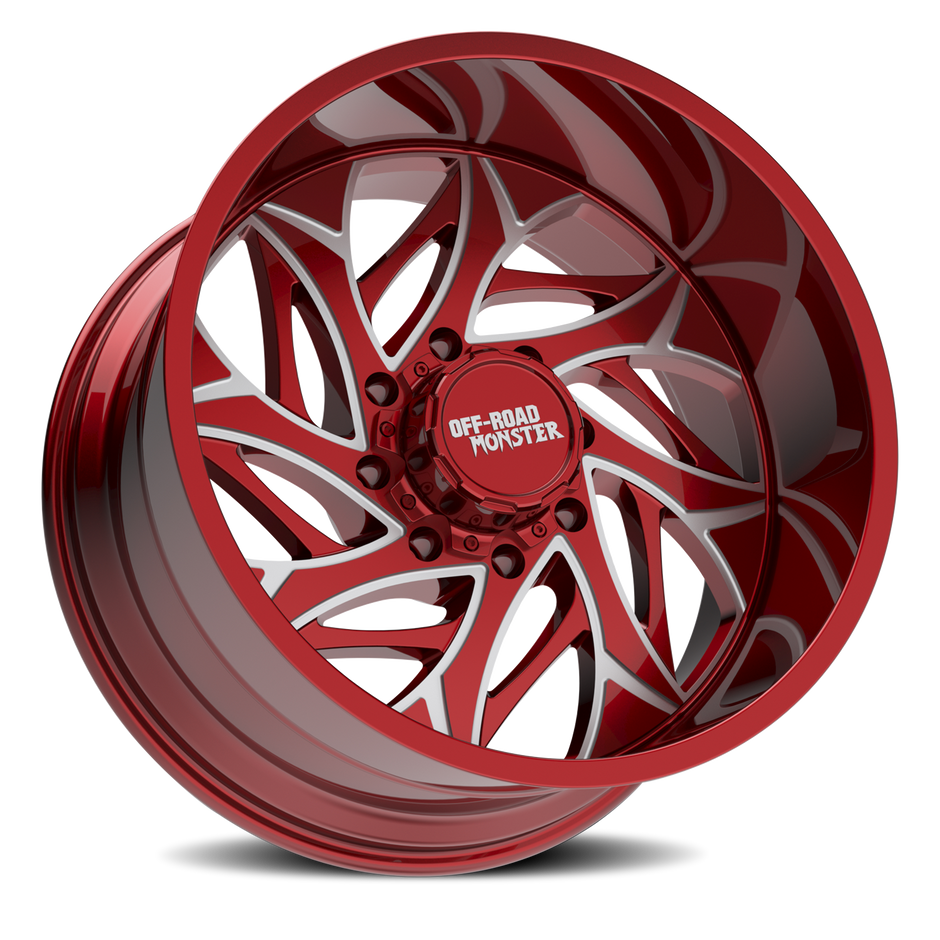

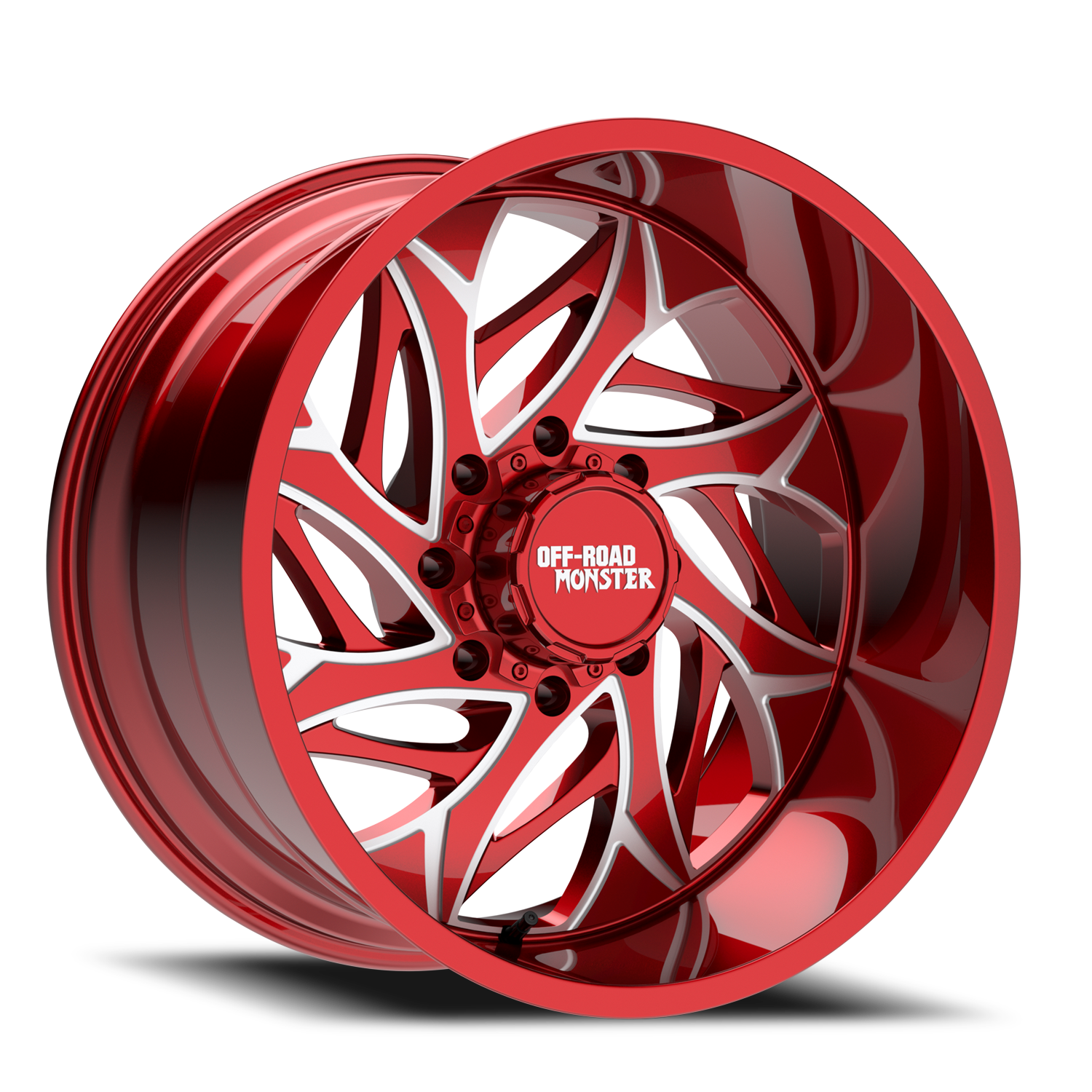

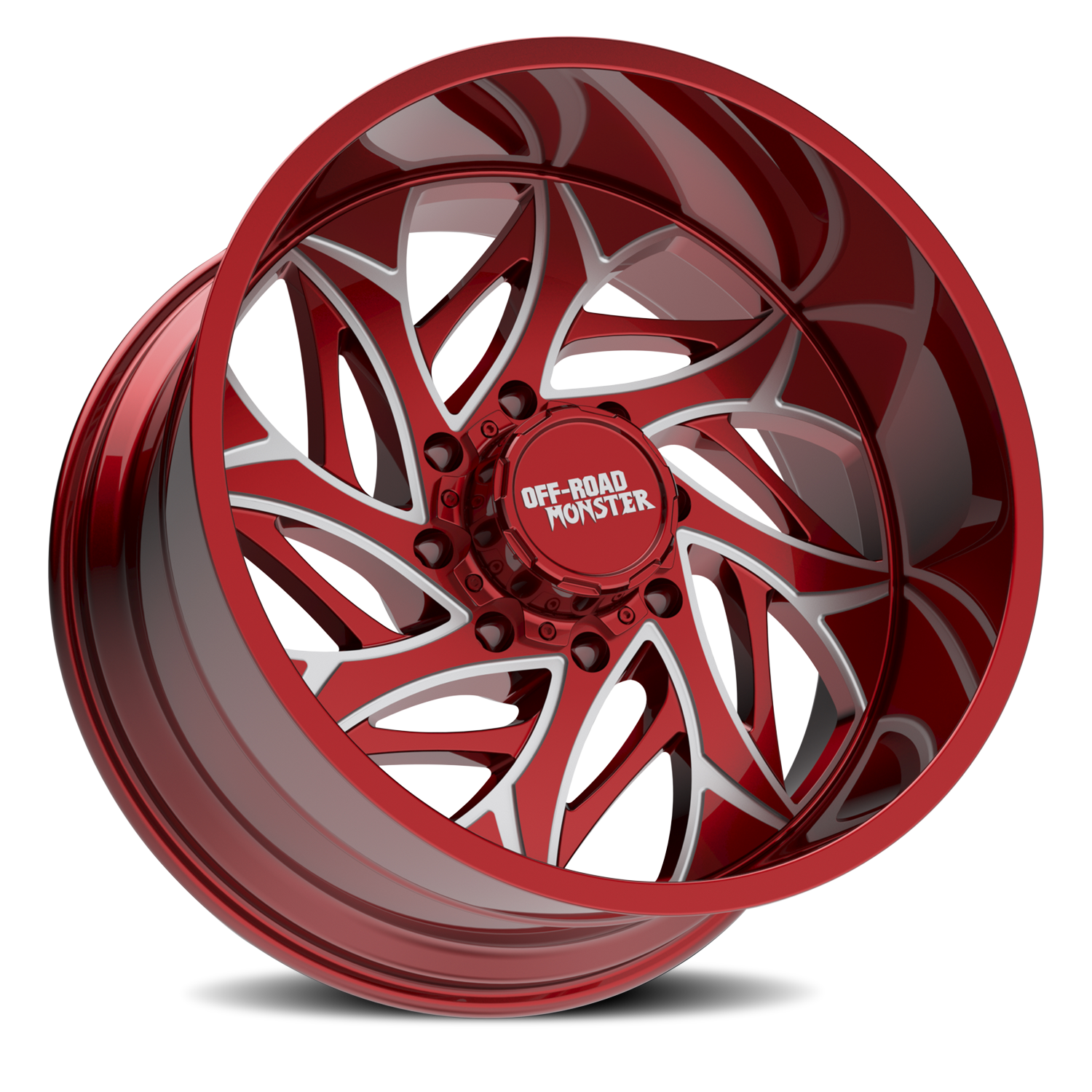

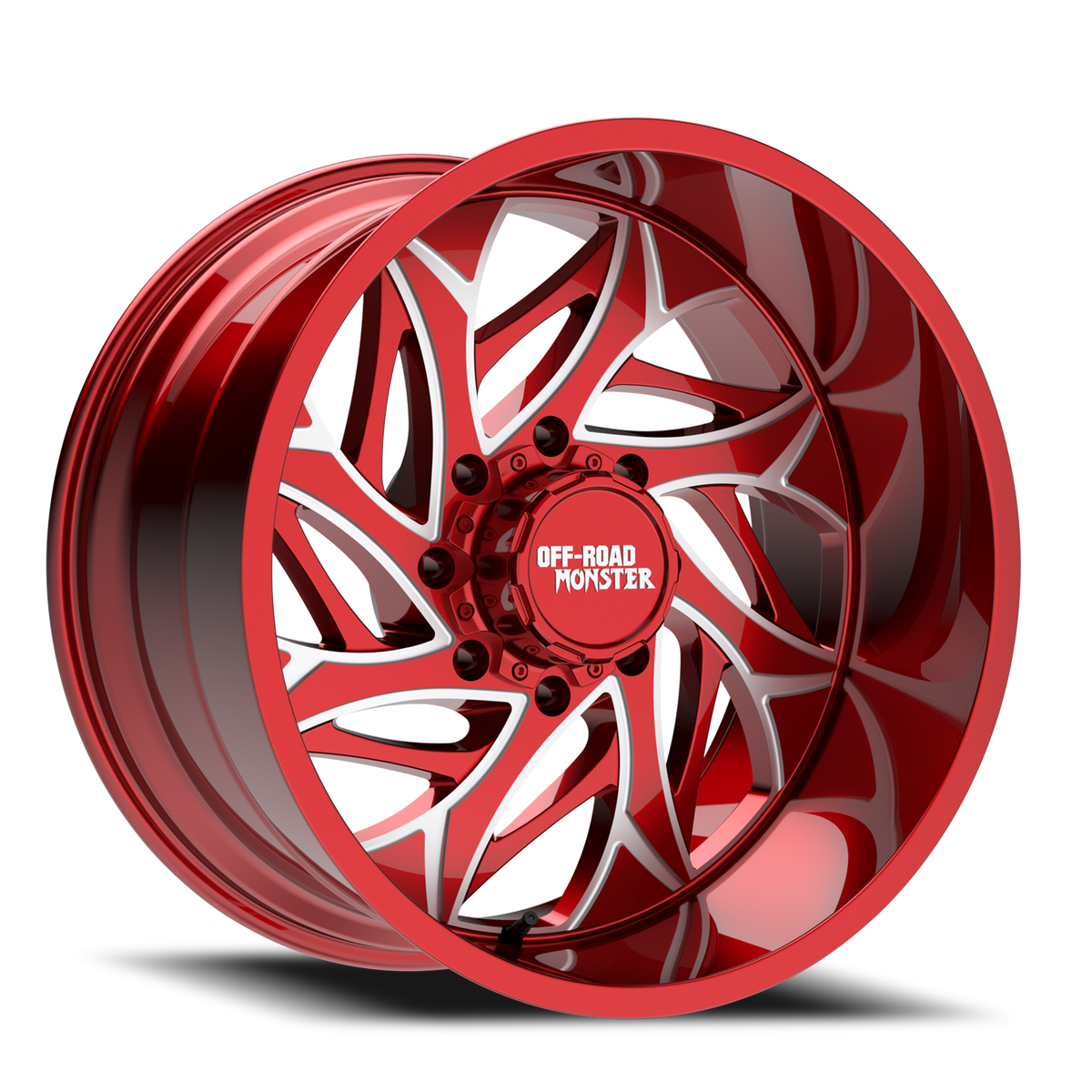

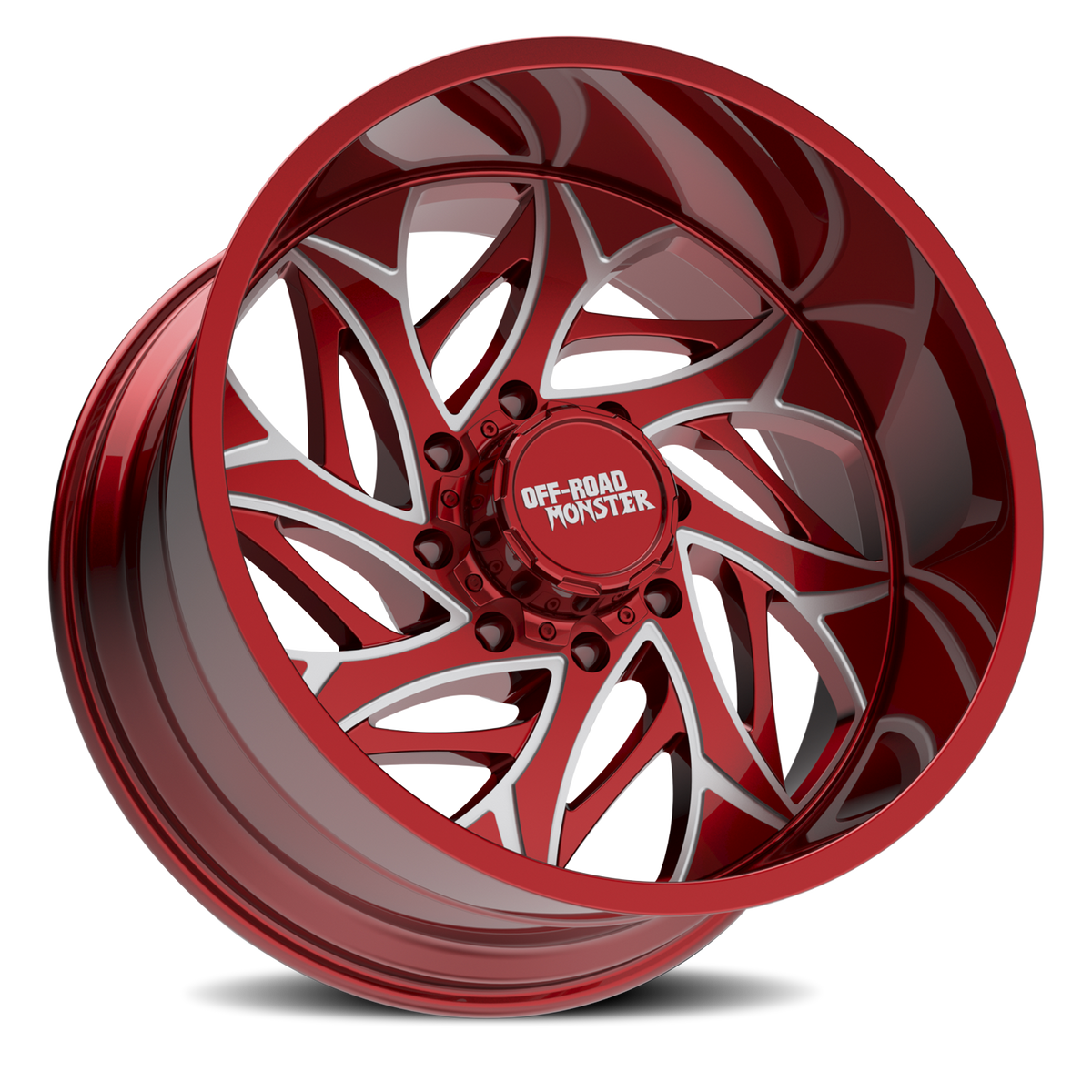

Off Road Monster Wheels M28 RML Candy Red | 20x10 -19mm | 8x165.1 | HD Truck Wheel
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
Off Road Monster Wheels M28 RML Candy Red | 20x10 -19mm | 8x165.1 (8x6.5") | HD Truck Wheel
Is This for You?
You're running an HD truck on the 8x165.1 (8x6.5") bolt pattern — pre-2011 GM HD, Ram 2500/3500, or classic Ford — single rear wheel — and you want a 20" candy red wheel that delivers a bold, high-gloss red finish while pairing well with larger all-terrain and mud-terrain tires. The M28 RML at 20x10 with -19mm offset delivers a moderate stance that works well on leveled and mildly lifted HD builds. Cast aluminum 1-piece construction, 125.2mm hub-centric bore, 3,500 lb load rating.
| Spec | Detail |
|---|---|
| Size | 20x10 |
| Offset | -19mm |
| Bolt Pattern | 8x165.1 (8x6.5") |
| Center Bore | 125.2mm (hub-centric) |
| Load Rating | 3,500 lbs |
| Finish | Candy Red |
| Construction | Cast aluminum, 1-piece |
| Lug Seat | Conical |
| SKU | M280865N19RML |
Verified Fitment (OFAS Standard)
✅ Chevrolet Silverado 2500/3500 HD (1968–2010)
✅ Chevrolet Express 2500/3500 (1996–2026)
✅ Dodge/Ram 2500/3500 (1994–2026)
✅ Ford F-250/F-350 (1953–1997)
✅ GMC Sierra 2500/3500 HD (1968–2010)
✅ GMC Savana 2500/3500 (1996–2026)
✅ Hummer H2 (2003–2009)
❌ Not for Dual Rear Wheel (DRW/Dually) configurations
❌ 2011+ GM HD trucks use 8x180 — not this bolt pattern
❌ 1999+ Ford Super Duty uses 8x170 — not this bolt pattern
Confirm center bore, brake clearance, tire size, and suspension clearance before ordering. Lug nuts, TPMS sensors, and hub rings not included.
Engineering Question: Is your HD truck running the 8x165.1 (8x6.5") bolt pattern? Confirm your exact year — 2011+ GM HD moved to 8x180 and 1999+ Ford Super Duty uses 8x170. Verify axle configuration (SRW only) before ordering.
