Off Road Monster Wheels M07 R Candy Red | 24x12 -44mm | 8x165.1 | HD Truck Wheel
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$457.00
-100%
Regular price
Regular price
$457.00
Off Road Monster Wheels M07 R Candy Red | 24x12 -44mm | 8x165.1 | HD Truck Wheel
Sale price
$457.00
Regular price
Regular price
$457.00
Fast Shipping
Financing Available
Best Deals
Get notified by email when this product becomes available
Have a question?
Description

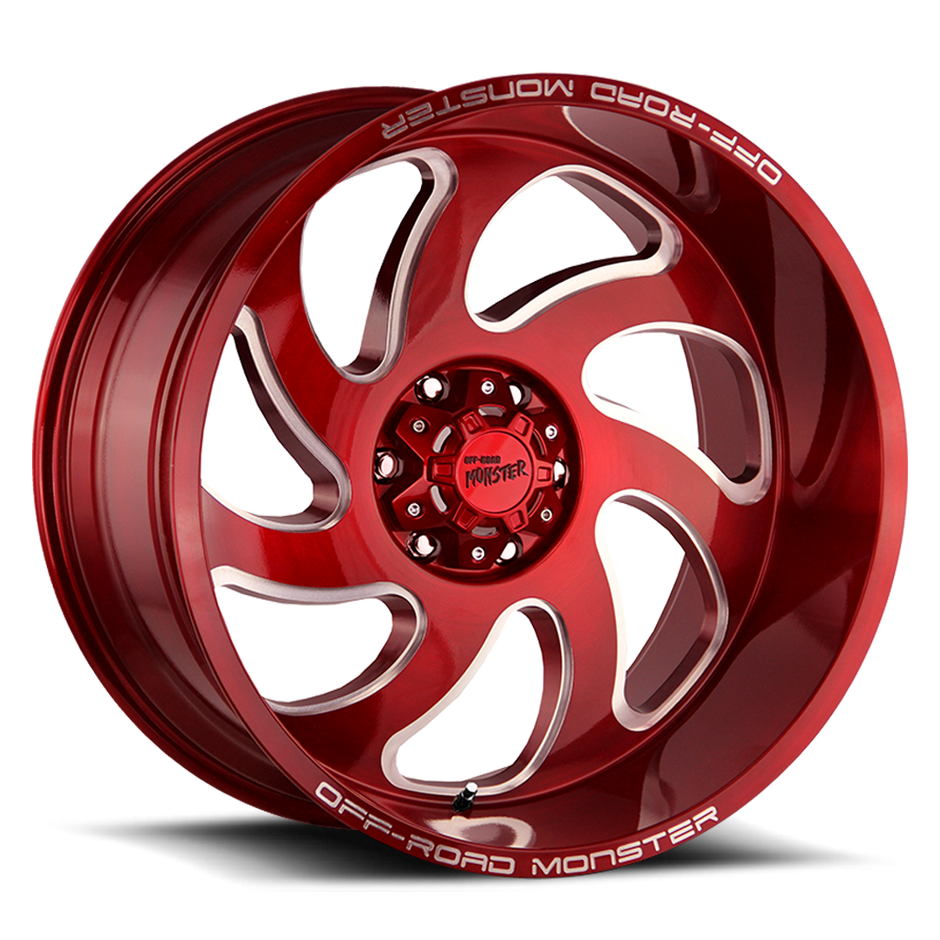

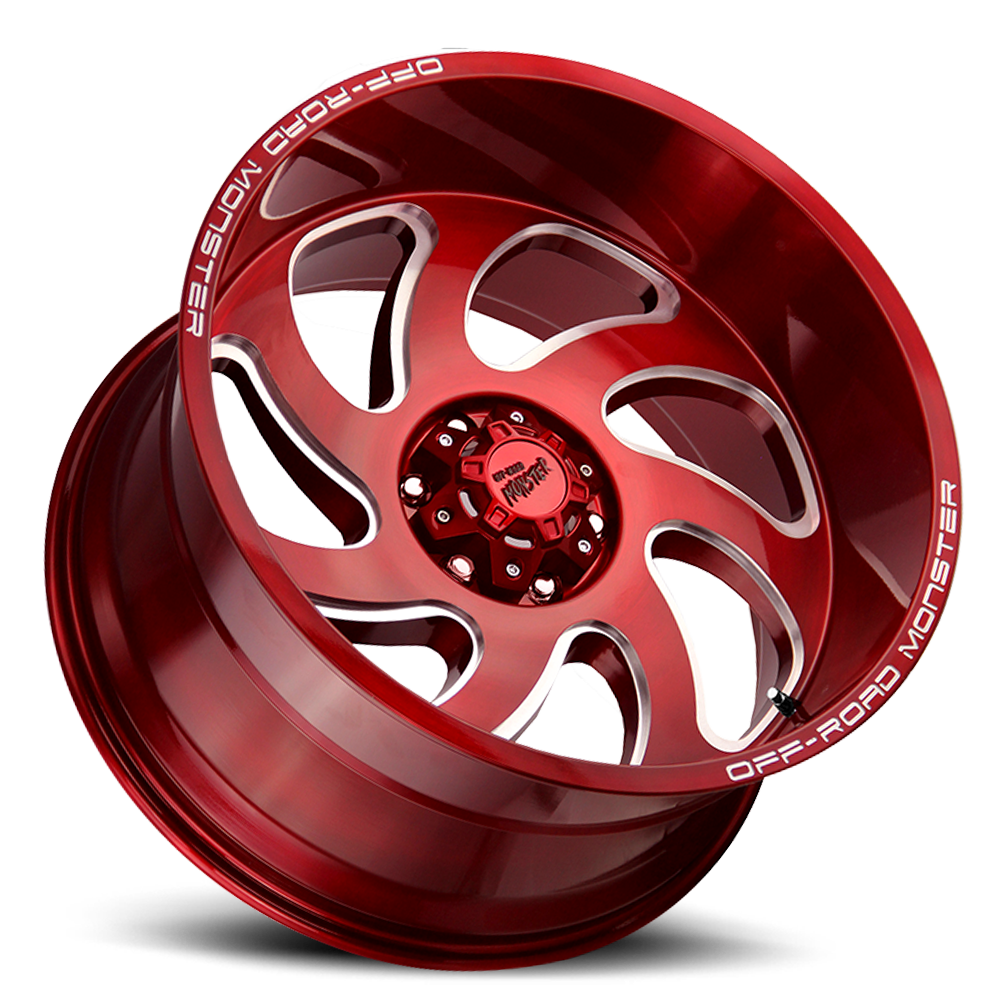

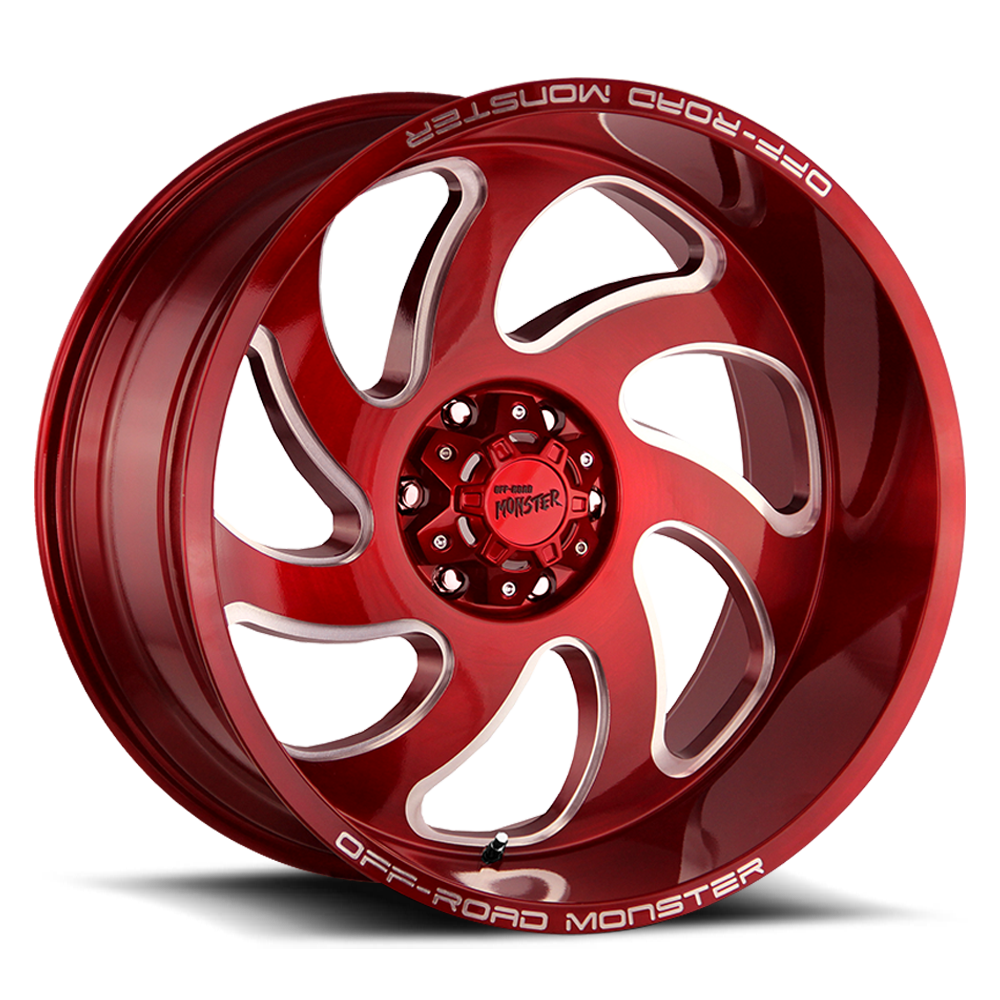

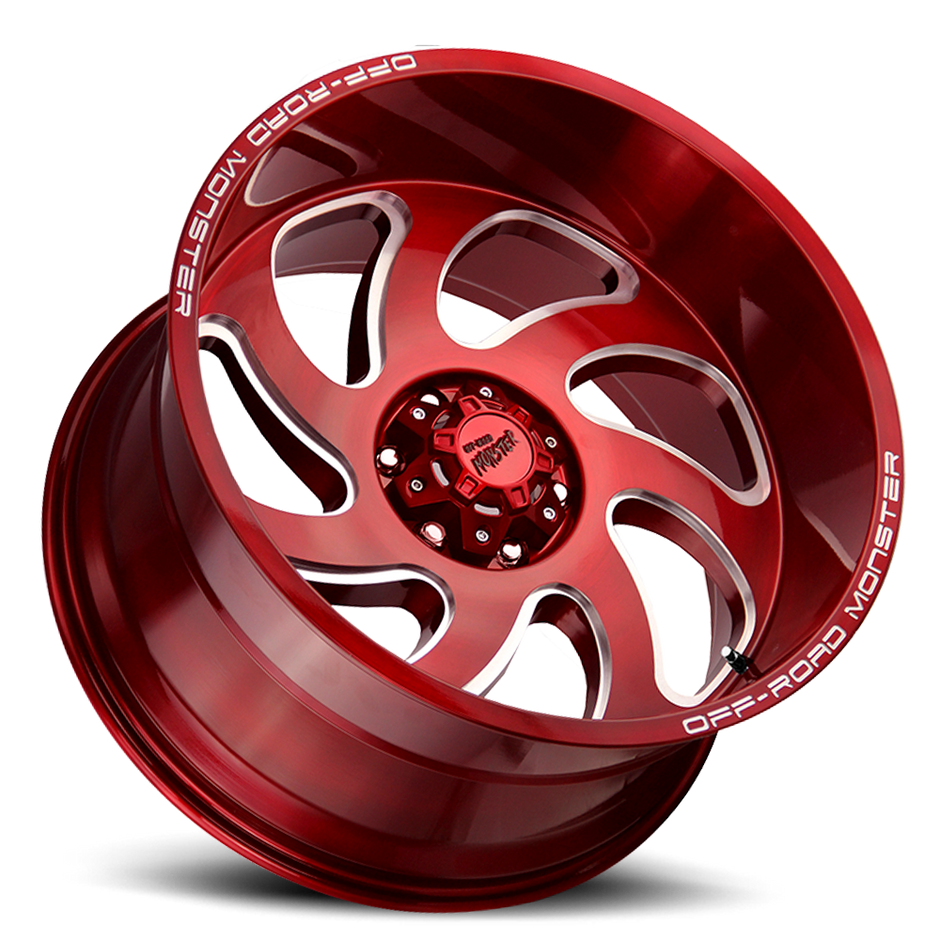

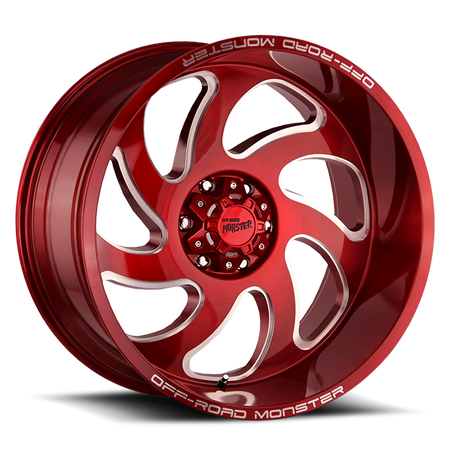

Off Road Monster Wheels M07 R Candy Red | 24x12 -44mm | 8x165.1 | HD Truck Wheel
Is This for You?
You're running an HD truck on the 8x165.1 bolt pattern — pre-2011 GM HD or Ram 2500/3500 — single rear wheel — and you want a 24" candy red wheel that makes a maximum-diameter color statement with aggressive poke. The M07 R at 24x12 with -44mm offset is built for lifted HD builds that want extreme presence in a finish that commands attention. Cast aluminum 1-piece construction, 125.2mm hub-centric bore, 3,500 lb load rating.
| Spec | Detail |
|---|---|
| Size | 24x12 |
| Offset | -44mm |
| Bolt Pattern | 8x165.1 |
| Center Bore | 125.2mm (hub-centric) |
| Load Rating | 3,500 lbs |
| Finish | Candy Red |
| Construction | Cast aluminum, 1-piece |
| Wheel Weight | 64 lbs |
| Lug Seat | Conical |
| SKU | M07412865N44R |
Verified Fitment (OFAS Standard)
✅ Chevrolet Silverado 2500HD/3500HD (pre-2011, 8x165.1 — SRW)
✅ GMC Sierra 2500HD/3500HD (pre-2011, 8x165.1 — SRW)
✅ Ram 2500/3500 (8x165.1 — SRW)
❌ Not for Dual Rear Wheel (DRW/Dually) configurations
❌ 2011+ GM HD trucks use 8x180 — not this bolt pattern
Confirm center bore, brake clearance, tire size, and suspension clearance for your exact year, make, model, and trim before ordering. Lug nuts, TPMS sensors, and hub rings not included. At -44mm offset on a 24x12, significant poke will result — verify fender and suspension clearance with your installer.
Engineering Question: Is your HD truck running the 8x165.1 bolt pattern — not 8x180 (2011+ GM HD) or 8x170 (Ford Super Duty)? Confirm your exact bolt pattern, axle configuration (SRW only), current lift height, and fender clearance before ordering.
