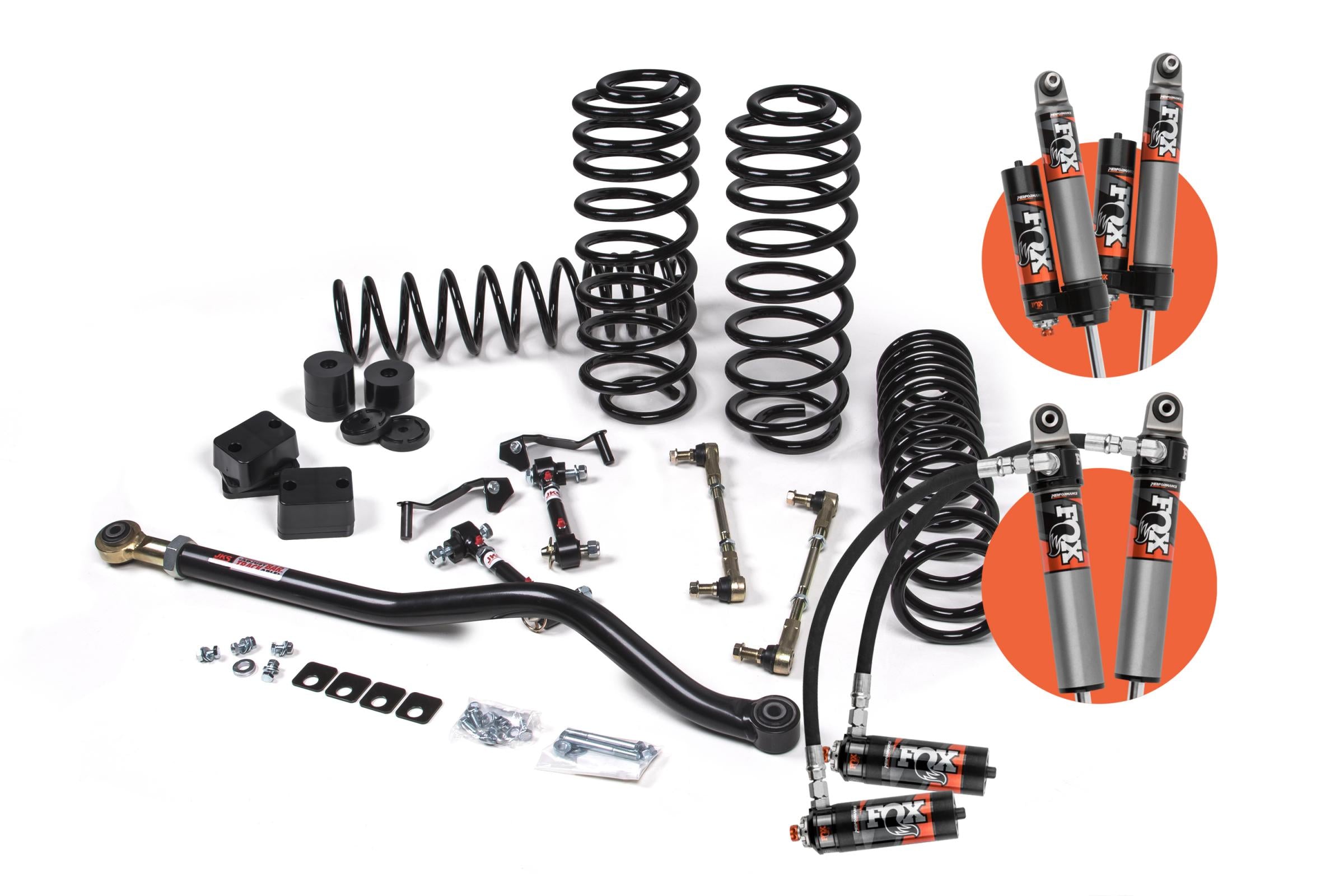

JKS J-Venture 3.5" Lift Kit w/ Fox 2.5 Elite | 2020–2024 Jeep Wrangler JL 4-Door EcoDiesel

JKS J-Venture 3.5" Lift Kit w/ Fox 2.5 Elite | 2020–2024 Jeep Wrangler JL 4-Door EcoDiesel

Is This for You?

You're running a JL 4-Door EcoDiesel and you want the top-spec Fox shock in the J-Venture 3.5" short-arm lineup. The JSPEC158PES delivers JKS J-Venture geometry-corrected control arms with Fox 2.5 Elite DSC reservoir shocks, engineered specifically for the EcoDiesel's heavier front end. Driver-adjustable compression lets you compensate for the diesel's front-end mass on the fly — without the complexity of a long-arm conversion. This is the highest-performing shock configuration in the J-Venture 3.5" EcoDiesel lineup.

The Result

3.5" of lift with JKS J-Venture geometry correction calibrated for the EcoDiesel's front-end weight. Fox 2.5 Elite DSC shocks give you real-time compression adjustment to manage the diesel's heavier front-end dynamics on both trail and highway. No differential drop required. Adjustable control arms allow precise alignment post-install. The EcoDiesel's heavier platform benefits more from the DSC's adjustment range than a gas JL — the ability to tune compression for the diesel's specific weight distribution is a meaningful advantage on this platform.

Verified Fitment (OFAS Standard)

• Fits: 2020–2024 Jeep Wrangler JL 4-Door (Unlimited) — 3.0L EcoDiesel ONLY
• Does NOT fit: JL Gas Models (2.0T, 3.6L) | JL 4xe Hybrid | JL 2-Door | 2025–2026 JL (EcoDiesel not offered) | JK (any year)
• Engine Note: EcoDiesel was available in the JL 4-Door from 2020–2024 only. Confirm your engine code before ordering.

System Specifications

• Lift Height: 3.5"
• System: J-Venture Short-Arm (EcoDiesel-specific coil rate)
• Shock: Fox 2.5 Elite w/ DSC (Dual Speed Compression) Reservoir
• Coil Rate: Heavy-duty — engineered for EcoDiesel front-end mass
• Control Arms: JKS J-Venture geometry-corrected short-arm control arms
• SKU: JSPEC158PES

Installation & Fabrication Notes

Short-arm system does not require differential drop or relocation. Professional 4-wheel alignment required post-installation. Torque all control arm hardware to JKS specification after a 500-mile break-in. Confirm DSC adjuster knob placement for driver accessibility during install. Verify Fox 2.5 reservoir clearance against diesel-specific underbody components and skid plates. No cutting or welding required for standard JL 4-Door EcoDiesel applications.

Wheel & Tire Fitment

Engineered for 35"–37" tires. Recommended backspacing: 4.5"–4.75" on a 17"×9" or 18"×9" wheel. The EcoDiesel's heavier front end affects fender clearance differently than the gas JL — confirm tire brand and tread width before finalizing wheel selection.

Engineering Question

Running Fox 2.5 Elite DSC on a J-Venture 3.5" short-arm EcoDiesel JL 4-Door — does the short-arm geometry's different chassis pitch behavior under the EcoDiesel's heavier front-end load require a different DSC low-speed compression baseline than the J-Konnect long-arm at the same lift height and coil rate on the same diesel platform? Yes — the short-arm geometry produces different chassis pitch dynamics under the diesel's front-end mass than the long-arm, which means the DSC low-speed baseline that works on a J-Konnect EcoDiesel build may not be optimal on a J-Venture EcoDiesel build. Contact OFAS with your EcoDiesel's total front-end weight and primary terrain and we'll give you a DSC starting position calibrated specifically for the J-Venture short-arm geometry on the diesel platform.
