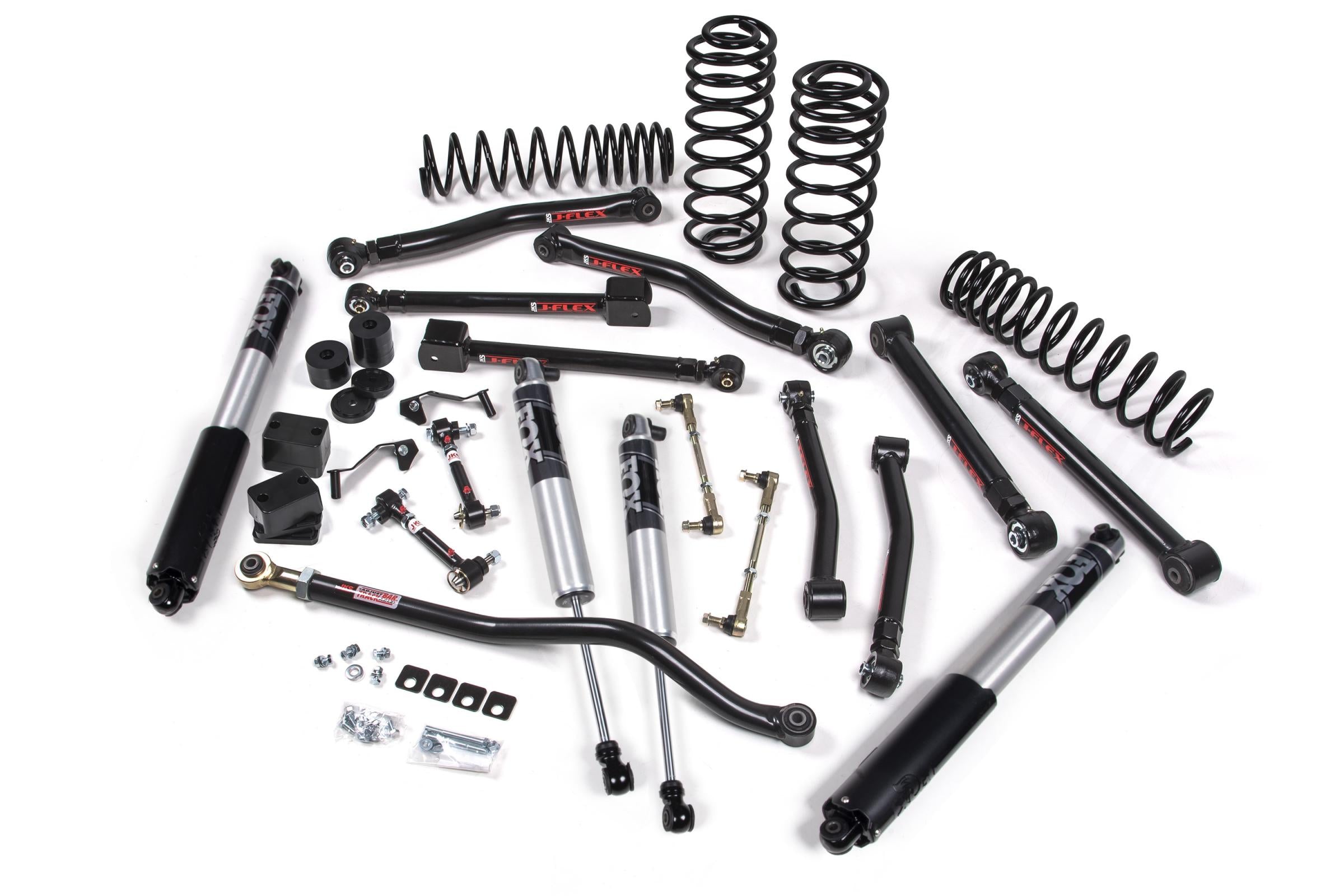

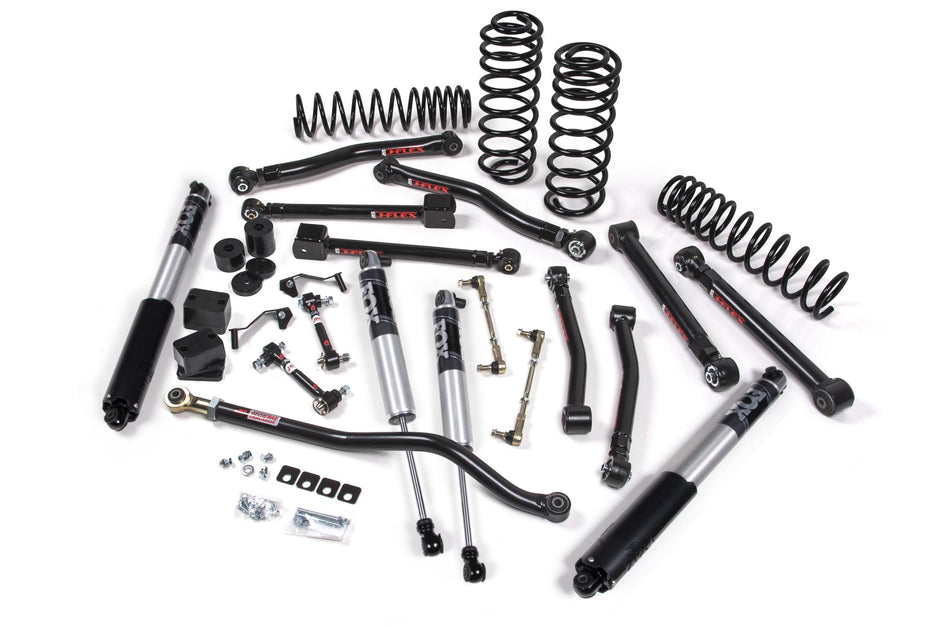

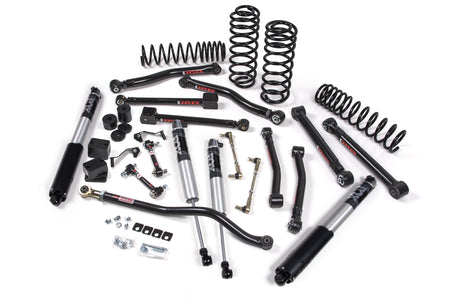

JKS J-Krawl 3" Lift Kit w/ Fox 2.5 | 2018–2026 Jeep Wrangler JL 2-Door

JKS J-Krawl 3" Lift Kit w/ Fox 2.5 | 2018–2026 Jeep Wrangler JL 2-Door

Is This for You?

You're building a dedicated crawler on a JL 2-Door platform and you want 3" of lift with the J-Krawl system — JKS's crawler-specific suspension designed for maximum articulation, locker compatibility, and 37"+ tire clearance. Paired with Fox 2.5 Performance Series reservoir shocks, the JSPEC148PS delivers consistent damping and heat dissipation on extended technical terrain. The JL 2-Door's shorter wheelbase and lighter weight make it the ideal platform for the J-Krawl's articulation-focused geometry on the modern JL platform.

The Result

3" of lift with JKS J-Krawl crawler geometry — engineered for maximum droop travel and articulation on technical terrain. Fox 2.5 reservoir shocks deliver consistent damping and heat dissipation across extended trail runs. The JL 2-Door's shorter wheelbase and lighter platform respond exceptionally well to the J-Krawl's articulation-focused design at this lift height.

Verified Fitment (OFAS Standard)

• Fits: 2018–2026 Jeep Wrangler JL 2-Door — Gas Models (2.0T, 3.6L)
• Does NOT fit: JL 4-Door (Unlimited) | JL EcoDiesel | JL 4xe Hybrid | JK (any year) | Gladiator JT

System Specifications

• Lift Height: 3"
• System: J-Krawl (crawler-specific geometry, maximum articulation)
• Shock: Fox 2.5 Performance Series w/ Reservoir
• Coil Rate: Tuned for JL 2-Door crawler application
• Control Arms: JKS J-Krawl geometry-corrected control arms
• SKU: JSPEC148PS

Installation & Fabrication Notes

Professional 4-wheel alignment required post-installation. Torque all control arm hardware to JKS specification after a 500-mile break-in. Confirm Fox 2.5 reservoir clearance against skid plates and rock rails. The J-Krawl system is designed for locker-equipped builds — confirm front and rear locker compatibility with OFAS before finalizing your build spec. No cutting or welding required for standard JL 2-Door gas applications.

Wheel & Tire Fitment

Engineered for 37" tires on a dedicated crawler build. Recommended backspacing: 4.0"–4.5" on a 17"×9" or 17"×8" wheel. The JL 2-Door's shorter wheelbase makes fender clearance more sensitive to tire width at 3" of lift — confirm tread width and brand before finalizing wheel selection.

Engineering Question

Comparing the J-Krawl 3" on a JL 2-Door versus the J-Krawl 3.5" on the same platform — if the goal is maximum articulation for rock crawling with 37" tires, does the additional 0.5" of lift height meaningfully change the droop travel or approach angle on the JL 2-Door? At 3" vs 3.5", the difference in approach angle is modest, but the additional lift height at 3.5" provides more fender clearance for 37" tires under full compression. If your build is primarily a slow-speed crawler and tire clearance at 37" is confirmed at 3", the 3" kit is the cleaner install. Contact OFAS with your tire size and build spec and we'll confirm which lift height is the right call for your specific JL 2-Door crawler build.
