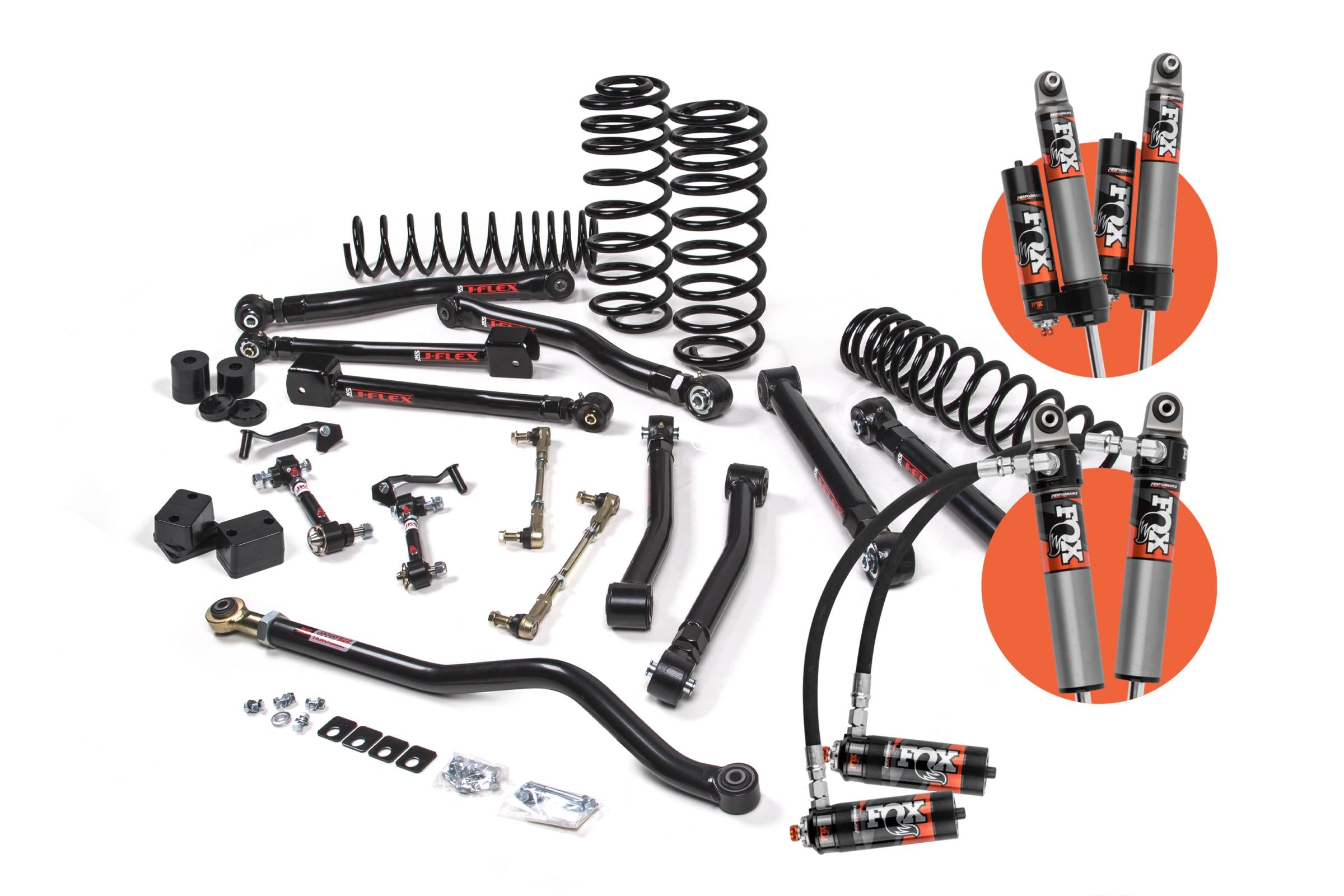

JKS J-Krawl 3" Lift Kit w/ Fox 2.5 Elite DSC | 2018–2026 Jeep Wrangler JL 2-Door

JKS J-Krawl 3" Lift Kit w/ Fox 2.5 Elite DSC | 2018–2026 Jeep Wrangler JL 2-Door

Is This for You?

You're building a dedicated crawler on a JL 2-Door platform and you want 3" of lift with the J-Krawl system and the top-spec Fox shock in the lineup. The JSPEC148PES delivers JKS J-Krawl crawler geometry with Fox 2.5 Elite DSC reservoir shocks — driver-adjustable compression lets you dial in the shock for slow-speed rock crawling or faster trail transitions on the fly. The JL 2-Door's shorter wheelbase and lighter weight make it the ideal platform for the J-Krawl's articulation-focused geometry, and the DSC gives you the tuning range to exploit it.

The Result

3" of lift with JKS J-Krawl crawler geometry — engineered for maximum droop travel and articulation on technical terrain. Fox 2.5 Elite DSC shocks give you on-the-fly compression adjustment: open it up for maximum compliance on slow rock sections, firm it up for faster trail transitions. The JL 2-Door's shorter wheelbase and lighter platform respond exceptionally well to the J-Krawl's articulation-focused design at this lift height.

Verified Fitment (OFAS Standard)

• Fits: 2018–2026 Jeep Wrangler JL 2-Door — Gas Models (2.0T, 3.6L)
• Does NOT fit: JL 4-Door (Unlimited) | JL EcoDiesel | JL 4xe Hybrid | JK (any year) | Gladiator JT

System Specifications

• Lift Height: 3"
• System: J-Krawl (crawler-specific geometry, maximum articulation)
• Shock: Fox 2.5 Elite w/ DSC (Dual Speed Compression) Reservoir
• Coil Rate: Tuned for JL 2-Door crawler application
• Control Arms: JKS J-Krawl geometry-corrected control arms
• SKU: JSPEC148PES

Installation & Fabrication Notes

Professional 4-wheel alignment required post-installation. Torque all control arm hardware to JKS specification after a 500-mile break-in. Confirm DSC adjuster knob placement for driver accessibility during install. Verify Fox 2.5 reservoir clearance against skid plates and rock rails. The J-Krawl system is designed for locker-equipped builds — confirm front and rear locker compatibility with OFAS before finalizing your build spec. No cutting or welding required for standard JL 2-Door gas applications.

Wheel & Tire Fitment

Engineered for 37" tires on a dedicated crawler build. Recommended backspacing: 4.0"–4.5" on a 17"×9" or 17"×8" wheel. The JL 2-Door's shorter wheelbase makes fender clearance more sensitive to tire width at 3" of lift — confirm tread width and brand before finalizing wheel selection.

Engineering Question

Running Fox 2.5 Elite DSC on a J-Krawl 3" JL 2-Door crawler build with 37" tires and front and rear lockers — what's the practical DSC tuning difference between a slow-speed rock crawling setting and a faster trail section setting on the JL 2-Door's shorter wheelbase? On the JL 2-Door, the shorter wheelbase produces faster chassis pitch cycles on faster trail sections, which means the DSC high-speed circuit becomes more active as speed increases. For slow rock crawling, you want the low-speed circuit open for maximum compliance. For faster trail transitions, firming up the high-speed circuit controls body motion without killing articulation. Contact OFAS with your terrain profile and we'll give you a DSC baseline starting position calibrated for your specific JL 2-Door J-Krawl build.
