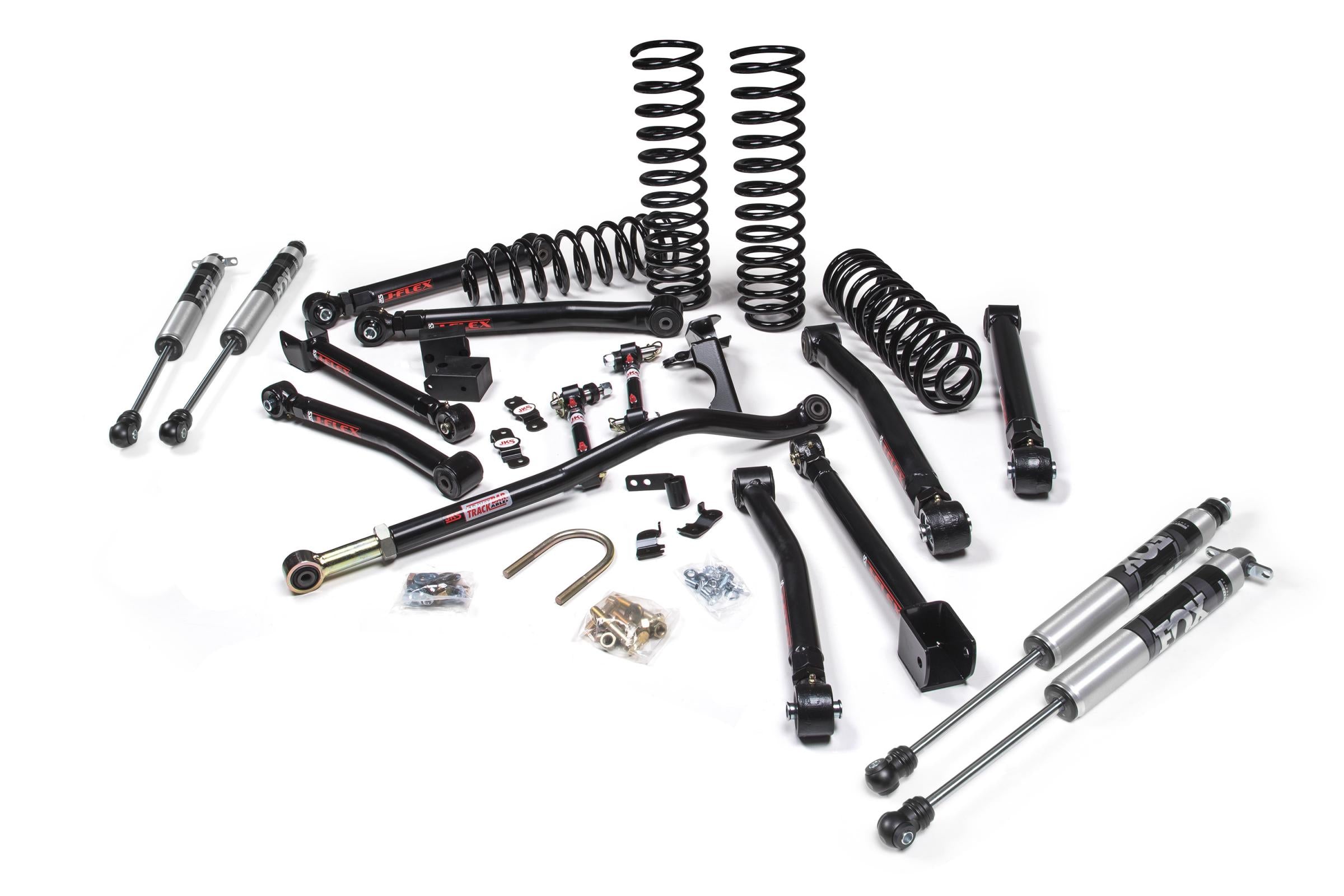

JKS J-Krawl 3" Lift Kit w/ Fox 2.0 Performance | 2018–2026 Jeep Wrangler JL 2-Door

JKS J-Krawl 3" Lift Kit w/ Fox 2.0 Performance | 2018–2026 Jeep Wrangler JL 2-Door

Is This for You?

You're building a dedicated crawler on a JL 2-Door platform and you want 3" of lift with the J-Krawl system and proven Fox damping at a value-forward price point. The JSPEC148KFP pairs JKS J-Krawl crawler geometry with Fox 2.0 Performance Series shocks — a significant upgrade over factory damping that delivers consistent, predictable performance for technical trail use on the JL 2-Door platform. The JL 2-Door's lighter weight makes it a well-matched platform for the 2.0 Performance's thermal capacity on moderate-to-technical crawler terrain.

The Result

3" of lift with JKS J-Krawl crawler geometry — engineered for maximum droop travel and articulation on technical terrain. Fox 2.0 Performance shocks deliver consistent, predictable damping for technical trail use and daily driving. The JL 2-Door's shorter wheelbase and lighter platform respond well to the J-Krawl's articulation-focused design at this lift height.

Verified Fitment (OFAS Standard)

• Fits: 2018–2026 Jeep Wrangler JL 2-Door — Gas Models (2.0T, 3.6L)
• Does NOT fit: JL 4-Door (Unlimited) | JL EcoDiesel | JL 4xe Hybrid | JK (any year) | Gladiator JT

System Specifications

• Lift Height: 3"
• System: J-Krawl (crawler-specific geometry, maximum articulation)
• Shock: Fox 2.0 Performance Series (non-reservoir)
• Coil Rate: Tuned for JL 2-Door crawler application
• Control Arms: JKS J-Krawl geometry-corrected control arms
• SKU: JSPEC148KFP

Installation & Fabrication Notes

Professional 4-wheel alignment required post-installation. Torque all control arm hardware to JKS specification after a 500-mile break-in. No cutting or welding required for standard JL 2-Door gas applications. The J-Krawl system is designed for locker-equipped builds — confirm front and rear locker compatibility with OFAS before finalizing your build spec. For extended technical crawler sessions, consider upgrading to the Fox 2.5 Elite DSC variant (JSPEC148PES) for improved heat management and on-the-fly adjustment.

Wheel & Tire Fitment

Engineered for 37" tires on a dedicated crawler build. Recommended backspacing: 4.0"–4.5" on a 17"×9" or 17"×8" wheel. The JL 2-Door's shorter wheelbase makes fender clearance more sensitive to tire width at 3" of lift — confirm tread width and brand before finalizing wheel selection.

Engineering Question

Running Fox 2.0 non-reservoir shocks on a J-Krawl 3" JL 2-Door crawler build with 37" tires — how does the J-Krawl's maximum-articulation geometry affect the 2.0 Performance's shock travel utilization compared to a standard trail lift kit at the same lift height on the JL 2-Door? The J-Krawl's articulation-focused geometry allows more droop travel than a standard trail kit, which means the shock cycles through a greater range of motion per obstacle. More travel range means the 2.0 Performance is working harder per trail mile than it would be on a standard trail kit. For moderate crawler sessions on a stock-weight JL 2-Door, the 2.0 Performance is adequate. For sustained technical crawling, contact OFAS and we'll confirm whether the Fox 2.5 Elite step-up is warranted for your specific build.
