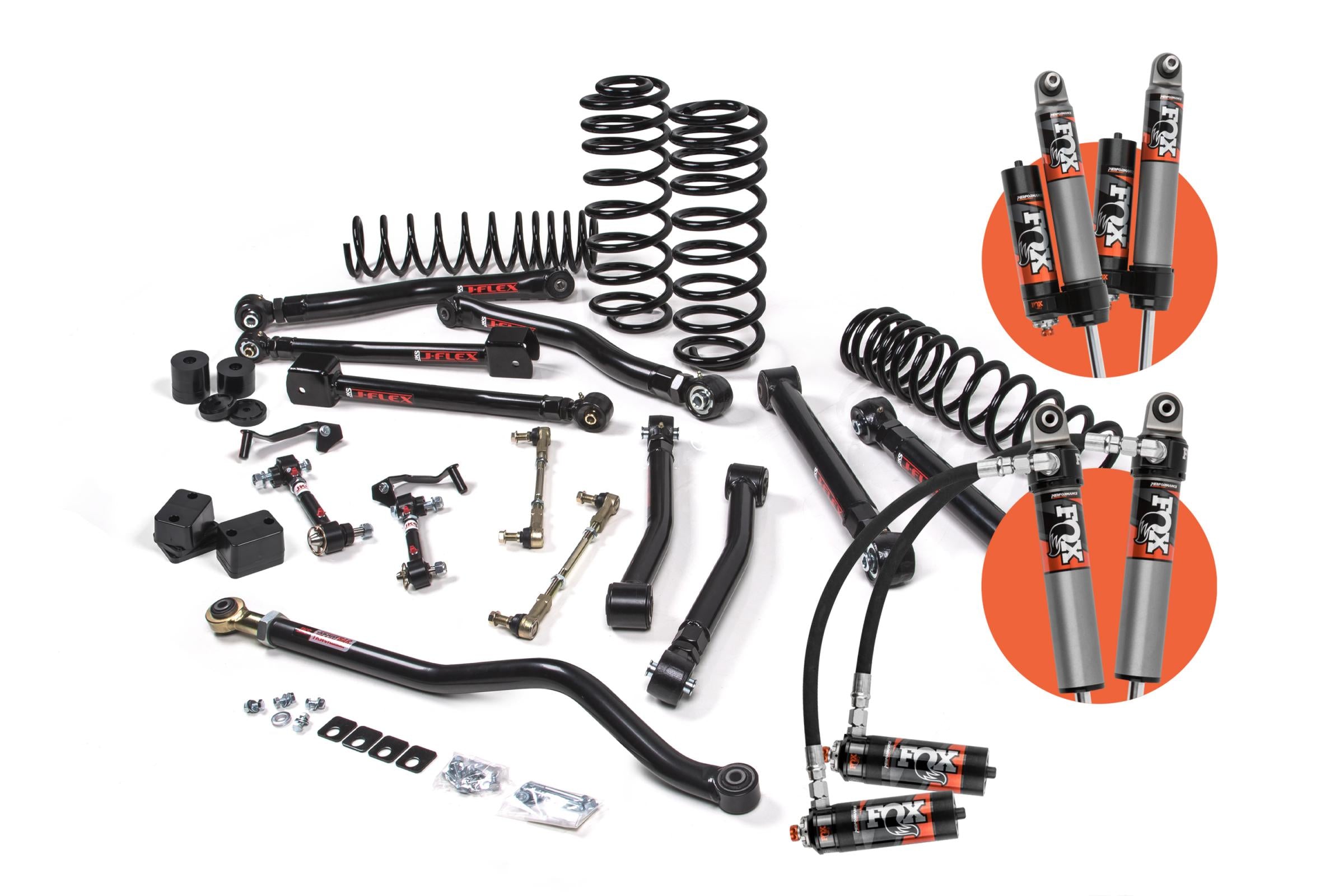

JKS J-Krawl 3" Lift Kit w/ Fox 2.5 Elite DSC | Standard-Rate Coils | 2018–2026 Jeep Wrangler JL 2-Door

JKS J-Krawl 3" Lift Kit w/ Fox 2.5 Elite DSC | Standard-Rate Coils | 2018–2026 Jeep Wrangler JL 2-Door

Is This for You?

You're building a dedicated crawler on a stock-weight JL 2-Door platform and you want the top-spec Fox shock in the J-Krawl 3" standard-rate lineup. The JSPEC147PES delivers JKS J-Krawl crawler geometry with Fox 2.5 Elite DSC reservoir shocks and standard-rate coils — driver-adjustable compression lets you dial in the shock for slow-speed rock crawling or faster trail transitions, while the standard-rate coils maximize droop travel and articulation compliance for stock-weight builds. This is the highest-performing shock configuration in the J-Krawl 3" standard-rate JL 2-Door lineup.

The Result

3" of lift with JKS J-Krawl crawler geometry and standard-rate coils that maximize droop travel and articulation compliance for stock-weight builds. Fox 2.5 Elite DSC shocks give you on-the-fly compression adjustment: open it up for maximum compliance on slow rock sections, firm it up for faster trail transitions. The combination of J-Krawl geometry, standard-rate coils, and DSC adjustment delivers the most tunable articulation setup in the J-Krawl 3" standard-rate lineup.

Verified Fitment (OFAS Standard)

• Fits: 2018–2026 Jeep Wrangler JL 2-Door — Gas Models (2.0T, 3.6L), Stock-Weight Configuration
• Does NOT fit: JL 4-Door (Unlimited) | JL EcoDiesel | JL 4xe Hybrid | JK (any year) | Gladiator JT
• Coil Note: Standard-Rate — NOT recommended for builds with steel bumpers, winch, or heavy roof rack. Use JSPEC148PES (HD coils) for accessorized builds.

System Specifications

• Lift Height: 3"
• System: J-Krawl (crawler-specific geometry, maximum articulation)
• Shock: Fox 2.5 Elite w/ DSC (Dual Speed Compression) Reservoir
• Coil Rate: Standard-Rate — optimized for stock-weight JL 2-Door crawler builds
• Control Arms: JKS J-Krawl geometry-corrected control arms
• SKU: JSPEC147PES

Installation & Fabrication Notes

Professional 4-wheel alignment required post-installation. Torque all control arm hardware to JKS specification after a 500-mile break-in. Confirm DSC adjuster knob placement for driver accessibility during install. Verify Fox 2.5 reservoir clearance against skid plates and rock rails. The J-Krawl system is designed for locker-equipped builds — confirm front and rear locker compatibility with OFAS before finalizing your build spec. No cutting or welding required for standard JL 2-Door gas applications.

Wheel & Tire Fitment

Engineered for 37" tires on a stock-weight crawler build. Recommended backspacing: 4.0"–4.5" on a 17"×9" or 17"×8" wheel. Standard-rate coils are not recommended for tire sizes exceeding 37" without load confirmation from OFAS.

Engineering Question

Running Fox 2.5 Elite DSC with standard-rate coils on a J-Krawl 3" JL 2-Door crawler build — what DSC low-speed compression setting maximizes articulation compliance on slow rock sections without sacrificing body control on side-hills? On a stock-weight JL 2-Door with standard-rate coils, the DSC low-speed circuit can be run softer than on a heavier or HD-coil build because the lighter spring rate already provides more compliance. The optimal low-speed setting depends on your tire pressure, locker engagement pattern, and terrain angle. Contact OFAS with your full build spec and we'll give you a DSC baseline starting position calibrated for your specific JL 2-Door J-Krawl standard-rate configuration.
