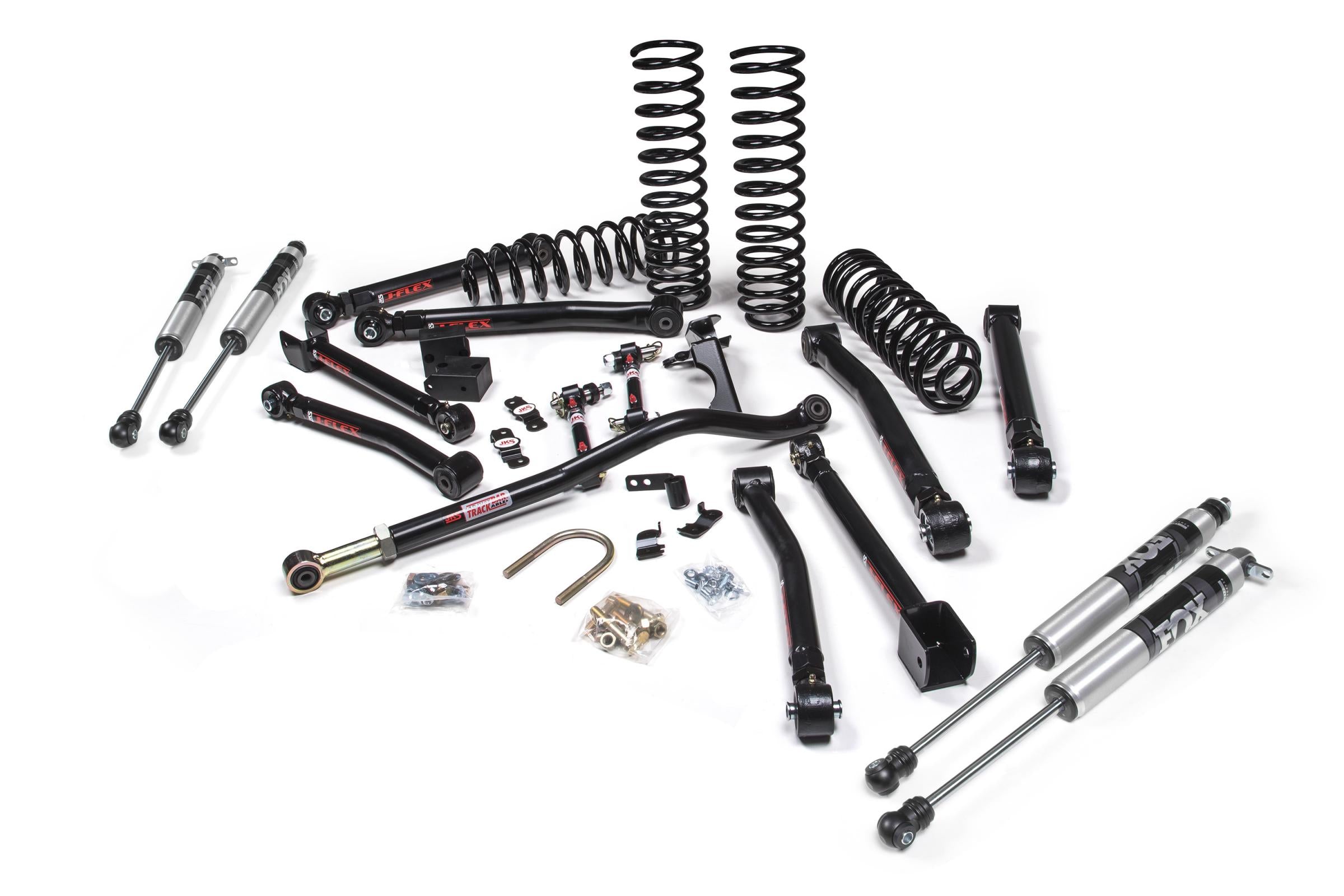

JKS J-Krawl 3" Lift Kit w/ Fox 2.0 Performance | Standard-Rate Coils | 2018–2026 Jeep Wrangler JL 2-Door

JKS J-Krawl 3" Lift Kit w/ Fox 2.0 Performance | Standard-Rate Coils | 2018–2026 Jeep Wrangler JL 2-Door

Is This for You?

You're building a dedicated crawler on a stock-weight JL 2-Door platform and you want 3" of lift with the J-Krawl system, proven Fox damping, and a standard-rate coil spring that maximizes droop travel and articulation compliance — at a value-forward price point. The JSPEC147KFP pairs JKS J-Krawl crawler geometry with Fox 2.0 Performance Series shocks and standard-rate coils. The JL 2-Door's lighter weight makes it a well-matched platform for the 2.0 Performance's thermal capacity on moderate-to-technical crawler terrain.

The Result

3" of lift with JKS J-Krawl crawler geometry and standard-rate coils that maximize droop travel and articulation compliance for stock-weight builds. Fox 2.0 Performance shocks deliver consistent, predictable damping for technical trail use and daily driving. The combination of J-Krawl geometry and standard-rate coils delivers strong articulation compliance for a stock-weight JL 2-Door at a moderate price point.

Verified Fitment (OFAS Standard)

• Fits: 2018–2026 Jeep Wrangler JL 2-Door — Gas Models (2.0T, 3.6L), Stock-Weight Configuration
• Does NOT fit: JL 4-Door (Unlimited) | JL EcoDiesel | JL 4xe Hybrid | JK (any year) | Gladiator JT
• Coil Note: Standard-Rate — NOT recommended for builds with steel bumpers, winch, or heavy roof rack. Use JSPEC148KFP (HD coils) for accessorized builds.

System Specifications

• Lift Height: 3"
• System: J-Krawl (crawler-specific geometry, maximum articulation)
• Shock: Fox 2.0 Performance Series (non-reservoir)
• Coil Rate: Standard-Rate — optimized for stock-weight JL 2-Door crawler builds
• Control Arms: JKS J-Krawl geometry-corrected control arms
• SKU: JSPEC147KFP

Installation & Fabrication Notes

Professional 4-wheel alignment required post-installation. Torque all control arm hardware to JKS specification after a 500-mile break-in. No cutting or welding required for standard JL 2-Door gas applications. The J-Krawl system is designed for locker-equipped builds — confirm front and rear locker compatibility with OFAS before finalizing your build spec. For extended technical crawler sessions, consider upgrading to the Fox 2.5 Elite DSC variant (JSPEC147PES) for improved heat management and on-the-fly adjustment.

Wheel & Tire Fitment

Engineered for 37" tires on a stock-weight crawler build. Recommended backspacing: 4.0"–4.5" on a 17"×9" or 17"×8" wheel. Standard-rate coils are not recommended for tire sizes exceeding 37" without load confirmation from OFAS.

Engineering Question

Running Fox 2.0 non-reservoir shocks with standard-rate coils on a J-Krawl 3" JL 2-Door crawler build — how does the combination of maximum-articulation geometry and standard-rate coils affect the 2.0 Performance's shock travel utilization compared to the same shock on a standard trail kit with HD coils at the same lift height? Standard-rate coils allow more droop travel than HD coils, which means the shock cycles through a greater range of motion per obstacle on the J-Krawl platform. More travel range combined with the J-Krawl's articulation-focused geometry means the 2.0 Performance is working harder per trail mile than it would be on a standard trail kit with HD coils. For moderate crawler sessions on a stock-weight JL 2-Door, the 2.0 Performance is adequate. Contact OFAS with your terrain profile and we'll confirm whether the Fox 2.5 Elite step-up is warranted for your specific build.
