JKS J-Konnect 3" Lift Kit w/ Fox 2.5 | HD Coils | 2018–2026 Jeep Wrangler JL 2-Door

JKS J-Konnect 3" Lift Kit w/ Fox 2.5 | HD Coils | 2018–2026 Jeep Wrangler JL 2-Door

Is This for You?

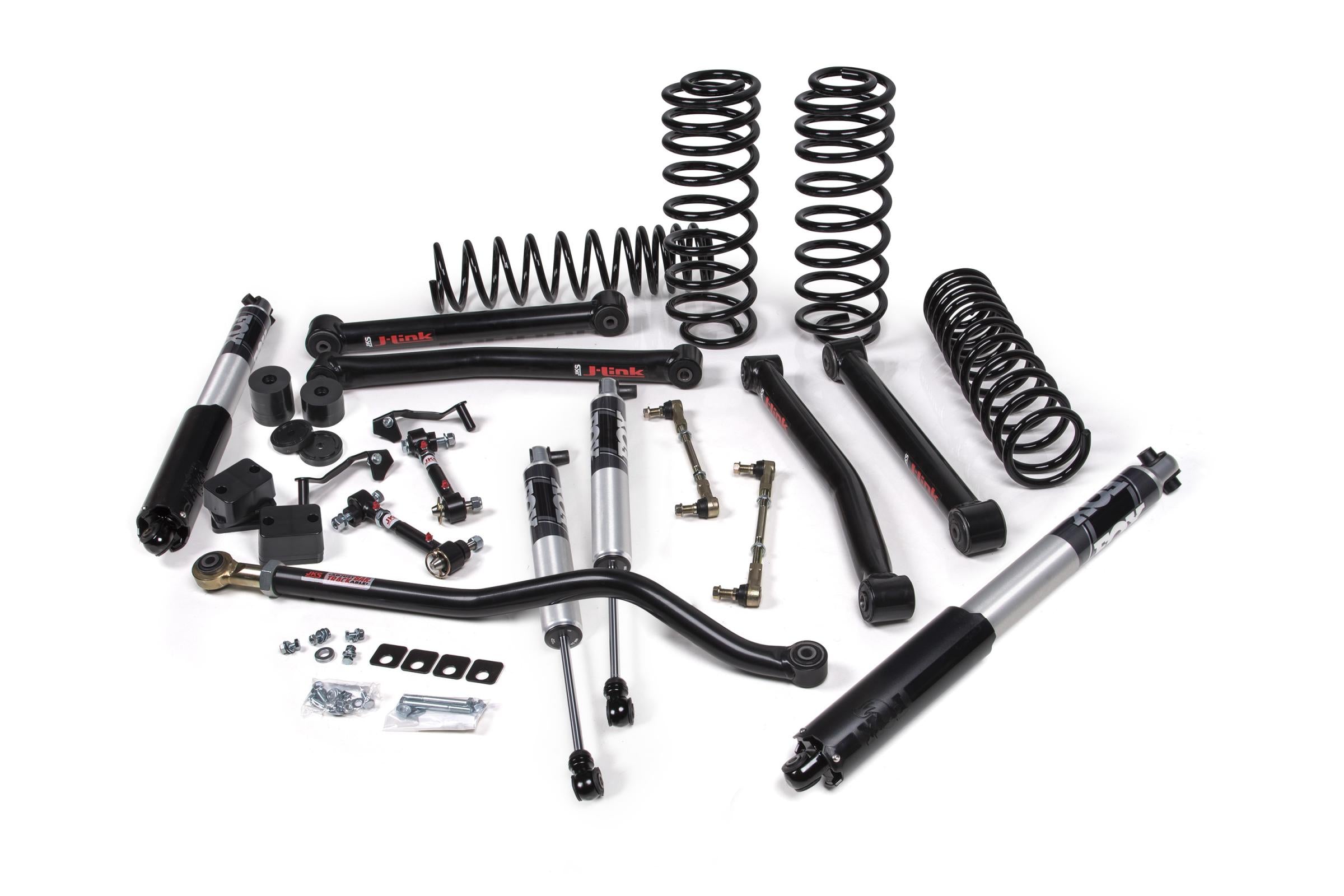

You're building an accessorized JL 2-Door — steel bumper, winch, or heavy spare — and you want 3" of lift with the J-Konnect long-arm geometry and Fox 2.5 reservoir damping. The JSPEC146PS delivers JKS long-arm control arms with Fox 2.5 Performance Series reservoir shocks and HD coil springs, engineered for the JL 2-Door platform with accessory loads. The J-Konnect's long-arm geometry delivers superior caster correction and articulation compared to a short-arm system at this lift height.

The Result

3" of lift with JKS long-arm caster and pinion correction. HD coils maintain ride height under accessory loads on the JL 2-Door platform. Fox 2.5 reservoir shocks deliver consistent damping and heat dissipation on extended trail runs. Adjustable upper and lower control arms allow precise alignment post-install. The JL 2-Door's shorter wheelbase benefits significantly from the long-arm geometry's improved caster correction at this lift height.

Verified Fitment (OFAS Standard)

• Fits: 2018–2026 Jeep Wrangler JL 2-Door — Gas Models (2.0T, 3.6L), Accessorized Builds
• Does NOT fit: JL 4-Door (Unlimited) | JL EcoDiesel | JL 4xe Hybrid | JK (any year) | Gladiator JT
• Coil Note: HD Rate — engineered for accessorized JL 2-Door builds with steel bumpers or winch. Use JSPEC145PS (Std-Rate) for stock-weight builds.

System Specifications

• Lift Height: 3"
• System: J-Konnect Long-Arm
• Shock: Fox 2.5 Performance Series w/ Reservoir
• Coil Rate: HD — tuned for accessorized JL 2-Door builds
• Control Arms: JKS adjustable upper and lower long-arm (front and rear)
• SKU: JSPEC146PS

Installation & Fabrication Notes

Long-arm geometry requires a front differential drop or relocation bracket (included or specified in kit). Professional 4-wheel alignment required post-installation. Torque all control arm hardware to JKS specification after a 500-mile break-in. Confirm Fox 2.5 reservoir clearance against skid plates and body panels. No cutting or welding required for standard JL 2-Door gas applications.

Wheel & Tire Fitment

Engineered for 35"–37" tires on an accessorized build. Recommended backspacing: 4.5"–4.75" on a 17"×9" or 18"×9" wheel. The JL 2-Door's shorter wheelbase makes fender clearance more sensitive to tire width at 3" of lift — confirm tread width and brand before finalizing wheel selection.

Engineering Question

Choosing between the J-Konnect 3" long-arm and the J-Krawl 3" for a JL 2-Door build with a steel bumper and winch — both run Fox 2.5 reservoir shocks and HD coils, so what's the real-world difference in trail performance? The J-Konnect is engineered for trail performance and daily driving with superior caster correction and highway stability. The J-Krawl is engineered for maximum articulation on dedicated crawler terrain. If your JL 2-Door sees a mix of trail use, daily driving, and occasional technical terrain, the J-Konnect is the right platform. If it's a dedicated crawler, the J-Krawl is the better call. Contact OFAS with your build priorities and we'll confirm which system fits your specific JL 2-Door use case.
