JKS J-Konnect 3" Lift Kit w/ Fox 2.5 | Standard-Rate Coils | 2018–2026 Jeep Wrangler JL 2-Door

JKS J-Konnect 3" Lift Kit w/ Fox 2.5 | Standard-Rate Coils | 2018–2026 Jeep Wrangler JL 2-Door

Is This for You?

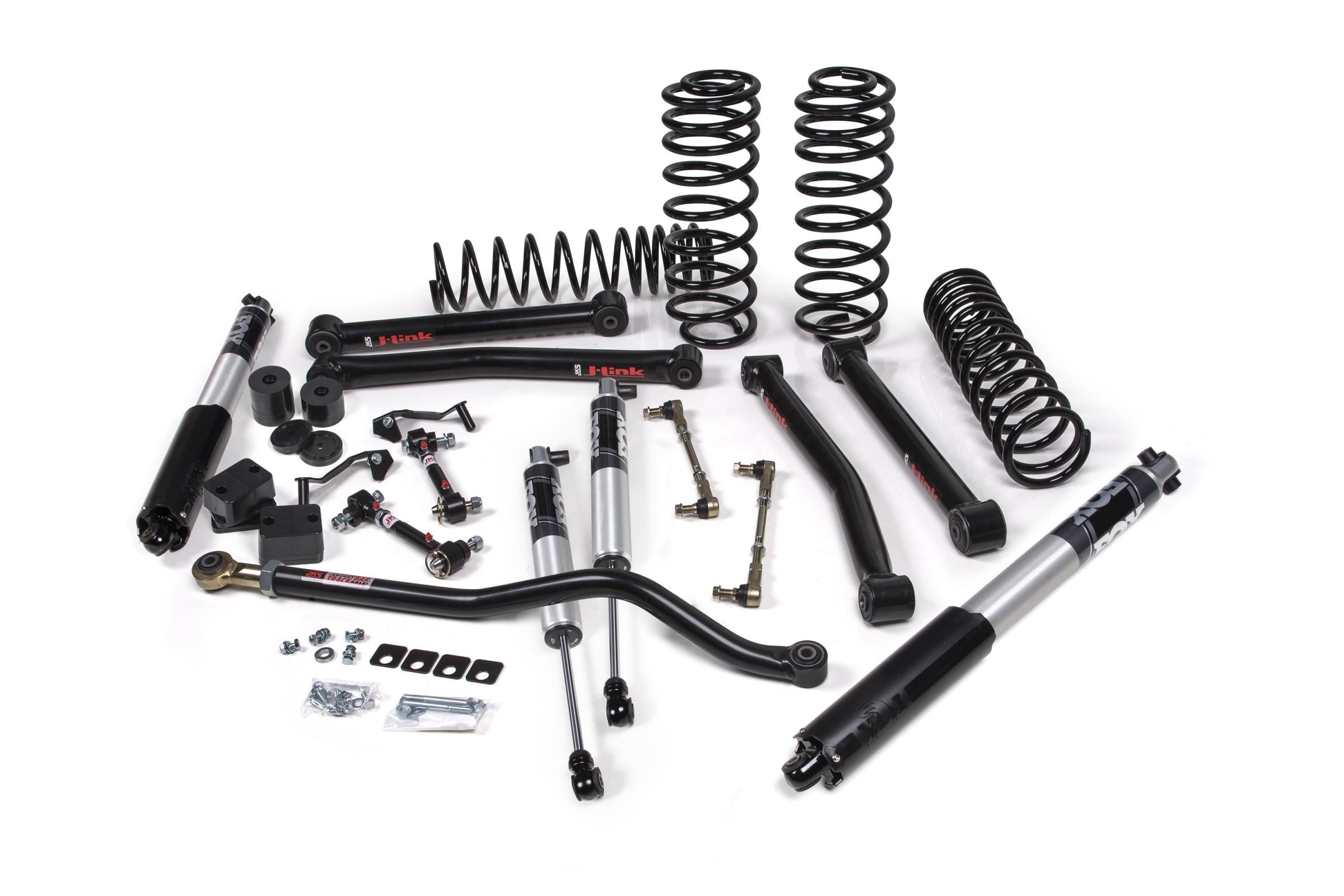

You're running a stock-weight JL 2-Door — no heavy steel bumpers, no winch — and you want 3" of lift with the J-Konnect long-arm geometry and Fox 2.5 reservoir damping. The JSPEC145PS delivers JKS long-arm control arms with Fox 2.5 Performance Series reservoir shocks and standard-rate coil springs. Standard-rate coils maximize droop travel and trail compliance for stock-weight builds, and the J-Konnect's long-arm geometry delivers superior caster correction and articulation compared to a short-arm system at this lift height.

The Result

3" of lift with JKS long-arm caster and pinion correction. Standard-rate coils deliver a softer initial spring feel and greater droop travel compared to HD coils — maximizing articulation for stock-weight builds. Fox 2.5 reservoir shocks deliver consistent damping and heat dissipation on extended trail runs. Adjustable upper and lower control arms allow precise alignment post-install.

Verified Fitment (OFAS Standard)

• Fits: 2018–2026 Jeep Wrangler JL 2-Door — Gas Models (2.0T, 3.6L), Stock-Weight Configuration
• Does NOT fit: JL 4-Door (Unlimited) | JL EcoDiesel | JL 4xe Hybrid | JK (any year) | Gladiator JT
• Coil Note: Standard-Rate — NOT recommended for builds with steel bumpers, winch, or heavy roof rack. Use JSPEC146PS (HD coils) for accessorized builds.

System Specifications

• Lift Height: 3"
• System: J-Konnect Long-Arm
• Shock: Fox 2.5 Performance Series w/ Reservoir
• Coil Rate: Standard-Rate — optimized for stock-weight JL 2-Door builds
• Control Arms: JKS adjustable upper and lower long-arm (front and rear)
• SKU: JSPEC145PS

Installation & Fabrication Notes

Long-arm geometry requires a front differential drop or relocation bracket (included or specified in kit). Professional 4-wheel alignment required post-installation. Torque all control arm hardware to JKS specification after a 500-mile break-in. Confirm Fox 2.5 reservoir clearance against skid plates and body panels. No cutting or welding required for standard JL 2-Door gas applications.

Wheel & Tire Fitment

Optimized for 35" tires on a stock-weight build. Recommended backspacing: 4.5"–4.75" on a 17"×9" or 18"×9" wheel. Standard-rate coils are not recommended for tire sizes exceeding 37" without load confirmation from OFAS.

Engineering Question

Comparing the J-Konnect 3" standard-rate long-arm on a stock-weight JL 2-Door versus the J-Krawl 3" standard-rate on the same platform — both run Fox 2.5 reservoir shocks and standard-rate coils, so what's the real-world difference in trail performance? The J-Konnect is engineered for trail performance and daily driving with superior caster correction and highway stability. The J-Krawl is engineered for maximum articulation on dedicated crawler terrain. If your JL 2-Door sees a mix of trail use, daily driving, and occasional technical terrain, the J-Konnect is the right platform. If it's a dedicated crawler, the J-Krawl is the better call. Contact OFAS with your build priorities and we'll confirm which system fits your specific JL 2-Door use case.
