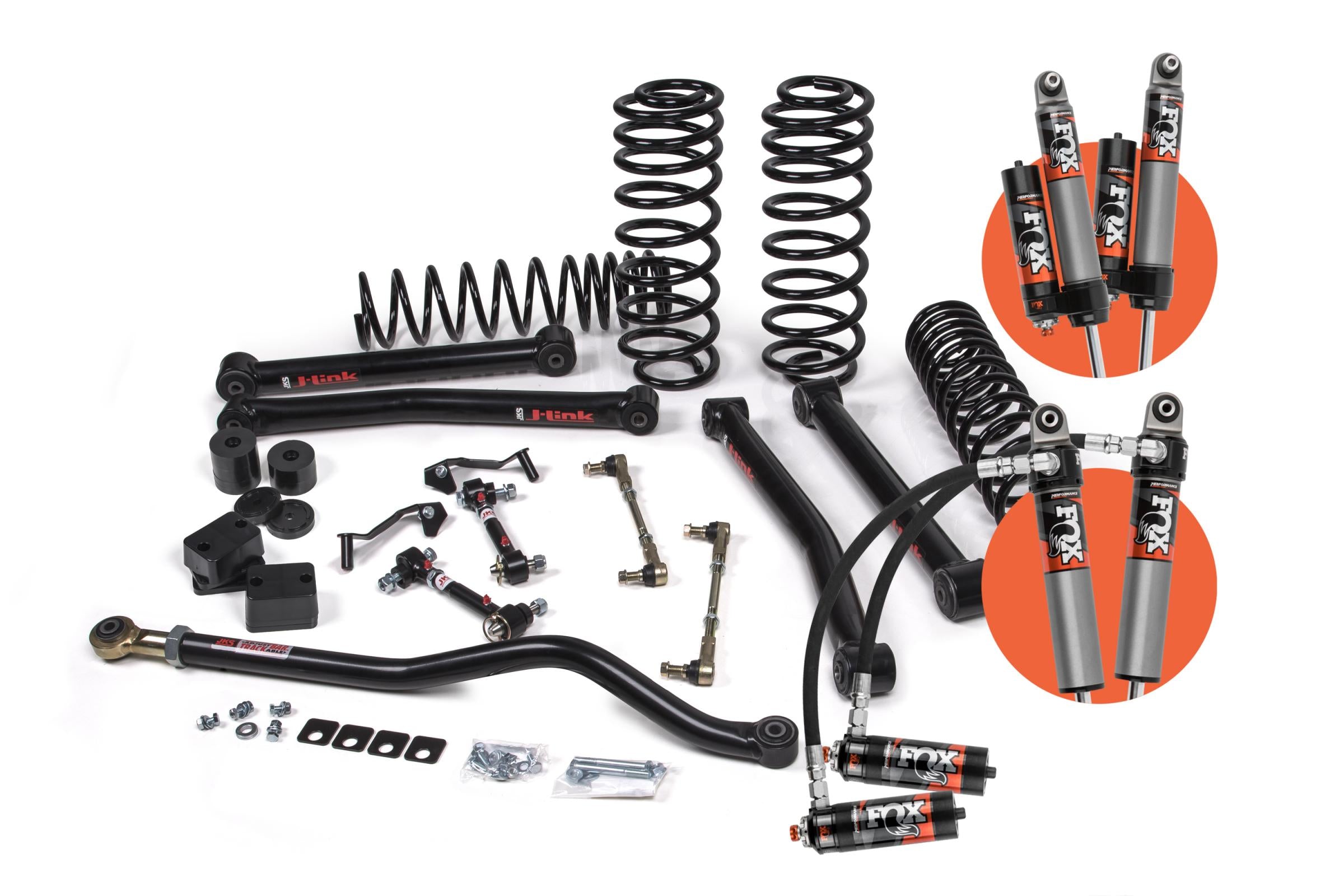

JKS J-Konnect 3" Lift Kit w/ Fox 2.5 Elite DSC | Standard-Rate Coils | 2018–2026 Jeep Wrangler JL 2-Door

JKS J-Konnect 3" Lift Kit w/ Fox 2.5 Elite DSC | Standard-Rate Coils | 2018–2026 Jeep Wrangler JL 2-Door

Is This for You?

You're running a stock-weight JL 2-Door and you want the top-spec Fox shock in the J-Konnect 3" standard-rate lineup. The JSPEC145PES delivers JKS long-arm control arms with Fox 2.5 Elite DSC reservoir shocks and standard-rate coil springs. Driver-adjustable compression lets you dial in the shock for trail compliance or highway stability, while the standard-rate coils maximize droop travel and articulation for stock-weight builds. This is the highest-performing shock configuration in the J-Konnect 3" standard-rate JL 2-Door lineup.

The Result

3" of lift with JKS long-arm caster and pinion correction. Standard-rate coils maximize droop travel and trail compliance for stock-weight builds. Fox 2.5 Elite DSC shocks give you on-the-fly compression adjustment — open it up for trail compliance, firm it up for highway stability. Adjustable upper and lower control arms allow precise alignment post-install.

Verified Fitment (OFAS Standard)

• Fits: 2018–2026 Jeep Wrangler JL 2-Door — Gas Models (2.0T, 3.6L), Stock-Weight Configuration
• Does NOT fit: JL 4-Door (Unlimited) | JL EcoDiesel | JL 4xe Hybrid | JK (any year) | Gladiator JT
• Coil Note: Standard-Rate — NOT recommended for builds with steel bumpers, winch, or heavy roof rack. Use JSPEC146PES (HD coils) for accessorized builds.

System Specifications

• Lift Height: 3"
• System: J-Konnect Long-Arm
• Shock: Fox 2.5 Elite w/ DSC (Dual Speed Compression) Reservoir
• Coil Rate: Standard-Rate — optimized for stock-weight JL 2-Door builds
• Control Arms: JKS adjustable upper and lower long-arm (front and rear)
• SKU: JSPEC145PES

Installation & Fabrication Notes

Long-arm geometry requires a front differential drop or relocation bracket (included or specified in kit). Professional 4-wheel alignment required post-installation. Torque all control arm hardware to JKS specification after a 500-mile break-in. Confirm DSC adjuster knob placement for driver accessibility during install. Verify Fox 2.5 reservoir clearance against skid plates and body panels. No cutting or welding required for standard JL 2-Door gas applications.

Wheel & Tire Fitment

Optimized for 35" tires on a stock-weight build. Recommended backspacing: 4.5"–4.75" on a 17"×9" or 18"×9" wheel. Standard-rate coils are not recommended for tire sizes exceeding 37" without load confirmation from OFAS.

Engineering Question

Running Fox 2.5 Elite DSC with standard-rate coils on a J-Konnect 3" long-arm stock-weight JL 2-Door — does the JL 2-Door's shorter wheelbase and lighter platform require a different DSC low-speed compression baseline than a JL 4-Door running the same shock and coil rate at the same lift height? Yes — the JL 2-Door's shorter wheelbase produces faster chassis pitch cycles per trail obstacle, which means the DSC low-speed circuit is more active per mile of trail than on the 4-Door. A DSC setting that controls body pitch well on the 4-Door may feel too stiff on the lighter, shorter 2-Door. On a stock-weight JL 2-Door with standard-rate coils, the DSC low-speed circuit can typically be run softer than on a heavier or HD-coil build. Contact OFAS with your terrain type and we'll give you a DSC baseline starting position calibrated specifically for the JL 2-Door's dynamics at 3" of long-arm lift.
