JKS J-Kontrol 2.5" Lift Kit w/ Fox 2.5 | HD Coils | 2018–2026 Jeep Wrangler JL 4-Door

JKS J-Kontrol 2.5" Lift Kit w/ Fox 2.5 | HD Coils | 2018–2026 Jeep Wrangler JL 4-Door

Is This for You?

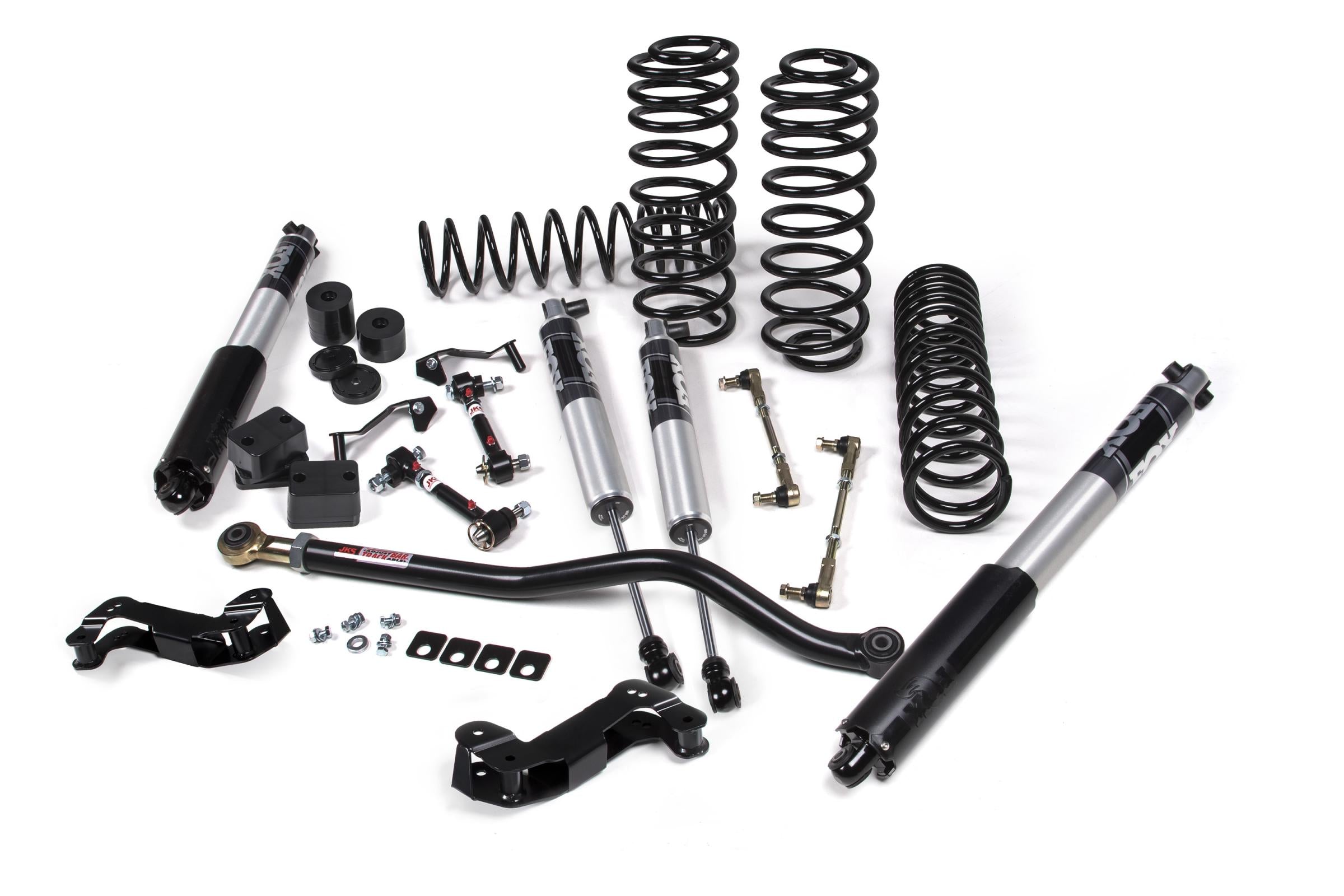

You're building an accessorized JL 4-Door Unlimited and you want 2.5" of lift with the J-Kontrol geometry correction and Fox 2.5 reservoir damping. The JSPEC138PS delivers JKS J-Kontrol control arms with Fox 2.5 Performance Series reservoir shocks and HD coil springs. HD coils handle the weight of a steel bumper or winch without sagging, and the J-Kontrol's geometry correction delivers improved caster and pinion angle at 2.5" of lift without the complexity of a long-arm conversion.

The Result

2.5" of lift with JKS J-Kontrol geometry correction. HD coils maintain ride height under accessory loads. Fox 2.5 reservoir shocks deliver consistent damping and heat dissipation on extended trail runs. Adjustable control arms allow precise alignment post-install. At 2.5" of lift, the J-Kontrol delivers meaningful geometry improvement over a spacer lift while keeping the install straightforward.

Verified Fitment (OFAS Standard)

• Fits: 2018–2026 Jeep Wrangler JL 4-Door (Unlimited) — Gas Models (2.0T, 3.6L)
• Does NOT fit: JL 2-Door | JL EcoDiesel | JL 4xe Hybrid | JK (any year) | Gladiator JT
• Coil Note: HD Rate — engineered for accessorized JL 4-Door builds with steel bumpers or winch. Use JSPEC137PS (Std-Rate) for stock-weight builds.

System Specifications

• Lift Height: 2.5"
• System: J-Kontrol
• Shock: Fox 2.5 Performance Series w/ Reservoir
• Coil Rate: HD — tuned for accessorized JL 4-Door builds
• Control Arms: JKS J-Kontrol geometry-corrected control arms
• SKU: JSPEC138PS

Installation & Fabrication Notes

Professional 4-wheel alignment required post-installation. Torque all control arm hardware to JKS specification after a 500-mile break-in. Confirm Fox 2.5 reservoir clearance against skid plates and body panels. No cutting or welding required for standard JL 4-Door gas applications.

Wheel & Tire Fitment

Engineered for 35" tires on an accessorized build. Recommended backspacing: 4.5"–4.75" on a 17"×9" or 18"×9" wheel. At 2.5" of lift, fender clearance with 35s is tight — confirm tire brand and tread width before finalizing wheel selection. 37" tires are not recommended at this lift height without fender modification.

Engineering Question

Choosing between the J-Kontrol 2.5" HD and J-Kontrol 3.5" HD for an accessorized JL 4-Door build with Fox 2.5 reservoir shocks — if the accessory load is the same, what's the practical difference in geometry correction and tire clearance between the two lift heights? At 2.5", the J-Kontrol delivers meaningful geometry improvement over a spacer lift with a more street-friendly stance and less driveline stress. At 3.5", you gain meaningful tire clearance for 37" tires and improved approach angle. The geometry correction quality is similar at both heights — the decision is about tire size and stance. Contact OFAS with your tire plan and accessory weight and we'll confirm which lift height is the right call for your specific JL 4-Door build.
