JKS J-Kontrol 2.5" Lift Kit w/ Fox 2.5 Elite DSC | HD Coils | 2018–2026 Jeep Wrangler JL 4-Door

JKS J-Kontrol 2.5" Lift Kit w/ Fox 2.5 Elite DSC | HD Coils | 2018–2026 Jeep Wrangler JL 4-Door

Is This for You?

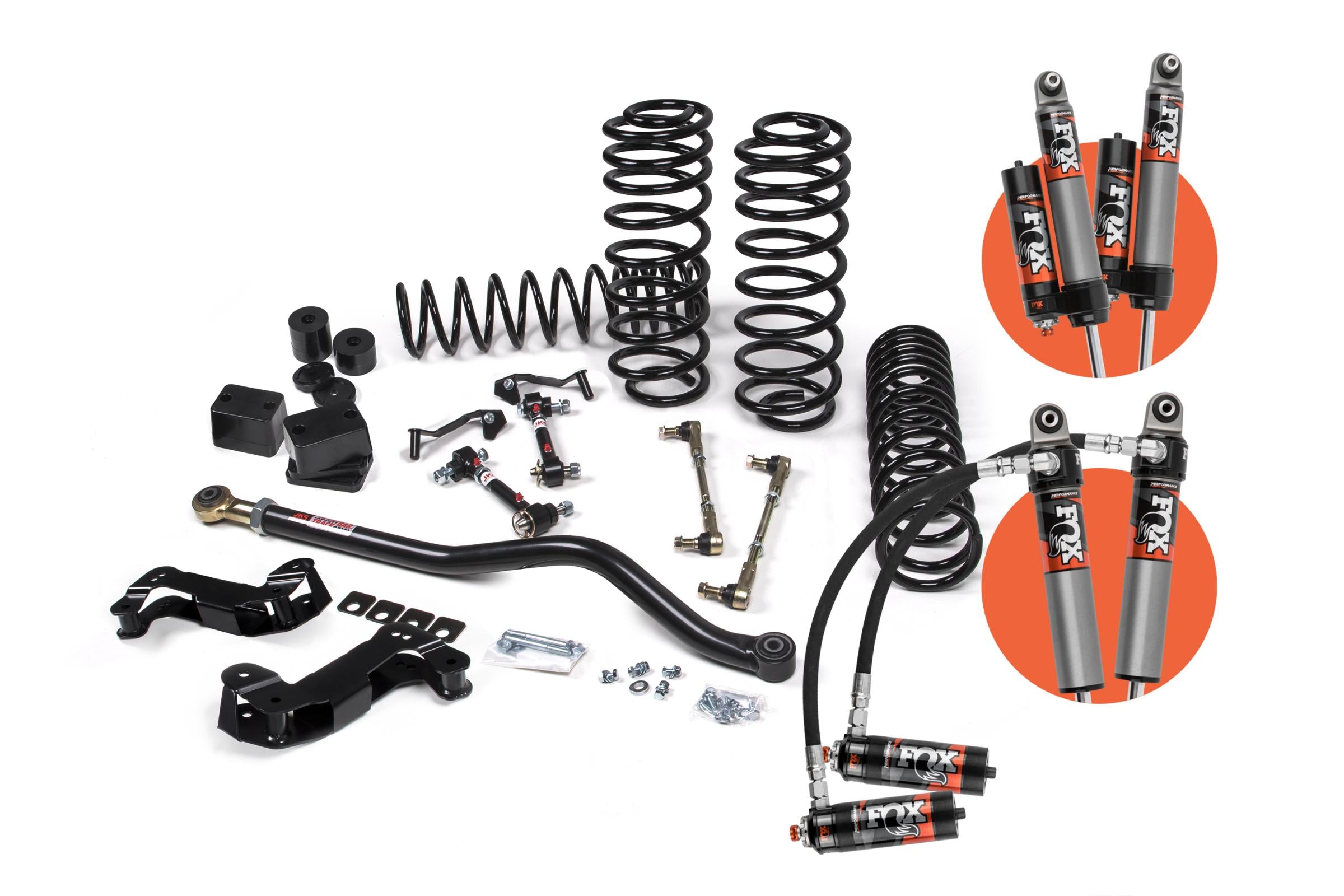

You're building an accessorized JL 4-Door Unlimited and you want the top-spec Fox shock in the J-Kontrol 2.5" HD lineup. The JSPEC138PES delivers JKS J-Kontrol control arms with Fox 2.5 Elite DSC reservoir shocks and HD coil springs. Driver-adjustable compression lets you compensate for the accessory load on the fly — firm it up for highway stability under a heavy steel front end, open it up for trail compliance. HD coils handle the weight of a steel bumper or winch without sagging. This is the highest-performing shock configuration in the J-Kontrol 2.5" HD JL 4-Door lineup.

The Result

2.5" of lift with JKS J-Kontrol geometry correction. HD coils maintain ride height under accessory loads. Fox 2.5 Elite DSC shocks give you real-time compression adjustment to manage the accessory load's effect on front-end dynamics. Adjustable control arms allow precise alignment post-install. The J-Kontrol's install simplicity is a meaningful advantage on the JL 4-Door platform compared to a full long-arm conversion.

Verified Fitment (OFAS Standard)

• Fits: 2018–2026 Jeep Wrangler JL 4-Door (Unlimited) — Gas Models (2.0T, 3.6L)
• Does NOT fit: JL 2-Door | JL EcoDiesel | JL 4xe Hybrid | JK (any year) | Gladiator JT
• Coil Note: HD Rate — engineered for accessorized JL 4-Door builds with steel bumpers or winch. Use JSPEC137PES (Std-Rate) for stock-weight builds.

System Specifications

• Lift Height: 2.5"
• System: J-Kontrol
• Shock: Fox 2.5 Elite w/ DSC (Dual Speed Compression) Reservoir
• Coil Rate: HD — tuned for accessorized JL 4-Door builds
• Control Arms: JKS J-Kontrol geometry-corrected control arms
• SKU: JSPEC138PES

Installation & Fabrication Notes

Professional 4-wheel alignment required post-installation. Torque all control arm hardware to JKS specification after a 500-mile break-in. Confirm DSC adjuster knob placement for driver accessibility during install. Verify Fox 2.5 reservoir clearance against skid plates and body panels. No cutting or welding required for standard JL 4-Door gas applications.

Wheel & Tire Fitment

Engineered for 35" tires on an accessorized build. Recommended backspacing: 4.5"–4.75" on a 17"×9" or 18"×9" wheel. At 2.5" of lift, fender clearance with 35s is tight — confirm tire brand and tread width before finalizing wheel selection.

Engineering Question

Running Fox 2.5 Elite DSC with HD coils on a J-Kontrol 2.5" JL 4-Door build with a steel bumper and winch — what DSC high-speed compression baseline should you start with to account for the accessory load's effect on front-end dynamics compared to a stock-weight JL 4-Door at the same lift height? A heavily loaded JL 4-Door generates higher peak shock velocities over sharp trail obstacles, which means the high-speed compression circuit needs more damping force to control body motion than on a stock-weight rig. Starting with the DSC set too soft for the accessory load will result in excessive nose dive on braking and front-end wallow on trail. Contact OFAS with your total front-end weight and primary terrain and we'll give you a DSC baseline starting position calibrated for your specific accessorized JL 4-Door J-Kontrol 2.5" build.
