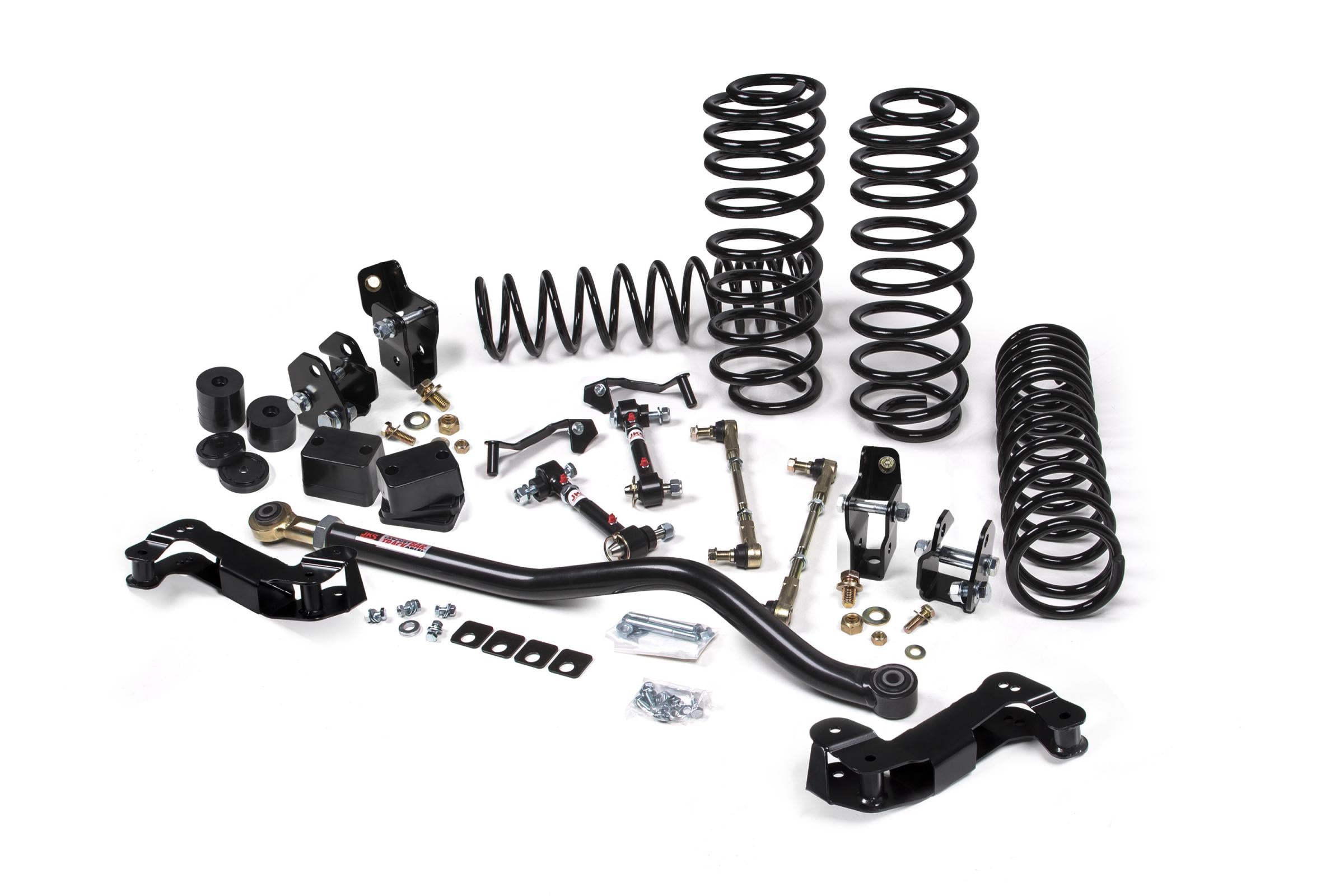

JKS J-Kontrol 2.5" Lift Kit w/ Shock Extensions | HD Coils | 2018–2026 Jeep Wrangler JL 4-Door

JKS J-Kontrol 2.5" Lift Kit w/ Shock Extensions | HD Coils | 2018–2026 Jeep Wrangler JL 4-Door

Is This for You?

You already have quality shocks on your accessorized JL 4-Door Unlimited and you want the J-Kontrol geometry upgrade at 2.5" of lift without replacing them. The JSPEC138KNS delivers the full J-Kontrol 2.5" HD system with shock extension brackets, allowing you to retain and reuse your existing shock absorbers. HD coils handle the weight of a steel bumper or winch without sagging. This is the bring-your-own-shocks configuration of the J-Kontrol 2.5" HD lineup.

The Result

2.5" of lift with JKS J-Kontrol geometry correction. HD coils maintain ride height under accessory loads. Shock extension brackets adapt your existing shocks to the new lift geometry without requiring replacement. Adjustable control arms allow precise alignment post-install.

Verified Fitment (OFAS Standard)

• Fits: 2018–2026 Jeep Wrangler JL 4-Door (Unlimited) — Gas Models (2.0T, 3.6L)
• Does NOT fit: JL 2-Door | JL EcoDiesel | JL 4xe Hybrid | JK (any year) | Gladiator JT
• Coil Note: HD Rate — engineered for accessorized JL 4-Door builds with steel bumpers or winch.
• Shock Note: Shock extensions are designed to work with specific shock eye-to-eye lengths — confirm your existing shock compatibility with OFAS before ordering.

System Specifications

• Lift Height: 2.5"
• System: J-Kontrol
• Shock: Extension Brackets (customer-supplied shocks)
• Coil Rate: HD — tuned for accessorized JL 4-Door builds
• Control Arms: JKS J-Kontrol geometry-corrected control arms
• SKU: JSPEC138KNS

Installation & Fabrication Notes

Professional 4-wheel alignment required post-installation. Torque all control arm hardware to JKS specification after a 500-mile break-in. Verify existing shock eye-to-eye length and body diameter compatibility with JKS extension brackets before install. No cutting or welding required for standard JL 4-Door gas applications.

Wheel & Tire Fitment

Engineered for 35" tires on an accessorized build. Recommended backspacing: 4.5"–4.75" on a 17"×9" or 18"×9" wheel. At 2.5" of lift, fender clearance with 35s is tight — confirm tire brand and tread width before finalizing wheel selection.

Engineering Question

Carrying over a set of Fox 2.5 Performance or Bilstein 5100 shocks into this J-Kontrol 2.5" HD build on an accessorized JL 4-Door — will the extension brackets maintain correct shock travel at full droop under HD coil load with a steel bumper and winch? The extension bracket geometry is designed for specific collapsed and extended shock lengths. A shock that clears at stock ride height may bind or over-extend at 2.5" with HD coils under a heavy front end if the travel range isn't matched. Send OFAS your shock model, current eye-to-eye measurement, and front-end accessory weight before ordering — we'll confirm drop-in fitment before the kit ships.
