JKS J-Kontrol 2.5" Lift Kit w/ Fox 2.5 | Standard-Rate Coils | 2018–2026 Jeep Wrangler JL 4-Door

JKS J-Kontrol 2.5" Lift Kit w/ Fox 2.5 | Standard-Rate Coils | 2018–2026 Jeep Wrangler JL 4-Door

Is This for You?

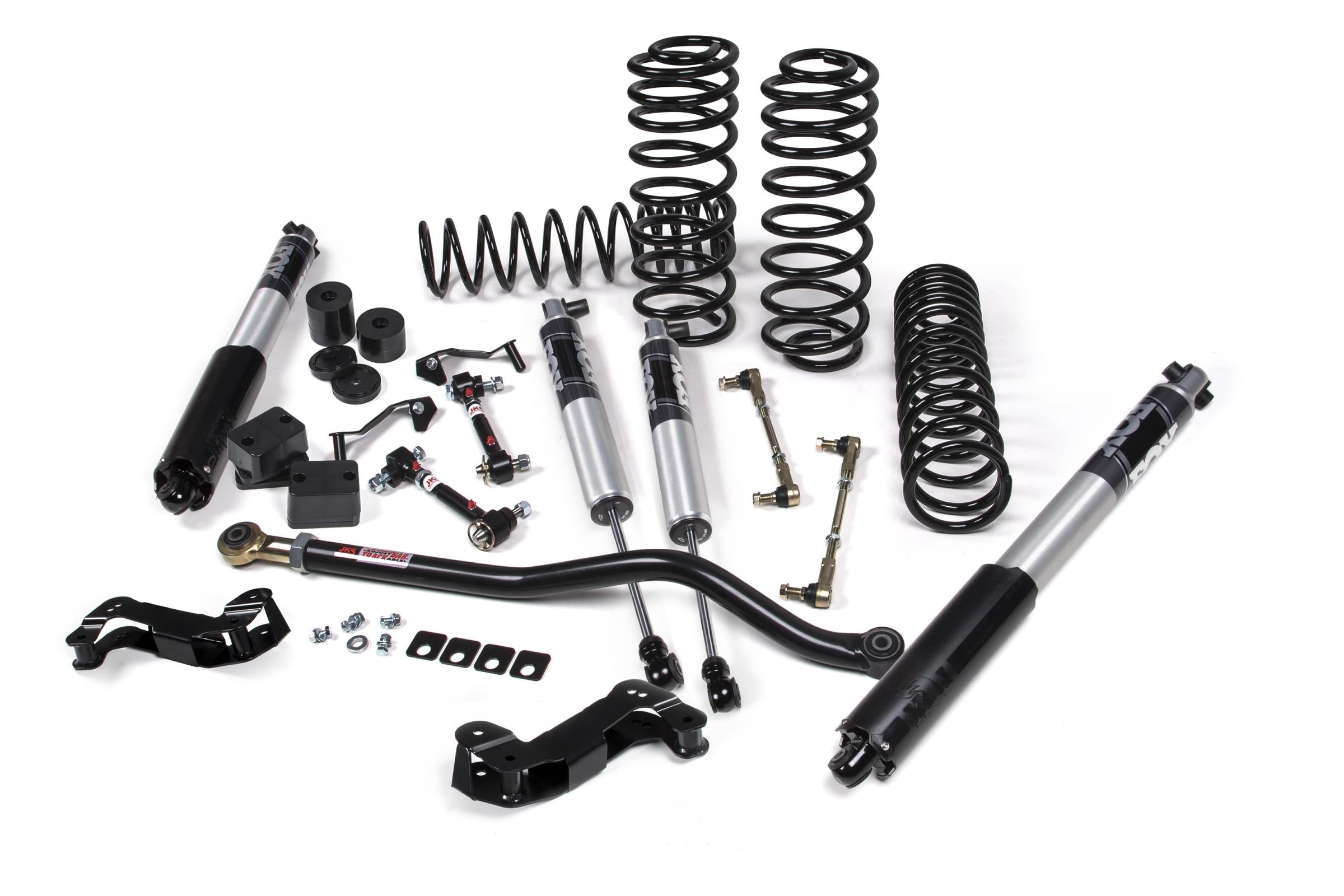

You're running a stock-weight JL 4-Door Unlimited and you want 2.5" of lift with the J-Kontrol geometry correction and Fox 2.5 reservoir damping. The JSPEC137PS delivers JKS J-Kontrol control arms with Fox 2.5 Performance Series reservoir shocks and standard-rate coil springs. Standard-rate coils maximize droop travel and trail compliance for stock-weight builds, and the J-Kontrol's geometry correction delivers improved caster and pinion angle at 2.5" of lift without the complexity of a long-arm conversion.

The Result

2.5" of lift with JKS J-Kontrol geometry correction. Standard-rate coils deliver a softer initial spring feel and greater droop travel compared to HD coils — maximizing articulation for stock-weight builds. Fox 2.5 reservoir shocks deliver consistent damping and heat dissipation on extended trail runs. Adjustable control arms allow precise alignment post-install.

Verified Fitment (OFAS Standard)

• Fits: 2018–2026 Jeep Wrangler JL 4-Door (Unlimited) — Gas Models (2.0T, 3.6L), Stock-Weight Configuration
• Does NOT fit: JL 2-Door | JL EcoDiesel | JL 4xe Hybrid | JK (any year) | Gladiator JT
• Coil Note: Standard-Rate — NOT recommended for builds with steel bumpers, winch, or heavy roof rack. Use JSPEC138PS (HD coils) for accessorized builds.

System Specifications

• Lift Height: 2.5"
• System: J-Kontrol
• Shock: Fox 2.5 Performance Series w/ Reservoir
• Coil Rate: Standard-Rate — optimized for stock-weight JL 4-Door builds
• Control Arms: JKS J-Kontrol geometry-corrected control arms
• SKU: JSPEC137PS

Installation & Fabrication Notes

Professional 4-wheel alignment required post-installation. Torque all control arm hardware to JKS specification after a 500-mile break-in. Confirm Fox 2.5 reservoir clearance against skid plates and body panels. No cutting or welding required for standard JL 4-Door gas applications.

Wheel & Tire Fitment

Optimized for 35" tires on a stock-weight build. Recommended backspacing: 4.5"–4.75" on a 17"×9" or 18"×9" wheel. At 2.5" of lift, fender clearance with 35s is workable on a stock-weight rig — confirm tire brand and tread width before finalizing wheel selection. 37" tires are not recommended at this lift height without fender modification.

Engineering Question

Choosing between the J-Kontrol 2.5" standard-rate and the J-Venture 2.5" standard-rate for a stock-weight JL 4-Door build with Fox 2.5 reservoir shocks — both deliver geometry correction at 2.5" of lift without a differential drop, so what's the practical difference? The J-Kontrol and J-Venture use different control arm designs and geometry correction approaches. The J-Venture is a short-arm system; the J-Kontrol uses a different geometry correction methodology. Contact OFAS with your build priorities and terrain type and we'll confirm which system delivers the better geometry correction for your specific stock-weight JL 4-Door use case at 2.5" of lift.
