Is This for You?

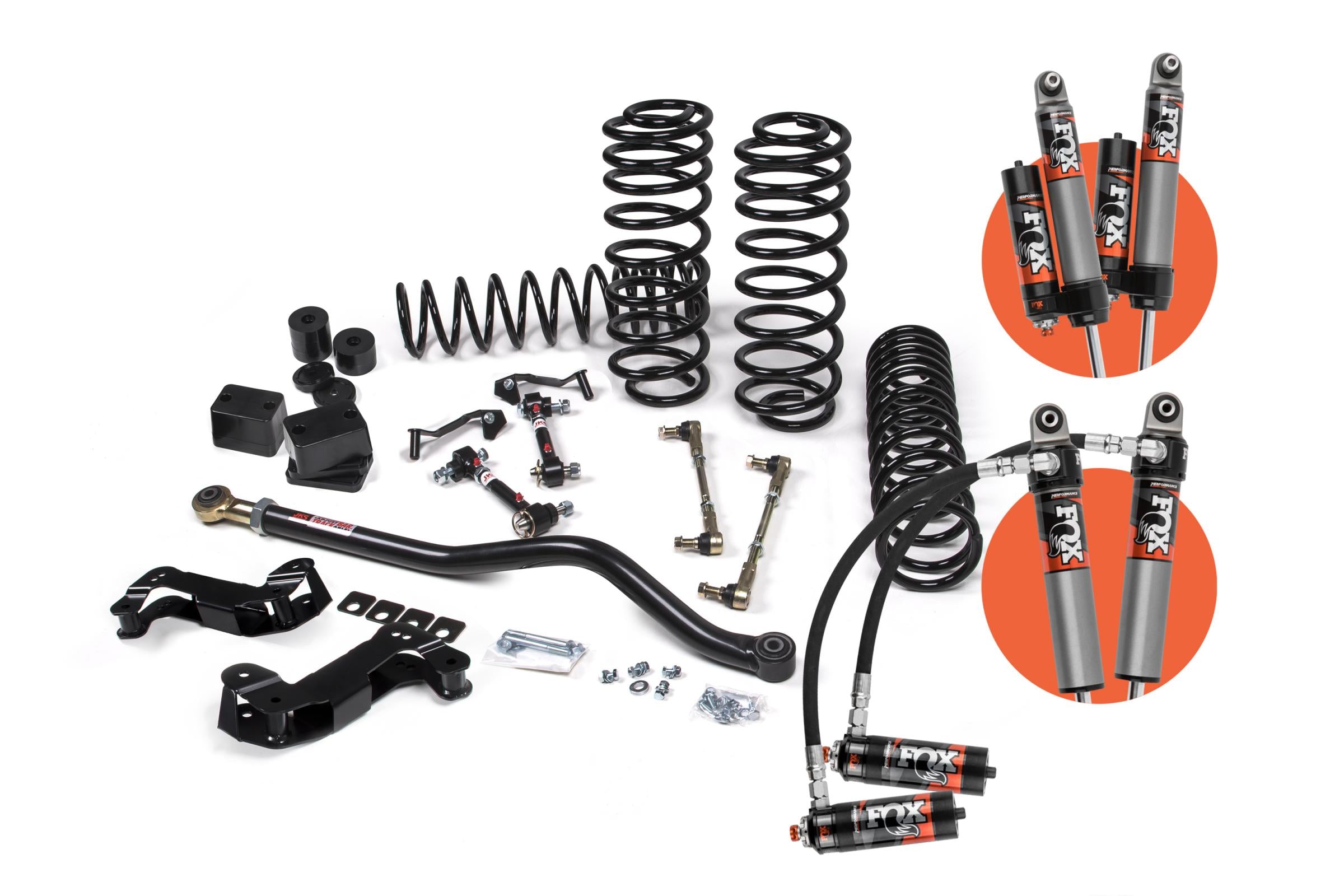

You're running a stock-weight JL 4-Door Unlimited and you want the top-spec Fox shock in the J-Kontrol 2.5" standard-rate lineup. The JSPEC137PES delivers JKS J-Kontrol control arms with Fox 2.5 Elite DSC reservoir shocks and standard-rate coil springs. Driver-adjustable compression lets you dial in the shock for trail compliance or highway stability, while the standard-rate coils maximize droop travel and articulation for stock-weight builds. This is the highest-performing shock configuration in the J-Kontrol 2.5" standard-rate JL 4-Door lineup.

The Result

2.5" of lift with JKS J-Kontrol geometry correction. Standard-rate coils maximize droop travel and trail compliance for stock-weight builds. Fox 2.5 Elite DSC shocks give you on-the-fly compression adjustment — open it up for trail compliance, firm it up for highway stability. Adjustable control arms allow precise alignment post-install.

Verified Fitment (OFAS Standard)

• Fits: 2018–2026 Jeep Wrangler JL 4-Door (Unlimited) — Gas Models (2.0T, 3.6L), Stock-Weight Configuration
• Does NOT fit: JL 2-Door | JL EcoDiesel | JL 4xe Hybrid | JK (any year) | Gladiator JT
• Coil Note: Standard-Rate — NOT recommended for builds with steel bumpers, winch, or heavy roof rack. Use JSPEC138PES (HD coils) for accessorized builds.

System Specifications

• Lift Height: 2.5"
• System: J-Kontrol
• Shock: Fox 2.5 Elite w/ DSC (Dual Speed Compression) Reservoir
• Coil Rate: Standard-Rate — optimized for stock-weight JL 4-Door builds
• Control Arms: JKS J-Kontrol geometry-corrected control arms
• SKU: JSPEC137PES

Installation & Fabrication Notes

Professional 4-wheel alignment required post-installation. Torque all control arm hardware to JKS specification after a 500-mile break-in. Confirm DSC adjuster knob placement for driver accessibility during install. Verify Fox 2.5 reservoir clearance against skid plates and body panels. No cutting or welding required for standard JL 4-Door gas applications.

Wheel & Tire Fitment

Optimized for 35" tires on a stock-weight build. Recommended backspacing: 4.5"–4.75" on a 17"×9" or 18"×9" wheel. At 2.5" of lift, fender clearance with 35s is workable on a stock-weight rig — confirm tire brand and tread width before finalizing wheel selection.

Engineering Question

Running Fox 2.5 Elite DSC with standard-rate coils on a J-Kontrol 2.5" stock-weight JL 4-Door — is the DSC adjustment range meaningful at 2.5" of lift where the shock travel is more limited than at 3.5", or does the reduced lift height narrow the useful DSC tuning window? At 2.5" of lift, the shock operates over a shorter travel range than at 3.5", which means the DSC's low-speed and high-speed circuits are working within a tighter velocity envelope. The DSC adjustment is still meaningful — particularly the low-speed circuit for body pitch control on trail — but the range of useful adjustment is narrower than on a 3.5" build. Contact OFAS with your terrain type and we'll give you a DSC starting position calibrated for the J-Kontrol 2.5" standard-rate geometry on a stock-weight JL 4-Door.
