JKS J-Venture 3" Lift Kit w/ Fox 2.5 | HD Coils | 2018–2026 Jeep Wrangler JL 2-Door

JKS J-Venture 3" Lift Kit w/ Fox 2.5 | HD Coils | 2018–2026 Jeep Wrangler JL 2-Door

Is This for You?

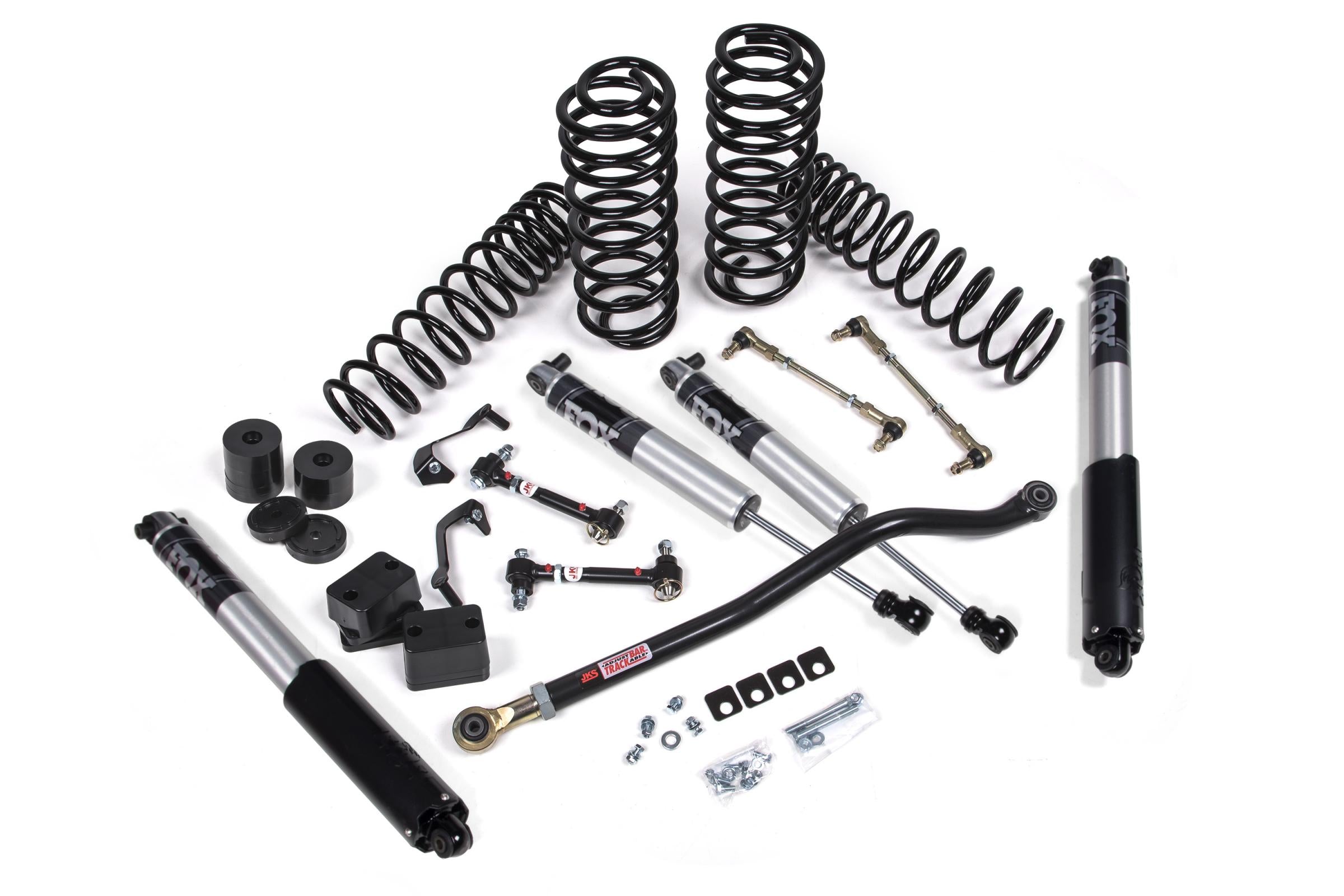

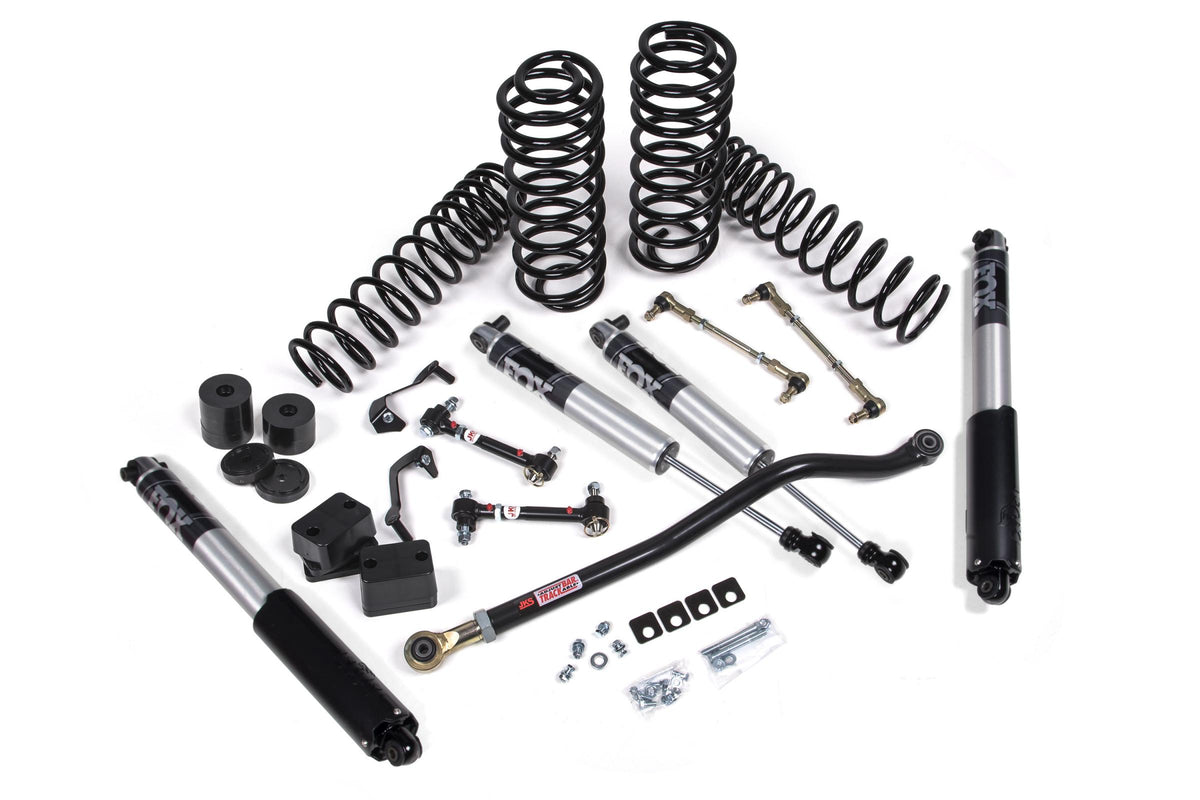

You're building an accessorized JL 2-Door — steel bumper, winch, or heavy spare — and you want 3" of lift with the J-Venture short-arm platform and Fox 2.5 reservoir damping. The JSPEC133PS delivers JKS J-Venture geometry-corrected control arms with Fox 2.5 Performance Series reservoir shocks and HD coil springs. No differential drop required, no fabrication, and HD coils handle the weight of a built rig without sagging.

The Result

3" of lift with JKS J-Venture geometry correction. HD coils maintain ride height under accessory loads on the JL 2-Door platform. Fox 2.5 reservoir shocks deliver consistent damping and heat dissipation on extended trail runs. Adjustable control arms allow precise alignment post-install. The J-Venture's short-arm install simplicity is a meaningful advantage on the JL 2-Door platform.

Verified Fitment (OFAS Standard)

• Fits: 2018–2026 Jeep Wrangler JL 2-Door — Gas Models (2.0T, 3.6L)
• Does NOT fit: JL 4-Door (Unlimited) | JL EcoDiesel | JL 4xe Hybrid | JK (any year) | Gladiator JT
• Coil Note: HD Rate — engineered for accessorized JL 2-Door builds with steel bumpers or winch. Use JSPEC132PS (Std-Rate) for stock-weight builds.

System Specifications

• Lift Height: 3"
• System: J-Venture Short-Arm
• Shock: Fox 2.5 Performance Series w/ Reservoir
• Coil Rate: HD — tuned for accessorized JL 2-Door builds
• Control Arms: JKS J-Venture geometry-corrected short-arm control arms
• SKU: JSPEC133PS

Installation & Fabrication Notes

Short-arm system does not require differential drop or relocation. Professional 4-wheel alignment required post-installation. Torque all control arm hardware to JKS specification after a 500-mile break-in. Confirm Fox 2.5 reservoir clearance against skid plates and body panels. No cutting or welding required for standard JL 2-Door gas applications.

Wheel & Tire Fitment

Engineered for 35"–37" tires on an accessorized build. Recommended backspacing: 4.0"–4.5" on a 17"×9" or 17"×8" wheel. The JL 2-Door's shorter wheelbase makes fender clearance more sensitive to tire width at 3" of lift — confirm tread width and brand before finalizing wheel selection.

Engineering Question

Choosing between the J-Venture 3" HD short-arm and J-Konnect 3" HD long-arm for an accessorized JL 2-Door build with Fox 2.5 reservoir shocks — both deliver geometry correction at 3" of lift, so what's the practical difference in trail performance and install complexity? The J-Konnect's long-arm geometry delivers superior caster correction and articulation, but requires a differential drop and more complex install. The J-Venture corrects geometry without the long-arm conversion complexity. For a JL 2-Door that sees moderate trails and daily driving with a full accessory load, the J-Venture is a capable, clean solution. Contact OFAS with your trail intensity and build goals and we'll confirm which system is the right fit for your specific JL 2-Door build.
