JKS J-Venture 3" Lift Kit w/ Fox 2.5 Elite DSC | HD Coils | 2018–2026 Jeep Wrangler JL 2-Door

JKS J-Venture 3" Lift Kit w/ Fox 2.5 Elite DSC | HD Coils | 2018–2026 Jeep Wrangler JL 2-Door

Is This for You?

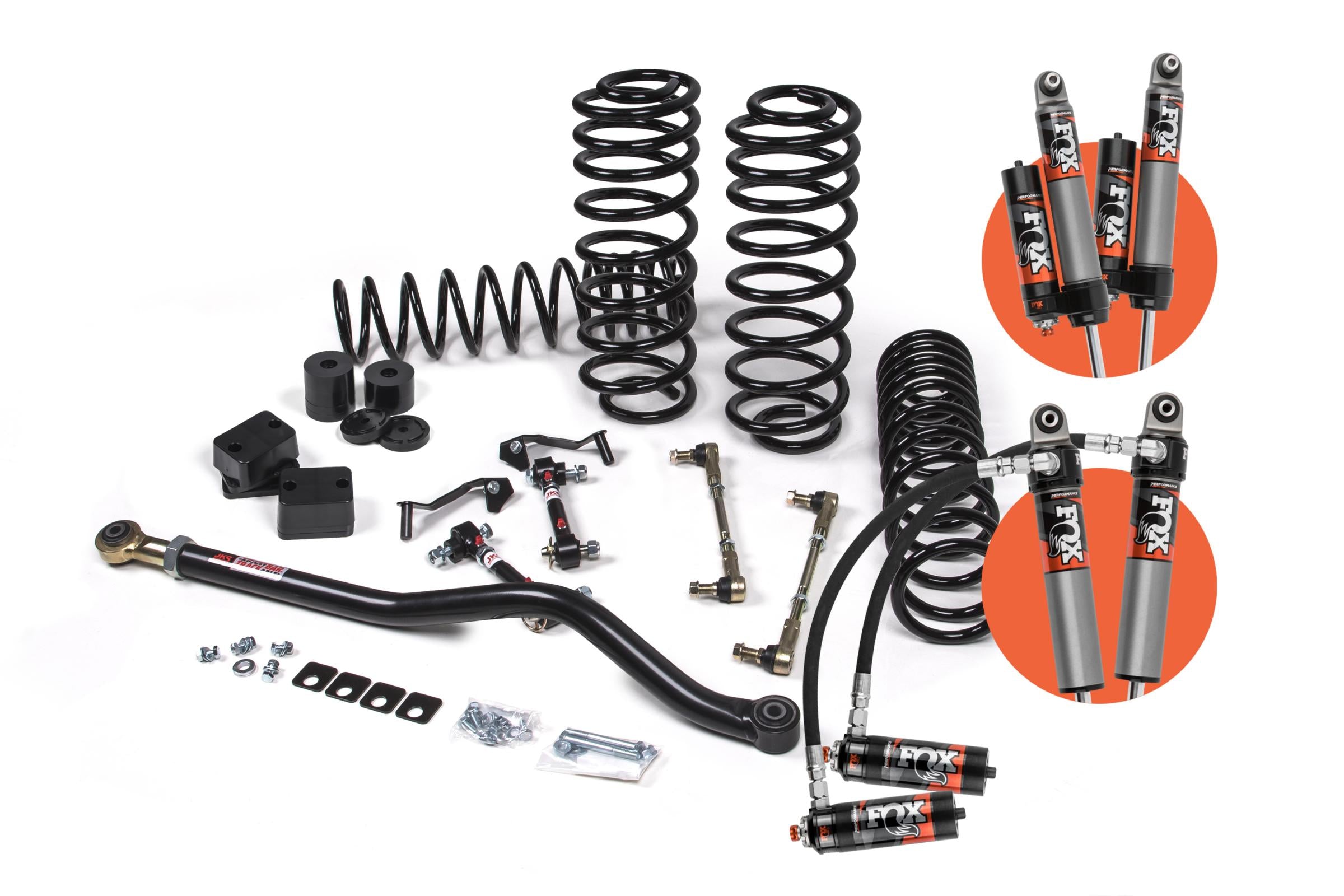

You're building an accessorized JL 2-Door and you want the top-spec Fox shock in the J-Venture 3" HD lineup. The JSPEC133PES delivers JKS J-Venture geometry-corrected control arms with Fox 2.5 Elite DSC reservoir shocks and HD coil springs. Driver-adjustable compression lets you compensate for the accessory load on the fly — firm it up for highway stability under a heavy steel front end, open it up for trail compliance. No differential drop required. This is the highest-performing shock configuration in the J-Venture 3" HD JL 2-Door lineup.

The Result

3" of lift with JKS J-Venture geometry correction. HD coils maintain ride height under accessory loads. Fox 2.5 Elite DSC shocks give you real-time compression adjustment to manage the accessory load's effect on front-end dynamics. Adjustable control arms allow precise alignment post-install. No differential drop required.

Verified Fitment (OFAS Standard)

• Fits: 2018–2026 Jeep Wrangler JL 2-Door — Gas Models (2.0T, 3.6L)
• Does NOT fit: JL 4-Door (Unlimited) | JL EcoDiesel | JL 4xe Hybrid | JK (any year) | Gladiator JT
• Coil Note: HD Rate — engineered for accessorized JL 2-Door builds with steel bumpers or winch. Use JSPEC132PES (Std-Rate) for stock-weight builds.

System Specifications

• Lift Height: 3"
• System: J-Venture Short-Arm
• Shock: Fox 2.5 Elite w/ DSC (Dual Speed Compression) Reservoir
• Coil Rate: HD — tuned for accessorized JL 2-Door builds
• Control Arms: JKS J-Venture geometry-corrected short-arm control arms
• SKU: JSPEC133PES

Installation & Fabrication Notes

Short-arm system does not require differential drop or relocation. Professional 4-wheel alignment required post-installation. Torque all control arm hardware to JKS specification after a 500-mile break-in. Confirm DSC adjuster knob placement for driver accessibility during install. Verify Fox 2.5 reservoir clearance against skid plates and body panels. No cutting or welding required for standard JL 2-Door gas applications.

Wheel & Tire Fitment

Engineered for 35"–37" tires on an accessorized build. Recommended backspacing: 4.0"–4.5" on a 17"×9" or 17"×8" wheel. The JL 2-Door's shorter wheelbase makes fender clearance more sensitive to tire width at 3" of lift — confirm tread width and brand before finalizing wheel selection.

Engineering Question

Running Fox 2.5 Elite DSC with HD coils on a J-Venture 3" short-arm JL 2-Door build with a steel bumper and winch — how does the JL 2-Door's shorter wheelbase and the short-arm geometry's different chassis pitch behavior affect the optimal DSC high-speed compression baseline compared to a JL 4-Door running the same shock and coil rate at the same lift height with the same accessory load? The JL 2-Door's shorter wheelbase produces faster chassis pitch cycles per trail obstacle, and the short-arm geometry produces different pitch dynamics than a long-arm system. Both factors mean the DSC high-speed circuit is more active per mile of trail on the JL 2-Door J-Venture than on a JL 4-Door J-Konnect with the same accessory load. Contact OFAS with your total front-end weight and primary terrain and we'll give you a DSC baseline starting position calibrated specifically for the JL 2-Door J-Venture short-arm dynamics at 3" of lift.
