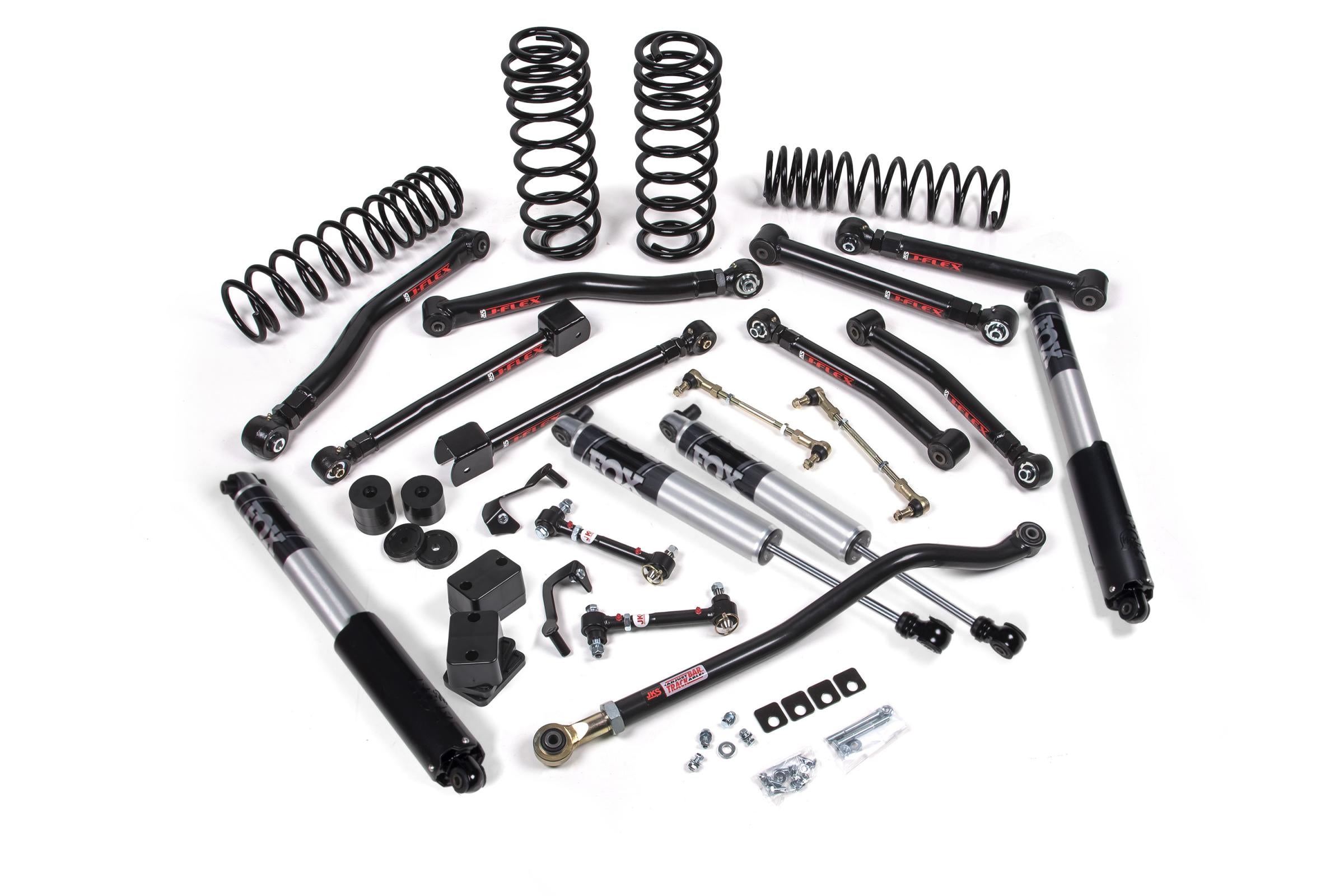

JKS J-Krawl 3.5" Lift Kit w/ Fox 2.5 | HD Coils | 2018–2026 Jeep Wrangler JL 4-Door

JKS J-Krawl 3.5" Lift Kit w/ Fox 2.5 | HD Coils | 2018–2026 Jeep Wrangler JL 4-Door

Is This for You?

You're building a dedicated crawler on an accessorized JL 4-Door Unlimited and you want 3.5" of lift with the J-Krawl system and Fox 2.5 reservoir damping. The JSPEC128PS delivers JKS J-Krawl crawler geometry with Fox 2.5 Performance Series reservoir shocks and HD coil springs. HD coils handle the weight of a steel bumper, winch, and rock rails without sagging, and the J-Krawl's crawler-specific geometry delivers maximum articulation for technical terrain on the JL 4-Door platform.

The Result

3.5" of lift with JKS J-Krawl crawler geometry — engineered for maximum droop travel and articulation on technical terrain. HD coils maintain ride height under accessory loads. Fox 2.5 reservoir shocks deliver consistent damping and heat dissipation on extended trail runs. The JL 4-Door's longer wheelbase provides a stable platform for the J-Krawl's articulation-focused design at 3.5" of lift.

Verified Fitment (OFAS Standard)

• Fits: 2018–2026 Jeep Wrangler JL 4-Door (Unlimited) — Gas Models (2.0T, 3.6L)
• Does NOT fit: JL 2-Door | JL EcoDiesel | JL 4xe Hybrid | JK (any year) | Gladiator JT
• Coil Note: HD Rate — engineered for accessorized JL 4-Door builds with steel bumpers, winch, or rock rails. Use JSPEC127PS (Std-Rate) for stock-weight builds.

System Specifications

• Lift Height: 3.5"
• System: J-Krawl (crawler-specific geometry, maximum articulation)
• Shock: Fox 2.5 Performance Series w/ Reservoir
• Coil Rate: HD — tuned for accessorized JL 4-Door crawler builds
• Control Arms: JKS J-Krawl geometry-corrected control arms
• SKU: JSPEC128PS

Installation & Fabrication Notes

Professional 4-wheel alignment required post-installation. Torque all control arm hardware to JKS specification after a 500-mile break-in. Confirm Fox 2.5 reservoir clearance against skid plates and rock rails. The J-Krawl system is designed for locker-equipped builds — confirm front and rear locker compatibility with OFAS before finalizing your build spec. No cutting or welding required for standard JL 4-Door gas applications.

Wheel & Tire Fitment

Engineered for 37" tires on a dedicated crawler build. Recommended backspacing: 4.5"–4.75" on a 17"×9" or 18"×9" wheel. The JL 4-Door's longer wheelbase provides more fender clearance than the 2-Door at 3.5" of lift — confirm tire brand and tread width before finalizing wheel selection. Contact OFAS for 40" tire clearance confirmation.

Engineering Question

Choosing between the J-Krawl 3.5" HD on a JL 4-Door versus the J-Krawl 3.5" HD on a JL 2-Door for a dedicated crawler build with Fox 2.5 reservoir shocks — how does the JL 4-Door's longer wheelbase affect the J-Krawl's articulation performance and the Fox 2.5's shock travel utilization compared to the shorter 2-Door? The JL 4-Door's longer wheelbase produces slower chassis pitch cycles per trail obstacle, which means the Fox 2.5 is working at lower shaft velocities per mile of trail than on the 2-Door. The longer wheelbase also means the 4-Door's articulation arc is different from the 2-Door's — the J-Krawl's geometry correction is calibrated for each platform separately. Contact OFAS with your build spec and primary terrain and we'll confirm the right J-Krawl configuration for your specific JL 4-Door crawler build.
