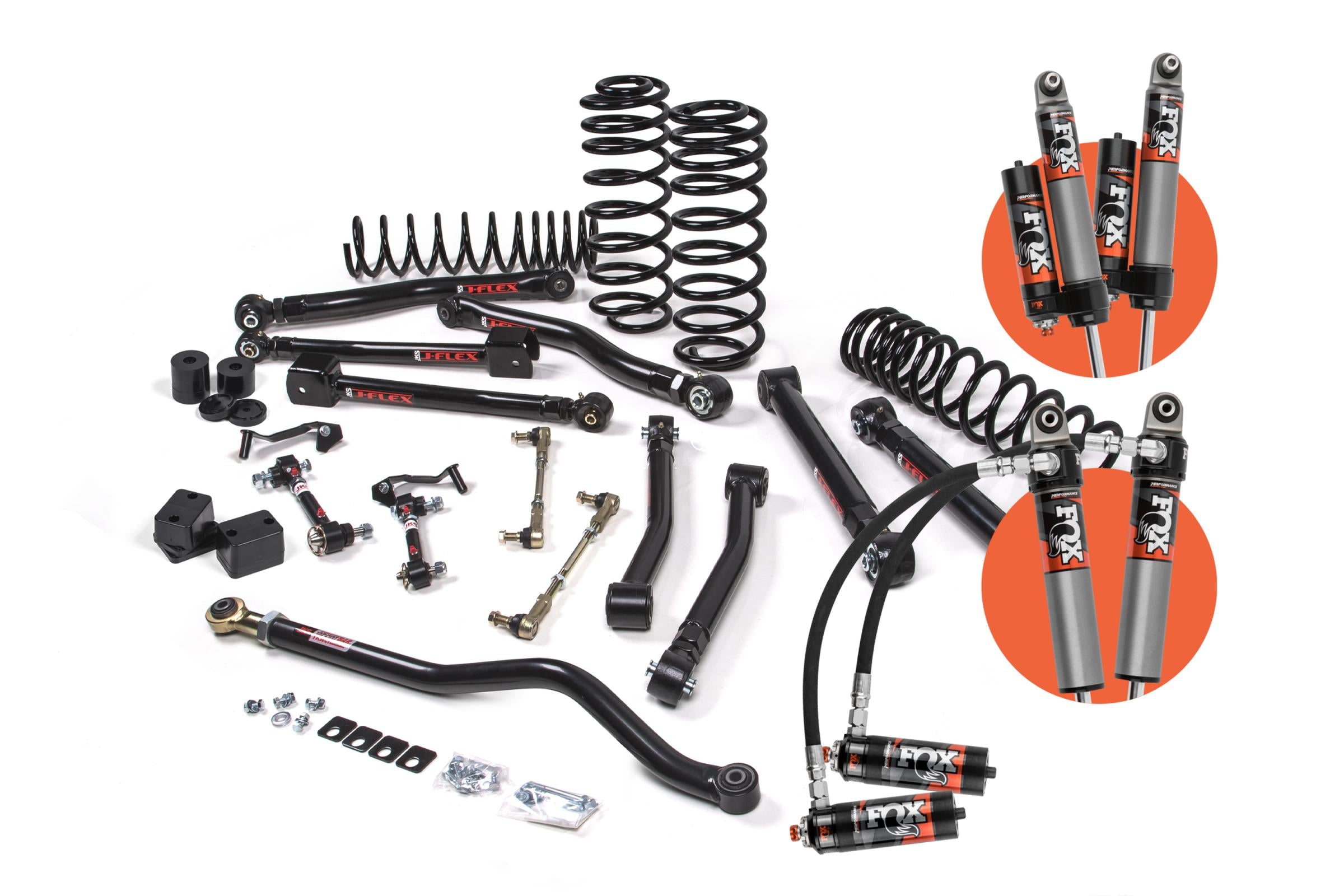

JKS J-Krawl 3.5" Lift Kit w/ Fox 2.5 Elite DSC | HD Coils | 2018–2026 Jeep Wrangler JL 4-Door

JKS J-Krawl 3.5" Lift Kit w/ Fox 2.5 Elite DSC | HD Coils | 2018–2026 Jeep Wrangler JL 4-Door

Is This for You?

You're building a dedicated crawler on an accessorized JL 4-Door Unlimited and you want the top-spec Fox shock in the J-Krawl 3.5" HD lineup. The JSPEC128PES delivers JKS J-Krawl crawler geometry with Fox 2.5 Elite DSC reservoir shocks and HD coil springs. Driver-adjustable compression lets you compensate for the accessory load on the fly — open it up for maximum compliance on slow rock sections, firm it up for faster trail transitions. HD coils maintain ride height under steel bumpers, winch, and rock rails. This is the highest-performing shock configuration in the J-Krawl 3.5" HD JL 4-Door lineup.

The Result

3.5" of lift with JKS J-Krawl crawler geometry — engineered for maximum droop travel and articulation on technical terrain. HD coils maintain ride height under accessory loads. Fox 2.5 Elite DSC shocks give you on-the-fly compression adjustment: open it up for maximum compliance on slow rock sections, firm it up for faster trail transitions. The JL 4-Door's longer wheelbase provides a stable platform for the J-Krawl's articulation-focused design at 3.5" of lift.

Verified Fitment (OFAS Standard)

• Fits: 2018–2026 Jeep Wrangler JL 4-Door (Unlimited) — Gas Models (2.0T, 3.6L)
• Does NOT fit: JL 2-Door | JL EcoDiesel | JL 4xe Hybrid | JK (any year) | Gladiator JT
• Coil Note: HD Rate — engineered for accessorized JL 4-Door builds with steel bumpers, winch, or rock rails. Use JSPEC127PES (Std-Rate) for stock-weight builds.

System Specifications

• Lift Height: 3.5"
• System: J-Krawl (crawler-specific geometry, maximum articulation)
• Shock: Fox 2.5 Elite w/ DSC (Dual Speed Compression) Reservoir
• Coil Rate: HD — tuned for accessorized JL 4-Door crawler builds
• Control Arms: JKS J-Krawl geometry-corrected control arms
• SKU: JSPEC128PES

Installation & Fabrication Notes

Professional 4-wheel alignment required post-installation. Torque all control arm hardware to JKS specification after a 500-mile break-in. Confirm DSC adjuster knob placement for driver accessibility during install. Verify Fox 2.5 reservoir clearance against skid plates and rock rails. The J-Krawl system is designed for locker-equipped builds — confirm front and rear locker compatibility with OFAS before finalizing your build spec. No cutting or welding required for standard JL 4-Door gas applications.

Wheel & Tire Fitment

Engineered for 37" tires on a dedicated crawler build. Recommended backspacing: 4.5"–4.75" on a 17"×9" or 18"×9" wheel. The JL 4-Door's longer wheelbase provides more fender clearance than the 2-Door at 3.5" of lift — confirm tire brand and tread width before finalizing wheel selection. Contact OFAS for 40" tire clearance confirmation.

Engineering Question

Running Fox 2.5 Elite DSC with HD coils on a J-Krawl 3.5" JL 4-Door crawler build with steel bumpers, winch, and rock rails — what DSC low-speed compression baseline maximizes articulation compliance on slow rock sections without sacrificing body control on side-hills under the accessory load? On an accessorized JL 4-Door crawler, the DSC low-speed circuit needs more damping force to control body roll on side-hills than on a stock-weight build — the accessory load shifts the center of gravity and increases the side-hill lean moment. The optimal low-speed baseline depends on your total accessory weight, locker engagement pattern, and terrain angle. Contact OFAS with your full build spec and we'll give you a DSC baseline starting position calibrated for your specific accessorized JL 4-Door J-Krawl 3.5" configuration.
