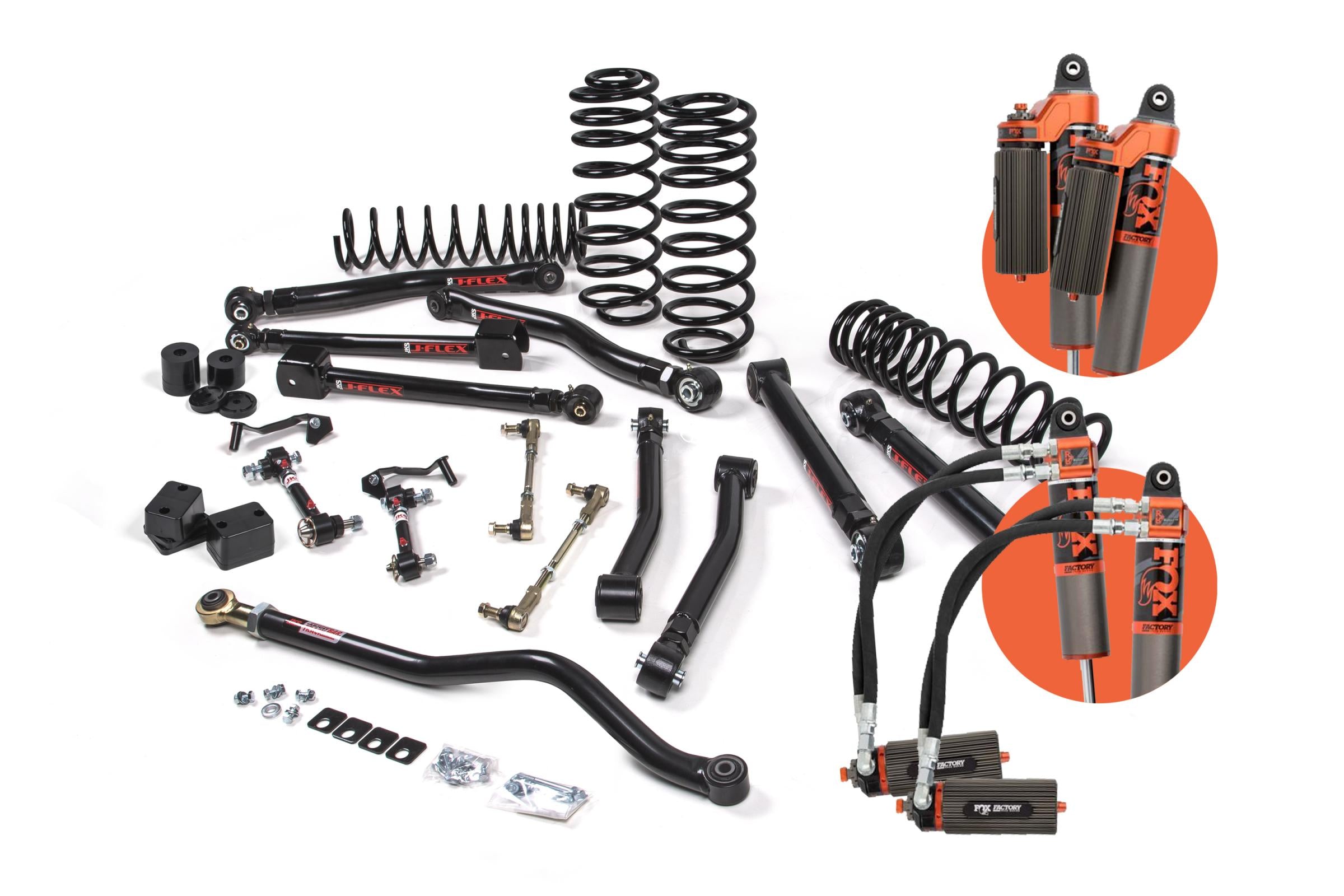

JKS J-Krawl 3.5" Lift Kit w/ Fox 3.0 IBP | HD Coils | 2018–2026 Jeep Wrangler JL 4-Door

JKS J-Krawl 3.5" Lift Kit w/ Fox 3.0 IBP | HD Coils | 2018–2026 Jeep Wrangler JL 4-Door

Is This for You?

You're building the ultimate dedicated crawler on an accessorized JL 4-Door Unlimited and you want the highest-spec Fox shock available in the J-Krawl 3.5" HD lineup. The JSPEC128FRS delivers JKS J-Krawl crawler geometry with Fox 3.0 Internal Bypass (IBP) shocks and HD coil springs. The 3.0" body's increased oil volume provides superior heat dissipation under the accessory load's increased dynamic demand, and the internal bypass ports deliver progressive damping that transitions smoothly between maximum articulation compliance at slow crawler speeds and progressive control at higher trail speeds. HD coils maintain ride height under steel bumpers, winch, and rock rails.

The Result

3.5" of lift with JKS J-Krawl crawler geometry — engineered for maximum droop travel and articulation on technical terrain. HD coils maintain ride height under accessory loads. Fox 3.0 IBP shocks deliver progressive damping through internal bypass ports: soft and compliant at low shaft velocities for maximum articulation on slow rock sections, progressively firmer at higher velocities for trail control. The 3.0" body's increased oil volume provides superior heat dissipation on sustained technical terrain under the accessory load's increased dynamic demand.

Verified Fitment (OFAS Standard)

• Fits: 2018–2026 Jeep Wrangler JL 4-Door (Unlimited) — Gas Models (2.0T, 3.6L)
• Does NOT fit: JL 2-Door | JL EcoDiesel | JL 4xe Hybrid | JK (any year) | Gladiator JT
• Coil Note: HD Rate — engineered for accessorized JL 4-Door builds with steel bumpers, winch, or rock rails. Use JSPEC127FRS (Std-Rate) for stock-weight builds.

System Specifications

• Lift Height: 3.5"
• System: J-Krawl (crawler-specific geometry, maximum articulation)
• Shock: Fox 3.0 Internal Bypass (IBP) — 3.0" body diameter, internal bypass ports, progressive damping
• Coil Rate: HD — tuned for accessorized JL 4-Door crawler builds
• Control Arms: JKS J-Krawl geometry-corrected control arms
• SKU: JSPEC128FRS

Installation & Fabrication Notes

Professional 4-wheel alignment required post-installation. Torque all control arm hardware to JKS specification after a 500-mile break-in. The Fox 3.0 IBP's larger body diameter requires clearance verification against skid plates, rock rails, and body panels before install — confirm clearance with OFAS before ordering. The J-Krawl system is designed for locker-equipped builds — confirm front and rear locker compatibility with OFAS before finalizing your build spec. No cutting or welding required for standard JL 4-Door gas applications.

Wheel & Tire Fitment

Engineered for 37"+ tires on a dedicated crawler build. Recommended backspacing: 4.5"–4.75" on a 17"×9" or 18"×9" wheel. The JL 4-Door's longer wheelbase provides more fender clearance than the 2-Door at 3.5" of lift — confirm tire brand and tread width before finalizing wheel selection. Contact OFAS for 40" tire clearance confirmation.

Engineering Question

Running Fox 3.0 IBP shocks with HD coils on a J-Krawl 3.5" JL 4-Door crawler build with steel bumpers, winch, and rock rails — how does the accessory load's increased dynamic demand affect the IBP bypass port engagement threshold compared to the same shock on a stock-weight JL 4-Door J-Krawl 3.5" with standard-rate coils? The accessory load increases the static and dynamic load on the front shocks, which means the shock reaches higher shaft velocities per obstacle than on a stock-weight build. This shifts the bypass port engagement threshold — the shock may transition from bypass to main valving at a lower trail speed on the accessorized HD-coil build than on the stock-weight standard-rate build. Contact OFAS with your total accessory weight and primary terrain and we'll confirm the IBP bypass tuning that's right for your specific accessorized JL 4-Door J-Krawl 3.5" configuration.
