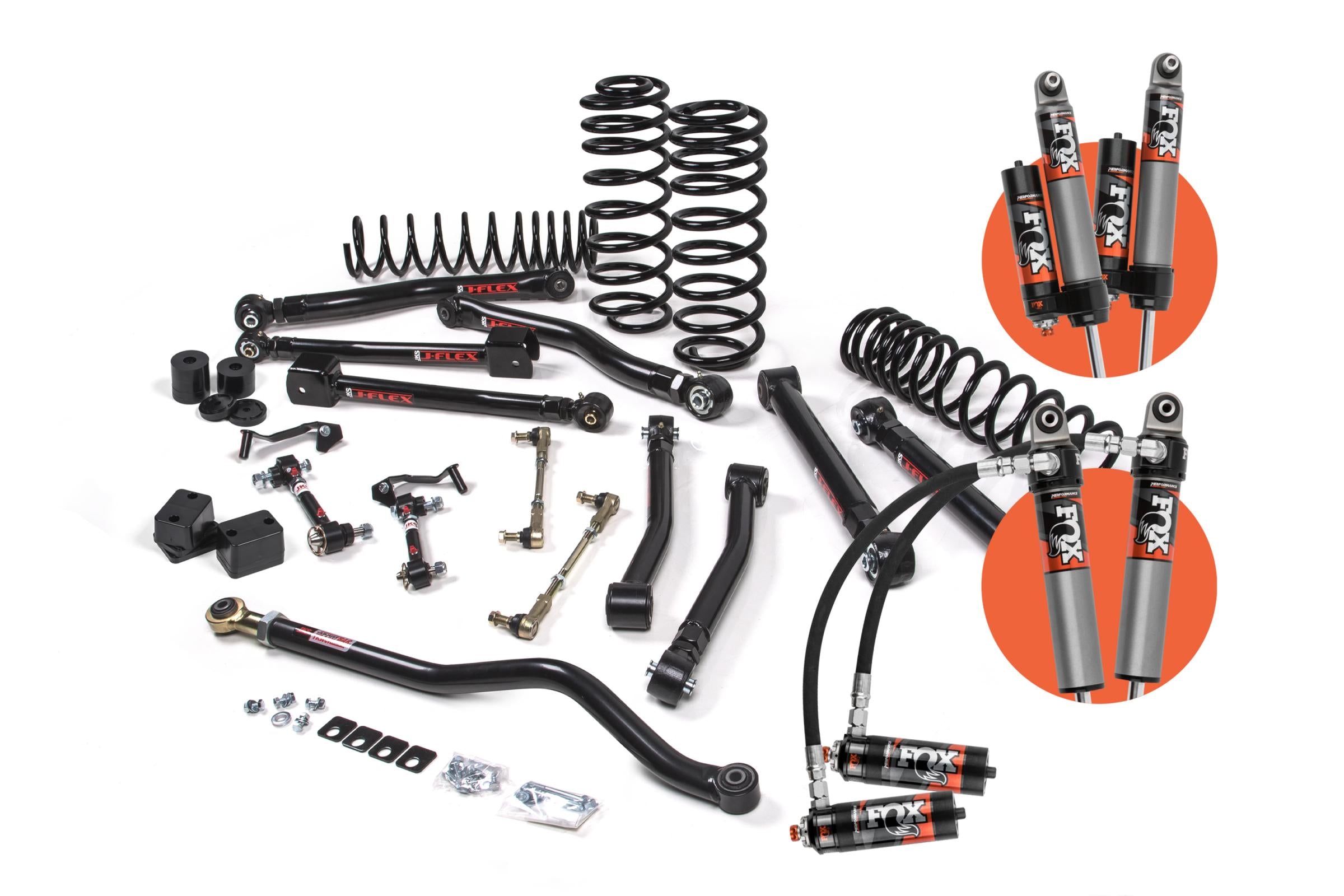

JKS J-Krawl 3.5" Lift Kit w/ Fox 2.5 Elite DSC | Standard-Rate Coils | 2018–2026 Jeep Wrangler JL 4-Door

JKS J-Krawl 3.5" Lift Kit w/ Fox 2.5 Elite DSC | Standard-Rate Coils | 2018–2026 Jeep Wrangler JL 4-Door

Is This for You?

You're building a dedicated crawler on a stock-weight JL 4-Door Unlimited and you want the top-spec Fox shock in the J-Krawl 3.5" standard-rate lineup. The JSPEC127PES delivers JKS J-Krawl crawler geometry with Fox 2.5 Elite DSC reservoir shocks and standard-rate coil springs. Driver-adjustable compression lets you dial in the shock for slow-speed rock crawling or faster trail transitions, while the standard-rate coils maximize droop travel and articulation compliance for stock-weight builds. This is the highest-performing shock configuration in the J-Krawl 3.5" standard-rate JL 4-Door lineup.

The Result

3.5" of lift with JKS J-Krawl crawler geometry — engineered for maximum droop travel and articulation on technical terrain. Standard-rate coils maximize droop travel and articulation compliance for stock-weight builds. Fox 2.5 Elite DSC shocks give you on-the-fly compression adjustment: open it up for maximum compliance on slow rock sections, firm it up for faster trail transitions. The combination of J-Krawl geometry, standard-rate coils, and DSC adjustment delivers the most tunable articulation setup in the J-Krawl 3.5" standard-rate JL 4-Door lineup.

Verified Fitment (OFAS Standard)

• Fits: 2018–2026 Jeep Wrangler JL 4-Door (Unlimited) — Gas Models (2.0T, 3.6L), Stock-Weight Configuration
• Does NOT fit: JL 2-Door | JL EcoDiesel | JL 4xe Hybrid | JK (any year) | Gladiator JT
• Coil Note: Standard-Rate — NOT recommended for builds with steel bumpers, winch, or heavy rock rails. Use JSPEC128PES (HD coils) for accessorized builds.

System Specifications

• Lift Height: 3.5"
• System: J-Krawl (crawler-specific geometry, maximum articulation)
• Shock: Fox 2.5 Elite w/ DSC (Dual Speed Compression) Reservoir
• Coil Rate: Standard-Rate — optimized for stock-weight JL 4-Door crawler builds
• Control Arms: JKS J-Krawl geometry-corrected control arms
• SKU: JSPEC127PES

Installation & Fabrication Notes

Professional 4-wheel alignment required post-installation. Torque all control arm hardware to JKS specification after a 500-mile break-in. Confirm DSC adjuster knob placement for driver accessibility during install. Verify Fox 2.5 reservoir clearance against skid plates and rock rails. The J-Krawl system is designed for locker-equipped builds — confirm front and rear locker compatibility with OFAS before finalizing your build spec. No cutting or welding required for standard JL 4-Door gas applications.

Wheel & Tire Fitment

Engineered for 37" tires on a stock-weight crawler build. Recommended backspacing: 4.5"–4.75" on a 17"×9" or 18"×9" wheel. Standard-rate coils are not recommended for tire sizes exceeding 37" without load confirmation from OFAS. Contact OFAS for 40" tire clearance confirmation.

Engineering Question

Running Fox 2.5 Elite DSC with standard-rate coils on a J-Krawl 3.5" stock-weight JL 4-Door crawler build — what DSC low-speed compression setting maximizes articulation compliance on slow rock sections without sacrificing body control on side-hills? On a stock-weight JL 4-Door with standard-rate coils, the DSC low-speed circuit can be run softer than on a heavier or HD-coil build because the lighter spring rate already provides more compliance. The optimal low-speed setting depends on your tire pressure, locker engagement pattern, and terrain angle. Contact OFAS with your full build spec and we'll give you a DSC baseline starting position calibrated for your specific JL 4-Door J-Krawl 3.5" standard-rate configuration.
