JKS J-Konnect 2.5" Lift Kit w/ Fox 2.5 | HD Coils | 2018–2026 Jeep Wrangler JL 4-Door

JKS J-Konnect 2.5" Lift Kit w/ Fox 2.5 | HD Coils | 2018–2026 Jeep Wrangler JL 4-Door

Is This for You?

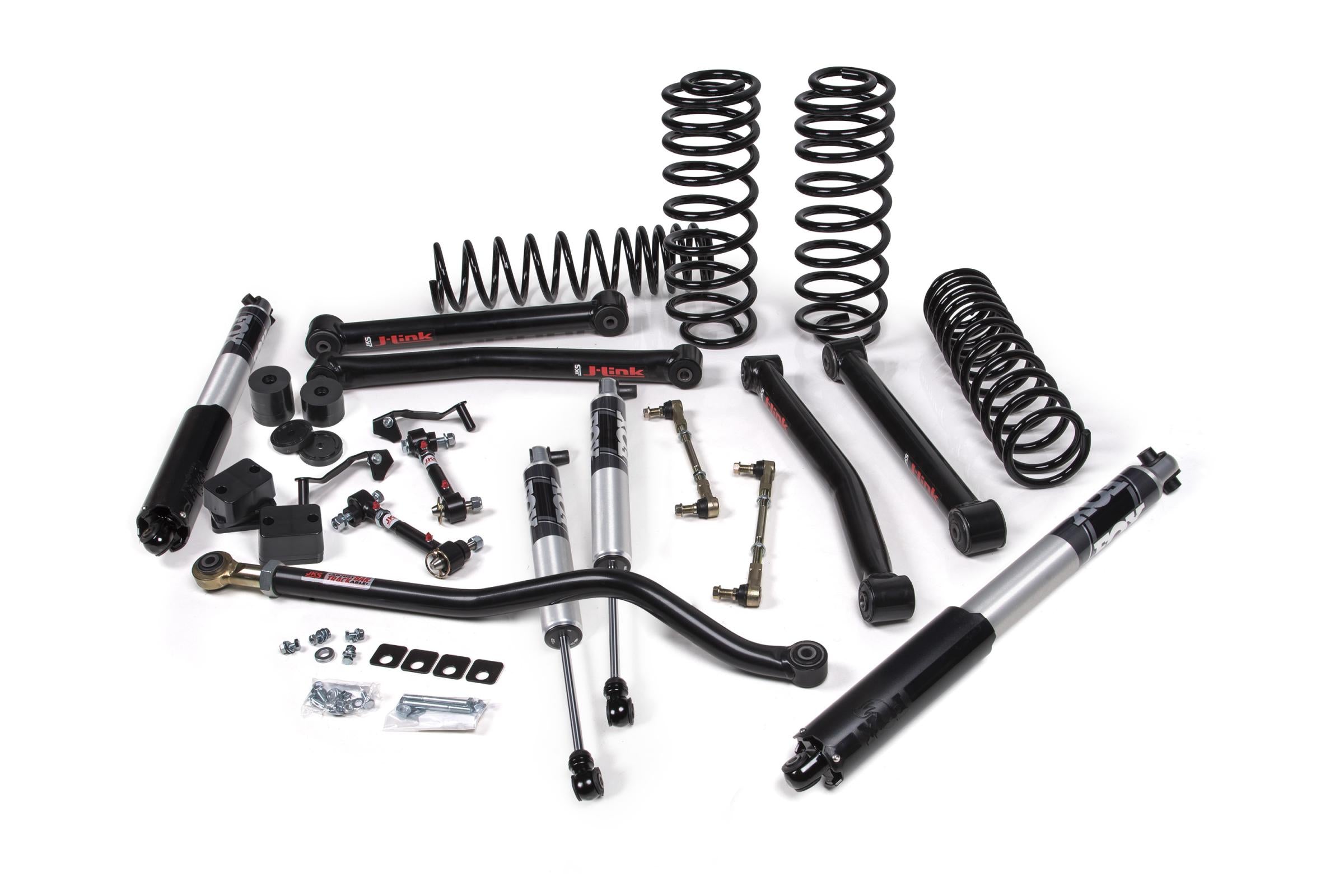

You want the J-Konnect long-arm platform on your JL 4-Door Unlimited but you're targeting 2.5" of lift — enough to clear 35s with proper backspacing, correct your geometry, and maintain a more street-friendly stance. The JSPEC122PS pairs JKS long-arm control arms with Fox 2.5 Performance Series reservoir shocks and HD coil springs tuned for accessorized builds. If you're running a steel bumper, winch, or heavy spare and want a composed, capable ride at a moderate lift height, this is your kit.

The Result

2.5" of lift with long-arm caster and pinion correction. HD coils handle the added front-end weight of steel bumpers and winches without sagging. Fox 2.5 reservoir shocks deliver consistent damping and heat dissipation on extended trail runs. Adjustable upper and lower control arms allow precise alignment post-install. The result is a capable, planted JL 4-Door that doesn't sacrifice on-road manners for trail performance.

Verified Fitment (OFAS Standard)

• Fits: 2018–2026 Jeep Wrangler JL 4-Door (Unlimited) — Gas Models
• Does NOT fit: JL 2-Door | JL Diesel (EcoDiesel) | JL 4xe Hybrid | JK (2007–2018) | Gladiator JT

System Specifications

• Lift Height: 2.5"
• System: J-Konnect Long-Arm
• Shock: Fox 2.5 Performance Series w/ Reservoir
• Coil Rate: HD — tuned for accessorized JL 4-Door builds with steel bumpers or winch
• Control Arms: JKS adjustable upper and lower long-arm (front and rear)
• SKU: JSPEC122PS

Installation & Fabrication Notes

Long-arm geometry requires a front differential drop or relocation bracket (included or specified in kit). Professional 4-wheel alignment required post-installation. Torque all control arm hardware to JKS specification after a 500-mile break-in. No cutting or welding required for standard JL 4-Door gas applications. Confirm Fox 2.5 reservoir clearance against skid plates and rock rails during install.

Wheel & Tire Fitment

Engineered for 35" tires. Recommended backspacing: 4.5"–4.75" on a 17"×9" or 18"×9" wheel. At 2.5" of lift, fender clearance with 35s is tight — confirm tire brand and tread width before finalizing wheel selection. 37" tires are not recommended at this lift height without fender modification.

Engineering Question

Running a steel front bumper and winch on your JL 4-Door and wondering if 2.5" of lift with HD coils will hold your ride height under full accessory load? Front-end weight from a steel bumper and winch can compress standard-rate coils 0.5"–1" under static load. The HD coils in this kit are spec'd to compensate — but the exact outcome depends on your bumper weight and winch model. Send OFAS your build sheet and we'll confirm whether this kit holds your target ride height.
